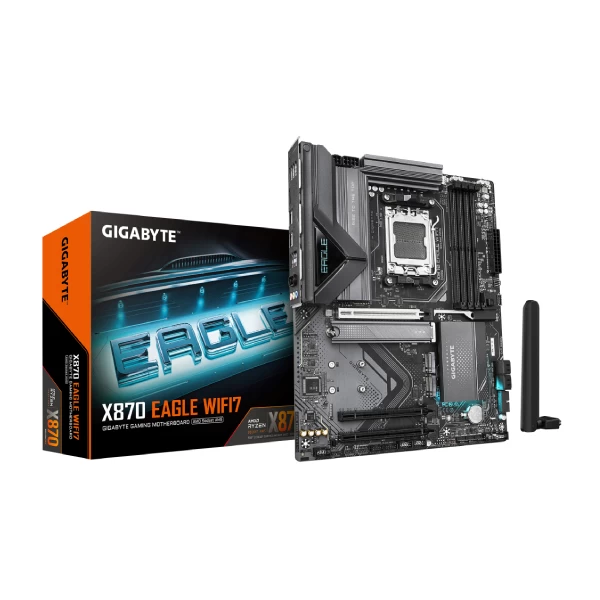

Gigabyte X870 Eagle WIFI7 ATX Motherboard (AM5, DDR5, Wi-Fi 7)

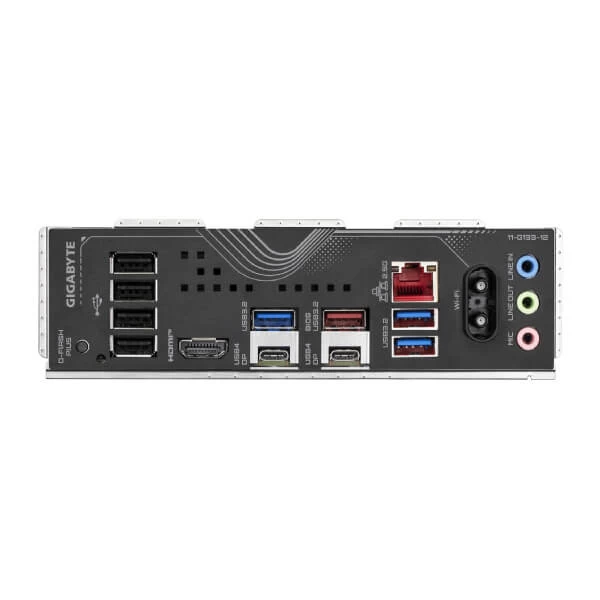

The Gigabyte X870 Eagle WIFI7 is a full-size ATX motherboard built on AMD’s X870 chipset, designed for the AM5 platform. It supports AMD Ryzen 9000, 8000, and 7000 series processors, offering a versatile upgrade path for builders targeting current and prior-generation AMD CPUs. The board features a digital twin 14+2+2 phase VRM solution protected by VRM Thermal Armor Advanced, helping to sustain stable power delivery under demanding workloads. Four DDR5 DIMM slots support dual-channel memory configurations up to 256 GB, with speeds reaching up to 8200 MHz and compatibility with both AMD EXPO and Intel XMP profiles for straightforward memory tuning. Storage is handled by three M.2 Socket 3 connectors, one of which operates at PCIe 5.0 x4 for maximum NVMe throughput, complemented by four SATA 6 Gb/s ports. The primary PCIe x16 slot runs at PCIe 5.0 x16 when paired with Ryzen 9000 or 7000 series processors, or PCIe 4.0 with Ryzen 8000 series Phoenix CPUs. Gigabyte’s EZ-Latch Plus system allows tool-free installation and removal of PCIe and M.2 devices, while EZ-Latch Click extends screwless convenience to M.2 heatsinks. Networking capabilities include 2.5 GbE LAN via a rear RJ-45 port alongside integrated Wi-Fi 7 with Bluetooth 5.4, supported by a 2T2R antenna via the WIFI EZ-Plug connector. Rear connectivity includes two USB4 Type-C ports with DisplayPort Alt Mode, one USB 3.2 Gen 2 Type-A port, three USB 3.2 Gen 1 ports, four USB 2.0/1.1 ports, and one HDMI output. Onboard headers include addressable RGB Gen2 and standard RGB headers, system fan headers, a USB 3.2 Gen 2×2 Type-C internal header, and a TPM header. The Q-Flash Plus button on the rear I/O allows BIOS updates without a CPU or memory installed. Key Verified Specifications: – Socket: AM5 – Chipset: AMD X870 – Form Factor: ATX – CPU Compatibility: AMD Ryzen 9000 / 8000 / 7000 Series – Memory: 4x DDR5 DIMM, Dual Channel, up to 256 GB, up to 8200 MHz (EXPO/XMP) – Storage: 3x M.2 (1x PCIe 5.0 x4), 4x SATA 6 Gb/s – Primary PCIe Slot: PCIe 5.0 x16 (Ryzen 9000/7000) / PCIe 4.0 (Ryzen 8000) – Wireless: Wi-Fi 7, Bluetooth 5.4 (2T2R antenna) – Wired LAN: 2.5 GbE – Rear USB: 2x USB4 Type-C (DP Alt), 1x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1, 4x USB 2.0 – Display Output: 1x HDMI, 2x USB4 with DP Alt Mode – VRM: 14+2+2 phase digital twin – Color: Black – Warranty: 3 Years – GTIN: 4719331864996
