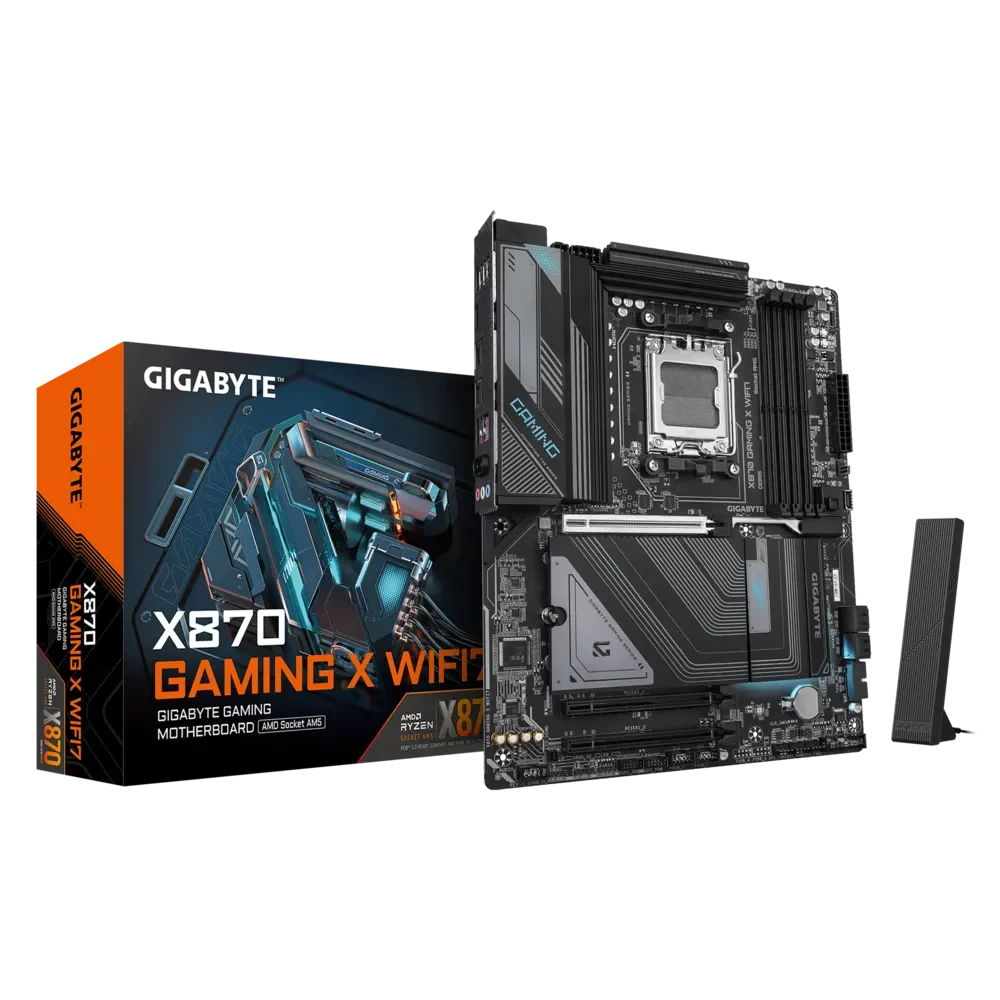

GIGABYTE X870 Gaming X WIFI7 DDR5 AMD Motherboard

The GIGABYTE X870 Gaming X WIFI7 is an ATX-form-factor motherboard built on the AMD X870 chipset with an AM5 socket, supporting AMD Ryzen 9000, 8000, and 7000 Series processors. Its robust 16+2+2-phase digital twin VRM solution delivers stable power delivery even under sustained workloads, while the VRM Thermal Armor Advanced and M.2 Thermal Guard Ext help keep critical components at safe operating temperatures. Memory support spans four DDR5 DIMM slots accommodating up to 256 GB of system memory (64 GB per DIMM) across a dual-channel architecture. Rated speeds reach DDR5-8200 (OC), and the board supports both AMD EXPO and Intel XMP profiles for one-click overclocking. Standard non-ECC un-buffered DIMM modules in 1Rx8, 2Rx8, and 1Rx16 configurations are all compatible. Storage is handled by three M.2 slots: one CPU-connected M.2 (M2A_CPU) supporting PCIe 5.0 x4 NVMe SSDs with Ryzen 9000/7000 processors, and two chipset-connected M.2 slots supporting PCIe 4.0. Four SATA 6 Gb/s ports round out traditional drive options, with RAID 0, 1, and 10 supported for SATA, and RAID 0, 1, 5, and 10 for NVMe (RAID 5 requires Ryzen 9000). The primary PCIe x16 slot runs at PCIe 5.0 x16 with Ryzen 9000/7000 CPUs. Networking is handled by a Realtek 2.5GbE LAN controller alongside either a MediaTek MT7925 or Realtek RTL8922AE Wi-Fi 7 module (802.11a/b/g/n/ac/ax/be), covering 2.4 GHz, 5 GHz, and 6 GHz bands with 160 MHz channel support and Bluetooth 5.4. Wi-Fi 7 features require Windows 11 SV3; 6 GHz band availability varies by country. Connectivity on the rear I/O includes two USB4 Type-C ports with DisplayPort Alt Mode (up to 3840×2160 @ 240 Hz), one USB 3.2 Gen 2 Type-A, three USB 3.2 Gen 1, four USB 2.0 ports, one HDMI 2.1 port (up to 4096×2160 @ 60 Hz, HDCP 2.3), one RJ-45, and three audio jacks. Internal headers add a USB 3.2 Gen 2×2 Type-C header and additional USB 3.2 Gen 1 and USB 2.0 headers. GIGABYTE's EZ-Latch Plus enables tool-free PCIe and M.2 slot releases, while EZ-Latch Click removes screws from M.2 heatsinks for fast drive swaps. The board ships with a licensed AMI UEFI BIOS featuring Q-Flash Plus (BIOS update without a CPU or RAM installed), multi-theme UI, AIO fan control, and Q-Flash Auto Scan. GIGABYTE Control Center software provides unified system monitoring and RGB management via three addressable RGB Gen2 headers and one standard RGB header. Three-year warranty is included. Verified Specifications: - Socket: AM5 | Chipset: AMD X870 - CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series - Memory: 4× DDR5, up to 256 GB, DDR5-4400 to DDR5-8200(OC), AMD EXPO & XMP - Storage: 1× M.2 PCIe 5.0 x4 (CPU), 1× M.2 PCIe 4.0 x4 (chipset), 1× M.2 PCIe 4.0 x2 (chipset), 4× SATA 6 Gb/s - Primary PCIe Slot: PCIe 5.0 x16 (Ryzen 9000/7000) - LAN: Realtek 2.5GbE - Wi-Fi: Wi-Fi 7 (802.11be), 2.4/5/6 GHz, 160 MHz, BT 5.4 - USB (rear): 2× USB4 Type-C, 1× USB 3.2 Gen 2 Type-A, 3× USB 3.2 Gen 1, 4× USB 2.0 - Video Out: 1× HDMI 2.1, 2× USB4 Type-C with DP Alt - Audio: Realtek HD Audio, 7.1-channel - Form Factor: ATX, 305 mm × 244 mm - Warranty: 3 Years
