GIGABYTE X870E Aorus Master X3D WiFi 7 ATX Motherboard (AM5, DDR5)
MPN X870E-AORUS-MASTER-X3D-WIFI7 · Brand GIGABYTE · ATX
GIGABYTE X870E Aorus Master X3D is an AM5 ATX motherboard featuring an 18+2+2 phase VRM, five M.2 slots (PCIe 5.0), dual LAN (10GbE + 5GbE), Wi-Fi 7, and dual USB4 Type-C ports for AMD Ryzen 7000/8000/9000 Series builds
Inclusive of GST · GST invoice available
Overview
The GIGABYTE X870E Aorus Master X3D is a flagship ATX motherboard built on AMD's X870E chipset for the AM5 platform. Designed for enthusiast builders and content creators who demand top-tier connectivity and robust power delivery, it pairs an advanced VRM implementation with next-generation networking to handle AMD's most demanding Ryzen processors without compromise. At the heart of its power delivery is an 18+2+2 phase digital-twin VRM solution, providing stable voltage regulation for AMD Ryzen 9000, 8000, and 7000 Series processors. The board supports up to 256 GB of DDR5 memory across four DIMM slots, with compatibility for AMD EXPO and Intel XMP profiles, and memory speeds reachable beyond the JEDEC base via BIOS tuning. X3D Turbo Mode 2.0 is a GIGABYTE-specific BIOS feature that optimises settings for AMD 3D V-Cache processors. Storage is comprehensively served by five M.2 slots — one of which operates at PCIe 5.0 x4 — alongside two SATA 6 Gb/s ports. The primary PCIe x16 slot (PCIe UD Slot X) is rated for PCIe 5.0 x16 operation with Ryzen 9000 and 7000 Series CPUs, and features reinforced retention claimed at 10× standard strength. PCIe EZ-Latch Plus Duo and M.2 EZ-Latch Click/Plus mechanisms allow screwless installation on both GPU and M.2 storage. Networking capabilities include a 10 GbE LAN port, a 5 GbE LAN port, and onboard Wi-Fi 7 with Bluetooth 5.4, supported by a 2T2R antenna connector pair. The rear I/O is equipped with two USB4 Type-C ports with DisplayPort Alt-mode, one USB 3.2 Gen 2×2 Type-C port, one USB 3.2 Gen 2 Type-C port, and seven USB 3.2 Gen 2 Type-A ports, plus an HDMI output and optical S/PDIF. A front-panel USB Type-C header supports 65 W quick-charge output. Thermal management features include VRM Thermal Armor Advanced, M.2 Thermal Guard L, M.2 Thermal Guard Ext, and a PCB Thermal Plate that GIGABYTE states provides 14% thermal improvement versus a board without the plate. Verified Specifications: - Socket: AMD AM5 - Chipset: AMD X870E - CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series - Form Factor: ATX - Memory: 4× DDR5 DIMM, up to 256 GB (64 GB per DIMM), Dual Channel, AMD EXPO / XMP - VRM: 18+2+2 phase digital twin - PCIe x16 Slot: PCIe 5.0 x16 (Ryzen 9000/7000); PCIe 4.0 x8 (Ryzen 8000 Phoenix 1); PCIe 4.0 x4 (Ryzen 8000 Phoenix 2) - M.2 Slots: 5× (includes PCIe 5.0 x4) - SATA: 2× SATA 6 Gb/s - LAN: 10 GbE + 5 GbE - Wireless: Wi-Fi 7, Bluetooth 5.4 - USB (Rear): 2× USB4 Type-C (DP Alt), 1× USB 3.2 Gen 2×2 Type-C, 1× USB 3.2 Gen 2 Type-C, 7× USB 3.2 Gen 2 Type-A - Video Output: 1× HDMI, 2× USB4 with DP Alt - Audio: 2× audio jacks, 1× optical S/PDIF Out - RGB Headers: 4× ARGB Gen2, 1× RGB - Warranty: 3 Years

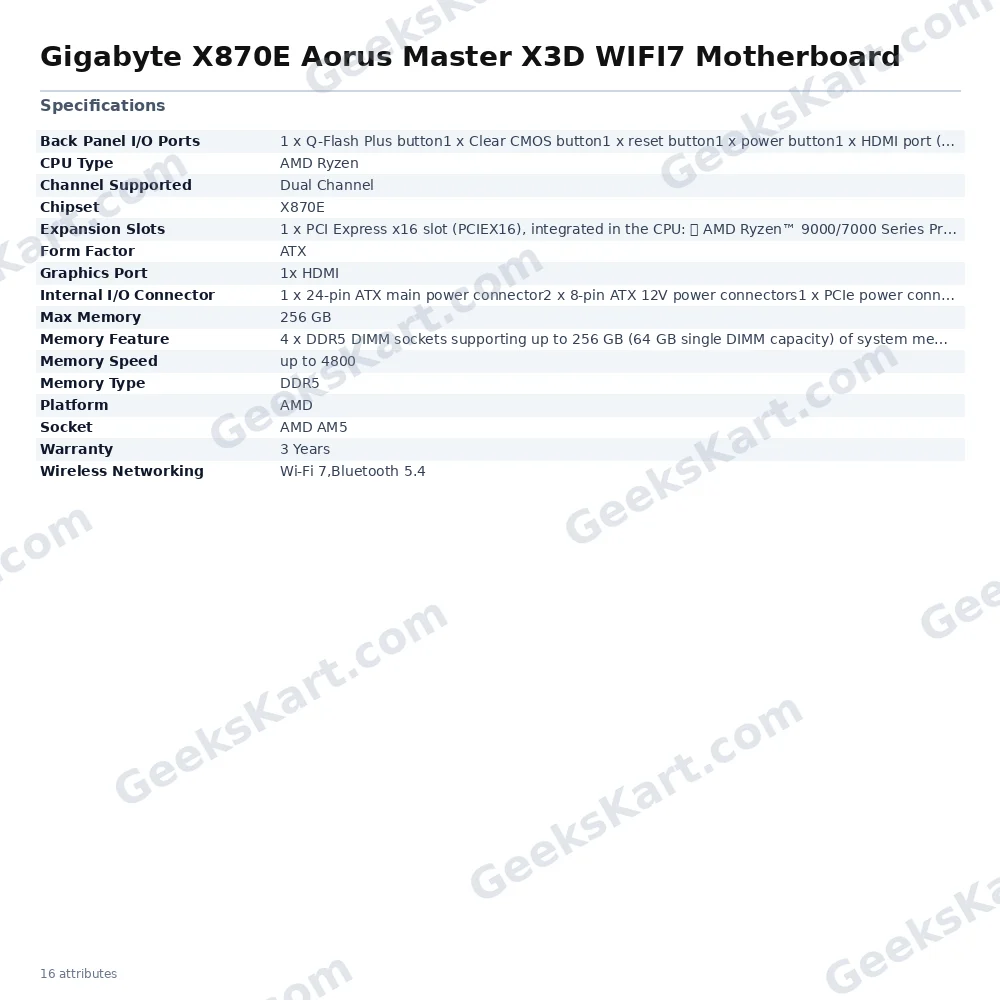

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | X870E |
| Socket | AM5 |
| CPU Type | AMD Ryzen |
| Max Memory | 256 GB |
| Memory Speed | up to 4800 |
| Platform | AMD |
| Graphics Port | 1x HDMI |
| Memory Feature | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Channel Supported | Dual Channel |
| Wireless Networking | Wi-Fi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | 1 x Q-Flash Plus button1 x Clear CMOS button1 x reset button1 x power button1 x HDMI port (Note)2 x USB4® USB Type-C® ports (DisplayPorts (Note))1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x USB Type-C® port, with USB 3.2 Gen 2×2 support7 x USB 3.2 Gen 2 Type-A ports (red)2 x RJ-45 ports2 x antenna connectors (2T2R)2 x audio jacks1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU |
| Internal I/O Connector | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x PCIe power connector1 x CPU fan header1 x CPU fan/water cooling pump header4 x system fan headers1 x system fan extension cable header (can extend three system fan headers through one cable)1 x system fan/water cooling pump header4 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header5 x M.2 Socket 3 connectors2 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x speaker header1 x USB Type-C® header, with USB 3.2 Gen 2×2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x noise detection header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x HDMI port (Note)1 x chassis intrusion header1 x reset jumper1 x Clear CMOS jumper2 x temperature sensor headers (Note) Actual support may vary by CPU |
