Gigabyte X870E Aorus PRO X3D Ice WIFI7 ATX Motherboard
MPN X870E-A-PRO-X-ICE · Brand GIGABYTE · ATX
Gigabyte X870E Aorus PRO X3D Ice is an AM5 ATX motherboard with an 18+2+2 phase VRM, DDR5 support up to 9000 MT/s, four M.2 slots (PCIe 5.0 primary), 5GbE LAN, Wi-Fi 7, dual USB4, and a 3-year warranty
Inclusive of GST · GST invoice available
Overview
The Gigabyte X870E Aorus PRO X3D Ice is a full-size ATX motherboard built on AMD's flagship X870E chipset, targeting enthusiast builders who pair high-core-count Ryzen processors with the fastest available DDR5 memory and NVMe storage. It uses the AMD AM5 socket and officially supports AMD Ryzen 9000, 8000, and 7000 series processors, making it a long-term platform investment as AMD continues to expand its AM5 lineup. At the heart of the board's power delivery is a Digital Twin 18+2+2 phase VRM solution paired with VRM Thermal Armor Advanced cooling, keeping voltage regulation stable under sustained all-core loads. Memory support spans four DDR5 DIMM slots in a dual-channel configuration with capacity up to 256 GB (64 GB per DIMM). Gigabyte's X3D Turbo Mode 2.0 leverages AI-assisted tuning alongside AMD EXPO and XMP profiles to push DDR5 memory up to 9000 MT/s, unlocking additional performance headroom for workloads that benefit from AMD's 3D V-Cache technology. Storage is handled by four M.2 Socket 3 connectors — including a PCIe 5.0 x4 slot for next-generation NVMe drives — complemented by four SATA 6 Gb/s ports. Gigabyte's M.2 EZ-Latch Click and Plus system enables screwless installation, while M.2 EZ-Flex heatsinks and the M.2 Thermal Guard L and Ext. accessories manage drive temperatures. A PCB Thermal Plate is stated to provide a 14% thermal improvement and additional board rigidity. Networking is covered by a 5GbE LAN port and Wi-Fi 7 (802.11be) with Bluetooth 5.4, using a 2T2R directional Ultra-High-Gain antenna connected via the WIFI EZ-Plug quick-install connector. The DriverBIOS feature pre-installs Wi-Fi drivers so network connectivity is available immediately on first boot. The primary PCIe slot is a PCIe UD Slot X running at PCIe 5.0 x16 with reinforced retention claimed at 10× strength. The back panel delivers substantial connectivity: 5× USB 3.2 Gen 2 Type-A, 2× USB 3.2 Gen 2 Type-C, 2× USB4 Type-C (with DisplayPort Alt Mode), 3× USB 3.2 Gen 1, HDMI, RJ-45, optical S/PDIF out, dual audio jacks, Clear CMOS, Q-Flash Plus, and antenna connectors. Internally, headers include USB 3.2 Gen 2×2 Type-C front panel, addressable RGB Gen 2 (×3), standard RGB (×1), six fan/pump headers, two temperature sensor headers, and a noise detection header. Verified Specifications: - Socket: AM5 | Chipset: AMD X870E - CPU Support: Ryzen 9000 / 8000 / 7000 series - Form Factor: ATX - Memory: 4× DDR5 DIMM, dual-channel, up to 256 GB (64 GB per slot), up to 9000 MT/s (EXPO/XMP) - Storage: 4× M.2 (PCIe 5.0 x4 on primary slot), 4× SATA 6 Gb/s - Primary PCIe: 1× PCIe 5.0 x16 (UD Slot X) - LAN: 5GbE | Wireless: Wi-Fi 7, Bluetooth 5.4 (2T2R) - VRM: 18+2+2 phase digital twin - Back Panel USB: 2× USB4, 5× USB 3.2 Gen 2 Type-A, 2× USB 3.2 Gen 2 Type-C, 3× USB 3.2 Gen 1 - Display Out: HDMI, 2× USB4 Type-C (DP Alt) - Front USB: USB 3.2 Gen 2×2 Type-C header - RGB: 3× aRGB Gen 2, 1× standard RGB - Warranty: 3 Years

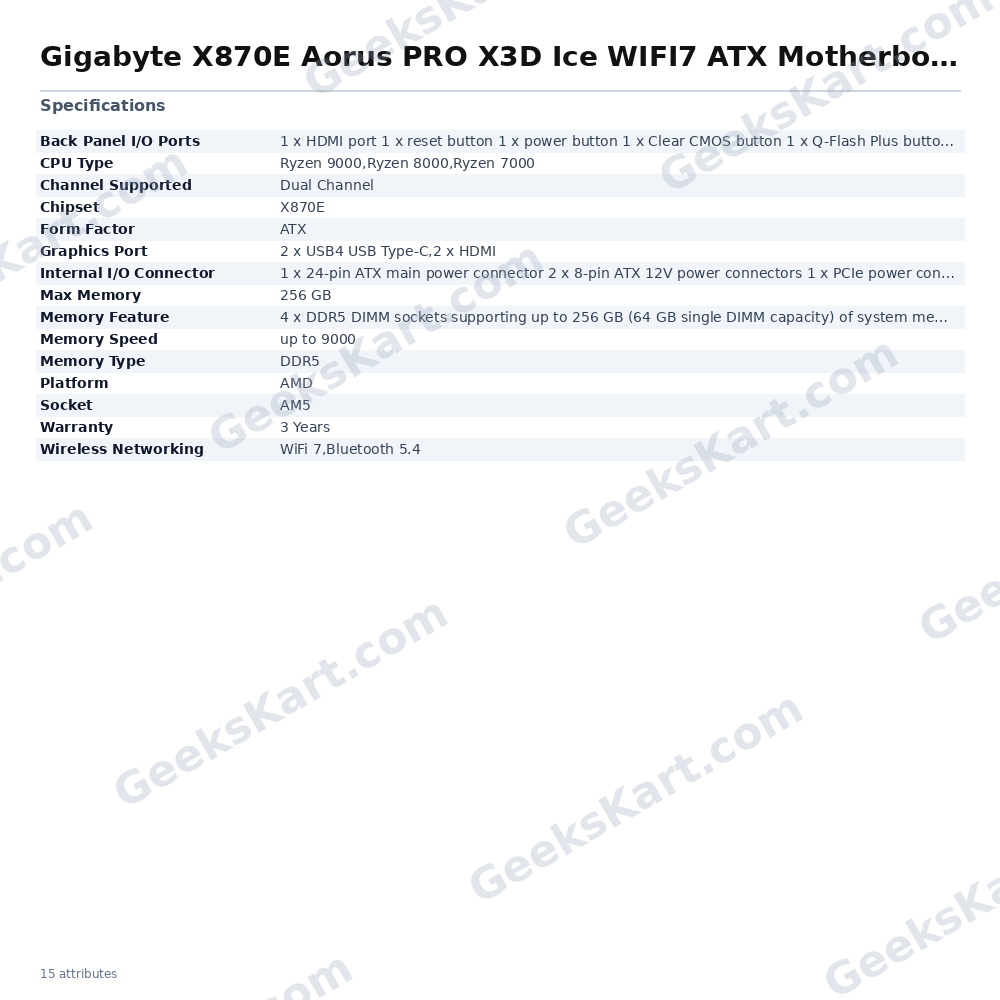

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | X870E |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Max Memory | 256 GB |
| Memory Speed | up to 9000 |
| Platform | AMD |
| Graphics Port | 2 x USB4 USB Type-C,2 x HDMI |
| Memory Feature | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | 1 x HDMI port 1 x reset button 1 x power button 1 x Clear CMOS button 1 x Q-Flash Plus button 5 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB Type-C ports, with USB 3.2 Gen 2 support 2 x USB4 USB Type-C ports (DisplayPort (Note)) 1 x RJ-45 port 3 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x PCIe power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x HDMI port 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper |
