Gigabyte X870E Eagle X3D WIFI7 ATX Motherboard
MPN X870E-EAGLE-X-WF7 · Brand GIGABYTE · ATX
The Gigabyte X870E Eagle X3D WiFi 7 ATX motherboard pairs AMD's X870E chipset with AM5 socket support for Ryzen 9000/8000/7000 CPUs, delivering PCIe 5.0 x16, four M.2 slots, DDR5 up to 9000 MT/s, 5GbE LAN, and integrated WiFi 7 with Bluetooth 5.4
Inclusive of GST · GST invoice available
Overview
The Gigabyte X870E Eagle X3D WiFi 7 is a full-size ATX motherboard built on AMD's premium X870E chipset, designed for the AM5 platform and compatible with AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 series processors. It is engineered to extract the maximum performance from AMD's 3D V-Cache-equipped CPUs through the X3D Turbo Mode 2.0 feature, which works alongside AI-assisted DDR5 overclocking to push memory speeds up to 9000 MT/s. The board ships with a robust 14+2+2 phase digital twin VRM solution paired with VRM Thermal Armor Advanced to keep power delivery components cool under sustained workloads. Four DDR5 DIMM slots support dual-channel memory in capacities up to 256 GB (64 GB per module), with native support for AMD EXPO and Intel XMP memory profiles. Storage options are extensive: four M.2 Socket 3 connectors provide high-speed NVMe connectivity — the primary slot runs at PCIe 5.0 x4 bandwidth — alongside four SATA 6Gb/s ports for conventional drives. M.2 EZ-Flex heatsinks and EZ-Latch screwless mechanisms simplify drive installation and removal. The primary PCIe x16 slot (CPU-direct) supports PCIe 5.0 x16 mode with Ryzen 9000 and 7000 processors, and features Gigabyte's EZ-Latch Plus quick-release mechanism reinforced to 10× standard holding strength. Networking is covered by a 5 GbE wired LAN port and an integrated WiFi 7 module with Bluetooth 5.4, with a WIFI EZ-Plug antenna connector for tool-free antenna attachment. The 2T2R antenna configuration supports directional, ultra-high-gain reception. A DriverBIOS feature pre-installs the Wi-Fi driver so the network is available immediately after power-on without a separate driver installation step. The rear I/O panel offers two USB4 Type-C ports with DisplayPort Alt Mode, one USB 3.2 Gen 2 Type-C, four USB 3.2 Gen 2 Type-A (red), four USB 3.2 Gen 1 Type-A, one HDMI output, an RJ-45 port, optical S/PDIF out, and two 3.5 mm audio jacks. Internal headers include a USB 3.2 Gen 2×2 Type-C header, two USB 3.2 Gen 1 headers, two USB 2.0 headers, three addressable Gen 2 ARGB headers, one standard RGB header, six system fan/pump headers, and two temperature sensor headers. Verifiable Specifications: • Socket: AMD AM5 • Chipset: AMD X870E • CPU Compatibility: AMD Ryzen 9000 / 8000 / 7000 Series • Form Factor: ATX • Memory: 4× DDR5 DIMM, dual-channel, up to 256 GB, up to 9000 MT/s (OC), supports AMD EXPO & XMP • Primary PCIe Slot: PCIe 5.0 x16 (CPU-direct, Ryzen 9000/7000); PCIe 4.0 x8 or x4 (Ryzen 8000) • Additional PCIe Slots: 1× PCIe 4.0 x4 (chipset), 1× PCIe 3.0 x2 (chipset) • M.2 Slots: 4× M.2 Socket 3 (primary at PCIe 5.0 x4) • SATA Ports: 4× SATA 6Gb/s • LAN: 5 GbE • Wireless: Wi-Fi 7 + Bluetooth 5.4 • USB4: 2× USB4 Type-C (rear) • HDMI: 1× (rear) • VRM: 14+2+2 phase digital twin • Warranty: 3 Years

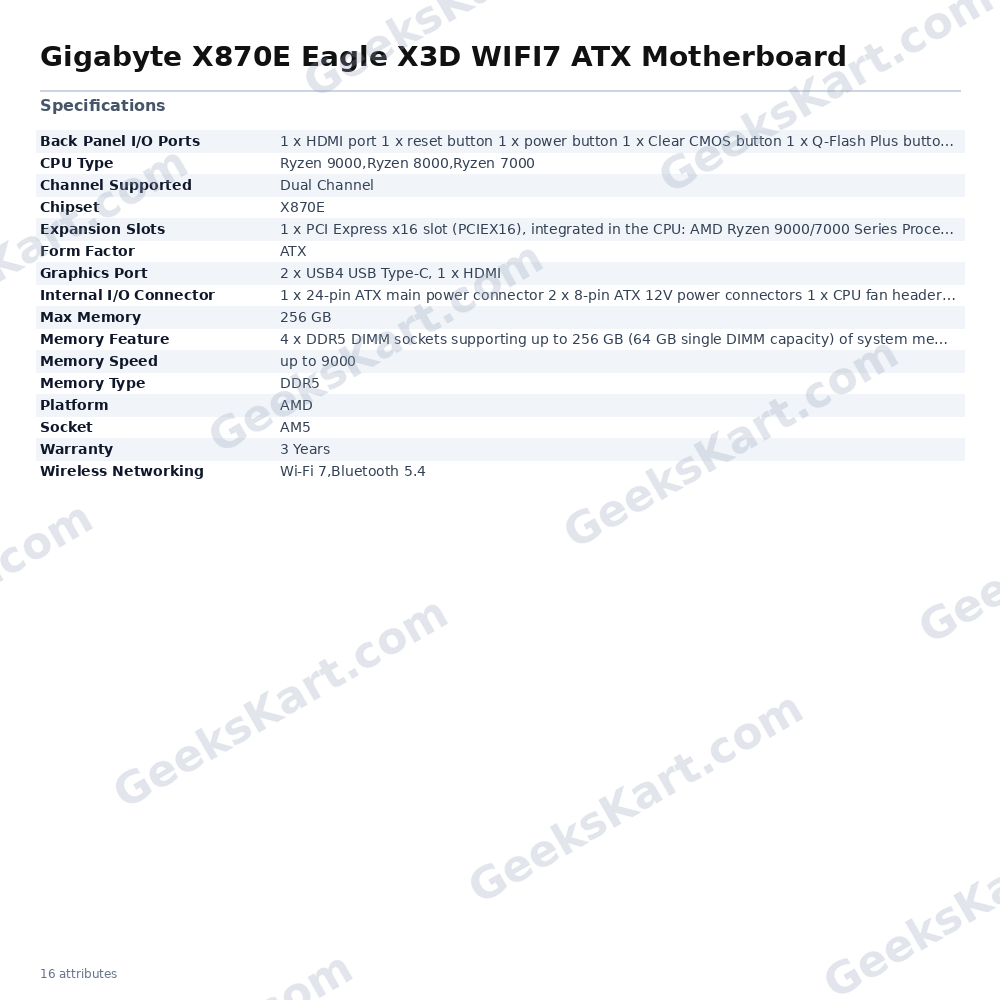

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | X870E |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Max Memory | 256 GB |
| Memory Speed | up to 9000 |
| Platform | AMD |
| Graphics Port | 2 x USB4 USB Type-C, 1 x HDMI |
| Memory Feature | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Channel Supported | Dual Channel |
| Wireless Networking | Wi-Fi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | 1 x HDMI port 1 x reset button 1 x power button 1 x Clear CMOS button 1 x Q-Flash Plus button 4 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB4 USB Type-C ports 1 x RJ-45 port 4 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x noise detection header |
