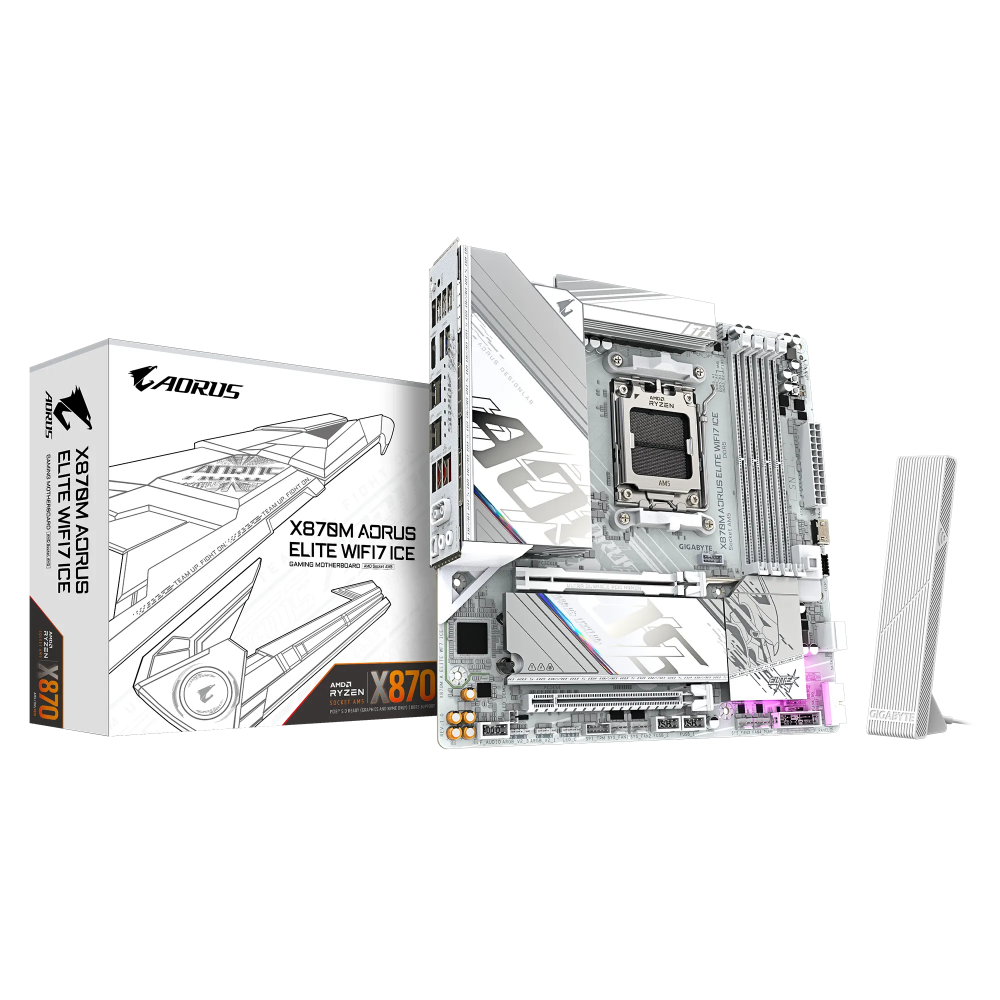

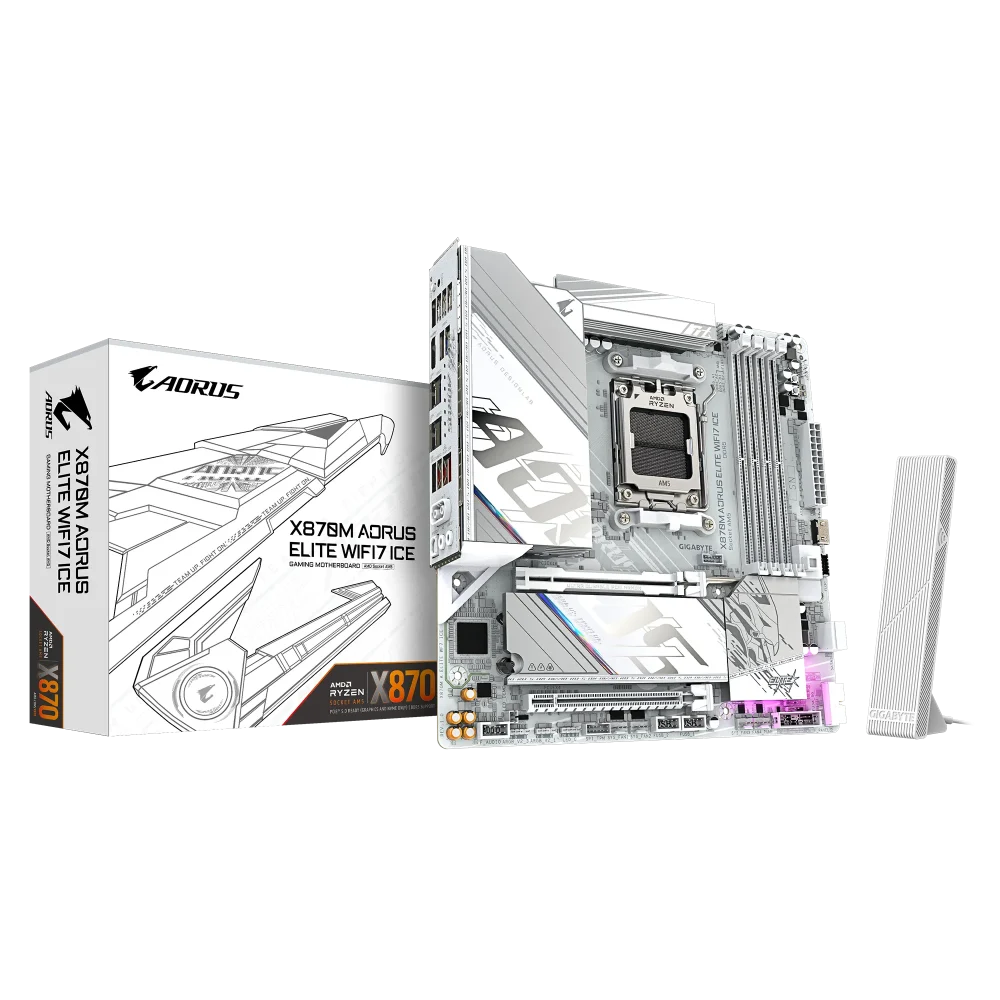

The GIGABYTE X870M Aorus Elite ICE is a Micro ATX motherboard built on the AMD X870 chipset, designed for AMD Socket AM5 processors including Ryzen 9000, Ryzen 8000, and Ryzen 7000 series CPUs. Its compact 24.4 cm × 24.4 cm footprint makes it an strong choice for space-conscious builds that still demand flagship-tier connectivity and memory performance. Memory support is a standout feature: four DDR5 DIMM slots accept up to 256 GB of system memory (64 GB per DIMM) running at speeds from 4400 MT/s all the way up to 8200 MT/s via overclocking. Both AMD EXPO and Intel XMP profiles are supported, allowing enthusiasts to push their DDR5 kits to rated speeds with a single BIOS toggle. Connectivity is extensive. Two USB4 Type-C ports on the rear panel — powered by an ASMedia USB4 controller — each deliver up to 40 Gbps transfer speeds and also carry DisplayPort 1.4 output at up to 3840×2160 @ 240 Hz. Alongside these sit two USB 3.2 Gen 2 Type-A ports (10 Gbps), four USB 3.2 Gen 1 ports (5 Gbps), and four USB 2.0 ports on the back panel. An internal USB Type-C header adds USB 3.2 Gen 2×2 (20 Gbps) for compatible front-panel connections. Wireless is handled by the Realtek Wi-Fi 7 RTL8922AE module supporting 802.11be across 2.4 GHz, 5 GHz, and 6 GHz bands with 160 MHz channel support and Bluetooth 5.4. Wired networking uses a Realtek 2.5GbE chip. Storage options include one CPU-connected M.2 slot (M2A_CPU) supporting PCIe 5.0 x4 SSDs with Ryzen 9000/7000 CPUs, one chipset-connected M.2 slot (M2C_SB) at PCIe 4.0 x4, and two SATA 6 Gb/s connectors. RAID 0/1/5/10 is available for NVMe devices (RAID 5 requires Ryzen 9000). The primary PCIe x16 slot runs at PCIe 5.0 x16 with Ryzen 9000/7000 CPUs. Audio is delivered by the Realtek ALC1220 codec with 7.1-channel High-Definition Audio output, S/PDIF optical out, and DSD support on the rear line-out jack. Fan control headers include one CPU fan, one CPU fan/pump combo, three system fan headers, and one system fan/pump combo — a total of six headers supporting both air and liquid cooling setups. Three addressable RGB Gen2 headers and one standard RGB header round out the aesthetics. GIGABYTE’s BIOS features Q-Flash and Q-Flash Plus (for BIOS updates without a CPU installed) and the X3D Turbo Mode optimisation for Ryzen 9000 series processors. System management is handled via GIGABYTE Control Center software. Verifiable Specifications: – Form Factor: Micro ATX, 24.4 cm × 24.4 cm – Socket: AMD AM5 – Chipset: AMD X870 – CPU Support: Ryzen 9000 / 8000 / 7000 Series – Memory: 4 × DDR5 DIMM, max 256 GB, up to 8200 MT/s (O.C.) – Primary M.2: PCIe 5.0 x4 (CPU), up to 110 mm – Secondary M.2: PCIe 4.0 x4 (Chipset), up to 110 mm – SATA: 2 × 6 Gb/s – PCIe x16 Slot: PCIe 5.0 x16 (Ryzen 9000/7000) – USB4: 2 × 40 Gbps Type-C (rear) – Wi-Fi: 802.11be (Wi-Fi 7), 2.4/5/6 GHz, 160 MHz – Bluetooth: 5.4 – LAN: 2.5 GbE (Realtek) – Audio: Realtek ALC1220, 7.1-channel, S/PDIF out – HDMI: 1 × HDMI 2.1 (rear, max 4096×2160 @ 60 Hz) – OS Support: Windows 11 64-bit
ASUS Prime H610M-F Wifi DDR4 Intel Motherboard
₹8,595.00
MSI Pro H810I Wifi7 DDR5 Intel Motherboard
₹15,880.00
GIGABYTE X870M Aorus Elite ICE Wifi7 DDR5 AMD Motherboard
₹38,460.00
The GIGABYTE X870M Aorus Elite ICE is a Micro ATX AM5 motherboard featuring AMD X870 chipset, dual USB4 Type-C ports at 40 Gbps each, Wi-Fi 7, and DDR5 support up to 8200 MT/s across four slots
Out of stock

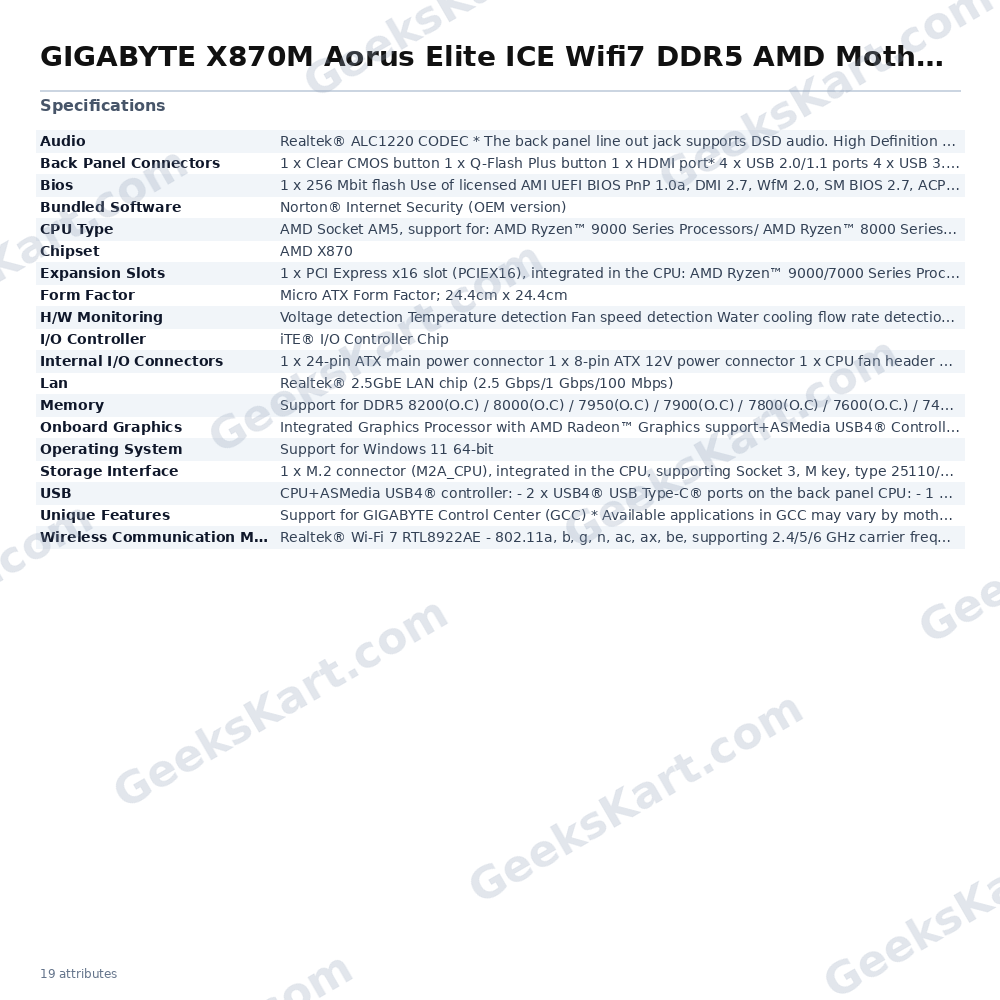

Additional information
| Form Factor | mATX |
|---|---|
| Chipset | AMD X870 |
| CPU Type | AMD Socket AM5, support for: AMD RyzenTM 9000 Series Processors/ AMD RyzenTM 8000 Series Processors/ AMD RyzenTM 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU+ASMedia USB4® controller: – 2 x USB4® USB Type-C® ports on the back panel CPU: – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: – 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz * Support for HDMI 1.4 version. (Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0 and RAID 1 support for SATA storage devices |
| Back Panel Connectors | 1 x Clear CMOS button 1 x Q-Flash Plus button 1 x HDMI port* 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB4® USB Type-C® ports (DisplayPort*) 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector * Actual support may vary by CPU |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port* 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper * Actual support may vary by CPU |
| Wireless Communication Module | Realtek® Wi-Fi 7 RTL8922AE – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations *** Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details |
