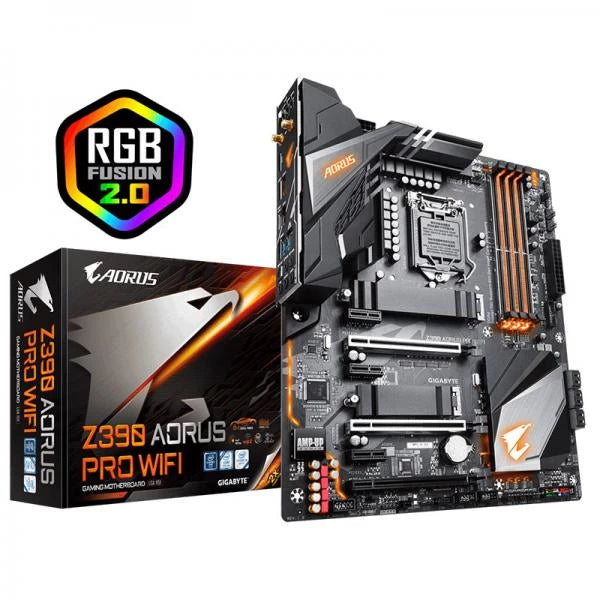

GIGABYTE Z390 Aorus Pro Wifi DDR4 Intel Motherboard
MPN GIGABYTE-Z390-AORUS-PRO-WIFI · Brand Gigabyte · ATX
The Gigabyte Z390 Aorus Pro WiFi is a full-ATX LGA1151 motherboard featuring a 12+1 phase digital power design, dual M.2 slots with Thermal Guard, Intel 802.11ac Wi-Fi, Bluetooth 5, and support for 8th and 9th Gen Intel Core processors up to i9
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z390 Aorus Pro WiFi is a full-size ATX motherboard built on Intel's Z390 Express Chipset, designed to support 8th and 9th Generation Intel Core processors in the LGA1151 socket — from Celeron and Pentium up to Core i9. Its 12+1 phase digital power design combines a digital PWM controller with DrMOS components, fed by an 8-pin plus 4-pin ATX 12V power configuration, to deliver precise and stable voltage to the CPU under sustained loads including overclocking workloads. Memory support spans four DDR4 DIMM slots with a dual-channel architecture, accommodating up to 128 GB of RAM (32 GB per slot maximum, subject to installed CPU). Standard speeds of 2133, 2400, and 2666 MHz are supported natively, while XMP-enabled kits can be pushed to 4266 MHz (O.C.). ECC unbuffered DIMMs operate in non-ECC mode. Storage options are extensive. Two M.2 Socket 3 connectors (M key) support both SATA and PCIe x4 SSD formats, with the primary slot accepting up to 22110-length drives. An M.2 Thermal Guard helps manage heat from high-speed NVMe devices. Six SATA 6 Gb/s ports round out storage, with support for RAID 0, 1, 5, and 10 configurations. Intel Optane Memory acceleration is also supported. Wireless connectivity is provided by an Intel CNVi module supporting 802.11ac on 2.4 GHz and 5 GHz dual-band with 160 MHz channel width and up to 1.73 Gbps theoretical data rate, alongside Bluetooth 5. Wired networking uses an Intel GbE LAN chip. The rear I/O panel includes one USB Type-C (USB 3.1 Gen 2), two USB 3.1 Gen 2 Type-A (red), three USB 3.1 Gen 1 Type-A, four USB 2.0 ports, one HDMI 1.4 output (up to 4096x2160 at 30 Hz via integrated graphics), an optical S/PDIF output, five audio jacks, and an RJ-45 port. Audio is handled by a Realtek ALC1220-VB codec supporting up to 7.1-channel High Definition Audio with DSD playback on the back-panel line-out and S/PDIF Out. The BIOS uses dual 128 Mbit flash with AMI UEFI and Gigabyte's DualBIOS protection. RGB Fusion software controls the onboard digital and standard RGB LED headers. Verified Specifications: - Form Factor: ATX, 30.5 cm x 24.4 cm - Socket: LGA1151 (8th & 9th Gen Intel Core, Pentium, Celeron) - Chipset: Intel Z390 Express - Memory: 4 x DDR4 DIMM, up to 128 GB, DDR4-2133 to 4266 (O.C.), XMP support - Storage: 2 x M.2 PCIe x4 / SATA (with Thermal Guard), 6 x SATA 6 Gb/s, RAID 0/1/5/10 - Expansion: 1 x PCIe x16, 1 x PCIe x8, 1 x PCIe x4, 3 x PCIe x1 (all PCIe 3.0) - Wireless: Intel 802.11ac (2.4/5 GHz, 160 MHz), Bluetooth 5 - LAN: Intel GbE (10/100/1000 Mbit) - Audio: Realtek ALC1220-VB, 7.1-channel HD Audio, S/PDIF Out - USB (rear): 1 x USB-C 3.1 Gen 2, 2 x USB-A 3.1 Gen 2, 3 x USB 3.1 Gen 1, 4 x USB 2.0 - BIOS: Dual AMI UEFI, DualBIOS - Power Design: 12+1 phase digital, 8+4 pin CPU power - Warranty: 3 Years

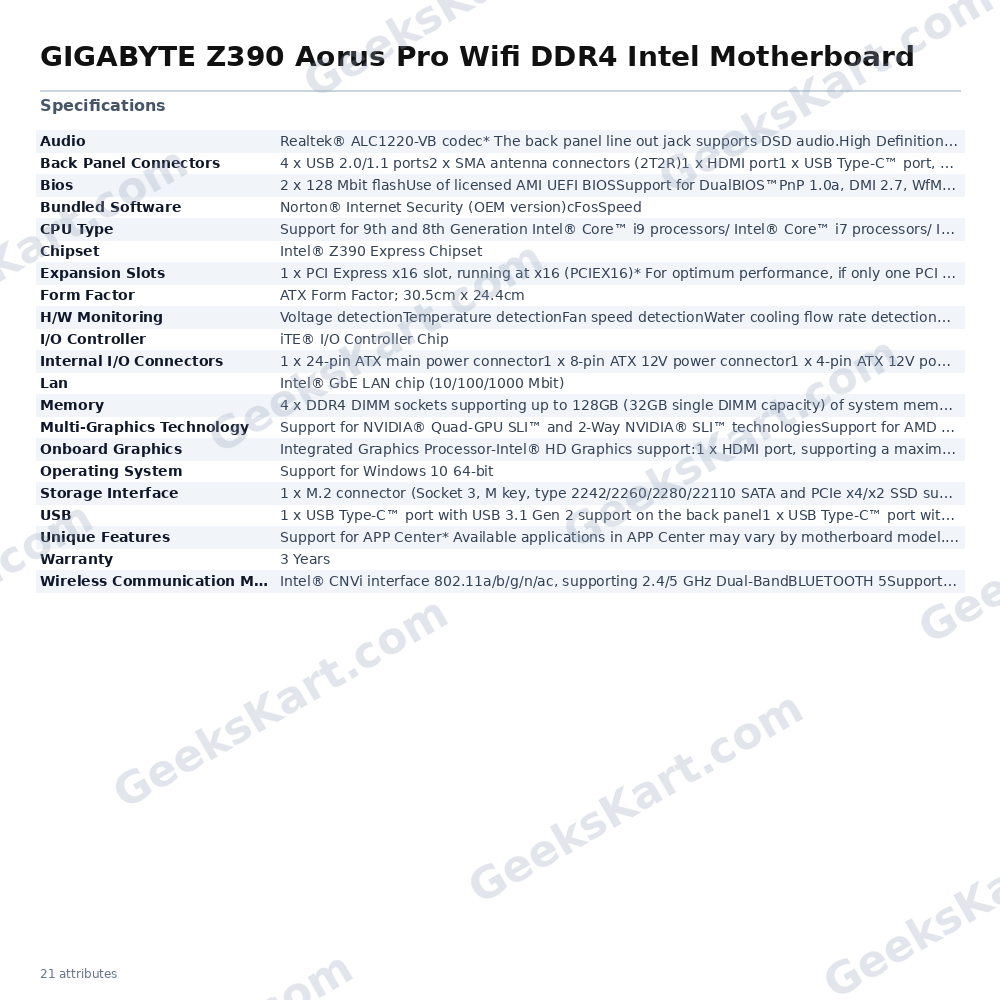

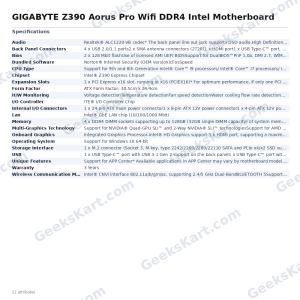

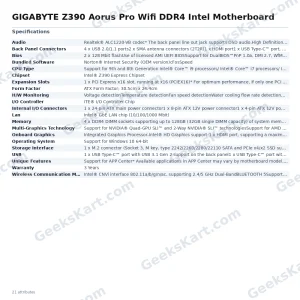

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z390 Express Chipset |
| CPU Type | |
| Lan | Intel® GbE LAN chip (10/100/1000 Mbit) |
| USB | 1 x USB Type-C™ port with USB 3.1 Gen 2 support on the back panel1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+USB 2.0 Hub:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 2 x 128 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOS™PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220-VB codec* The back panel line out jack supports DSD audio.High Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**** Please note that the support for system total memory size depends on the CPU installed.Dual channel memory architectureSupport for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer to "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x8 (PCIEX8)* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.1 x PCI Express x16 slot, running at x4 (PCIEX4)3 x PCI Express x1 slots(All of the PCI Express slots conform to PCI Express 3.0 standard.)1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAutoGreenCloud StationEasyTuneEasy RAIDFast BootGame BoostON/OFF ChargePlatform Power ManagementRGB FusionSmart BackupSmart KeyboardSmart TimeLockSmart HUDSystem Information ViewerSmart SurveyUSB BlockerSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)cFosSpeed |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.2.Maximum shared memory of 1 GBActual support may vary by CPU |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready |
| Back Panel Connectors | 4 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x HDMI port1 x USB Type-C™ port, with USB 3.1 Gen 2 support2 x USB 3.1 Gen 2 Type-A ports (red)3 x USB 3.1 Gen 1 ports1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header4 x system fan headers2 x system fan/water cooling pump headers2 x digital LED strip headers2 x digital LED strip power select jumpers2 x RGB LED strip headers6 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C™ port, with USB 3.1 Gen 1 support1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x Thunderbolt™ add-in card connector1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper2 x temperature sensor headers |
| Multi-Graphics Technology | Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologiesSupport for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies |
| Wireless Communication Module | Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate* Actual data rate may vary depending on environment and equipment |
