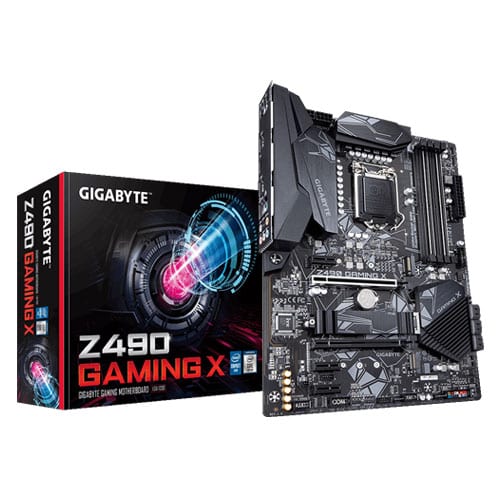

GIGABYTE Z490 Gaming X DDR4 Intel Motherboard
MPN GIGABYTE-Z490-GAMING-X · Brand Gigabyte · ATX
The Gigabyte Z490 Gaming X is an ATX motherboard for 10th Gen Intel LGA1200 processors, featuring dual M.2 slots, DDR4 XMP up to 4600 MHz (O.C.), USB 3.2 Gen 2, Realtek ALC1200 audio, and RGB Fusion 2.0 — backed by a 3-year warranty
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z490 Gaming X is an ATX-form-factor motherboard built around the Intel Z490 Express Chipset, designed to support 10th Generation Intel Core processors — including Core i9, Core i7, Core i5, Core i3, Pentium, and Celeron — in the LGA1200 socket. At 30.5 cm × 23.0 cm, it fits standard ATX chassis and provides a well-rounded feature set for gaming and productivity builds alike. Memory headroom is a standout capability. Four DDR4 DIMM slots support up to 128 GB of system memory (32 GB per DIMM), running in dual-channel configuration. With an XMP-capable kit and Core i9 or i7 processor installed, memory can be pushed to DDR4 4600 MHz (O.C.). Core i5, i3, Pentium, and Celeron processors support up to DDR4 2666 MHz natively. Storage options are flexible and fast. Two M.2 Socket 3 connectors (M key) accommodate both PCIe x4/x2 and SATA SSDs: one slot supports lengths up to 22110 mm and includes a thermal guard, while the second supports up to 2280 mm. Six SATA 6 Gb/s ports round out storage, with RAID 0, 1, 5, and 10 support. Intel Optane Memory is also supported. Connectivity is handled by an Intel Gigabit Ethernet LAN chip with cFosSpeed software included. On the USB front, the rear I/O panel delivers one USB 3.2 Gen 2 Type-A port (10 Gbps), five USB 3.2 Gen 1 ports, and two USB 2.0 ports, with additional headers for internal expansion. Thunderbolt 3 add-in card support is available via two onboard AIC connectors. Audio is driven by the Realtek ALC1200 codec, delivering High Definition Audio in 2/4/5.1/7.1-channel configurations with S/PDIF Out. The board carries an onboard HDMI 1.4 output capable of 4096×2160 at 30 Hz for systems using Intel integrated graphics. RGB Fusion 2.0 controls both the two addressable LED strip headers and two standard RGB LED strip headers on board. Smart Fan 5 manages the CPU fan header and four system fan headers using multiple temperature sensors and a hybrid FAN STOP function. Q-Flash Plus allows BIOS updates without installing a CPU, memory, or GPU — useful during initial builds or recovery scenarios. The AMI UEFI BIOS is stored on a 256 Mbit flash chip. Verified Specifications: - Socket: LGA1200 | Chipset: Intel Z490 Express - Form Factor: ATX, 30.5 cm × 23.0 cm - Memory: 4× DDR4 DIMM, up to 128 GB, dual channel; XMP up to 4600 MHz O.C. (i9/i7) - Storage: 2× M.2 (PCIe x4/SATA), 6× SATA 6 Gb/s, RAID 0/1/5/10 - USB (rear): 1× USB 3.2 Gen 2 Type-A, 5× USB 3.2 Gen 1, 2× USB 2.0 - Audio: Realtek ALC1200, 7.1-channel HD Audio, S/PDIF Out - LAN: Intel GbE (1000/100 Mbit) - Display: 1× HDMI 1.4 (4096×2160 @ 30 Hz, iGPU) - Multi-GPU: 2-Way AMD CrossFire; PCIe 3.0 slots - Warranty: 3 Years

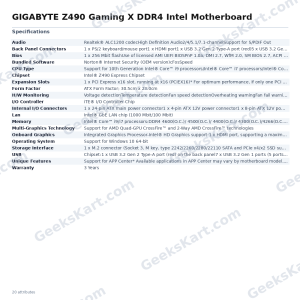

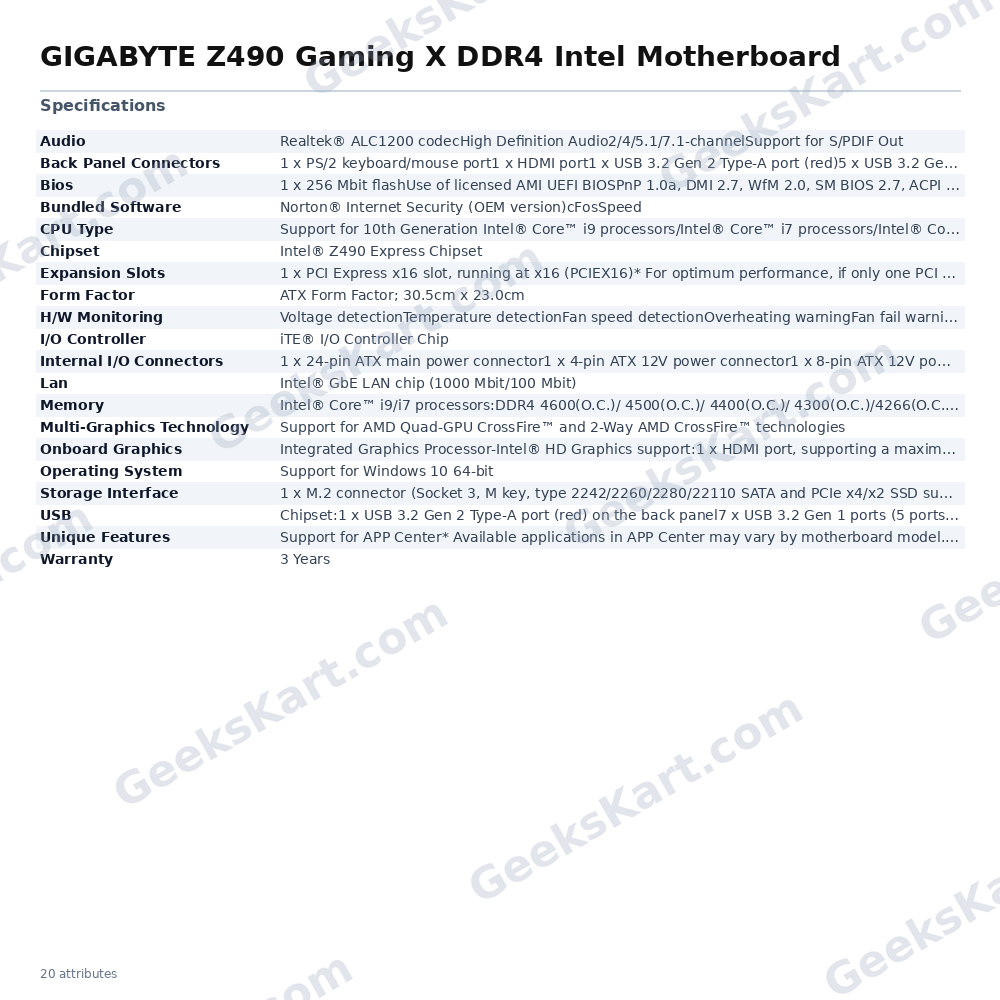

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z490 Express Chipset |
| CPU Type | |
| Lan | Intel® GbE LAN chip (1000 Mbit/100 Mbit) |
| USB | Chipset:1 x USB 3.2 Gen 2 Type-A port (red) on the back panel7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1200 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | Intel® Core™ i9/i7 processors:DDR4 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modulesIntel® Core™ i5/i3/Pentium®/Celeron® processors:Support for DDR4 2666/2400/2133 MHz memory modules4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x43 x PCI Express x1 slots(All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)cFosSpeed |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.3.Maximum shared memory of 512 MB |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x HDMI port1 x USB 3.2 Gen 2 Type-A port (red)5 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port6 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector1 x 8-pin ATX 12V power connector1 x CPU fan header4 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers6 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)2 x Thunderbolt™ add-in card connectors1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus button |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
