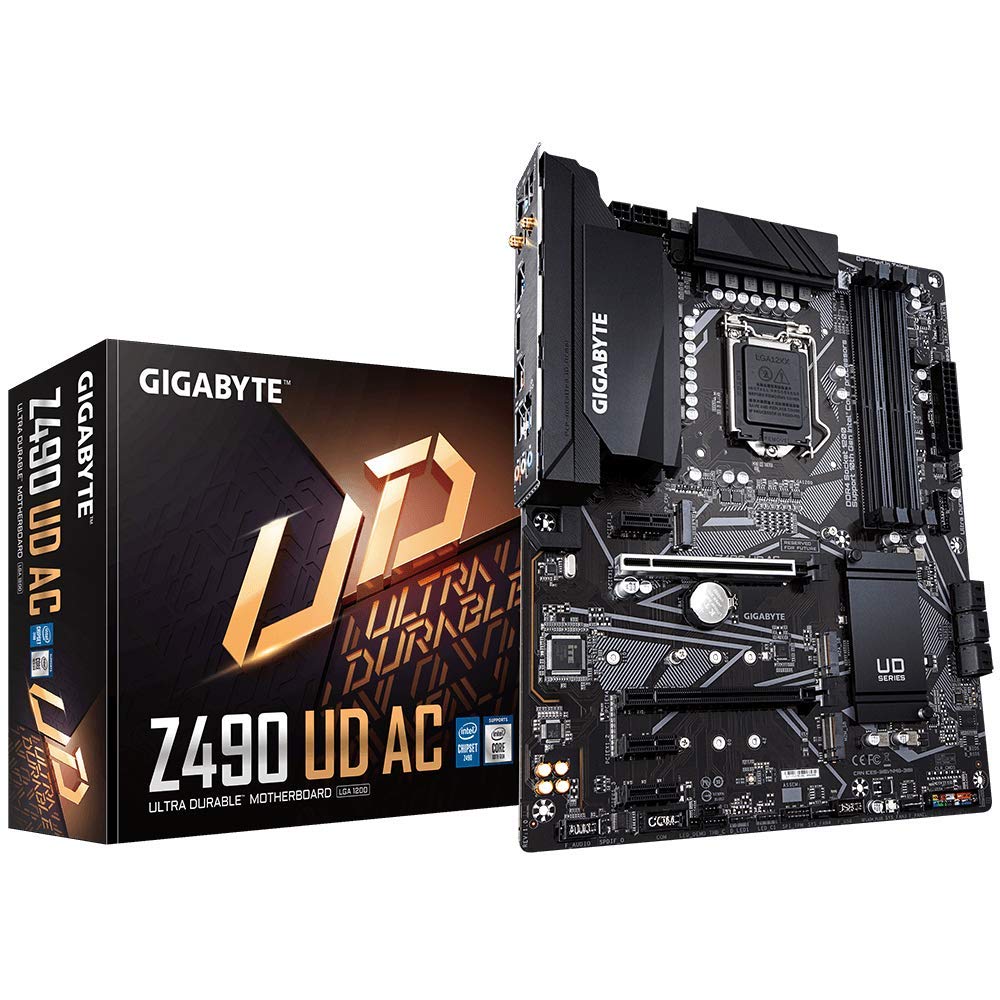

GIGABYTE Z490 UD AC DDR4 Intel Motherboard
MPN GIGABYTE-Z490-UD-AC · Brand Gigabyte · ATX
The Gigabyte Z490 UD AC is an ATX motherboard for 10th Gen Intel Core processors (LGA1200) featuring Intel Z490 chipset, dual M.2 PCIe Gen 3 x4 slots, Intel Wi-Fi AC with Bluetooth 5, and USB 3.2 Gen 2 connectivity
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z490 UD AC is an ATX-form-factor motherboard built around the Intel Z490 Express Chipset and the LGA1200 socket, designed to support 10th Generation Intel Core processors — including Core i9, i7, i5, i3, Pentium, and Celeron variants. Its full ATX footprint measures 30.5 cm × 24.4 cm, fitting standard mid-tower and full-tower cases. Memory flexibility is a strong suit of this board. Four DDR4 DIMM slots support dual-channel operation with a maximum capacity of 128 GB (32 GB per module). With Core i9 or i7 processors installed, DDR4 speeds reach up to 4500 MHz via overclocking; Core i5 and i3 platforms run at standard DDR4 speeds up to 2666 MHz. XMP memory profiles are also supported. Storage options are generous. Two M.2 Socket 3 (M-key) connectors handle NVMe SSDs via PCIe Gen 3 x4; the first slot additionally accepts SATA-protocol M.2 drives. Six SATA 6 Gb/s ports and RAID 0/1/5/10 support round out local storage. Intel Optane Memory is also ready to use. Connectivity is handled by Intel Wi-Fi AC 9462, delivering 802.11a/b/g/n/ac dual-band (2.4/5 GHz) wireless with up to 433 Mbps data rate and Bluetooth 5 via the CNVi interface. Wired networking uses a Realtek GbE LAN chip at up to 1000 Mbps, paired with the Realtek 8118 Gaming LAN Bandwidth Control Utility for traffic prioritisation. The rear I/O panel includes one USB 3.2 Gen 2 Type-A port (10 Gbps), five USB 3.2 Gen 1 ports, two USB 2.0 ports, one HDMI port (HDMI 1.4, up to 4096×2160 @ 30 Hz via integrated graphics), one RJ-45, two SMA antenna connectors, three audio jacks, and a PS/2 keyboard/mouse port. The Realtek ALC887 codec powers High Definition Audio with up to 7.1-channel output and S/PDIF out. Expansion slots comprise one PCIe 3.0 x16 (running at x16), one PCIe 3.0 x16 (running at x4), and three PCIe 3.0 x1 slots. AMD CrossFire multi-GPU configurations are supported. Internal headers include two addressable LED (ARGB) headers and two standard RGB LED headers for use with Gigabyte RGB Fusion 2.0. Smart Fan 5 provides hybrid fan control across one CPU fan header and four system fan headers, with FAN STOP capability. The Q-Flash Plus feature enables BIOS updates without a CPU, memory, or GPU installed — helpful during platform upgrades. The BIOS uses a licensed AMI UEFI implementation stored on a 256 Mbit flash chip. Two Thunderbolt add-in-card connectors and a TPM header (for GC-TPM2.0 SPI modules) add further versatility. Verifiable Specifications: • Socket: LGA1200 | Chipset: Intel Z490 Express • Form Factor: ATX, 30.5 cm × 24.4 cm • Memory: 4× DDR4 DIMM, up to 128 GB; up to DDR4-4500 OC (i9/i7) • Storage: 2× M.2 PCIe Gen 3 x4; 6× SATA 6 Gb/s; RAID 0/1/5/10 • Wireless: Intel Wi-Fi AC 9462, 802.11ac, Bluetooth 5 • USB: 1× USB 3.2 Gen 2 (10 Gbps); 7× USB 3.2 Gen 1; 4× USB 2.0 • Audio: Realtek ALC887, 7.1-channel HD Audio, S/PDIF out • Video: 1× HDMI 1.4 (integrated graphics, max 4096×2160 @ 30 Hz) • Warranty: 3 Years

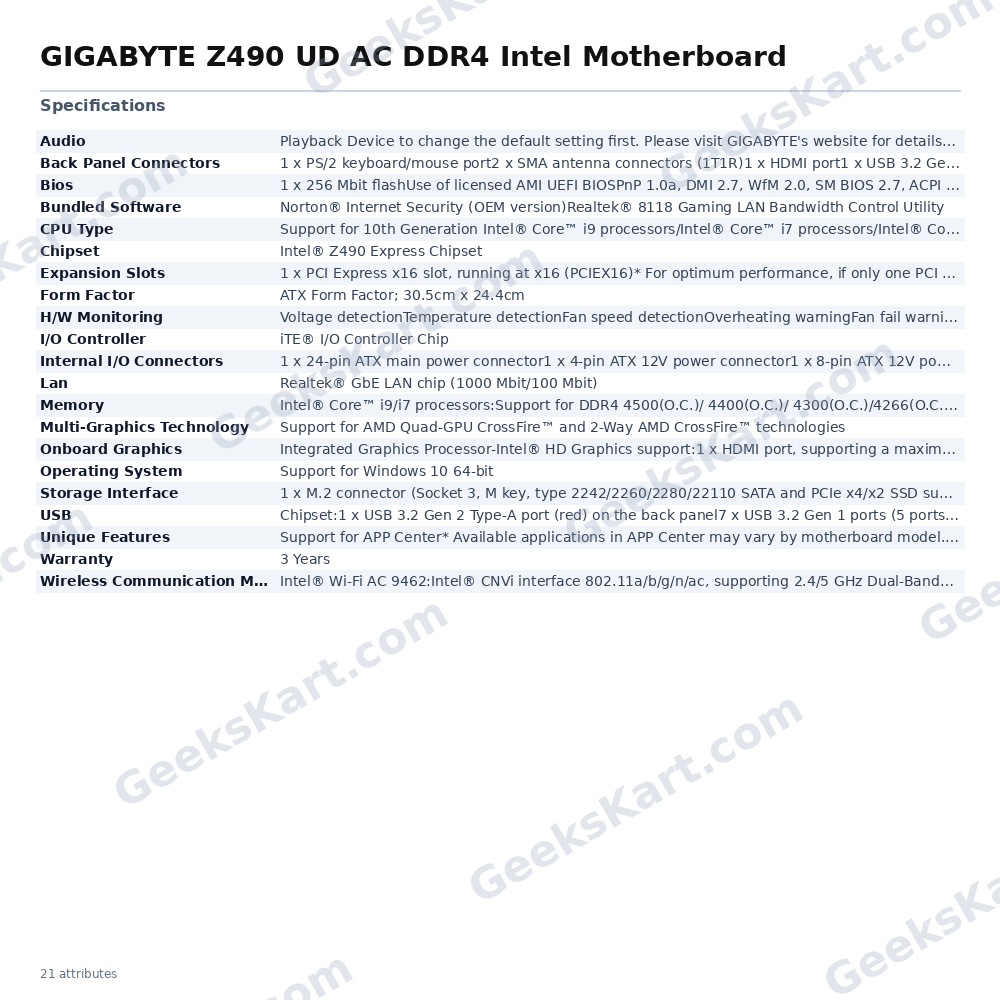

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z490 Express Chipset |
| CPU Type | |
| Lan | Realtek® GbE LAN chip (1000 Mbit/100 Mbit) |
| USB | Chipset:1 x USB 3.2 Gen 2 Type-A port (red) on the back panel7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.nSupport for S/PDIF Out"}"> Realtek® ALC887 codecHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.Support for S/PDIF Out |
| Memory | Intel® Core™ i9/i7 processors:Support for DDR4 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modulesIntel® Core™ i5/i3/Pentium®/Celeron® processors:Support for DDR4 2666/2400/2133 MHz memory modules4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x4 (PCIEX4)3 x PCI Express x1 slots(All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.3.Maximum shared memory of 512 MB |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2M_SB)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port2 x SMA antenna connectors (1T1R)1 x HDMI port1 x USB 3.2 Gen 2 Type-A port (red)5 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector1 x 8-pin ATX 12V power connector1 x CPU fan header4 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers1 x Q-Flash Plus button6 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)2 x Thunderbolt™ add-in card connectors1 x serial port header1 x Clear CMOS jumper |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Wireless Communication Module | Intel® Wi-Fi AC 9462:Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5Support for 1×1 11ac wireless standard and up to 433 Mbps data rate* Actual data rate may vary depending on environment and equipment |
