GIGABYTE Z490 Vision D DDR4 Intel Motherboard
MPN GIGABYTE-Z490-VISION-D · Brand Gigabyte · ATX

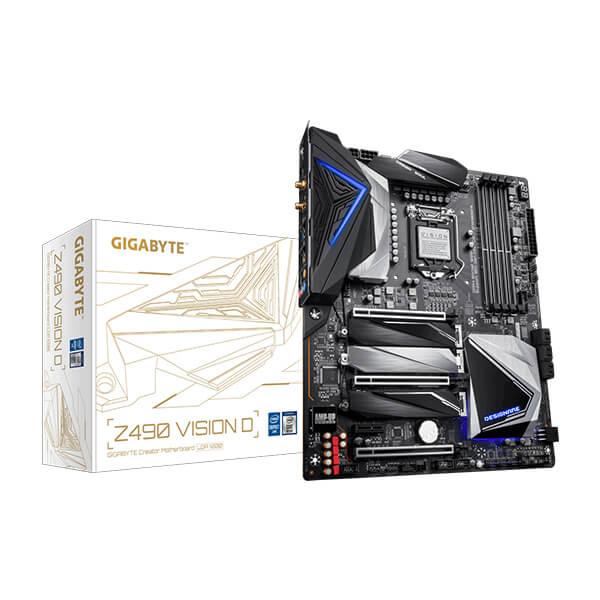

The Gigabyte Z490 Vision D is an ATX LGA1200 motherboard featuring dual Thunderbolt 3, onboard Intel Wi-Fi 6, dual LAN (2.5 GbE + GbE), three M.2 slots, and up to 128 GB DDR4 for Intel 10th Gen processors
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z490 Vision D is a full-size ATX motherboard (305 mm × 244 mm) built on the Intel Z490 Express Chipset and designed for Intel 10th Generation Core processors in the LGA1200 socket — from Celeron and Pentium up to Core i9. It pairs a robust 12-phase digital VRM with DrMOS technology and a direct-touch heatpipe thermal solution, making it well-suited to demanding workstation and content-creation workloads. Memory flexibility is a standout attribute. Four DDR4 DIMM slots support up to 128 GB total capacity (32 GB per single DIMM), with native speeds of 2133–2933 MHz on Core i5/i3/Pentium/Celeron processors and overclocked profiles reaching DDR4-4400 on Core i9 and i7. XMP modules are also supported. Connectivity on the Z490 Vision D is unusually rich for its class. Two onboard Thunderbolt 3 ports (USB Type-C, USB 3.2 Gen 2) deliver up to 40 Gbps and support DisplayPort 1.4 output at up to 5120×2880 at 60 Hz. Wireless networking is handled by an Intel Wi-Fi 6 AX201 module (802.11ax, 2.4/5 GHz dual-band, up to 2.4 Gbps theoretical, Bluetooth 5.1), complemented by wired Intel dual-LAN — one 2.5 GbE port and one GbE port — both managed by cFosSpeed traffic-shaping software. Storage options are extensive: three M.2 (Socket 3, PCIe Gen3 x4) connectors with thermal guards, six SATA 6 Gb/s ports, and support for RAID 0/1/5/10. PCIe expansion includes one x16 (full bandwidth), one x16 (runs at x8), one x16 (runs at x4), and one x1 slot, all conforming to PCIe 3.0. Audio is delivered by a Realtek ALC1220-VB codec with WIMA capacitors, offering up to 114 dB SNR on the rear output and 110 dB on the front mic path, with DTS:X Ultra support, S/PDIF optical output, and 2/4/5.1/7.1-channel configurations. RGB Fusion 2.0 controls onboard addressable LED and RGB LED headers. Smart Fan 5 manages up to six fan/pump headers with per-header speed and stop control. Verified Specifications: - Socket: LGA1200 | Chipset: Intel Z490 Express - Form Factor: ATX, 305 mm × 244 mm - Memory: 4× DDR4 DIMM, max 128 GB (32 GB/slot), DDR4-2133 to DDR4-4400 (O.C.) - Storage: 3× M.2 PCIe Gen3 x4, 6× SATA 6 Gb/s, RAID 0/1/5/10 - Display Out: 2× Thunderbolt 3 (DP 1.4, up to 5120×2880@60 Hz), 1× HDMI 1.4 (up to 4096×2160@30 Hz) - Networking: Intel Wi-Fi 6 AX201 (802.11ax, BT 5.1), Intel 2.5 GbE + Intel GbE - Audio: Realtek ALC1220-VB, 114 dB rear SNR, DTS:X Ultra, S/PDIF Out - USB (rear): 2× TB3 Type-C (USB 3.2 Gen 2), 2× USB 3.2 Gen 2 Type-A, 4× USB 3.2 Gen 1, 2× USB 2.0 - BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus (BIOS update without CPU/RAM) - Warranty: 3 Years

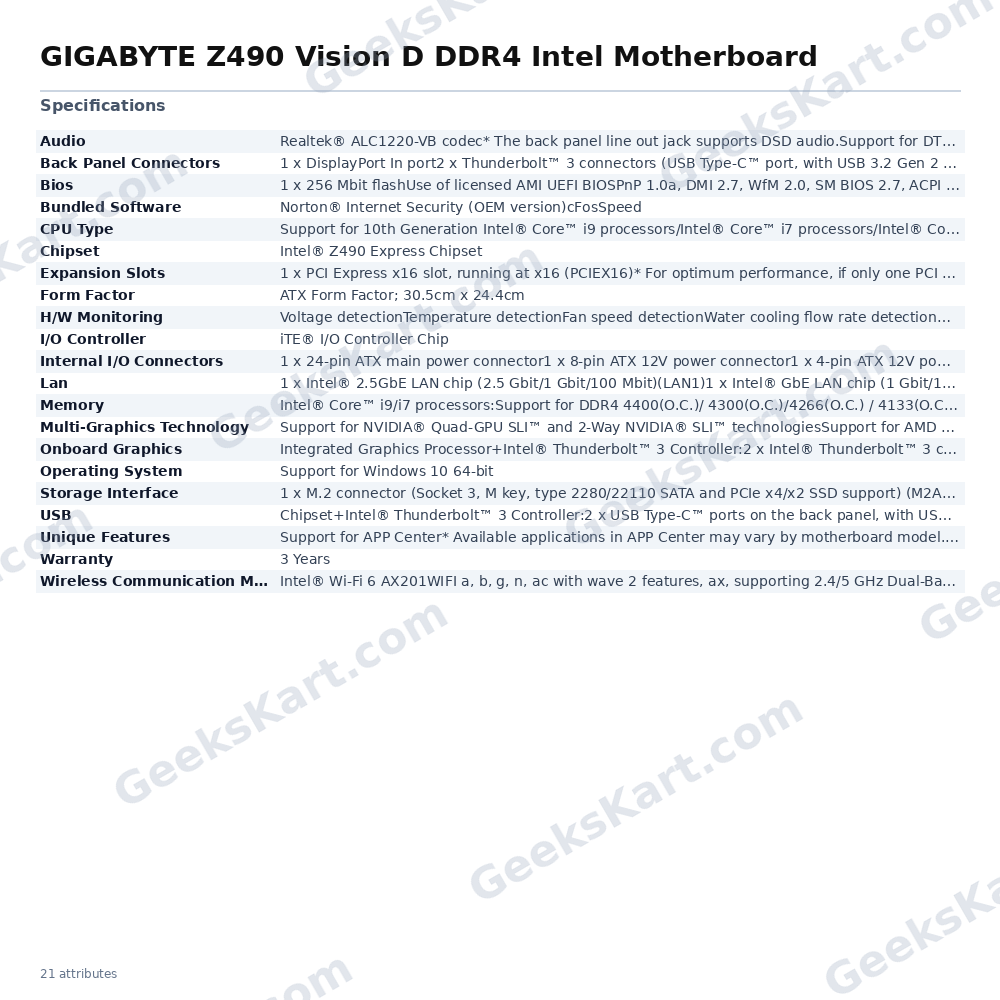

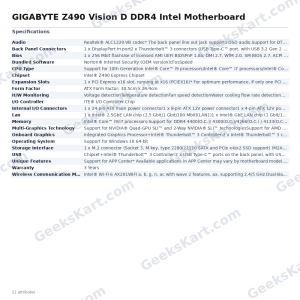

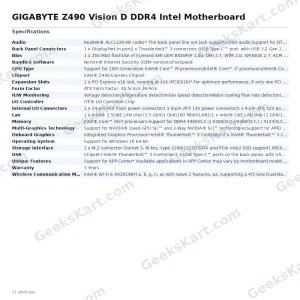

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z490 Express Chipset |
| CPU Type | |
| Lan | 1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)(LAN1)1 x Intel® GbE LAN chip (1 Gbit/100 Mbit) (LAN2) |
| USB | Chipset+Intel® Thunderbolt™ 3 Controller:2 x USB Type-C™ ports on the back panel, with USB 3.2 Gen 2 supportChipset:1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel2 x USB 3.2 Gen 1 ports available through the internal USB header2 x USB 2.0/1.1 ports on the back panelChipset+USB 3.2 Gen 1 Hub:4 x USB 3.2 Gen 1 ports on the back panelChipset+USB 2.0 Hub:4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220-VB codec* The back panel line out jack supports DSD audio.Support for DTS:X® UltraHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | Intel® Core™ i9/i7 processors:Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHzIntel® Core™ i5/i3/Pentium®/Celeron® processors:Support for DDR4 2666/2400/2133 MHz4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x8 (PCIEX8)* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.1 x PCI Express x16 slot, running at x4 (PCIEX4)* The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector.1 x PCI Express x1 slot(All of the PCI Express slots conform to PCI Express 3.0 standard.)1 x M.2 Socket 1 connector for an Intel® CNVi wireless module (CNVI) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerUSB DAC-UP 2Support for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)cFosSpeed |
| Onboard Graphics | Integrated Graphics Processor+Intel® Thunderbolt™ 3 Controller:2 x Intel® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.3.Maximum shared memory of 512 MB |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU)1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB)1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to "1-8 Internal Connectors," for the installation notices for the PCIEX4, M.2, SATA connectors.Intel® Optane™ Memory Ready |
| Back Panel Connectors | 1 x DisplayPort In port2 x Thunderbolt™ 3 connectors (USB Type-C™ port, with USB 3.2 Gen 2 support)1 x HDMI port2 x SMA antenna connectors (2T2R)2 x USB 3.2 Gen 2 Type-A ports (red)4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports2 x RJ-45 ports1 x optical S/PDIF Out connector5 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x PEG power connector1 x CPU fan header1 x water cooling CPU fan header4 x system fan headers2 x system fan/water cooling pump headers2 x addressable LED strip headers2 x RGB LED strip headers3 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C™ header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)2 x temperature sensor headers1 x Clear CMOS jumper1 x Q-Flash Plus button |
| Multi-Graphics Technology | Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologiesSupport for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Wireless Communication Module | Intel® Wi-Fi 6 AX201WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5.1Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment |
