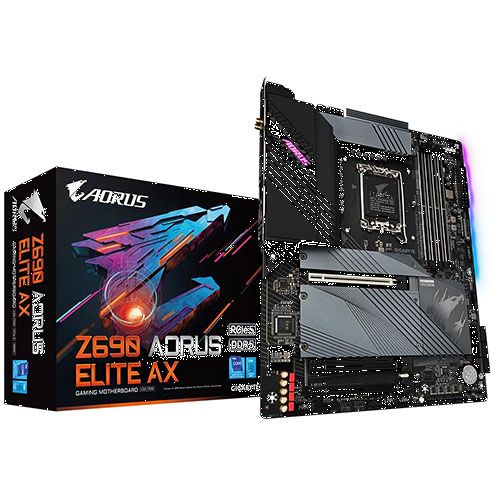

GIGABYTE Z690 Aorus Elite AX DDR5 Intel Motherboard
MPN GIGABYTE-Z690-AORUS-AX · Brand Gigabyte · ATX
The Gigabyte Z690 Aorus Elite AX DDR5 is an ATX gaming motherboard for 12th Gen Intel processors, featuring LGA1700, four DDR5 slots (up to 128 GB), 2.5 GbE LAN, Wi-Fi 6E, and USB 3.2 Gen 2×2 connectivity
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z690 Aorus Elite AX DDR5 is an ATX-form-factor motherboard built on Intel's Z690 Express Chipset and designed for 12th Generation Intel Core, Pentium Gold, and Celeron processors via the LGA1700 socket. It represents Gigabyte's mid-to-high-tier AORUS gaming lineup and combines next-generation memory technology with a broad connectivity feature set for enthusiast desktop builds. Memory support centres on DDR5 via four DIMM slots running in dual-channel configuration, with a maximum capacity of 128 GB. The board includes XMP 3.0 compatibility for straightforward memory overclocking beyond stock DDR5 speeds, alongside Gigabyte's own DDR5 tuning utilities for users who want deeper manual control. Storage flexibility is provided by six SATA 6 Gb/s ports supporting RAID modes 0, 1, 5, and 10, complemented by multiple M.2 slots for NVMe SSDs (slot count not confirmed in source data). Expansion is handled by one full-bandwidth PCIe x16 slot for the primary graphics card, plus two additional PCIe x16 physical slots wired at x4 electrical bandwidth. Connectivity is a strong point. The rear I/O features a Realtek 2.5 GbE LAN port (2.5 Gbps / 1 Gbps / 100 Mbps), Wi-Fi with an AX (Wi-Fi 6E) module indicated in the product name, and a broad USB complement: one USB Type-C with USB 3.2 Gen 2×2 (20 Gbps), two USB 3.2 Gen 2 Type-A (10 Gbps), three USB 3.2 Gen 1 ports, and four USB 2.0/1.1 ports. Display outputs include one HDMI and one DisplayPort for use with processors carrying integrated graphics. Audio is handled by a Realtek ALC1220-VB codec with two rear audio jacks and one optical S/PDIF output. The board measures 30.5 cm × 24.4 cm (standard ATX), fitting most full-tower and mid-tower cases. Gigabyte's bundled software suite enables RGB lighting customisation and system monitoring. Verified Specifications: - Socket: LGA1700 - Chipset: Intel Z690 Express - CPU Support: 12th Gen Intel Core, Pentium Gold, Celeron - Memory: 4 × DDR5 DIMM, Dual Channel, max 128 GB, XMP 3.0 - PCIe Slots: 1 × x16 (x16), 2 × x16 physical (x4 electrical) - Storage: 6 × SATA 6 Gb/s; RAID 0/1/5/10 - LAN: Realtek 2.5 GbE - Audio: Realtek ALC1220-VB; 2 audio jacks + optical S/PDIF - USB (rear): 1 × USB-C 3.2 Gen 2×2, 2 × USB-A 3.2 Gen 2, 3 × USB 3.2 Gen 1, 4 × USB 2.0 - Video Out: 1 × HDMI, 1 × DisplayPort - Form Factor: ATX (30.5 cm × 24.4 cm)

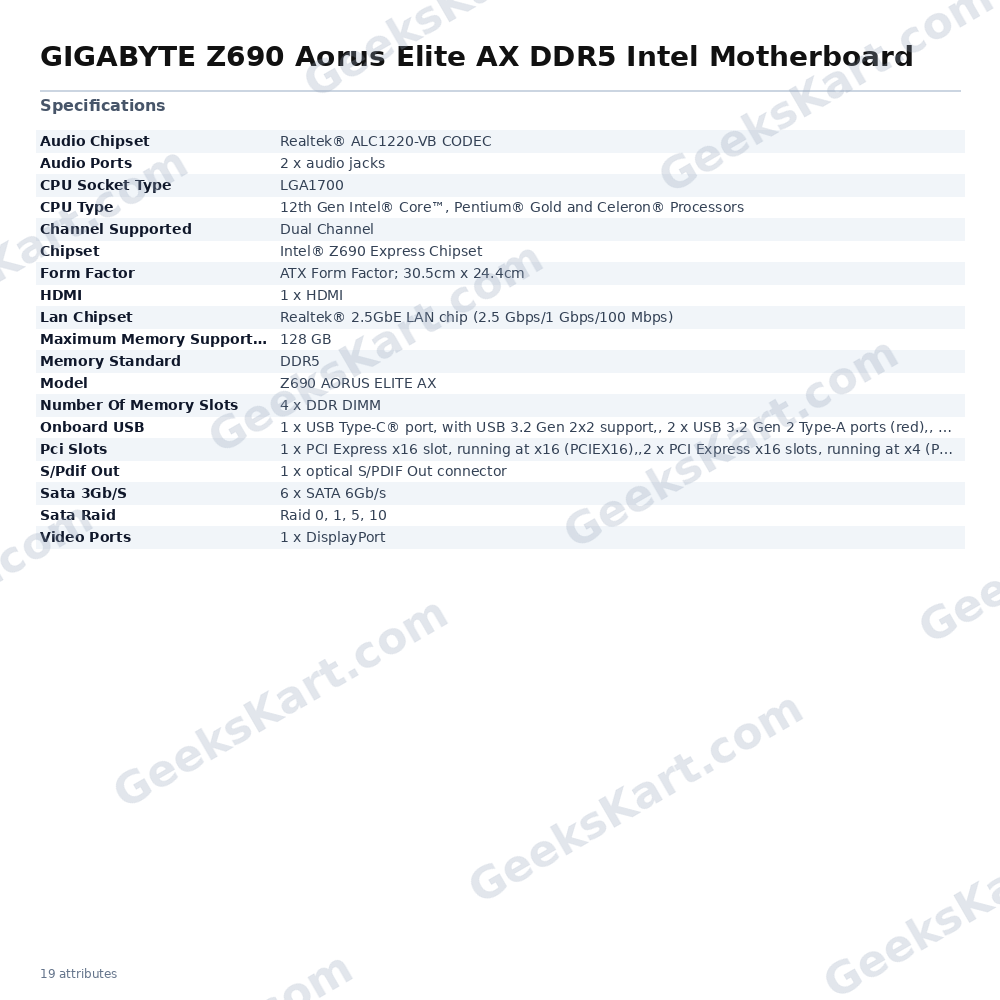

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | Intel® Z690 Express Chipset |
| CPU Type | 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| HDMI | 1 x HDMI |
| Model | Z690 AORUS ELITE AX |
| Pci Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16),,2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) |
| Sata Raid | Raid 0, 1, 5, 10 |
| S/Pdif Out | 1 x optical S/PDIF Out connector |
| Sata 3Gb/S | 6 x SATA 6Gb/s |
| Audio Ports | 2 x audio jacks |
| Lan Chipset | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Onboard USB | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support,, 2 x USB 3.2 Gen 2 Type-A ports (red),, 3 x USB 3.2 Gen 1 ports,, 4 x USB 2.0/1.1 ports |
| Video Ports | 1 x DisplayPort |
| Audio Chipset | Realtek® ALC1220-VB CODEC |
| CPU Socket Type | LGA1700 |
| Memory Standard | DDR5 |
| Channel Supported | Dual Channel |
| Number Of Memory Slots | 4 x DDR DIMM |
| Maximum Memory Supported | 128 GB |
