GIGABYTE Z690 UD AX WiFi DDR4 Intel Motherboard
MPN GIGABYTE-Z690-UD-AX-WIFI-DDR4 · Brand Gigabyte · ATX
The Gigabyte Z690 UD AX WiFi DDR4 ATX motherboard supports 12th Gen Intel Core processors (LGA1700) with a PCIe 5.0 primary slot, three PCIe 4.0 M.2 NVMe slots, Intel Wi-Fi 6, 2.5GbE LAN, and a 16+1+2 digital VRM rated at 60 A per phase
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z690 UD AX WiFi DDR4 is an ATX-form-factor motherboard (305 mm × 244 mm) built on the Intel Z690 Express Chipset, designed for 12th Generation Intel Core processors in the LGA1700 socket, including Core i9, i7, and i5 lines. Its Direct 16+1+2 Digital VRM design, rated at 60 A per power stage and paired with Tantalum Polymer Capacitors, delivers stable power delivery under sustained workloads, while the Ultra Performance VRM Heatsinks help keep temperatures in check during intensive use. Memory support covers four DDR4 DIMM slots in a dual-channel configuration, accepting up to 128 GB (32 GB per DIMM) of non-ECC unbuffered DDR4 from 2133 MHz base speed up to 5333 MHz via XMP overclocking profiles. Three M.2 slots — one routed through the CPU and two through the chipset — each support PCIe 4.0 x4 NVMe SSDs and are fitted with Enlarged Thermal Guards to manage drive temperatures. Six SATA 6 Gb/s ports complement the M.2 options, with support for RAID 0, 1, 5, and 10. Connectivity is a standout: an Intel Wi-Fi 6 AX201 module provides 802.11ax dual-band (2.4/5/6 GHz) wireless with up to 2.4 Gbps theoretical throughput and Bluetooth 5.2, while a Realtek 2.5GbE wired LAN port rounds out networking. The rear I/O includes a USB 3.2 Gen 2x2 Type-C port delivering up to 20 Gb/s, one USB 3.2 Gen 2 Type-A (red), four USB 3.2 Gen 1 ports, and four USB 2.0 ports. Display output is handled by one HDMI 2.1 port (up to 4096×2160 @ 60 Hz) and one DisplayPort 1.2 when using Intel integrated graphics. The primary PCIe x16 slot runs at PCIe 5.0, giving next-generation graphics cards full bandwidth headroom. Additional expansion includes a PCIe 3.0 x4 slot and two PCIe 3.0 x1 slots. AMD CrossFire multi-GPU configurations are supported. RGB Fusion 2.0 manages two addressable LED headers and two standard RGB headers. Smart Fan 6 controls up to five fan and pump headers with hybrid FAN STOP capability. The Q-Flash Plus button allows BIOS updates without installing a CPU, memory, or GPU — a practical convenience for system builders. BIOS is a licensed AMI UEFI implementation stored in a 256 Mbit flash chip, with a three-year manufacturer warranty included. Key Specifications: • Socket / Chipset: LGA1700 / Intel Z690 Express • CPU Support: 12th Gen Intel Core i9 / i7 / i5 • Memory: 4× DDR4 DIMM, up to 128 GB, DDR4-2133 to DDR4-5333 (O.C.), XMP supported • M.2 Slots: 3× PCIe 4.0 x4 NVMe (with Thermal Guard) • SATA: 6× SATA 6 Gb/s (RAID 0/1/5/10) • Primary PCIe Slot: PCIe 5.0 x16 • Wireless: Intel Wi-Fi 6 AX201 (802.11ax, 160 MHz, up to 2.4 Gbps), Bluetooth 5.2 • LAN: Realtek 2.5GbE • Rear USB: 1× USB 3.2 Gen 2x2 Type-C (20 Gb/s), 1× USB 3.2 Gen 2 Type-A, 4× USB 3.2 Gen 1, 4× USB 2.0 • Display Output: 1× HDMI 2.1, 1× DisplayPort 1.2 (iGPU) • Audio: Realtek HD Audio CODEC, 2/4/5.1/7.1-ch, S/PDIF out • Form Factor: ATX, 305 mm × 244 mm • BIOS: AMI UEFI, Q-Flash Plus • Warranty: 3 Years

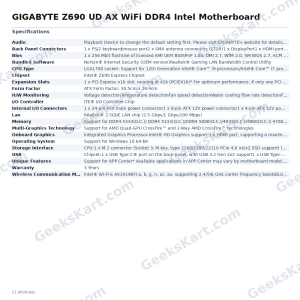

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z690 Express Chipset |
| CPU Type | |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out"}">Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.Support for S/PDIF Out |
| Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 5.0 standard.)1 x PCI Express x16 slot, running at x4 (PCIEX4)1 x PCI Express x16 slot, running at x1 (PCIEX1_4)2 x PCI Express x1 slots(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)Realtek® Gaming LAN Bandwidth Control Utility |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10Intel® Optane™ Memory Ready* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port2 x SMA antenna connectors (2T2R)1 x DisplayPort1 x HDMI port1 x USB Type-C® port, with USB 3.2 Gen 2×2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers3 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C® header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x serial port header2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x reset jumper1 x Q-Flash Plus button1 x Clear CMOS jumper＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Wireless Communication Module | Intel® Wi-Fi 6 AX201WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment |
