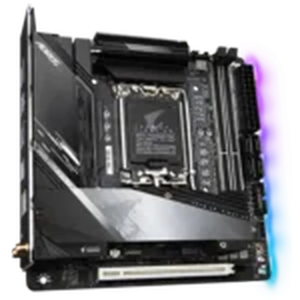

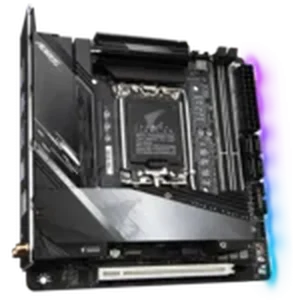

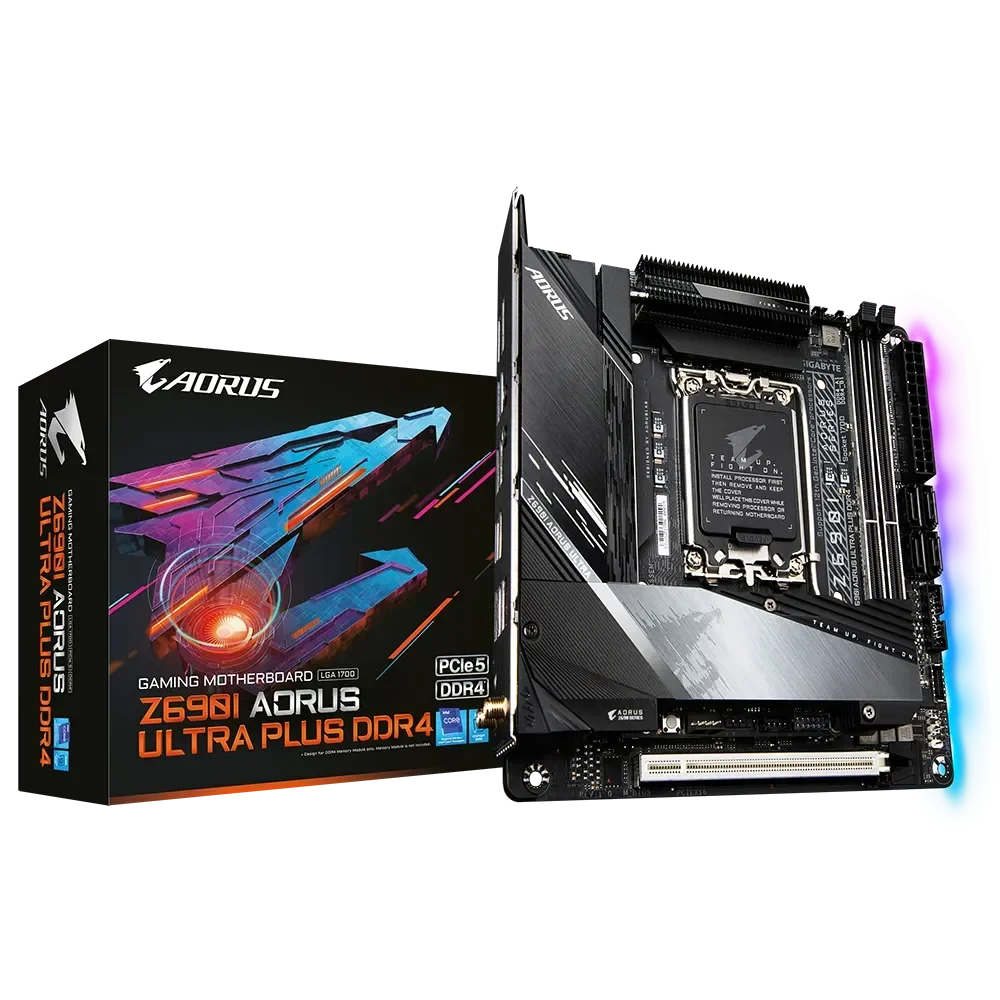

GIGABYTE Z690I A ULTRA PLUS DDR4 Intel Motherboard
MPN GIGABYTE-Z690I-A-ULTRA · Brand Gigabyte · Mini-ITX
The GIGABYTE Z690I A ULTRA PLUS DDR4 is a Mini-ITX motherboard for LGA1700 Intel 12th and 13th Gen CPUs, featuring the Intel Z690 chipset, dual-channel DDR4 up to 5333 MHz OC, 2.5GbE LAN, and Realtek ALC4080 audio in a compact package
Inclusive of GST · GST invoice available
Overview

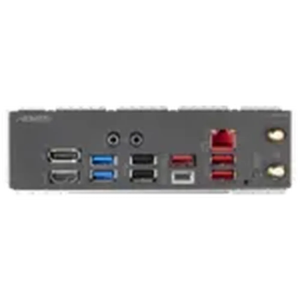

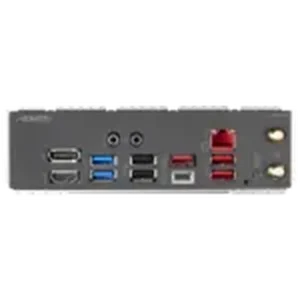

The GIGABYTE Z690I A ULTRA PLUS DDR4 is a Mini-ITX form-factor motherboard built on the Intel Z690 chipset and designed for Intel's LGA1700 socket. It officially supports 12th Generation Intel Core, Pentium Gold, and Celeron processors, as well as 13th Generation Intel Core processors, making it a versatile foundation for both current and forward-compatible compact desktop builds. Memory configuration centres on two DDR4 DIMM slots operating in dual-channel mode, supporting a maximum installed capacity of 64 GB. The board offers an extensive memory frequency ladder stretching from standard DDR4-3733 all the way to DDR4-5333 via overclocking profiles, giving enthusiast builders significant headroom for memory tuning on an Alder Lake or Raptor Lake platform. For graphics, a single PCIe x16 slot running at full x16 bandwidth accommodates a dedicated GPU. Four SATA 6 Gb/s connectors provide ample connections for traditional storage drives. Integrated video output is available for processors with Intel integrated graphics, delivered via one HDMI port and one DisplayPort on the rear panel — a practical touch for mini PC setups that may not always use a discrete GPU. Networking is handled by an Intel 2.5GbE LAN chip, supporting 2.5 Gbps, 1 Gbps, and 100 Mbps speeds — well suited to high-throughput home and small-office environments. Audio is powered by a Realtek ALC4080 codec, with two audio jacks on the rear I/O panel. The Mini-ITX footprint makes this board an excellent choice for small-form-factor case builds where space is at a premium but performance is not to be compromised. Verifiable Specifications: - Brand: GIGABYTE - Model: Z690I A ULTRA PLUS - Form Factor: Mini-ITX - CPU Socket: LGA1700 - Chipset: Intel Z690 - Supported CPUs: 12th Gen Intel Core / Pentium Gold / Celeron; 13th Gen Intel Core - Memory Slots: 2 x DDR4 DIMM, Dual Channel - Max Memory: 64 GB - Memory Speeds: DDR4-3733 to DDR4-5333 (O.C.) - PCIe x16: 1 x PCIe x16 slot (x16 bandwidth) - Storage: 4 x SATA 6 Gb/s - LAN: Intel 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps) - Audio: Realtek ALC4080 Codec, 2 x rear audio jacks - Video Out: 1 x HDMI, 1 x DisplayPort - Integrated Graphics: Intel HD Graphics (CPU-dependent)

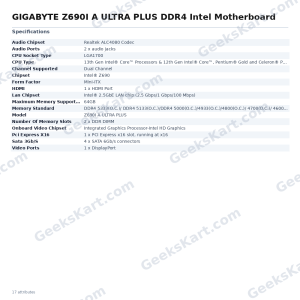

Datasheet
| Form Factor | Mini-ITX |
|---|---|
| Chipset | Intel® Z690 |
| CPU Type | 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| HDMI | 1 x HDMI Port |
| Model | Z690I A ULTRA PLUS |
| Sata 3Gb/S | 4 x SATA 6Gb/s connectors |
| Audio Ports | 2 x audio jacks |
| Lan Chipset | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Video Ports | 1 x DisplayPort |
| Audio Chipset | Realtek ALC4080 Codec |
| CPU Socket Type | LGA1700 |
| Memory Standard | DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733 |
| Pci Express X16 | 1 x PCI Express x16 slot, running at x16 |
| Channel Supported | Dual Channel |
| Onboard Video Chipset | Integrated Graphics Processor-Intel HD Graphics |
| Number Of Memory Slots | 2 x DDR DIMM |
| Maximum Memory Supported | 64GB |
