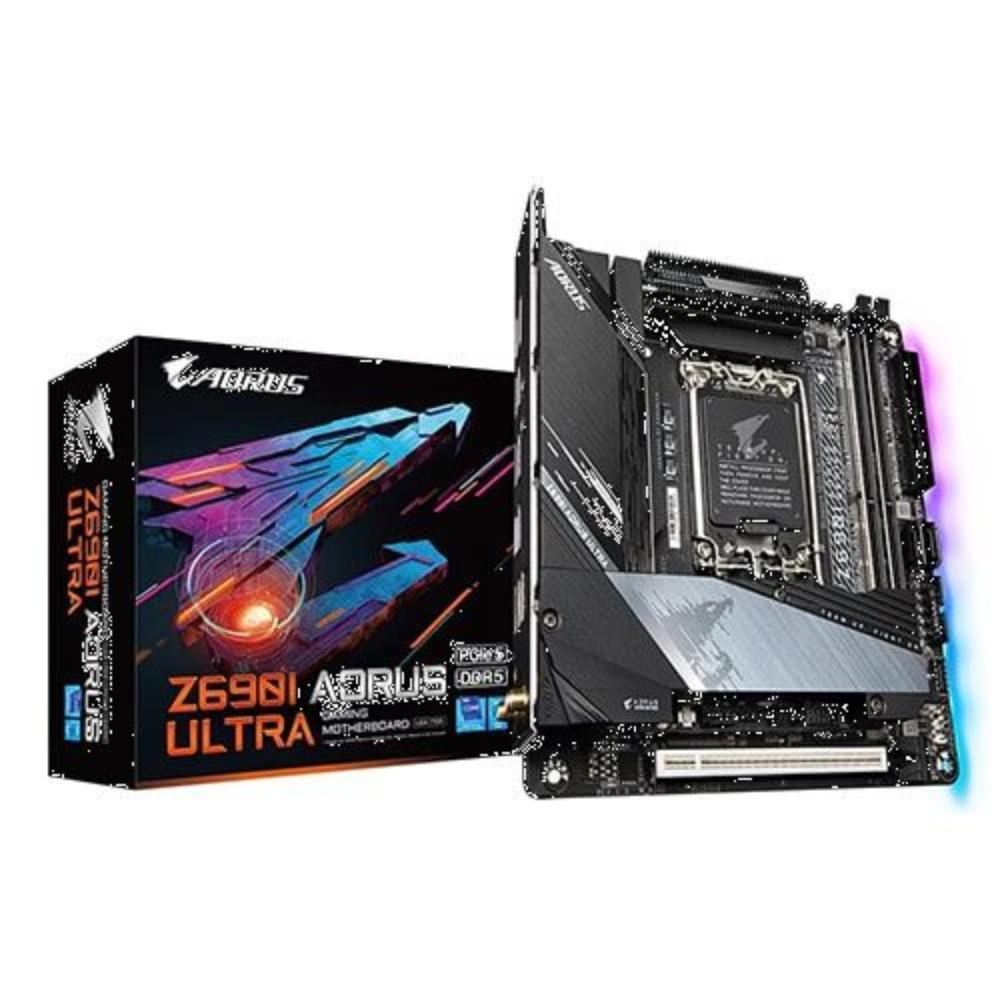

GIGABYTE Z690I Aorus Ultra AX DDR5 Intel Motherboard
MPN GIGABYTE-Z690I-AORUS-ULTRA-DDR5 · Brand Gigabyte · Mini-ITX
The Gigabyte Z690I Aorus Ultra AX DDR5 is a Mini-ITX motherboard for Intel 12th Gen LGA1700 CPUs, featuring DDR5 support up to 64 GB, Intel 2.5GbE LAN, USB 3.2 Gen 2x2, and integrated Wi-Fi in a compact 17 x 17 cm footprint
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z690I Aorus Ultra AX is a Mini-ITX form-factor motherboard built around Intel's Z690 Express Chipset and the LGA1700 socket, supporting 12th Generation Intel Core, Pentium Gold, and Celeron processors. Measuring a compact 17.0 x 17.0 cm, it delivers full-featured performance in a small-footprint chassis — making it a practical choice for space-constrained gaming or workstation builds. Memory support centres on DDR5 technology with two DIMM slots in dual-channel configuration, accommodating up to 64 GB of DDR5 RAM. The board supports XMP 3.0 profiles for memory overclocking and includes Gigabyte's DDR5 tuning utilities for voltage and timing adjustments. For graphics, a single PCIe x16 slot running at full x16 bandwidth handles discrete GPU installation. An additional PCIe x4 slot offers flexibility for M.2 adapters or other expansion cards. Storage connectivity is provided by two SATA 6 Gb/s connectors with RAID 0/1 support. Audio is handled by a Realtek ALC4080 codec delivering 2-channel output, with two audio jacks on the rear panel. Networking features an Intel 2.5GbE LAN chip supporting 2.5 Gbps, 1 Gbps, and 100 Mbps speeds. The board's AX suffix indicates integrated Wi-Fi capability (AX/Wi-Fi 6 class), consistent with the product naming convention. Rear I/O includes one USB Type-C port with USB 3.2 Gen 2x2 (20 Gbps) support, one USB 3.2 Gen 2 Type-A port (red), one DisplayPort output, one HDMI output, and two audio jacks. Internal headers add one USB Type-C header (USB 3.2 Gen 1), one USB 3.2 Gen 1 header, and two USB 2.0/1.1 headers for case connectivity. Power delivery uses a standard 24-pin ATX main connector plus an 8-pin ATX 12V connector. Verified Specifications: - Form Factor: Mini-ITX (17.0 x 17.0 cm) - Socket: LGA1700 - Chipset: Intel Z690 Express - CPU Support: 12th Gen Intel Core, Pentium Gold, Celeron - Memory: 2x DDR5 DIMM, Dual Channel, max 64 GB, XMP 3.0 - PCIe Slots: 1x PCIe x16 (x16 bandwidth), 1x PCIe x4 - Storage: 2x SATA 6 Gb/s, RAID 0/1 - Audio: Realtek ALC4080, 2-channel, 2x audio jacks - LAN: Intel 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps) - Rear USB: 1x USB-C 3.2 Gen 2x2, 1x USB-A 3.2 Gen 2 - Video Out: 1x DisplayPort, 1x HDMI - Power: 24-pin ATX + 8-pin ATX 12V

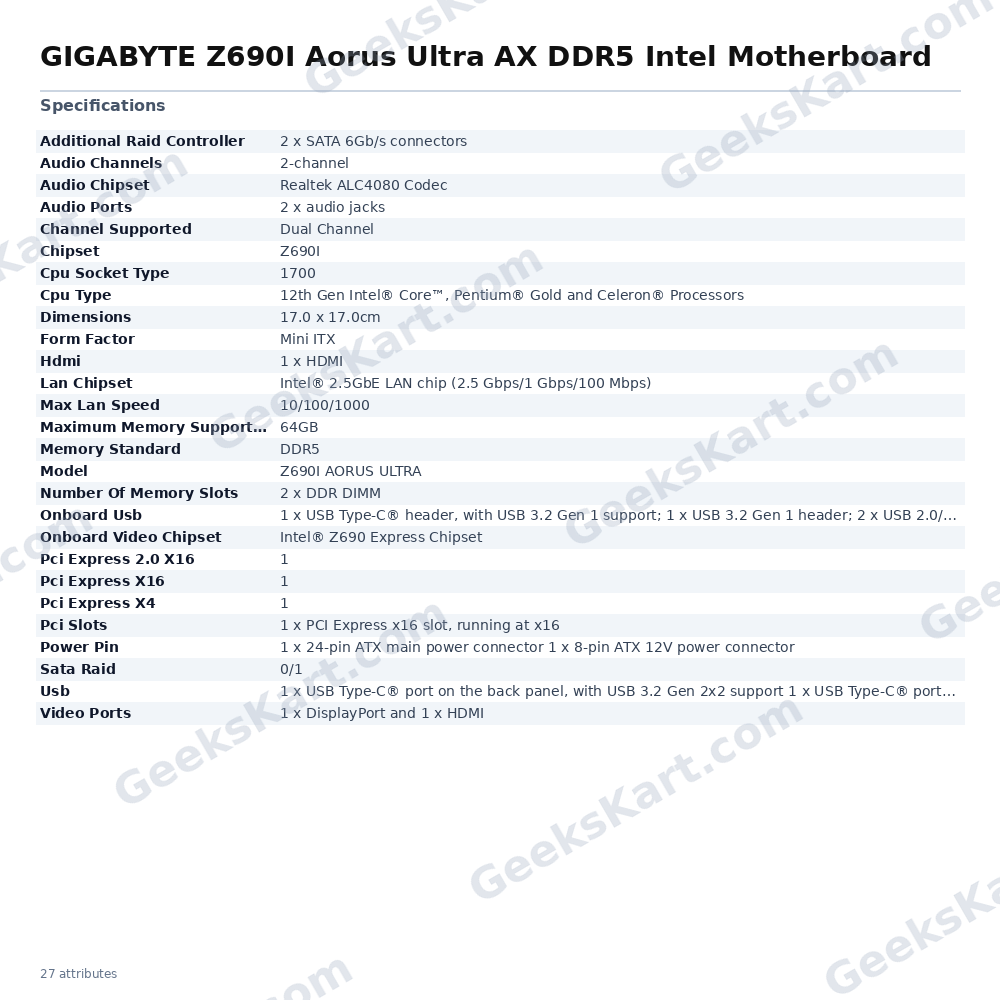

Datasheet
| Usb | 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A ports (red) |
|---|---|
| Hdmi | 1 x HDMI |
| Model | Z690I AORUS ULTRA |
| Pci Slots | 1 x PCI Express x16 slot, running at x16 |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Sata Raid | 0/1 |
| Dimensions | 17.0 x 17.0cm |
| Audio Ports | 2 x audio jacks |
| Lan Chipset | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Onboard Usb | 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers |
| Video Ports | 1 x DisplayPort and 1 x HDMI |
| Audio Chipset | Realtek ALC4080 Codec |
| Max Lan Speed | 10/100/1000 |
| Audio Channels | 2-channel |
| Pci Express X4 | 1 |
| Cpu Socket Type | 1700 |
| Memory Standard | DDR5 |
| Pci Express X16 | 1 |
| Channel Supported | Dual Channel |
| Pci Express 2.0 X16 | 1 |
| Onboard Video Chipset | Intel® Z690 Express Chipset |
| Number Of Memory Slots | 2 x DDR DIMM |
| Maximum Memory Supported | 64GB |
| Additional Raid Controller | 2 x SATA 6Gb/s connectors |
| Form Factor | Mini-ITX |
| Chipset | Z690I |
| CPU Type | 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
