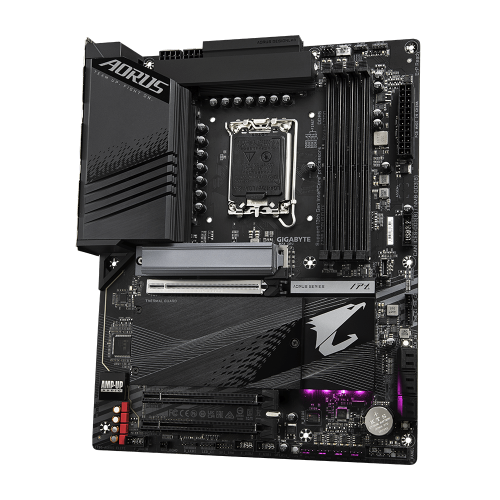

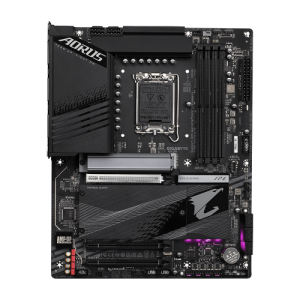

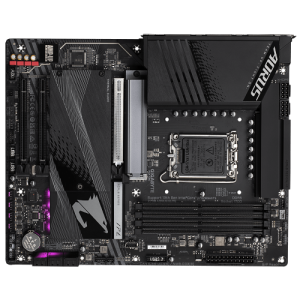

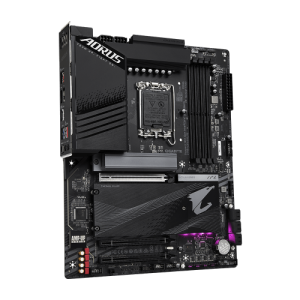

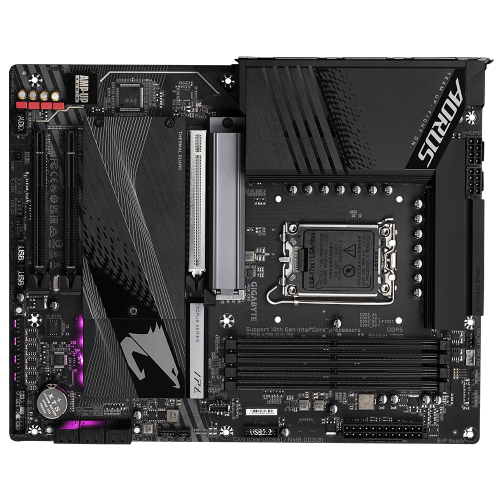

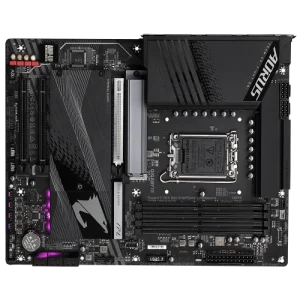

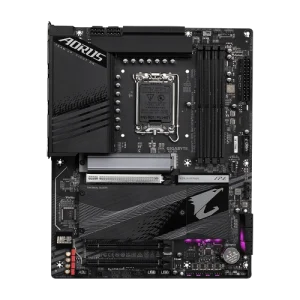

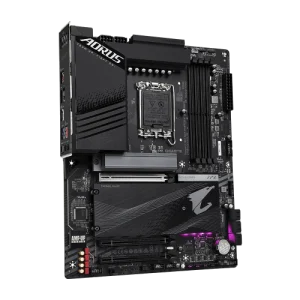

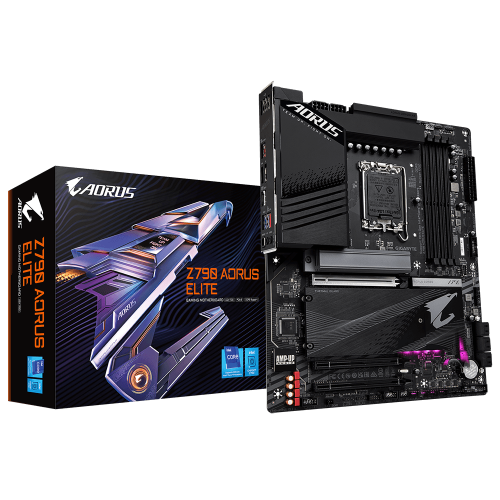

GIGABYTE Z790 Aorus Elite AX DDR5 Intel Motherboard
MPN GIGABYTE-Z790-AORUS-ELITE-ATX-DDR5-MOTHERBOARD · Brand Gigabyte · ATX
GIGABYTE Z790 Aorus Elite AX DDR5 is an ATX Intel motherboard for LGA1700 (12th/13th Gen) CPUs, featuring PCIe 5.0 x16, four M.2 PCIe 4.0 slots, DDR5-7600 OC support, Intel Wi-Fi 6E, and a 16+1+2 phase digital VRM
Inclusive of GST · GST invoice available
Overview

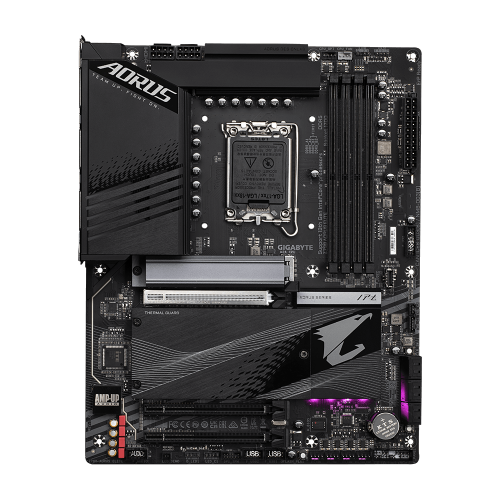

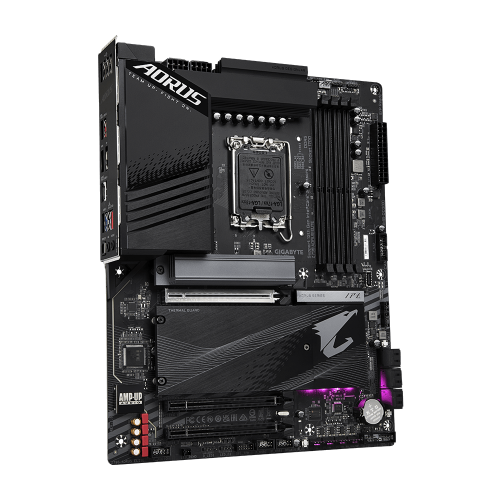

The GIGABYTE Z790 Aorus Elite AX is an ATX form-factor motherboard built on the Intel Z790 Express Chipset and designed for LGA1700 processors, including Intel 13th and 12th Generation Core, Pentium Gold, and Celeron series CPUs. It measures 30.5 cm × 24.4 cm and is engineered for enthusiast-level desktop builds that demand robust power delivery, fast storage, and versatile connectivity. Power delivery is handled by a Twin 16+1+2 phase digital VRM solution, backed by a 6-layer, 2× copper PCB design and a 6 mm heatpipe heatsink assembly that covers the MOSFET area. Two 8-pin ATX 12V connectors feed the CPU power rails, supporting stable Turbo Boost and overclocking headroom for high-TDP processors. Memory support spans four DDR5 DIMM slots in a dual-channel configuration, accommodating up to 128 GB (32 GB per module) at speeds from DDR5-4800 up to DDR5-7600 (overclocked) with XMP 3.0 profile support. ECC unbuffered modules are accepted but operate in non-ECC mode. Storage options include four M.2 PCIe 4.0 x4 connectors—one routed from the CPU (M2A_CPU) and three via the chipset (M2P_SB, M2Q_SB, M2M_SB, with M2M_SB also supporting SATA)—plus six SATA 6 Gb/s ports. Each M.2 slot is fitted with Thermal Guard III heatsinks featuring double-sided coverage and a 6× optimised heat-dissipation surface, and EZ-Latch Plus enables tool-free SSD installation and removal. Expansion slots comprise one CPU-connected PCIe 5.0 x16 slot for the primary GPU, and two chipset-connected PCIe 4.0 x16 physical slots operating at x4 bandwidth. AMD CrossFire multi-GPU configurations are supported. Wireless connectivity is provided by an Intel Wi-Fi 6E AX211 module operating across 2.4 GHz, 5 GHz, and 6 GHz bands with 802.11ax 160 MHz support and up to 2.4 Gbps data rate, complemented by Bluetooth 5.3. Wired networking uses a Realtek 2.5GbE LAN controller supporting 2.5/1/0.1 Gbps speeds. The rear I/O panel includes one USB 3.2 Gen 2×2 Type-C (20 Gbps), two USB 3.2 Gen 2 Type-A (10 Gbps), three USB 3.2 Gen 1 Type-A (5 Gbps), four USB 2.0/1.1 ports, HDMI 2.0, DisplayPort 1.2, an RJ-45 port, optical S/PDIF output, and two audio jacks. An internal USB Type-C header adds a front-panel USB 3.2 Gen 2 (10 Gbps) port. Audio is handled by a Realtek High Definition Audio CODEC with 2/4/5.1/7.1-channel support and audiophile-grade WIMA capacitors. Fan management is governed by Smart Fan 6, which monitors multiple temperature sensors and supports hybrid fan headers with FAN STOP functionality across one CPU fan, one water-cooling CPU fan, three system fan, and one pump/fan combo header. GIGABYTE's Q-Flash Plus allows BIOS updates without installing a CPU, memory, or graphics card. The board carries a 3-year manufacturer warranty. — Verified Specifications — Socket: LGA1700 | Chipset: Intel Z790 Express | Form Factor: ATX (30.5 × 24.4 cm) | Memory: 4× DDR5 DIMM, max 128 GB, DDR5-4800 native / up to DDR5-7600 O.C., XMP 3.0 | Storage: 4× M.2 PCIe 4.0 x4 + 6× SATA 6 Gb/s | PCIe: 1× PCIe 5.0 x16 (CPU), 2× PCIe 4.0 x4 (chipset) | LAN: Realtek 2.5GbE | Wi-Fi: Intel AX211 Wi-Fi 6E (2.4/5/6 GHz), up to 2.4 Gbps | Bluetooth: 5.3 | USB (rear): 1× USB-C 20 Gbps, 2× USB-A 10 Gbps, 3× USB-A 5 Gbps, 4× USB 2.0 | Display: HDMI 2.0, DisplayPort 1.2 | Audio: Realtek HD, 7.1-ch, S/PDIF | BIOS: AMI UEFI, 256 Mbit | Warranty: 3 Years

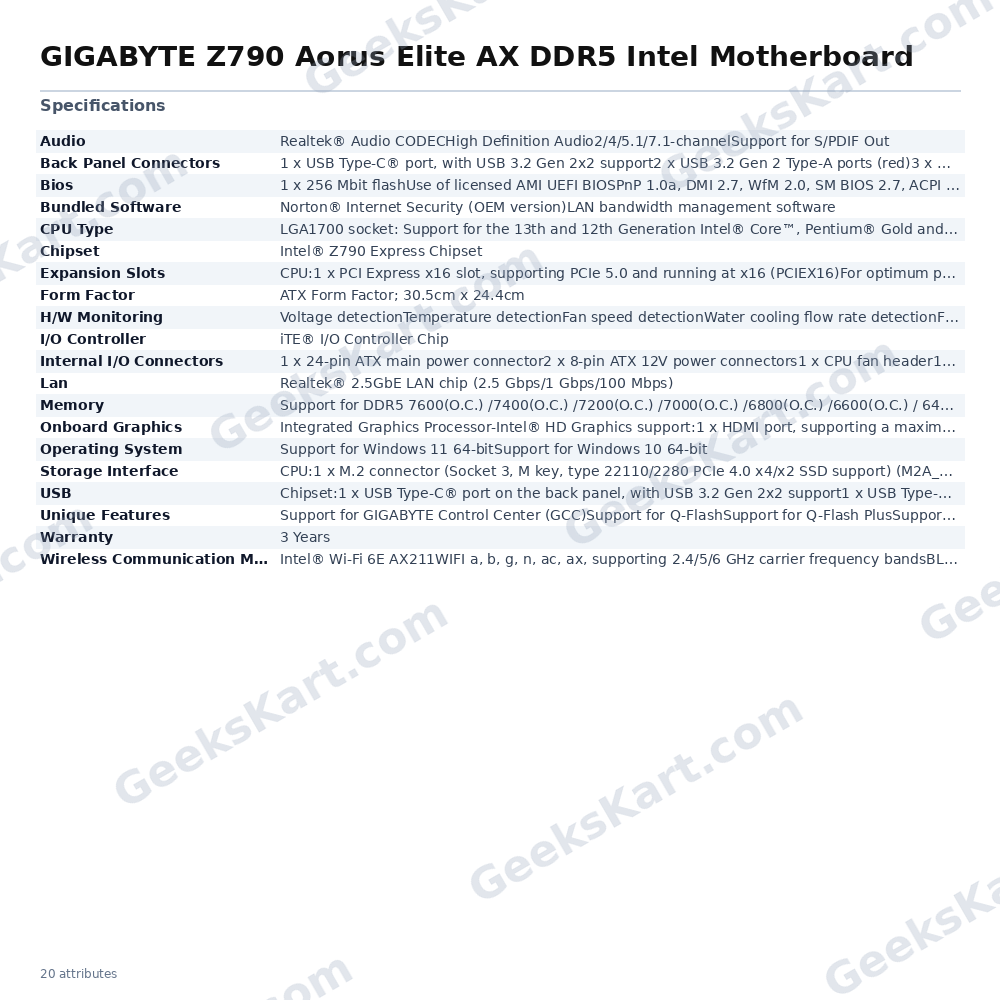

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z790 Express Chipset |
| CPU Type | LGA1700 socket: Support for the 13th and 12th Generation Intel® CoreTM, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) |
| Unique Features | Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolutionSupport for HDMI 2.0 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolutionSupport for DisplayPort 1.2 version and HDCP 2.3 |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)6 x SATA 6Gb/s connectors |

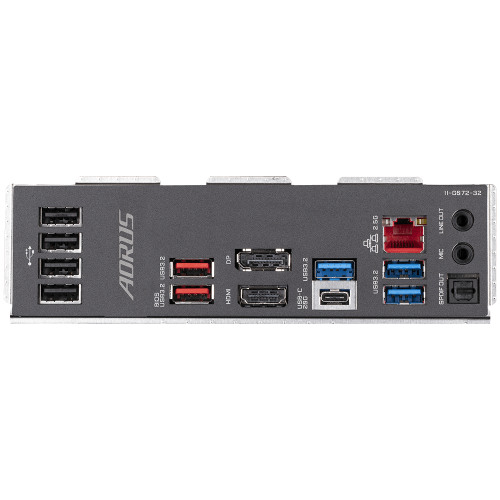

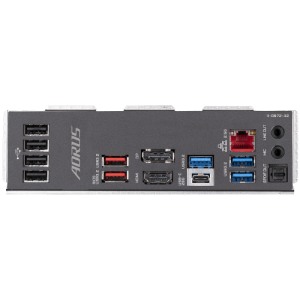

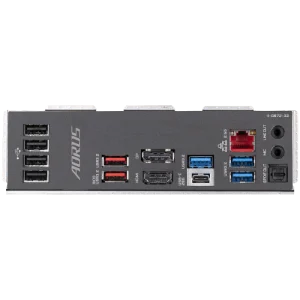

| Back Panel Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x HDMI 2.0 port1 x DisplayPort1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers4 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x Q-Flash Plus button1 x Clear CMOS button1 x reset jumper1 x Clear CMOS jumper |
| Wireless Communication Module | Intel® Wi-Fi 6E AX211WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
