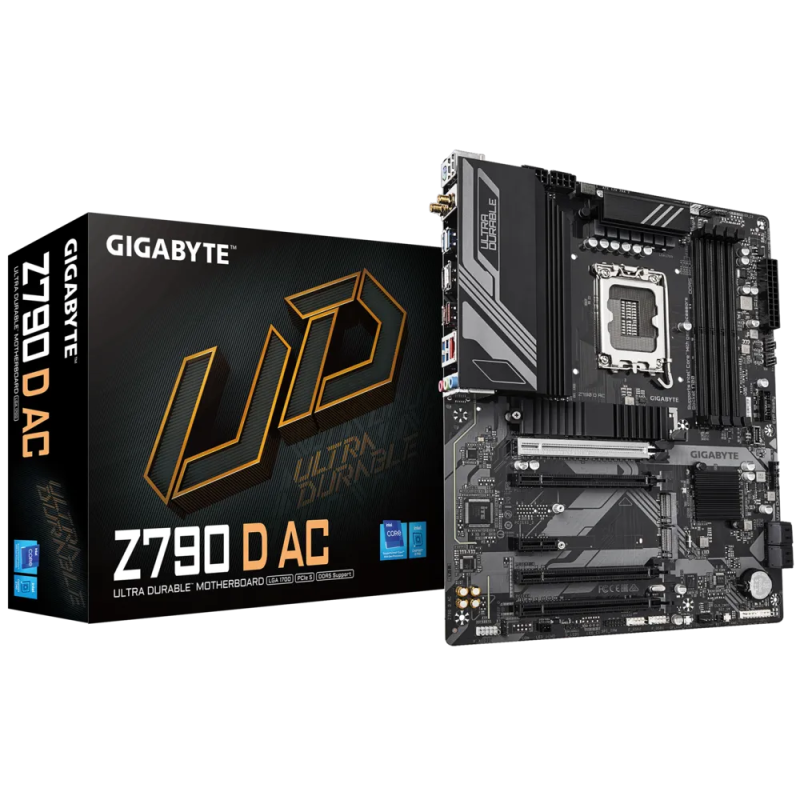

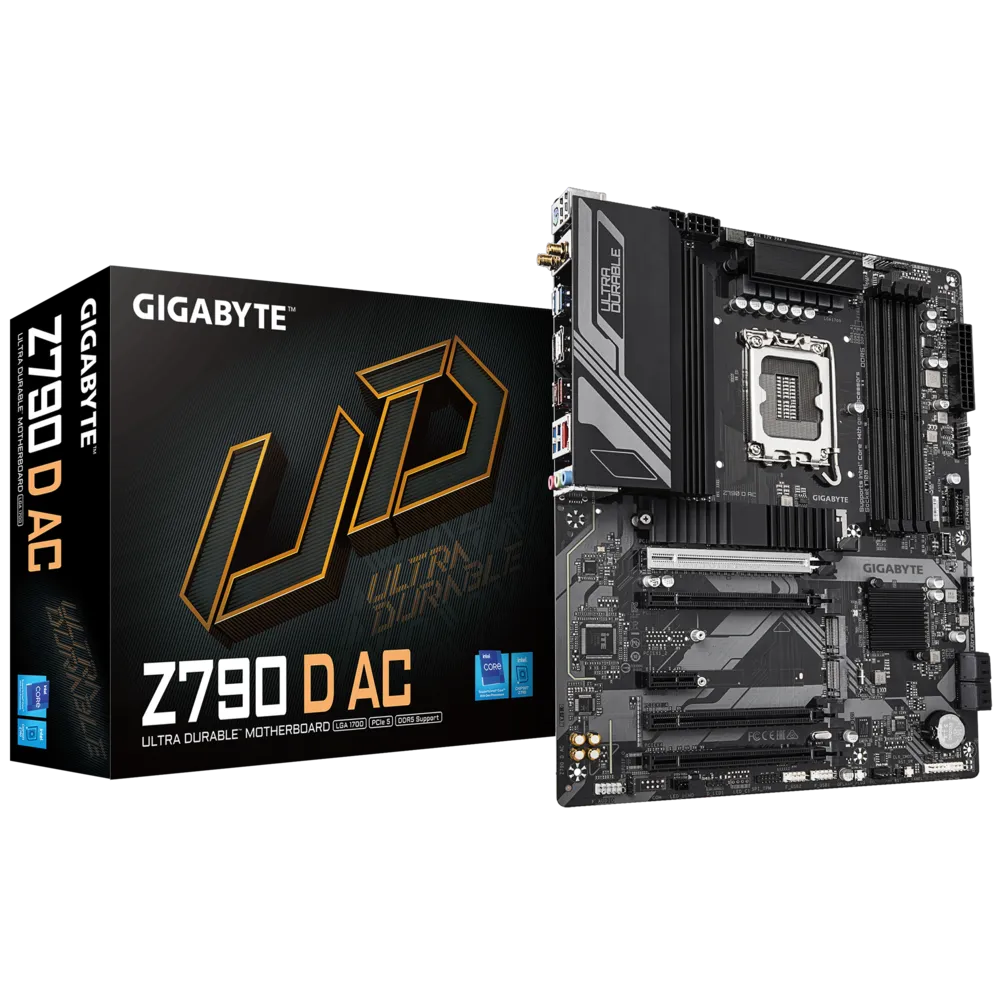

GIGABYTE Z790 D AC DDR5 Intel Motherboard
MPN GIGABYTE-Z790-D-AC · Brand GIGABYTE · ATX
The GIGABYTE Z790 D AC DDR5 ATX motherboard supports 12th–14th Gen Intel LGA1700 CPUs with PCIe 5.0 x16, three PCIe 4.0 M.2 slots, DDR5-7600 O.C. (XMP 3.0), 2.5GbE LAN, and Intel Wi-Fi 802.11ac with Bluetooth 5.1
Inclusive of GST · GST invoice available
Overview
The GIGABYTE Z790 D AC is an ATX-form-factor motherboard built on the Intel Z790 Express Chipset and designed for Intel LGA1700 processors spanning the 12th, 13th, and 14th Generation Core, Pentium Gold, and Celeron families. Its robust 12+1+1 phase digital VRM is paired with an enlarged MOSFET heatsink to maintain power-delivery stability under sustained loads, while M.2 Thermal Guards help preserve NVMe SSD performance across all three M.2 slots. Memory support centres on four DDR5 DIMM slots in a dual-channel configuration, accepting up to 256 GB of system memory. With qualifying 13th and 14th Generation Core i9/i7 processors, the board supports XMP 3.0 overclocking profiles up to DDR5-7600 (O.C.), with GIGABYTE's DDR5 XMP Booster providing pre-defined tuning profiles for simplified configuration. Base DDR5-4800/4400 speeds are available across the full supported CPU range. Storage flexibility is provided by three PCIe 4.0 x4 M.2 connectors alongside four SATA 6 Gb/s ports, with RAID 0/1/5/10 support for both NVMe and SATA arrays. The primary CPU-attached PCIe x16 slot operates at PCIe 5.0 for the latest discrete graphics cards or NVMe SSDs. Networking combines a Realtek 2.5GbE LAN chip with an Intel Wireless-AC 9560 module delivering 802.11ac dual-band (2.4/5 GHz) Wi-Fi up to 160 MHz channel width and Bluetooth 5.1. The rear I/O panel includes a USB Type-C port with USB 3.2 Gen 2 (10 Gb/s), a USB 3.2 Gen 2 Type-A port, four USB 3.2 Gen 1 Type-A ports, an HDMI 2.1 output (up to 4096×2160 @ 60 Hz), and a DisplayPort 1.2 output (up to 4096×2304 @ 60 Hz) for integrated-graphics use. Smart Fan 6 fan management supports up to five fan/pump headers (each rated up to 24 W at 12 V × 2 A) with hybrid PWM/DC control, a configurable fan-stop function, and a seven-point fan-curve editor in the UC BIOS interface. The Q-Flash Plus button enables BIOS updates from a FAT32-formatted USB drive without requiring an installed CPU, memory, or graphics card. Two Thunderbolt add-in-card connectors and two addressable LED headers round out the internal connectivity. Key Verified Specifications: - Form Factor: ATX — 30.5 cm × 24.4 cm - Socket: Intel LGA1700 - Chipset: Intel Z790 Express - Memory: 4× DDR5 DIMM, dual-channel, up to 256 GB; DDR5-7600 O.C. (XMP 3.0) with 13th/14th Gen i9/i7 - M.2: 3× PCIe 4.0 x4 (one supports type 22110/2280, two support type 2280; one also supports SATA) - SATA: 4× SATA 6 Gb/s with RAID 0/1/5/10 - PCIe Slots: 1× PCIe 5.0 x16 (CPU), 1× PCIe 4.0 x4 (chipset), 2× PCIe 3.0 x1, 1× PCIe 3.0 x1 - LAN: Realtek 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps) - Wi-Fi: Intel Wireless-AC 9560; 802.11a/b/g/n/ac, 2.4/5 GHz, up to 160 MHz; Bluetooth 5.1 - Rear USB: 1× USB-C 3.2 Gen 2, 1× USB-A 3.2 Gen 2, 4× USB-A 3.2 Gen 1, 2× USB 2.0 - Video Output: 1× HDMI 2.1 (4096×2160 @ 60 Hz), 1× DisplayPort 1.2 (4096×2304 @ 60 Hz) - Audio: Realtek HD Audio CODEC, 7.1-channel, S/PDIF out - BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus - Warranty: 3 Years

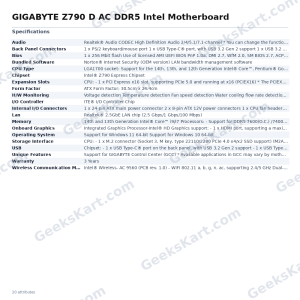

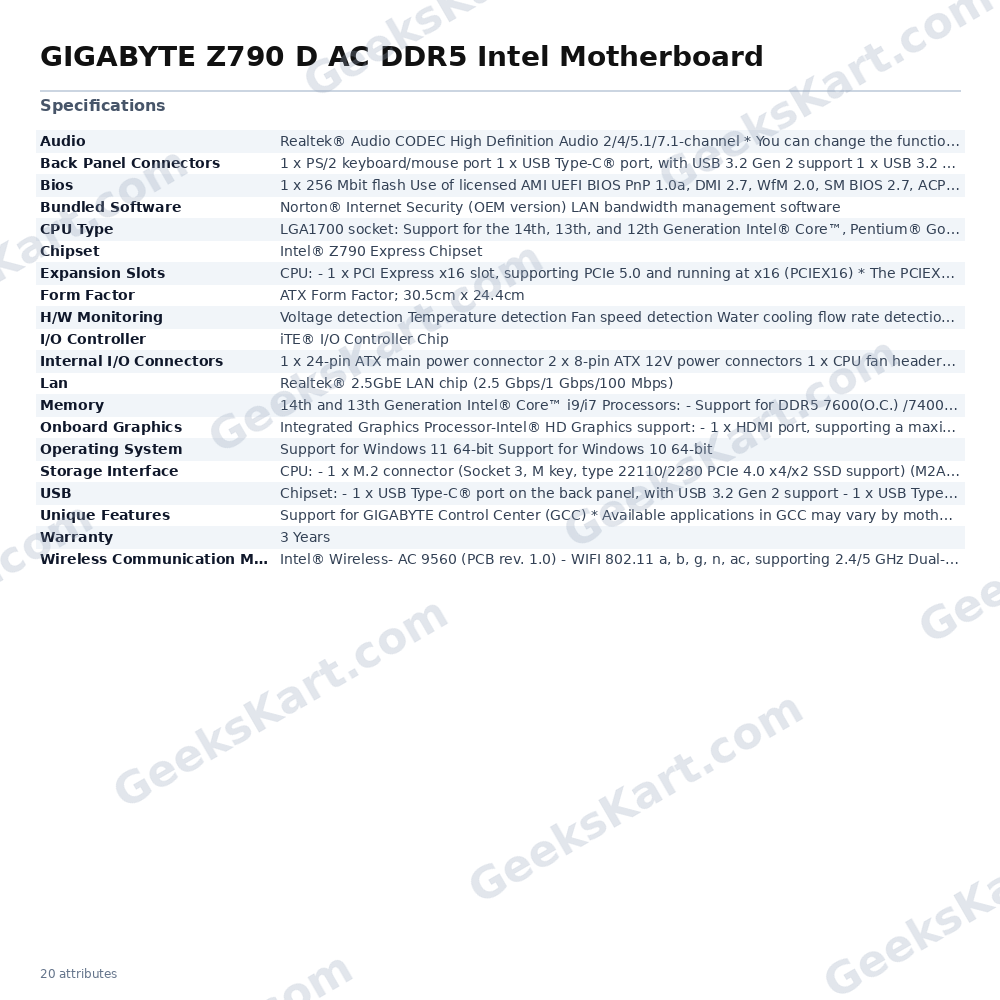

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z790 Express Chipset |
| CPU Type | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® CoreTM, Pentium® Gold and Celeron® Processors(Go to GIGABYTE's website for the latest CPU support list.)L3 cache varies with CPU |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) – 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports, available through the internal USB headers |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Memory | 14th and 13th Generation Intel® Core™ i9/i7 Processors: – Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: – Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (648 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_4) – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_3) |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Storage Interface | CPU: – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) – 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Wireless Communication Module | Intel® Wireless- AC 9560 (PCB rev. 1.0) – WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band – BLUETOOTH 5.1 – Support 11ac 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
