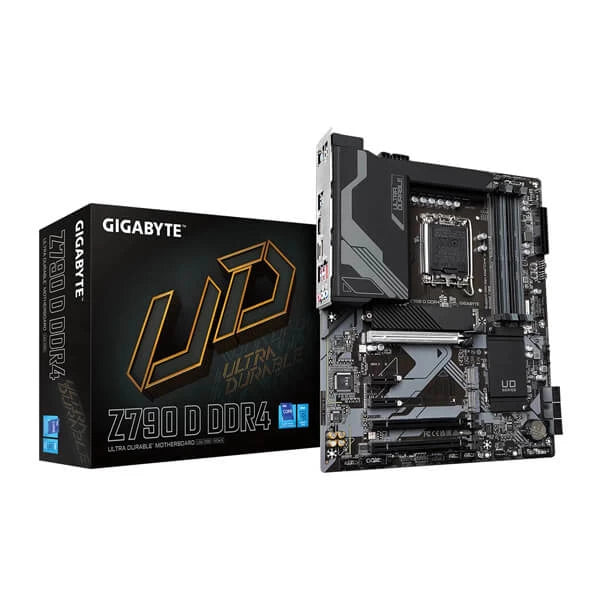

GIGABYTE Z790 D DDR4 Intel Motherboard
MPN GIGABYTE-Z790-D-DDR4 · Brand Gigabyte · ATX
The Gigabyte Z790 D DDR4 ATX motherboard supports 12th and 13th Gen Intel LGA1700 processors with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4 memory up to 5333 MHz (XMP), and 2.5GbE LAN — offering strong connectivity and storage expansion in a standard ATX layout
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z790 D DDR4 is an ATX form factor motherboard built on Intel's Z790 Express Chipset, designed to support both 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors via the LGA1700 socket. It offers a capable and well-rounded feature set for desktop PC builders who want a platform that is ready for current-generation storage and connectivity standards without moving to DDR5 memory. For memory, the board features four DDR4 DIMM slots in a dual-channel configuration supporting up to 128 GB of system RAM (32 GB per slot). Speeds range from a standard 2133 MHz up to 5333 MHz with XMP overclocking, covering a wide range of kit options. ECC Un-buffered memory is acknowledged but operates in non-ECC mode. Expansion is handled by a CPU-connected PCIe 5.0 x16 primary slot, delivering the full bandwidth of the latest interface generation. Additional slots from the chipset include a PCIe 4.0 x4 slot and two PCIe 3.0 x1 slots. AMD CrossFire multi-GPU configurations are supported across the primary and secondary x16 slots. Storage options are a strong point: three M.2 connectors all running PCIe 4.0 x4 (one from the CPU, two from the chipset), plus six SATA 6Gb/s ports for legacy drives. Thermal Guards on the M.2 slots help manage SSD temperatures under sustained workloads. Connectivity includes a Realtek 2.5GbE LAN chip, a rear USB Type-C port with USB 3.2 Gen 2x2 (20 Gbps) support, a rear USB 3.2 Gen 2 Type-A port, four rear USB 3.2 Gen 1 ports, and two rear USB 2.0 ports. Front-panel USB is covered by a USB-C header (Gen 1) and a USB 3.2 Gen 1 header. Display output for integrated graphics is available via HDMI 2.0 (up to 4096×2160 @ 60 Hz). Audio is handled by a Realtek HD Audio CODEC supporting up to 7.1-channel output with S/PDIF Out. Fan management uses Gigabyte's Smart Fan 6 system with multiple temperature sensors and hybrid fan headers with FAN STOP capability. The BIOS is AMI UEFI with Q-Flash Plus, allowing firmware updates without a CPU, memory, or GPU installed — useful during initial builds or after a failed update. ARGB and standard RGB headers (two each) are present for lighting customisation via Gigabyte Control Center. Verified Specifications: - Form Factor: ATX, 30.5 cm × 24.4 cm - Socket: LGA1700 (12th/13th Gen Intel Core, Pentium Gold, Celeron) - Chipset: Intel Z790 Express - Memory: 4× DDR4 DIMM, dual-channel, up to 128 GB, DDR4-2133 to DDR4-5333 (XMP O.C.) - PCIe Slots: 1× PCIe 5.0 x16 (CPU), 1× PCIe 4.0 x4, 2× PCIe 3.0 x1 (chipset) - M.2: 3× PCIe 4.0 x4 (one type 22110/2280 CPU-side; two type 2280 chipset-side) - SATA: 6× SATA 6Gb/s - LAN: Realtek 2.5GbE - Rear USB: 1× USB-C 3.2 Gen 2x2, 1× USB-A 3.2 Gen 2, 4× USB-A 3.2 Gen 1, 2× USB 2.0 - Display: 1× HDMI 2.0 (4K@60 Hz) - Audio: Realtek HD, 7.1-channel, S/PDIF Out - BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus - Warranty: 3 Years

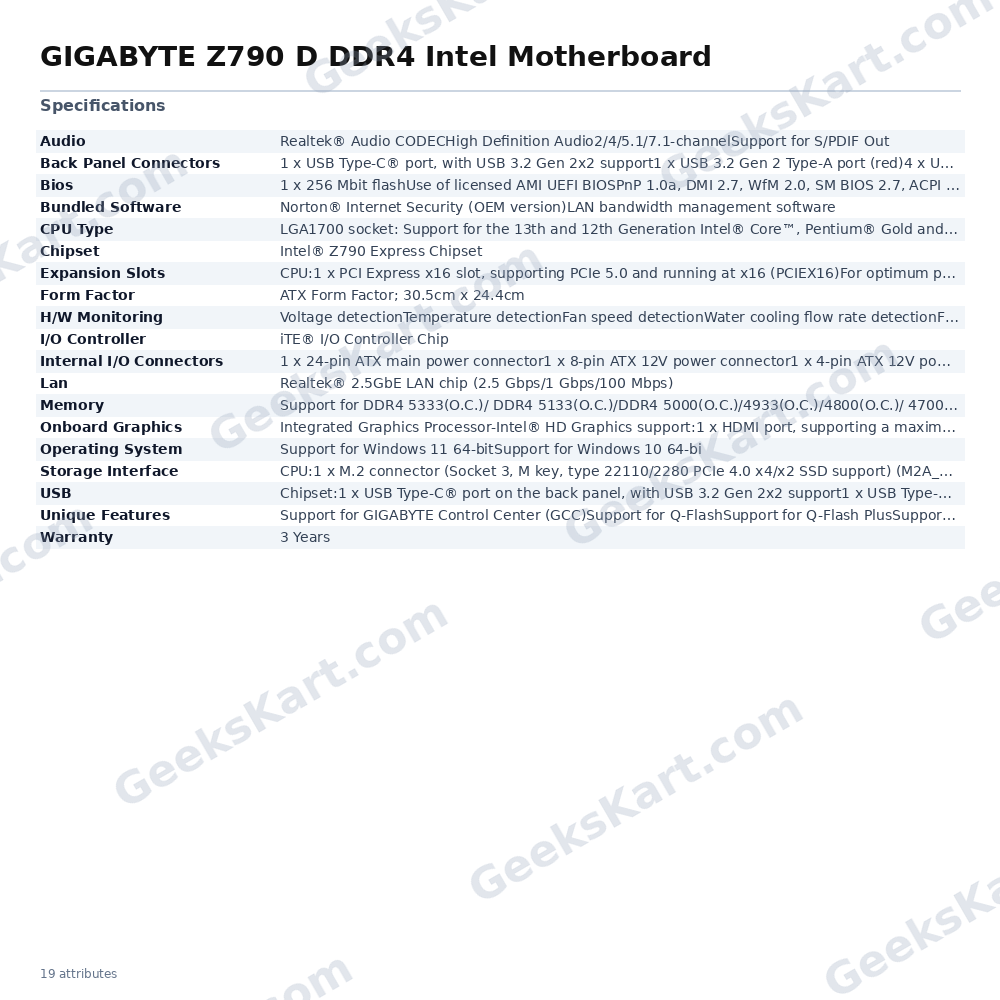

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z790 Express Chipset |
| CPU Type | LGA1700 socket: Support for the 13th and 12th Generation Intel® CoreTM, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header1 x USB 3.2 Gen 2 Type-A port (red) on the back panel6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)Chipset+1 USB 2.0 Hub:6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) |
| Unique Features | Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@60 HzSupport for HDMI 2.0 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 HzSupport for DisplayPort 1.2 version and HDCP 2.3 |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bi |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)6 x SATA 6Gb/s connectors |
| Back Panel Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x HDMI 2.0 port1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers3 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C® header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x serial port header2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |
