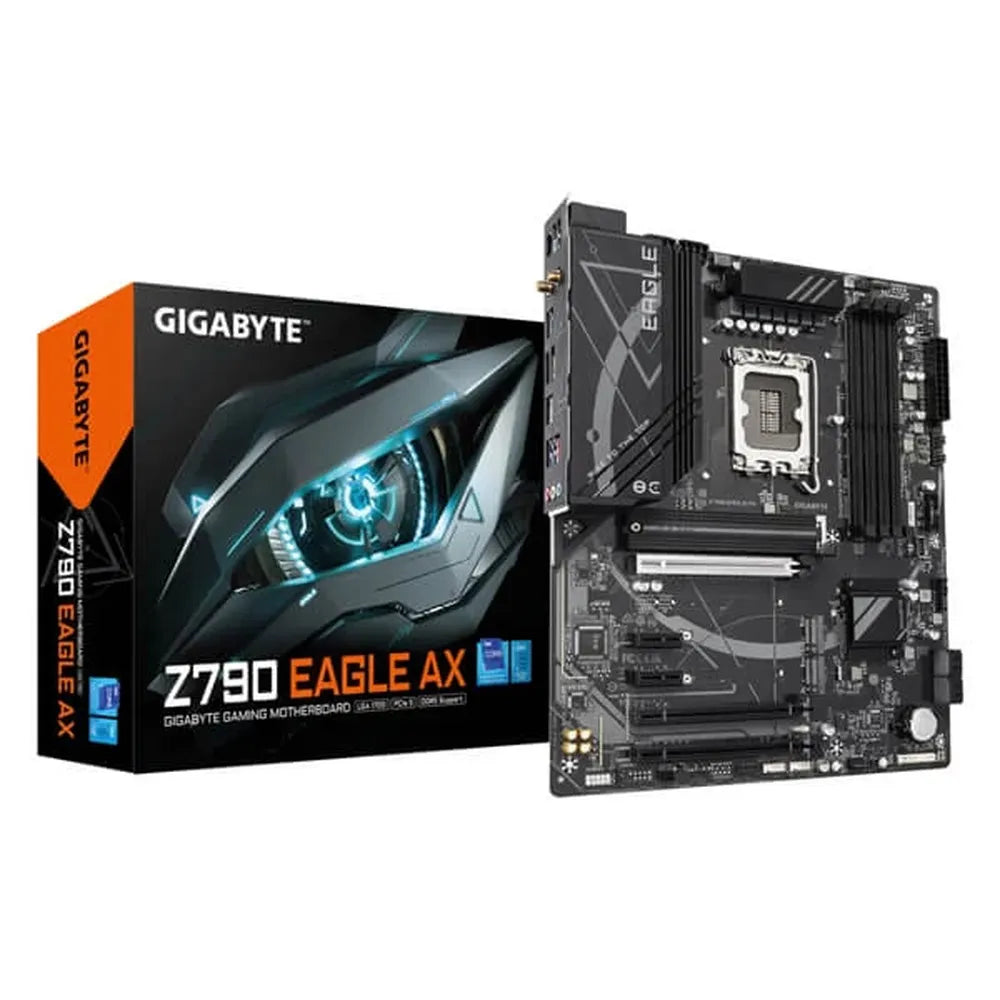

The Gigabyte Z790 Eagle AX is an ATX-form-factor motherboard built on the Intel Z790 Express Chipset and designed for the LGA1700 socket. It supports 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors, giving builders a platform that remains relevant across multiple Intel generations. The board measures 30.5 cm x 24.4 cm and fits any standard ATX chassis. Memory support is a standout feature. Four DDR5 DIMM slots accept up to 256 GB of system memory (64 GB per DIMM), with XMP 3.0 profiles enabled. On 14th and 13th Gen Core i9/i7 processors the board can reach DDR5 7600 MT/s in overclocked mode, while 12th Gen and lower-tier 13th Gen CPUs are supported at DDR5 4800/4400 MT/s natively. Dual-channel architecture and ECC un-buffered DIMM support (operating in non-ECC mode) round out the memory subsystem. For connectivity, the board ships with an Intel Wi-Fi 6E AX211 (on PCB rev. 1.0) or Realtek RTL8852CE Wi-Fi 6E (on PCB rev. 1.1) module supporting 802.11ax across 2.4 GHz, 5 GHz, and 6 GHz bands at up to 160 MHz channel width, paired with Bluetooth 5.3. Wired networking is handled by a Realtek 2.5GbE LAN chip supporting 2.5 Gbps, 1 Gbps, and 100 Mbps speeds. Storage flexibility comes via three M.2 PCIe 4.0 x4 connectors (one CPU-attached supporting up to 22110/2280, two chipset-attached at 2280), plus four SATA 6 Gb/s ports. RAID 0, 1, 5, and 10 are supported for both NVMe and SATA arrays. The primary PCIe x16 slot runs at PCIe 5.0 x16 directly from the CPU, featuring Gigabyte’s EZ-Latch quick-release mechanism. The rear I/O panel provides a USB Type-C port (USB 3.2 Gen 2), one USB 3.2 Gen 2 Type-A port, four USB 3.2 Gen 1 ports, two USB 2.0 ports, HDMI (up to 4096×2160 @ 60 Hz), DisplayPort (up to 4096×2304 @ 60 Hz), an RJ-45 port, and three audio jacks. The board also carries two Thunderbolt add-in card connectors internally. Thermal management uses Gigabyte’s Smart Fan 6 system with multiple temperature sensors, hybrid fan headers with FAN STOP functionality, and M.2 thermal guards to protect NVMe SSDs under sustained loads. The Q-Flash Plus button allows BIOS updates without installing a CPU, memory, or graphics card — a practical advantage during initial builds or after failed updates. Verified Specifications: Socket: LGA1700 | Chipset: Intel Z790 Express | Form Factor: ATX (30.5 cm x 24.4 cm) | Memory: 4x DDR5 DIMM, up to 256 GB, DDR5 7600 (O.C.) | Wi-Fi: 802.11ax Wi-Fi 6E (2.4/5/6 GHz), BT 5.3 | LAN: Realtek 2.5GbE | M.2 Slots: 3x PCIe 4.0 x4 | SATA: 4x 6 Gb/s | PCIe x16 (CPU): PCIe 5.0 | USB Rear: 1x USB-C 3.2 Gen 2, 1x USB-A 3.2 Gen 2, 4x USB 3.2 Gen 1, 2x USB 2.0 | Audio: Realtek HD 7.1-channel | BIOS: AMI UEFI | OS: Windows 11/10 64-bit | Warranty: 3 Years
MSI B550M Pro-VDH Wifi DDR4 AMD Motherboard
₹10,605.00
ASUS ROG MAXIMUS Z890 HERO BTF LGA 1851 ATX Motherboard
₹63,080.00
GIGABYTE Z790 Eagle AX WiFi DDR5 Intel Motherboard
₹21,605.00
The Gigabyte Z790 Eagle AX is an ATX DDR5 motherboard for Intel LGA1700 processors (12th–14th Gen) featuring PCIe 5.0, Wi-Fi 6E, 2.5GbE LAN, and three PCIe 4.0 M.2 slots
Additional information
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | Intel® Z790 Express Chipset |
| CPU Type | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® CoreTM, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU(Please refer "CPU Support List" for more information.) |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset:- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)- 2 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports, available through the internal USB headers |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | 14th and 13th Generation Intel® Core™ i9/i7 Pocessors:- Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:- Support for DDR5 4800/4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Model | Z790 EAGLE AX |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)Chipset:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) |
| Unique Features | Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz- 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | CPU:- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:- 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)- 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports2 x SMA antenna connectors (1T1R)1 x HDMI port1 x DisplayPort1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C® header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x reset button1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |
| Wireless Communication Module | Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11ax 160MHz wireless standardRealtek® Wi-Fi 6E RTL8852CE(PCB rev. 1.1)- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11ax 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.) |
