Gigabyte Z790 S WIFI DDR4 ATX Motherboard (LGA1700, Intel 12th–14th Gen)
MPN Z790-S-WIFI-DDR4 · Brand GIGABYTE · ATX
The Gigabyte Z790 S WIFI DDR4 ATX motherboard supports Intel 12th–14th Gen LGA1700 processors, up to 128 GB DDR4 at 5333 MHz, three PCIe 4.0 M.2 slots, 2.5 GbE LAN, and 802.11ac Wi-Fi with Bluetooth 5.1
Inclusive of GST · GST invoice available
Overview
The Gigabyte Z790 S WIFI DDR4 is a full-size ATX motherboard built on Intel's Z790 chipset for LGA1700-socket processors spanning the 12th, 13th, and 14th Generation Intel Core lineup, including Pentium Gold and Celeron models. Designed for builders who want a capable, well-connected foundation without overcomplicating their setup, it pairs a 8+1+1 phase digital VRM solution with low RDS MOSFETs and a one-piece MOSFET heatsink for consistent power delivery under sustained load. Memory flexibility is a strong point. Four DIMM slots in dual-channel configuration support DDR4 modules up to a maximum of 128 GB, with XMP profiles validated up to 5333 MHz. Memory routing is shielded beneath PCB inner layers to reduce signal noise. The board also accepts ECC Unbuffered DIMMs operating in non-ECC mode alongside standard non-ECC Unbuffered modules. For storage, three M.2 Socket 3 connectors each support PCIe 4.0 x4, and each slot benefits from M.2 Thermal Guard heatsinks to maintain SSD performance under extended workloads. Four SATA 6 Gb/s ports supplement M.2 storage for additional drives. The primary PCIe x16 slot (CPU-connected) runs at PCIe 4.0 x16 and features Gigabyte's EZ-Latch mechanism for tool-assisted GPU removal, while two additional chipset-connected PCIe x16 physical slots run at PCIe 3.0 x1 electrically. Networking is covered by an onboard 2.5 GbE RJ-45 port and an 802.11ac (Wi-Fi 5) module with dual-band support and a theoretical maximum link rate of 1.73 Gbps, complemented by Bluetooth 5.1. Two SMA antenna connectors (2T2R) are included on the rear I/O. Front-panel and rear connectivity is comprehensive. The rear I/O delivers one USB 3.2 Gen 2 Type-A port, two USB 3.2 Gen 1 ports, five USB 2.0/1.1 ports, DisplayPort and HDMI video outputs, and six audio jacks. Internally, a USB Type-C header with USB 3.2 Gen 2 support brings high-speed connectivity to compatible cases, alongside a USB 3.2 Gen 1 header and two USB 2.0/1.1 headers. Fan control is managed by Smart Fan 6 with multiple temperature sensors and hybrid fan headers supporting FAN STOP. ARGB and RGB LED headers are available for lighting customisation. Q-Flash Plus allows BIOS updates without a CPU or memory installed, and a TPM header supports the GC-TPM2.0 SPI module series. Key Verified Specifications: - Socket: LGA1700 - Chipset: Intel Z790 - CPU Support: Intel 12th, 13th, 14th Gen Core, Pentium Gold, Celeron - Form Factor: ATX - Memory: 4x DDR4 DIMM, Dual Channel, max 128 GB, XMP up to 5333 MHz - Storage: 3x M.2 PCIe 4.0 x4 + 4x SATA 6 Gb/s - Primary PCIe Slot: PCIe 4.0 x16 (CPU), with EZ-Latch - Networking: 2.5 GbE LAN, 802.11ac Wi-Fi (1.73 Gbps), Bluetooth 5.1 - Video Out: 1x HDMI, 1x DisplayPort - USB Rear: 1x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1, 5x USB 2.0/1.1 - Internal: 1x USB-C header (USB 3.2 Gen 2), ARGB & RGB headers - VRM: 8+1+1 Phase Digital PWM - Warranty: 3 Years

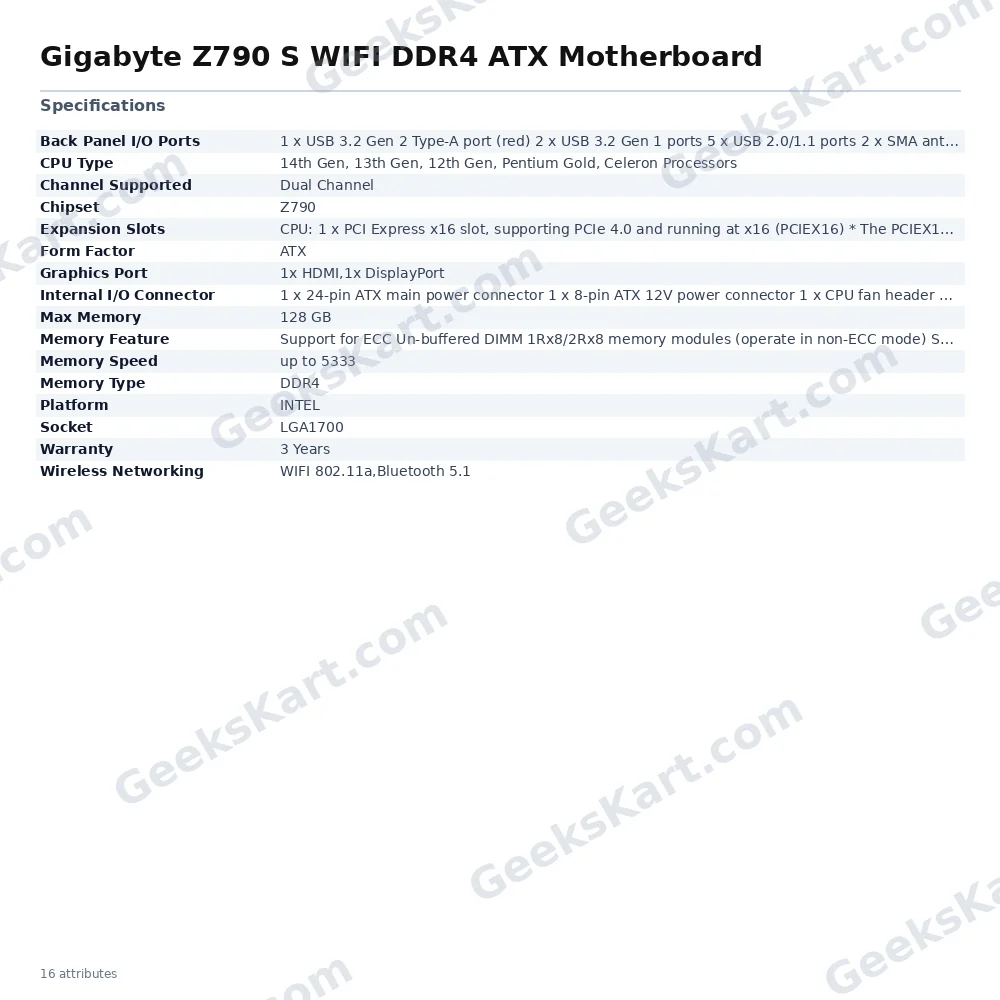

Datasheet
| Memory Type | DDR4 |
|---|---|
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | Z790 |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Max Memory | 128 GB |
| Memory Speed | up to 5333 |
| Platform | INTEL |
| Graphics Port | 1x HDMI,1x DisplayPort |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on Brand Website for more information.) |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
| Channel Supported | Dual Channel |
| Wireless Networking | WIFI 802.11a,Bluetooth 5.1 |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort* 1 x HDMI port* 1 x RJ-45 port 6 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
