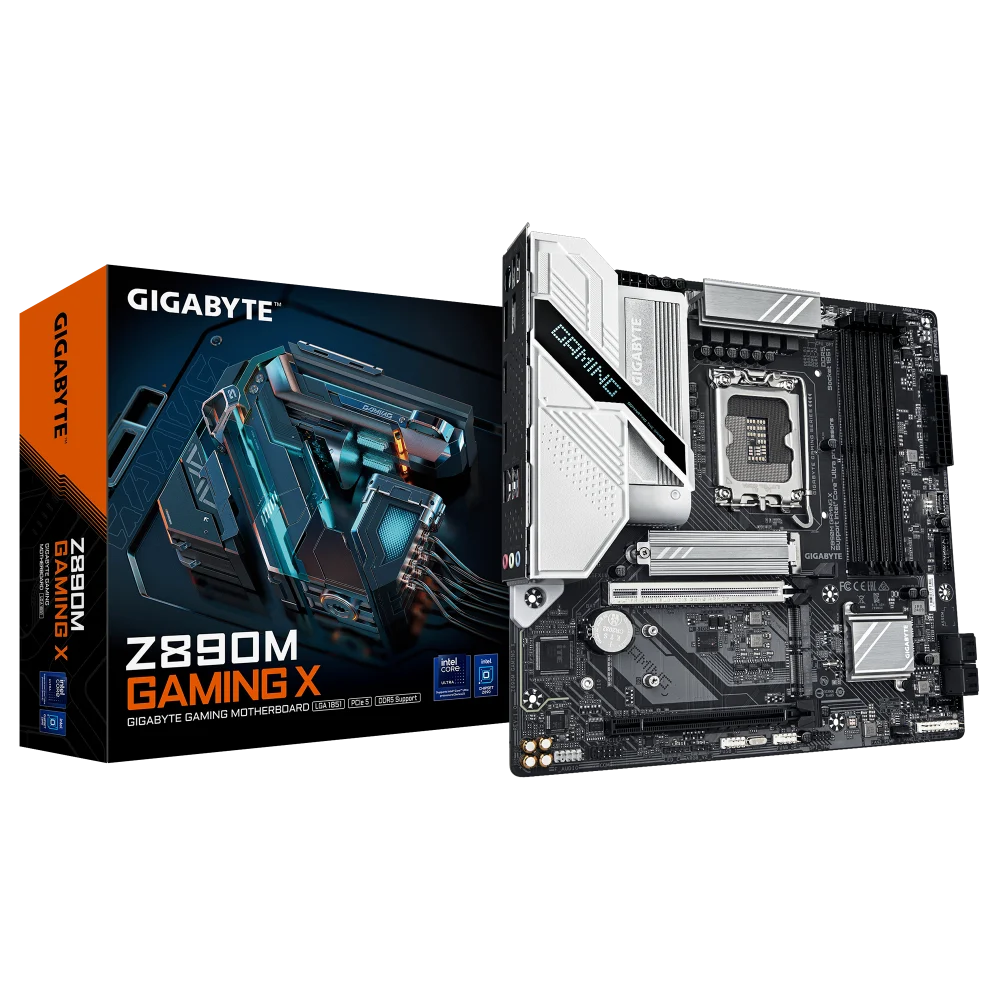

GIGABYTE Z890M Gaming X DDR5 intel Motherboard
MPN GIGABYTE-Z890M-GAMING-X-DDR5 · Brand GIGABYTE · mATX
The GIGABYTE Z890M Gaming X DDR5 is a Micro ATX motherboard for Intel LGA1851 Core Ultra processors, featuring the Z890 chipset, PCIe 5.0 x16 and M.2 slots, DDR5 support up to 9066 MT/s OC, 3x M.2, and Realtek 2.5GbE LAN
Inclusive of GST · GST invoice available
Overview
The GIGABYTE Z890M Gaming X DDR5 is a Micro ATX motherboard built on the Intel Z890 Express Chipset, designed for Intel Core Ultra processors installed in the LGA1851 socket. Its compact 24.4 cm x 24.4 cm footprint makes it an efficient choice for small-to-mid form factor gaming and workstation builds without compromising on connectivity or feature depth. Memory capability is a headline strength. Four DDR5 DIMM slots support dual-channel operation with up to 256 GB total capacity (64 GB per module), and speeds reaching DDR5-9066 MT/s under XMP or manual overclocking profiles. CUDIMM modules are also supported, alongside ECC Un-buffered DIMMs operating in non-ECC mode for added flexibility. Storage options are comprehensive. A CPU-connected M.2 slot (M2A_CPU) supports PCIe 5.0 x4 NVMe drives in 2280 and 2580 lengths, offering the highest sequential bandwidth available on the platform. Two additional chipset-connected M.2 slots run at PCIe 4.0 x4, with the larger M2N_SB accepting drives up to 22110 mm. Four SATA 6 Gb/s ports round out the storage interface, and both NVMe and SATA arrays support RAID 0, 1, 5, and 10 configurations. Expansion is handled by a full-speed PCIe 5.0 x16 slot from the CPU for graphics or NVMe add-in cards, and a secondary PCIe 4.0 x16 physical slot (electrically x4) from the chipset. Two Thunderbolt add-in card connectors extend high-speed peripheral options further. Connectivity on the rear I/O includes three USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, one HDMI 2.1 output (up to 4096×2160 @ 60 Hz), two DisplayPort 2.1 outputs (up to 4096×2304 @ 60 Hz), and a Realtek 2.5GbE RJ-45 LAN port. Audio is delivered through a Realtek HD Audio CODEC supporting up to 7.1-channel output with an onboard noise guard that physically isolates analog audio circuitry from digital interference on the PCB. Onboard RGB headers include two addressable Gen2 ARGB headers and one standard RGB header, with Smart Fan 6 providing granular thermal and fan-speed control including water-cooling pump headers. The BIOS is AMI UEFI-based with a 256 Mbit flash chip, supporting Q-Flash for easy firmware updates and GIGABYTE Control Center (GCC) software for system monitoring and tuning. The board also features an RL-ILM (Reduced Load Independent Loading Mechanism) that reduces CPU socket mechanical stress and is reported by GIGABYTE to improve thermal contact by up to 4°C. Windows 11 64-bit and Windows 10 64-bit are officially supported. Verified Specifications: - Socket: LGA1851 - Chipset: Intel Z890 Express - Form Factor: Micro ATX, 24.4 cm x 24.4 cm - Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB, DDR5-5600 native / up to DDR5-9066 O.C., XMP & CUDIMM support - Primary M.2: PCIe 5.0 x4 (CPU-direct), 2280/2580 - Secondary M.2 x2: PCIe 4.0 x4 (chipset), up to 22110 mm - SATA: 4x SATA 6 Gb/s, RAID 0/1/5/10 - PCIe Slots: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (chipset, x16 physical) - LAN: Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps) - Display Out: 1x HDMI 2.1, 2x DisplayPort 2.1 (CPU-dependent) - USB (rear): 3x USB 3.2 Gen 1, 2x USB 2.0 - Audio: Realtek HD CODEC, 2/4/5.1/7.1-channel - BIOS: 256 Mbit AMI UEFI, Q-Flash support - OS Support: Windows 11 64-bit, Windows 10 64-bit

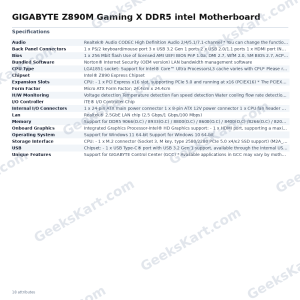

Datasheet
| Form Factor | mATX |
|---|---|
| Chipset | Intel® Z890 Express Chipset |
| CPU Type | LGA1851 socket: Support for Intel® CoreTM Ultra ProcessorsL3 cache varies with CPU* Please refer to "CPU Support List" for more information |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) – 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings |
| Memory | Support for DDR5 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functionsof each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. – 2 x DisplayPorts, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Storage Interface | CPU: – 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2N_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper |
