HYTE X50 Air ATX Mid Tower Cabinet ( White )
MPN HYTE-X50-AIR-WHITE · Brand HYTE · ATX, E-ATX, mATX, Mini-ITX
Features of HYTE X50 Air ATX Mid Tower Cabinet ( White ) Full-Coverage Micro-Mesh Serves as a low pressure and low resistance air intake for optimal temps & noise levels Patent-Pending Louvered Blade Ventilation Reduces exhaust impedance by slicing through hot air while reinforcing chassis rigidity Cold-Floor Cooling Keeps your graphics card comfortably cool with direct airflow from up to 3x 120mm extra thick fans Structural PSU Canopy Ideally placed for hassle-free cable management with met
Inclusive of GST · GST invoice available
Overview
Features of HYTE X50 Air ATX Mid Tower Cabinet ( White )
Full-Coverage Micro-Mesh
Serves as a low pressure and low resistance air intake for optimal temps & noise levels
Patent-Pending Louvered Blade Ventilation
Reduces exhaust impedance by slicing through hot air while reinforcing chassis rigidity
Cold-Floor Cooling
Keeps your graphics card comfortably cool with direct airflow from up to 3x 120mm extra thick fans
Structural PSU Canopy
Ideally placed for hassle-free cable management with meticulously placed tie-down points wish included velcro straps both inside and outside the chassis
Disciplined Multi-Dimensional Design
Seamlessly blends premium materials such as steel and tempered glass with exquisite craftsmanship, resulting in simple, soft, perfect forms across every curve inside the case
Form Factor: ATX Mid-Tower
Volume: 63L
Case Dimensions: 485mm (H) x 510mm (L) x 255mm (W)
Chassis Material(s): 1mm Thick Steel, ABS
Motherboard Support: E-ATX (up to 10.6”), ATX, MATX, ITX
Power Supply: Up to 223mm
GPU Support: Up to 430mm Length, 160mm Height
Side Fan Support: 3x 120mm
Front Fan Support: 3x 120mm / 140mm
Bottom Fan Support: 3x 120mm up to 32mm Thick
Rear Fan Support: 1x 120mm
Side Radiator Support: Up to 360mm Long & 70mm Thick
Front Radiator Support: Up to 360mm Long & 105mm Thick
Rear Radiator Support: 120mm
Max CPU Cooler Height: 170mm
Storage Support: 2x 2.5” Drives, 1x 3.5” Drive
Expansion Slots: 7 Horizontal (Full-Size)
Front I/O (Audio): 3.5mm Combo Jack
Front I/O (USB): 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1x1 Type A
Front I/O (Power): Tactile Mechanical Power Switch with LED
Dust Filters: Bottom, Magnetic

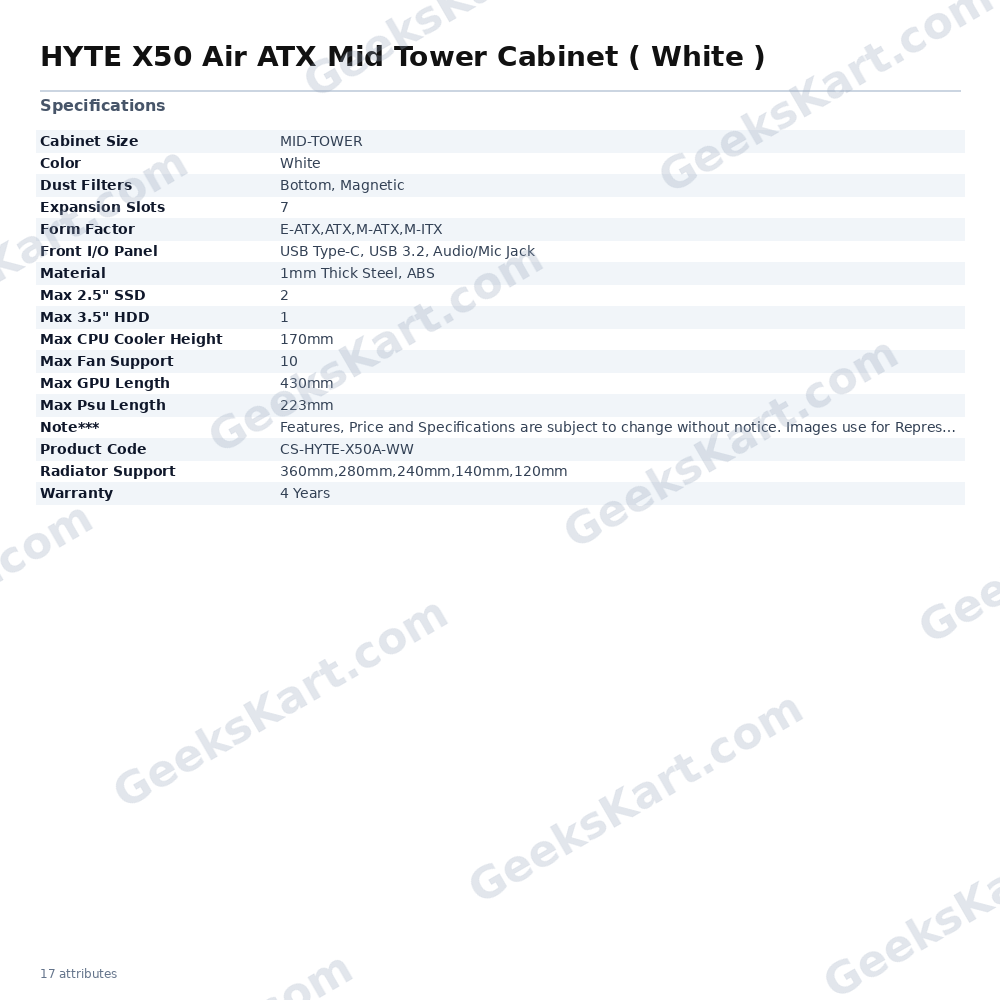

Specifications of HYTE X50 Air ATX Mid Tower Cabinet ( White )
| Product Code | CS-HYTE-X50A-WW |
| Cabinet Size | MID-TOWER |
| Color | White |
| Material | 1mm Thick Steel, ABS |
| Expansion Slots | 7 |
| Motherboard Size | E-ATX,ATX,M-ATX,M-ITX |
| Max CPU Cooler Height | 170mm |
| Max PSU Length | 223mm |
| Max Gpu Length | 430mm |
| Max 3.5" HDD | 1 |
| Max 2.5" SSD | 2 |
| Dust Filters | Bottom, Magnetic |
| Max Fan Support | 10 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Front I/O Panel | USB Type-C, USB 3.2, Audio/Mic Jack |
| Warranty | 4 Years |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
Datasheet
| Warranty | 4 Years |
|---|---|
| Form Factor | ATX, E-ATX, mATX, Mini-ITX |
| color | White |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Material | 1mm Thick Steel, ABS |
| Cabinet Size | MID-TOWER |
| Dust Filters | Bottom, Magnetic |
| Max 2.5" SSD | 2 |
| Max 3.5" HDD | 1 |
| Product Code | CS-HYTE-X50A-WW |
| Max GPU Length | 430mm |
| Max Psu Length | 223mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB Type-C, USB 3.2, Audio/Mic Jack |
| Max Fan Support | 10 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Max CPU Cooler Height | 170mm |
