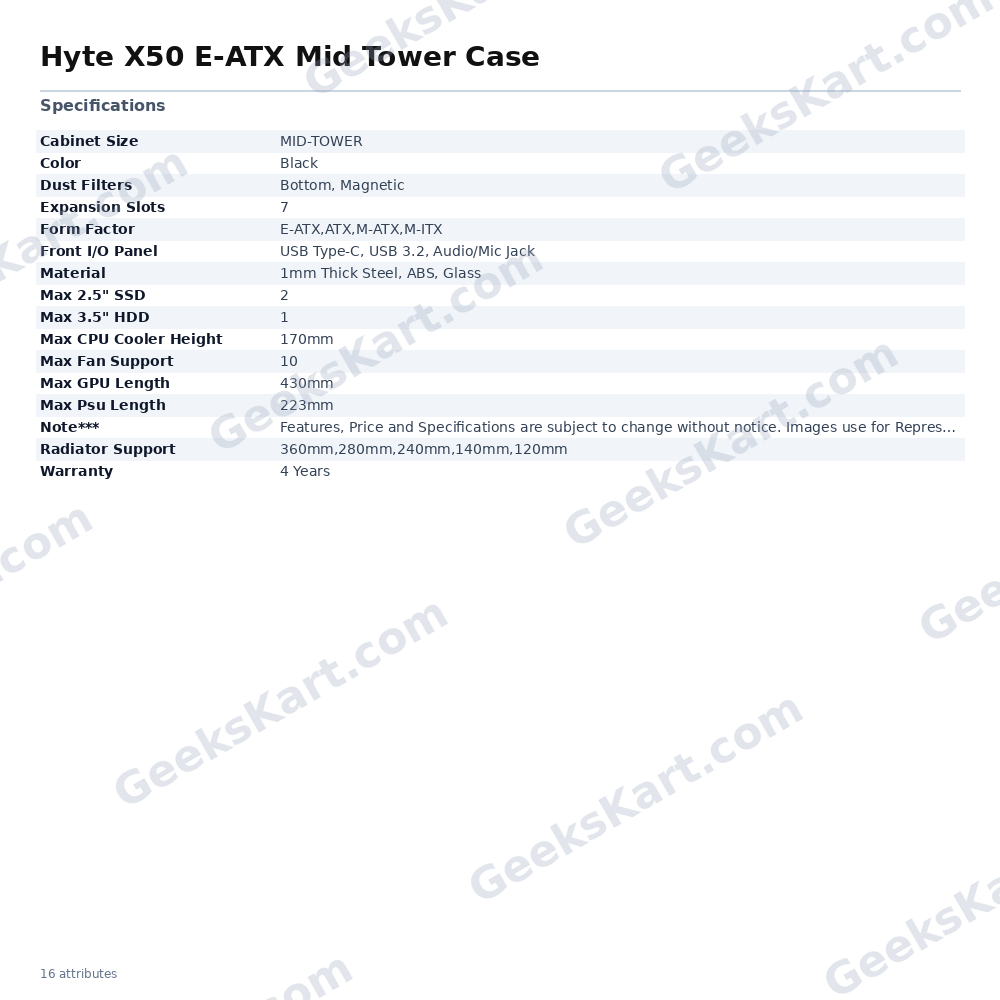

Hyte X50 E-ATX Mid Tower Case

The HYTE X50 E-ATX Mid Tower Case (SKU: CS-HYTE-X50G-BB) is a 63-litre, disciplined-design chassis finished in Black that accommodates a wide range of builds — from compact Micro-ITX configurations right up to full-size E-ATX motherboards (up to 10.6 inches). Built on a 1mm thick steel chassis with ABS accents, the X50 is engineered around three core pillars: thermal performance, acoustic comfort, and clean aesthetics. At the heart of the X50's airflow strategy is HYTE's patent-pending Louvered Blade Ventilation system. The angled blade geometry reduces exhaust impedance by channelling hot air out efficiently while simultaneously reinforcing chassis rigidity — no compromise between airflow and structural integrity. Complementing this is the Cold-Floor Cooling zone: the base of the case supports up to three 120mm extra-thick fans that direct fresh air directly toward the graphics card, keeping GPU temperatures in check without relying solely on the front intake. The 4mm thick laminated acoustic glass side panel provides meaningful passive noise damping by reducing sound transmission through the panel. The bonding layer prevents the glass from shattering into fragments in the unlikely event of breakage, offering a degree of additional safety. Cable management is simplified by the structural PSU canopy, which positions the power supply in an ideally isolated zone. Meticulously placed tie-down points and included velcro straps — both inside and outside the chassis — allow builders to route cables cleanly without improvisation. The front I/O is equipped for modern peripherals: a USB 3.2 Gen 2×2 Type-C port (up to 20 Gbps), two USB 3.2 Gen 1×1 Type-A ports, a 3.5mm combo audio jack, and a tactile mechanical power switch with LED indicator. A magnetic bottom dust filter and total-coverage silicone grommets round out the practical details. Verifiable Specifications: - Form Factor: E-ATX (up to 10.6″), ATX, Micro-ATX, Mini-ITX - Volume: 63 litres - Dimensions: 485mm (H) × 510mm (L) × 255mm (W) - Chassis: 1mm steel + ABS; Window: 4mm laminated acoustic glass - Max GPU Length: 430mm; Max GPU Height: 160mm - Max PSU Length: 223mm - Max CPU Cooler Height: 170mm - Fan Support: 3× 120mm (side/cold-floor), 3× 120/140mm (front), 3× 120mm (bottom, up to 32mm thick), 1× 120mm (rear) — 10 fans total - Radiator Support: Side up to 360mm × 70mm thick; Front up to 360mm × 105mm thick; Rear 120mm - Storage: 2× 2.5″ drives, 1× 3.5″ drive - Expansion Slots: 7 horizontal full-size - Dust Filters: Magnetic bottom filter - Warranty: 4 years
