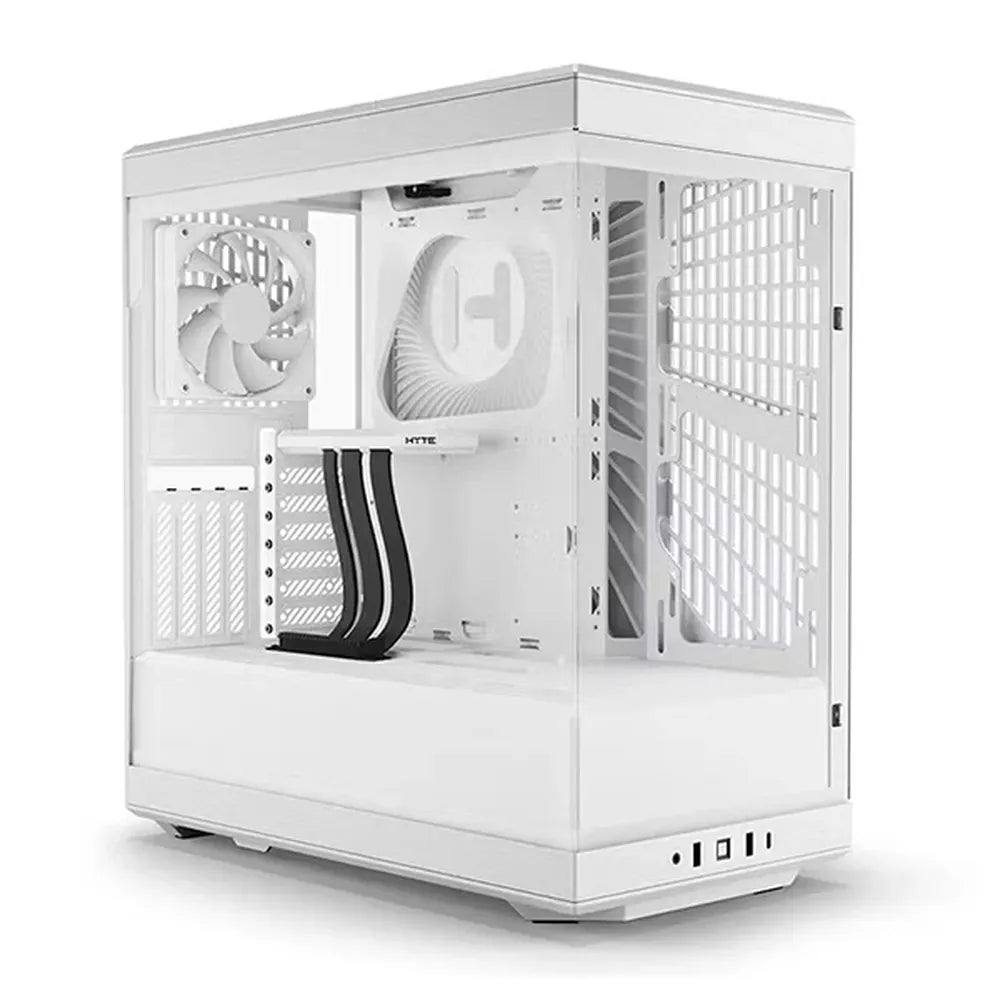

Features of HYTE Y40 ATX Mid Tower Cabinet (White)
Designed From Every Dimension
The all-new HYTE Y40 ATX Cabinet is designed to wow and priced to thrill while defining new industry standards for ATX cases everywhere. Elevate your expectations of multi-dimensional case design, next-gen GPU compatibility, and overall system harmony today.
Multi-Dimensional Design
Details connect every part into a deeply harmonic design structure. Every edge is adorned in tightly controlled beveling for s-tier aesthetics. 2-Piece Panoramic Glass set the stage for a completely unobstructed view of your system’s performance.
Ginormous Vertical Graphics Support
This HYTE Cabinet grows GPU support to 4 full slots with additional airflow space between the edge of the card and the glass. An intake fan below the power supply shroud provides fresh air upwards to the GPU to improve cooling further.
Included Luxury PCIE 4.0 Riser Cable
A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card.
Cooling
Y40 comes with 2x 120mm fans pre-installed, one beneath the floor and one at the rear. The side mount can fit up to a 280mm radiator with a combined thickness of up to 120mm allowing for large 60mm+ radiators to be used for custom loop configurations, and the top mount can fit up to a 360mm radiator for dual radiator setups. Y40 also brings support for large air coolers over 180mm in height, allowing for almost every CPU cooler on the market.
Best cpu case gaming at affordable prices at!

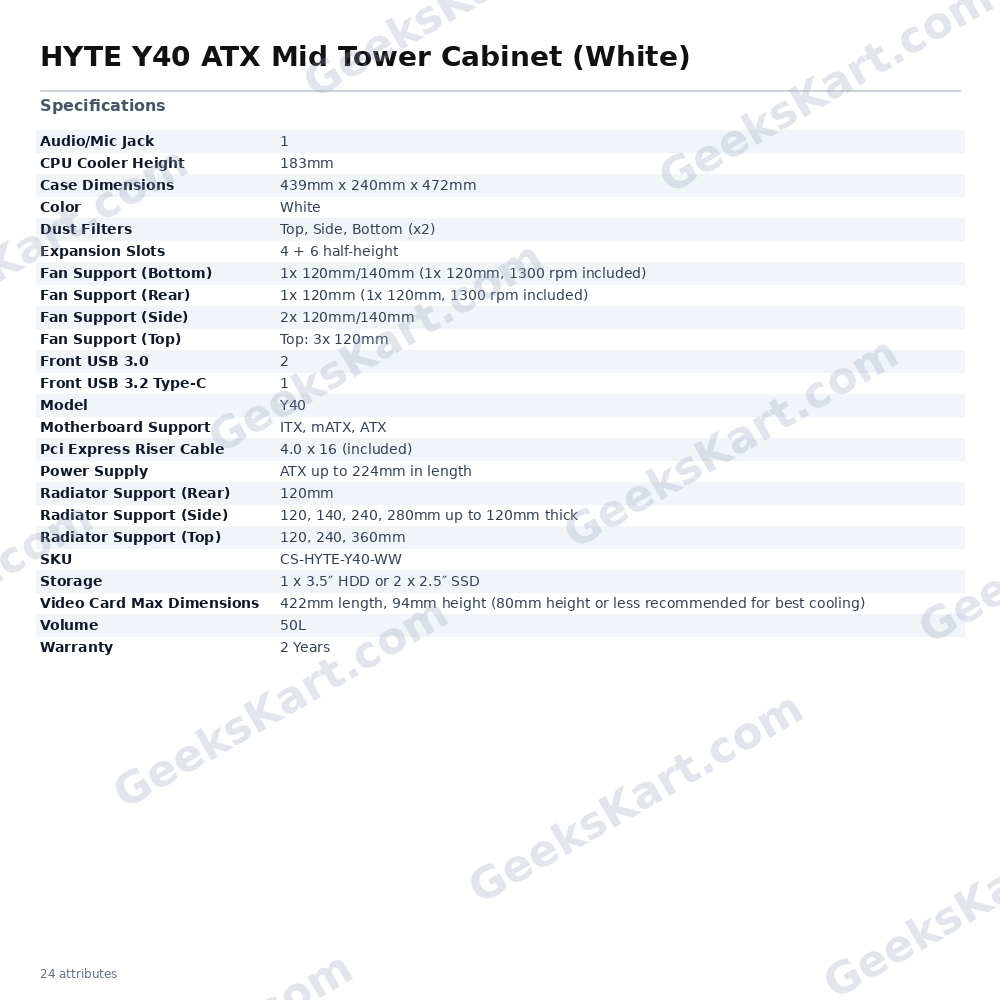

Specifications of HYTE Y40 ATX Mid Tower Cabinet (White)
| Model | Y40 |
| SKU | CS-HYTE-Y40-WW |
| Color | White |
| Type | ATX Mid Tower |
| Volume | 50L |
| Case Dimensions | 439mm x 240mm x 472mm |
| Motherboard Support | ITX, mATX, ATX |
| Power Supply | ATX up to 224mm in length |
| Video Card Max Dimensions | 422mm length, 94mm height (80mm height or less recommended for best cooling) |
| Fan Support (Side) | 2x 120mm/140mm |
| Fan Support (Top) | Top: 3x 120mm |
| Fan Support (Rear) | 1x 120mm (1x 120mm, 1300 rpm included) |
| Fan Support (Bottom) | 1x 120mm/140mm (1x 120mm, 1300 rpm included) |
| Radiator Support (Side) | 120, 140, 240, 280mm up to 120mm thick |
| Radiator Support (Top) | 120, 240, 360mm |
| Radiator Support (Rear) | 120mm |
| CPU Cooler Height | 183mm |
| Storage | 1 x 3.5″ HDD or 2 x 2.5″ SSD |
| Expansion Slots | 4 + 6 half-height |
| Interfaces | |
| PCI Express Riser Cable | 4.0 x 16 (included) |
| Front USB 3.0 | 2 |
| Front USB 3.2 Type-C | 1 |
| Audio/Mic Jack | 1 |
| Dust Filters | Top, Side, Bottom (x2) |
| RGB Lighting | None |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
