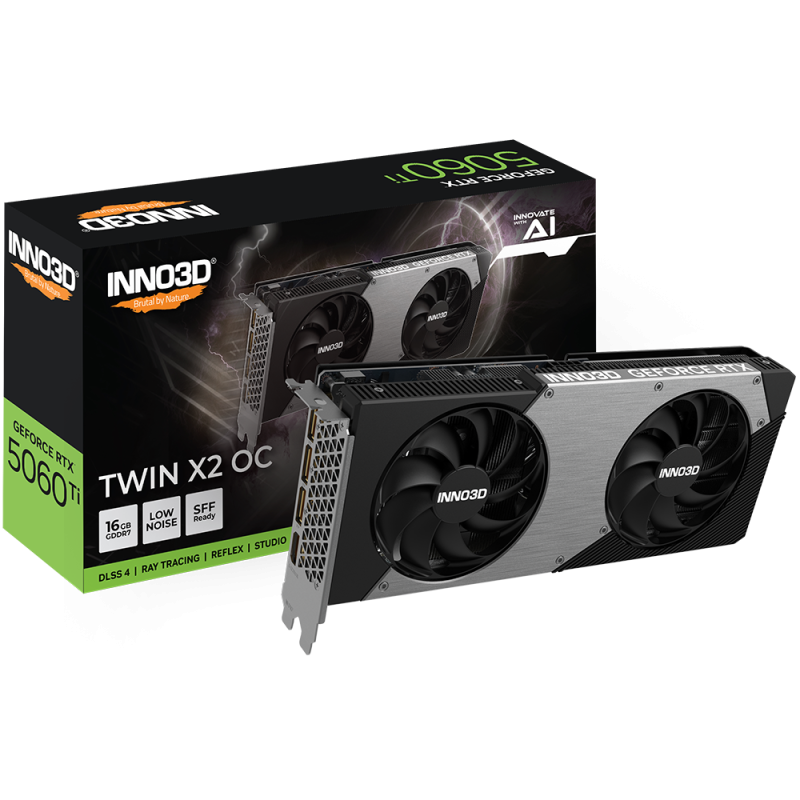

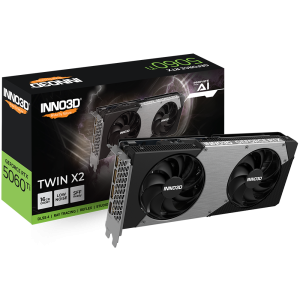

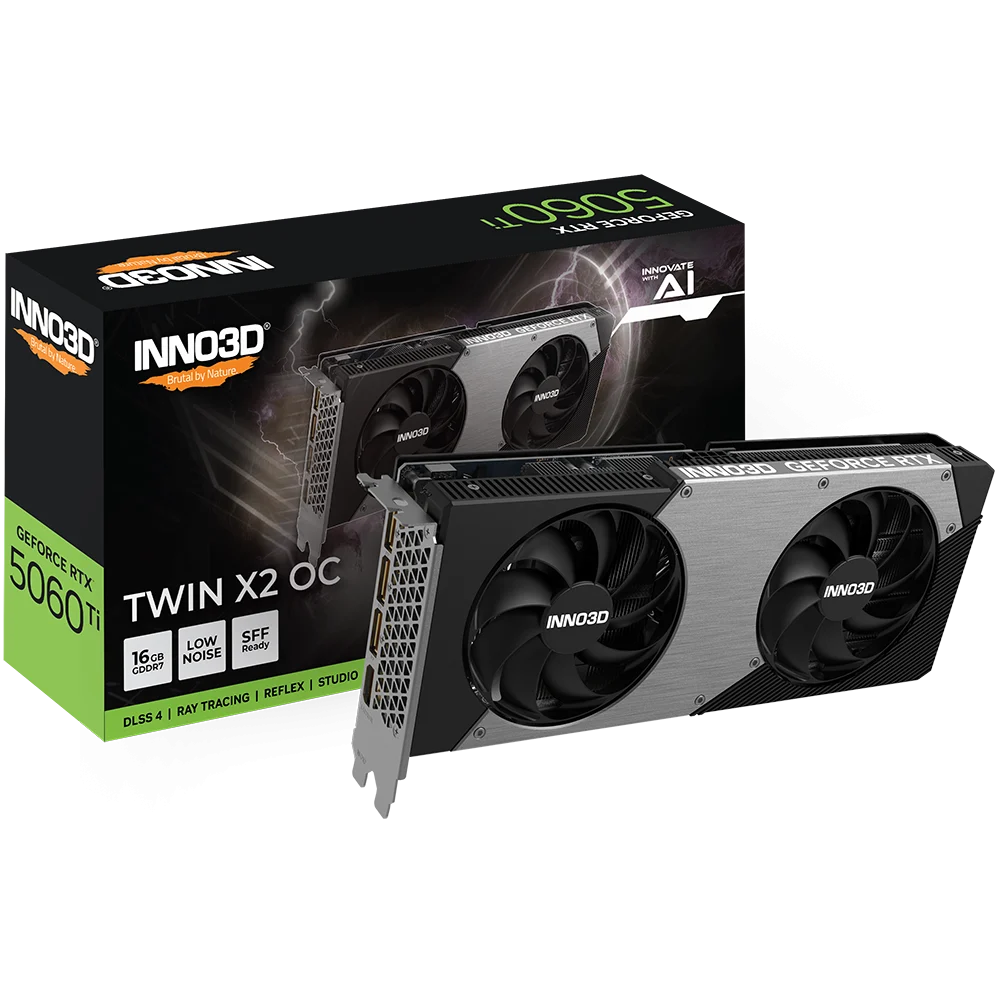

INNO3D GeForce RTX 5060 Ti Twin X2 OC SFF 16GB Nvidia Graphic Card

The Inno3D GeForce RTX 5060 Ti Twin X2 OC SFF is a compact, dual-slot graphics card built on NVIDIA’s Blackwell architecture. Designed specifically for small form factor, Micro-ATX and Mini-ITX systems, it measures 250 mm in length, 116 mm in height, and 41 mm in width — making it one of the most space-efficient Blackwell-generation cards available. Despite its compact footprint, it delivers serious computational muscle thanks to 4,608 CUDA cores running at a boost clock of 2,602 MHz (base: 2,235 MHz). Memory is handled by 16 GB of GDDR7 operating across a 128-bit bus at 28 Gbps effective speed, translating to 448 GB/s of memory bandwidth. That combination of high-speed memory and generous capacity is well-suited to 1440p gaming, content creation, and AI-accelerated workloads alike. The card supports NVIDIA DLSS 4 with Multi Frame Generation, powered by fifth-generation Tensor Cores rated at 759 AI TOPS. Fourth-generation RT Cores deliver real-time ray tracing at 72 TFLOPS. NVIDIA Reflex 2 with Frame Warp further reduces system latency in competitive titles, while NVIDIA Studio drivers make this card a credible choice for video editors and 3D artists running RTX-accelerated creative applications. Display connectivity covers up to four monitors simultaneously via three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting resolutions up to 4K at 480 Hz or 8K at 165 Hz with DSC. The card is G-SYNC-ready and supports HDCP 2.3. On the thermal side, Inno3D’s Twin X2 cooling solution uses two 88 mm scythe-blade fans with detachable blades, a copper base plate for full GPU coverage, heatpipe heat spreading, and an aluminium base that covers memory modules and conducts heat into the fin array. Optimised fin thickness and spacing improve airflow through the heatsink. Power delivery requires a single PCIe 8-pin connector with a minimum recommended system PSU of 650 W. The card connects via PCI Express Gen 5 and is certified for Windows 11/10, Linux, and FreeBSD x86. Verified Specifications: Model N506T2-16D7X-191073N | CUDA Cores: 4,608 | Boost Clock: 2,602 MHz | Base Clock: 2,235 MHz | Memory: 16 GB GDDR7 | Bus Width: 128-bit | Memory Bandwidth: 448 GB/s | Memory Clock: 28 Gbps | RT Cores: 4th Gen, 72 TFLOPS | Tensor Cores: 5th Gen, 759 AI TOPS | TDP/PSU Requirement: 650 W system | Power Connector: 1× PCIe 8-pin | Dimensions: 250 × 116 × 41 mm | Slots: 2 | Display Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b | Max Resolution: 4K@480Hz / 8K@165Hz (DSC) | HDCP: 2.3 | DirectX: 12 Ultimate | Vulkan: 1.4 | OpenGL: 4.6 | Bus: PCIe Gen 5 | NVENC: 9th Gen | NVDEC: 6th Gen
