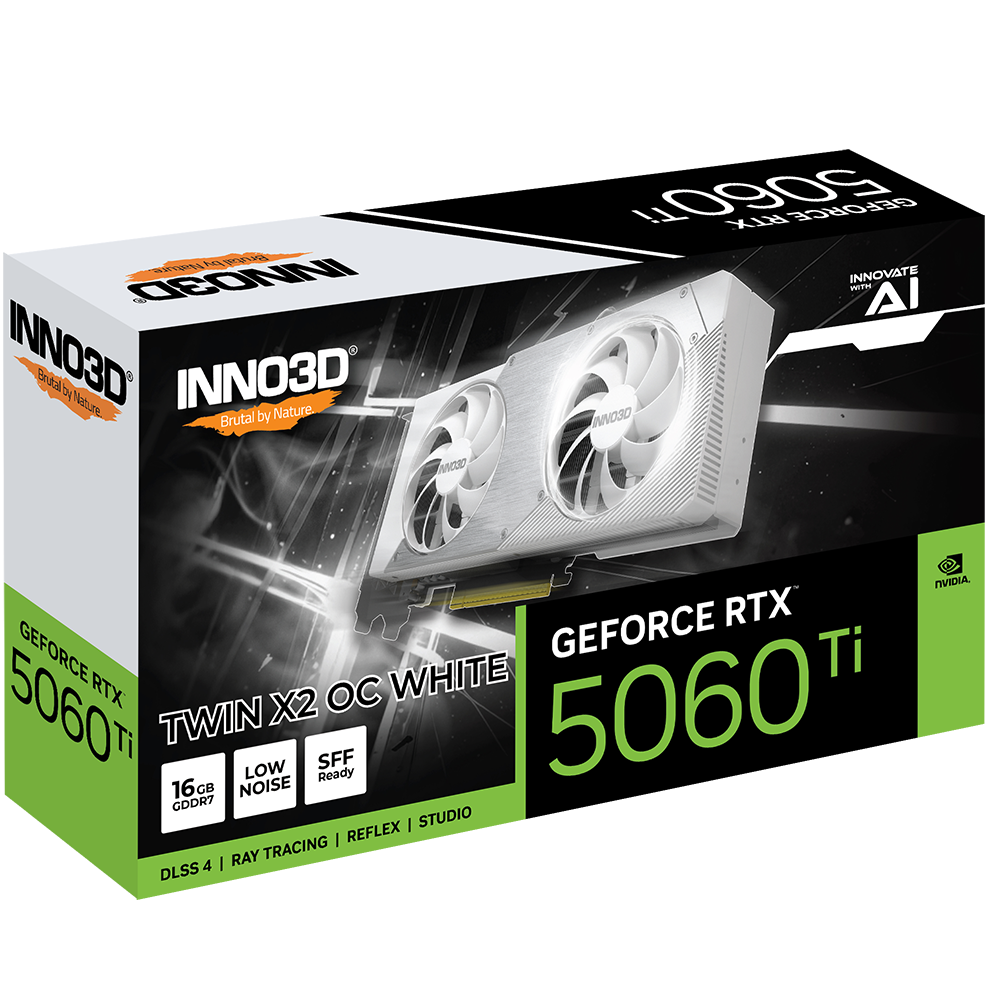

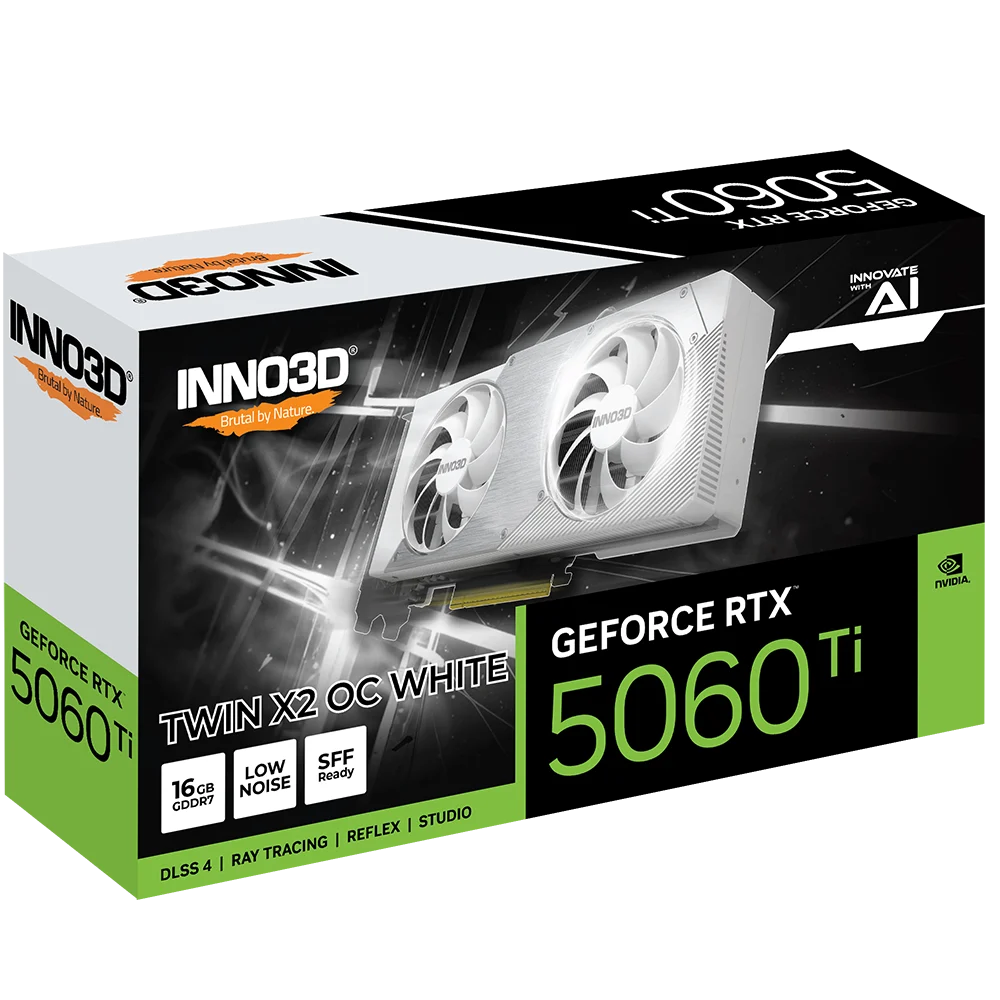

INNO3D GeForce RTX 5060 Ti Twin X2 OC White 16GB Nvidia Graphic Card

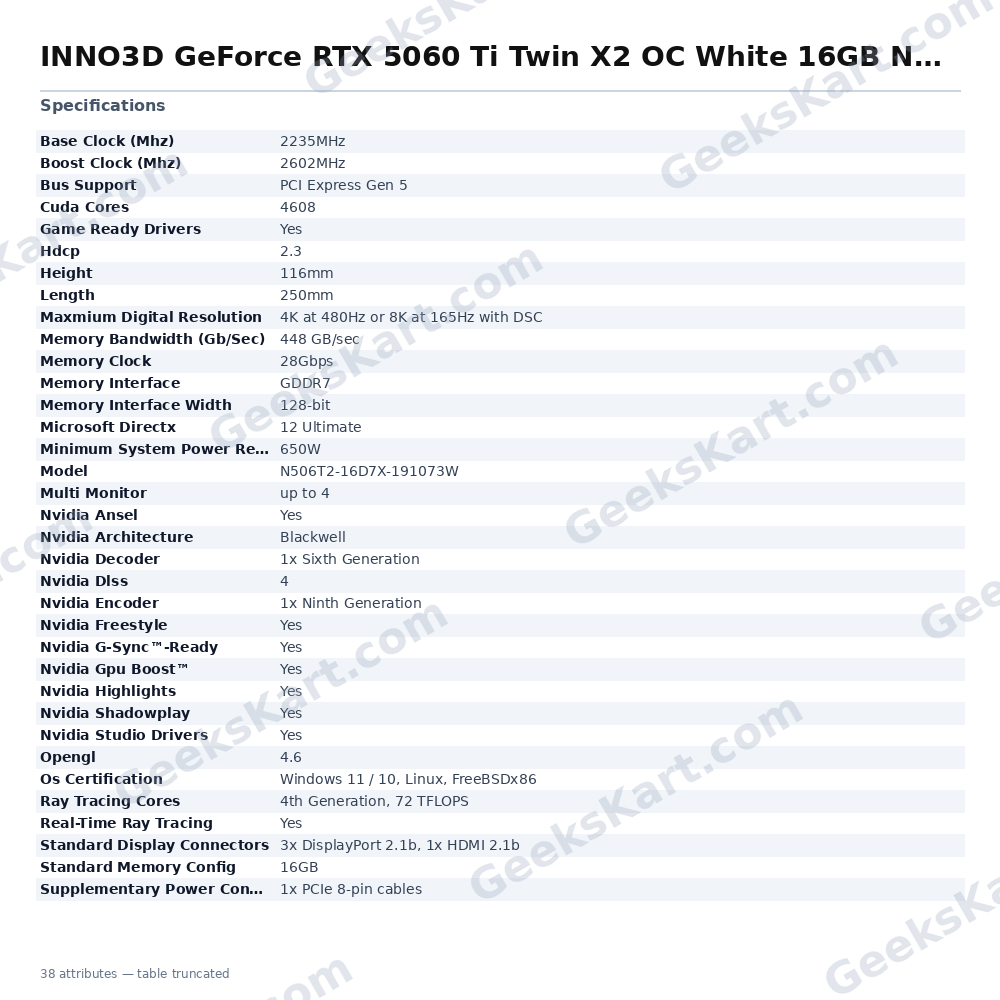

The Inno3D GeForce RTX 5060 Ti Twin X2 OC White 16GB is a compact, dual-slot graphics card built on NVIDIA’s Blackwell architecture and aimed squarely at space-conscious enthusiasts who want next-generation GPU performance without sacrificing chassis compatibility. It carries model number N506T2-16D7X-191073W and fits neatly into Micro-ATX and ITX small-form-factor cases thanks to its 250 mm length, 116 mm height, and 41 mm width across just two expansion slots. At the heart of the card sit 4,608 CUDA cores paired with 16 GB of GDDR7 memory on a 128-bit interface running at 28 Gbps, delivering 448 GB/s of memory bandwidth. The GPU boosts to 2,602 MHz in its overclocked state from a 2,235 MHz base clock, aided by NVIDIA GPU Boost. Fourth-generation RT Cores rated at 72 TFLOPS handle real-time ray tracing workloads, while fifth-generation Tensor Cores rated at 759 AI TOPS accelerate NVIDIA DLSS 4 — including Multi Frame Generation, enhanced Ray Reconstruction, and Super Resolution. NVIDIA Reflex 2 with Frame Warp further reduces system latency in competitive titles. The Twin X2 OC WHITE cooling solution uses a pair of 88 mm scythe-blade fans with detachable blades for easy maintenance. A copper base plate provides full GPU coverage, efficiently absorbing heat and spreading it via heatpipes, while an aluminium plate covers the memory modules and channels heat into optimised-pitch aluminium fins. The result is a thermally capable cooler in a dual-slot footprint. Connectivity includes three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting up to four simultaneous displays. Maximum digital output reaches 4K at 480 Hz or 8K at 165 Hz with Display Stream Compression. The card connects via PCI Express Gen 5 and draws supplementary power from a single 8-pin PCIe connector; a 650 W minimum system PSU is recommended. Additional platform features include NVIDIA G-SYNC readiness, ShadowPlay, Highlights, Ansel, FreeStyle, a ninth-generation NVENC hardware encoder, and a sixth-generation NVDEC hardware decoder. Software compatibility spans DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6, and NVIDIA Studio Drivers for creative workflows. Certified for Windows 11, Windows 10, Linux, and FreeBSD x86. Verified Specifications: • Model: N506T2-16D7X-191073W • CUDA Cores: 4,608 • Architecture: NVIDIA Blackwell • Base Clock: 2,235 MHz | Boost Clock: 2,602 MHz • Memory: 16 GB GDDR7, 128-bit, 28 Gbps, 448 GB/s bandwidth • RT Cores: 4th Gen, 72 TFLOPS | Tensor Cores: 5th Gen, 759 AI TOPS • Display Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b (up to 4 monitors) • Max Resolution: 4K @ 480 Hz or 8K @ 165 Hz (DSC) • Power Connector: 1× PCIe 8-pin | Recommended PSU: 650 W • Dimensions: 250 mm × 116 mm × 41 mm (dual-slot) • Bus: PCIe Gen 5 | HDCP: 2.3
