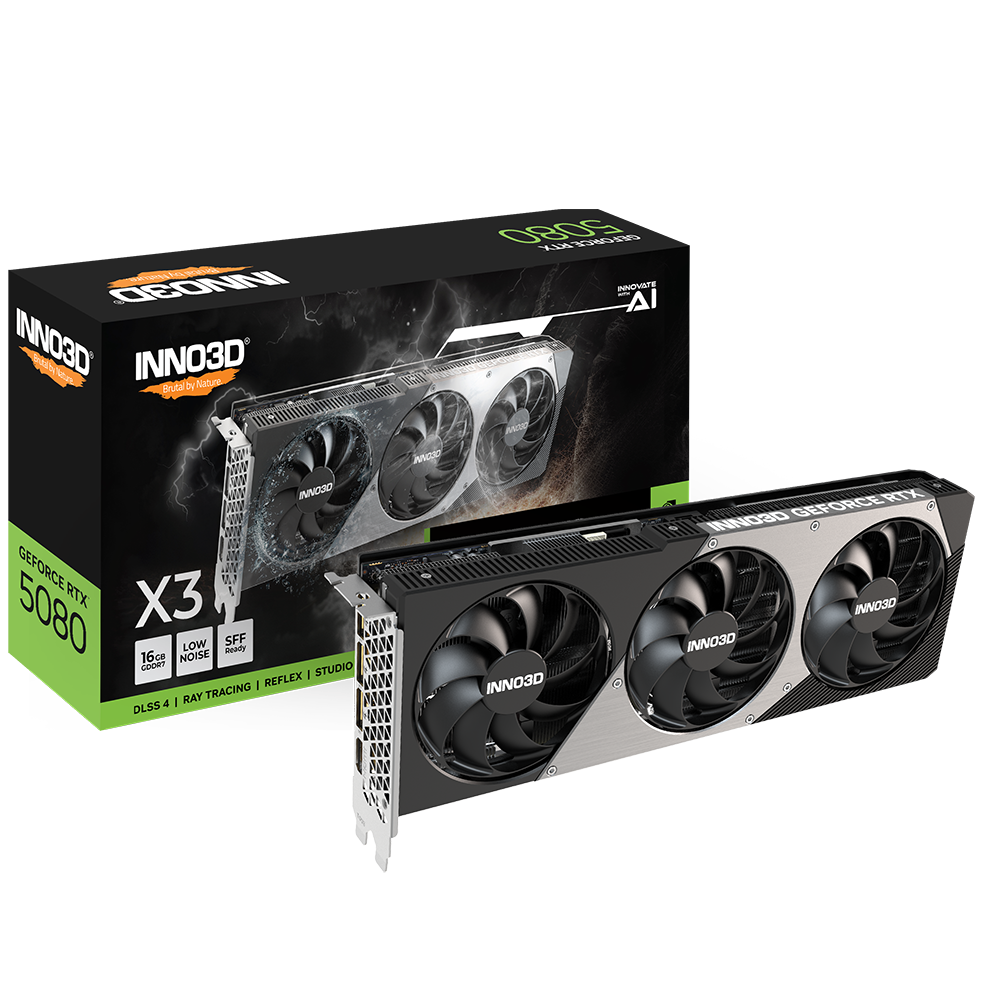

INNO3D GeForce RTX 5080 X3 Nvidia Graphic Card

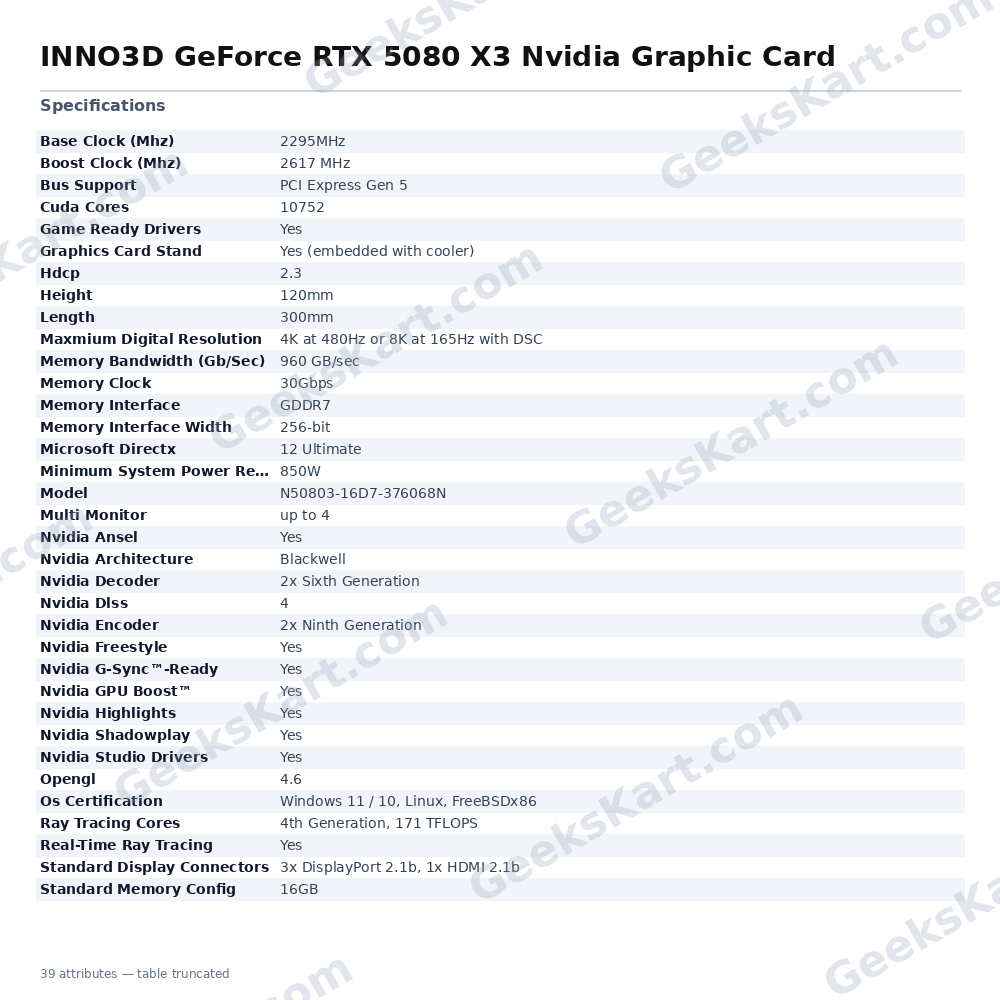

The Inno3D GeForce RTX 5080 X3 is a high-end desktop graphics card built on NVIDIA's Blackwell architecture, targeting demanding 4K gaming and AI-accelerated creative workloads. At its core sit 10,752 CUDA Cores running at a base clock of 2,295 MHz and a boost clock of 2,617 MHz, delivering the headroom needed for today's most graphically intensive titles and professional applications. Memory performance is a standout attribute. The card is equipped with 16 GB of GDDR7 memory on a 256-bit interface, achieving a memory clock of 30 Gbps and a total bandwidth of 960 GB/s — a figure that helps eliminate texture and frame-buffer bottlenecks at high resolutions and refresh rates. The X3 cooler design features three 88 mm scythe fan blades, with the outer two fans rotating anticlockwise to reduce airflow turbulence across the heatsink. A copper base provides full GPU coverage for efficient heat absorption, while an aluminium base over the memory module spreads thermal load across the fin array. Optimised fin thickness and spacing further increase airflow. A multifunctional backplate assists with hot-air extraction and PCB protection, and an embedded graphics card stand is included. The card occupies a 2.5-slot profile (300 mm × 120 mm × 50 mm), making it compatible with mATX and select small-form-factor cases. Key platform features include 4th-Generation RT Cores rated at 171 TFLOPS for real-time ray tracing and 5th-Generation Tensor Cores rated at 1,801 AI TOPS for AI workloads and NVIDIA DLSS 4 — which introduces Multi Frame Generation alongside enhanced Ray Reconstruction and Super Resolution. NVIDIA Reflex 2 with Frame Warp is also supported, lowering latency in competitive games. Connectivity spans three DisplayPort 2.1b and one HDMI 2.1b output, supporting up to four monitors simultaneously and resolutions up to 4K at 480 Hz or 8K at 165 Hz (with DSC). The card rides a PCIe Gen 5 bus and requires a minimum 850 W system PSU; power input is via three PCIe 8-pin cables (adapter included) or a single 450 W+ PCIe Gen 5 cable. Additional software features include NVIDIA G-SYNC readiness, ShadowPlay, Highlights, Ansel, FreeStyle, GPU Boost, and support for NVIDIA Studio Drivers. API support covers DirectX 12 Ultimate, Vulkan 1.4, and OpenGL 4.6. The model number is N50803-16D7-376068N. OS support includes Windows 11/10, Linux, and FreeBSD x86. Verified Specifications: - CUDA Cores: 10,752 - Architecture: NVIDIA Blackwell - Boost Clock: 2,617 MHz | Base Clock: 2,295 MHz - Memory: 16 GB GDDR7, 256-bit, 30 Gbps, 960 GB/s bandwidth - RT Cores: 4th Gen, 171 TFLOPS - Tensor Cores: 5th Gen, 1,801 AI TOPS - TDP / System Power: 850 W minimum - Power Connectors: 3× PCIe 8-pin (adapter) or 1× PCIe Gen 5 450 W+ - Display Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b (up to 4 monitors) - Max Resolution: 4K @ 480 Hz / 8K @ 165 Hz (DSC) - Slot Width: 2.5-slot | Dimensions: 300 × 120 × 50 mm - Bus: PCIe Gen 5 | HDCP: 2.3 - Encoders: 2× 9th Gen NVENC | Decoders: 2× 6th Gen NVDEC
