INNO3D RTX 5060 Ti Twin X2 16GB GDDR7 Graphics Card
MPN N506T2-16D7-191073N · Brand INNO3D
The INNO3D RTX 5060 Ti Twin X2 packs 4,608 CUDA cores, 16GB GDDR7 memory, and a 2,602 MHz boost clock into a compact dual-slot SFF design with a four-heatpipe cooling system and full DLSS 4 support
Inclusive of GST · GST invoice available
Overview
The INNO3D GeForce RTX 5060 Ti Twin X2 16GB is a compact, dual-slot graphics card built on NVIDIA's Blackwell architecture, designed specifically for small form factor systems including MATX and ITX builds. Despite its space-saving footprint, it delivers a full-featured RTX 50 Series experience with 4,608 CUDA cores, 16GB of GDDR7 memory on a 128-bit interface running at 28 Gbps, and a boost clock of up to 2,602 MHz (base clock: 2,235 MHz). The Twin X2 cooler pairs two 88mm scythe-blade fans with four nickel-plated composite heatpipes and a copper base plate that provides full GPU coverage, efficiently absorbing and transferring heat away from the die. An aluminium heat spreader covers the memory modules, while optimised fin thickness and spacing improve airflow through the heatsink stack. A multifunctional metal backplate reinforces the PCB and assists with hot-air extraction. Fan blades are detachable for maintenance, and the low-noise blade profile keeps acoustics in check under sustained workloads. On the feature side, the card supports NVIDIA DLSS 4 — including Multi Frame Generation, enhanced Ray Reconstruction, and Super Resolution — powered by fifth-generation Tensor Cores. NVIDIA Reflex 2 with Frame Warp further reduces system latency in supported competitive titles. For creators, NVIDIA Studio driver support unlocks RTX-accelerated video editing, 3D rendering, and graphic design workflows. Display connectivity extends to a maximum of four monitors at resolutions up to 7,680 × 4,320 (8K), via HDMI and DisplayPort outputs. The card connects via PCIe 5.0 and requires a single 8-pin power connector, with a recommended PSU rating of 650W. Verified Specifications: • GPU: NVIDIA GeForce RTX 5060 Ti (Blackwell) • CUDA Cores: 4,608 • Memory: 16 GB GDDR7 • Memory Interface: 128-bit • Memory Bandwidth: 28 Gbps • Boost Clock: 2,602 MHz | Base Clock: 2,235 MHz • Slot Width: 2-slot (SFF-compatible) • Display Outputs: HDMI + DisplayPort (up to 4 displays) • Max Resolution: 7,680 × 4,320 • PCI Express: 5.0 • Power Connector: 1 × 8-pin • Recommended PSU: 650W • DirectX: 12 Ultimate | OpenGL: 4.6 • Warranty: 3 Years • SKU / Model: N506T2-16D7-191073N

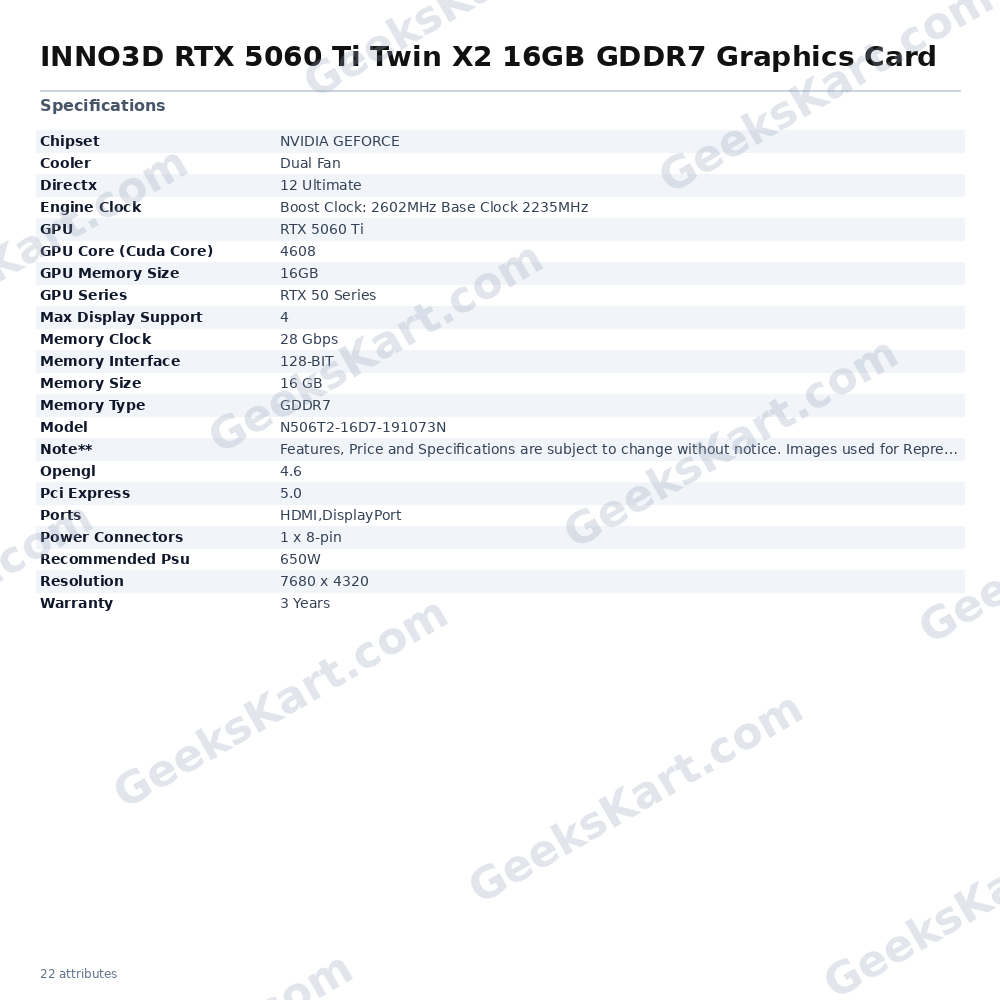

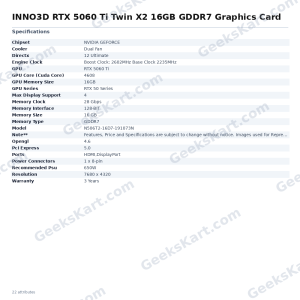

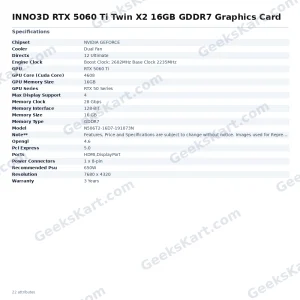

Datasheet
| Memory Type | GDDR7 |
|---|---|
| Warranty | 3 Years |
| Chipset | NVIDIA GEFORCE |
| Memory Size | 16 GB |
| GPU | RTX 5060 Ti |
| GPU Series | RTX 50 Series |
| GPU Memory Size | 16GB |
| Memory Clock | 28 Gbps |
| Recommended PSU | 650W |
| Resolution | 7680 x 4320 |
| Model | N506T2-16D7-191073N |
| Ports | HDMI,DisplayPort |
| Cooler | Dual Fan |
| Note** | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
| Opengl | 4.6 |
| Directx | 12 Ultimate |
| Pci Express | 5.0 |
| Engine Clock | Boost Clock: 2602MHz Base Clock 2235MHz |
| Memory Interface | 128-BIT |
| Power Connectors | 1 x 8-pin |
| Max Display Support | 4 |
| GPU Core (Cuda Core) | 4608 |
