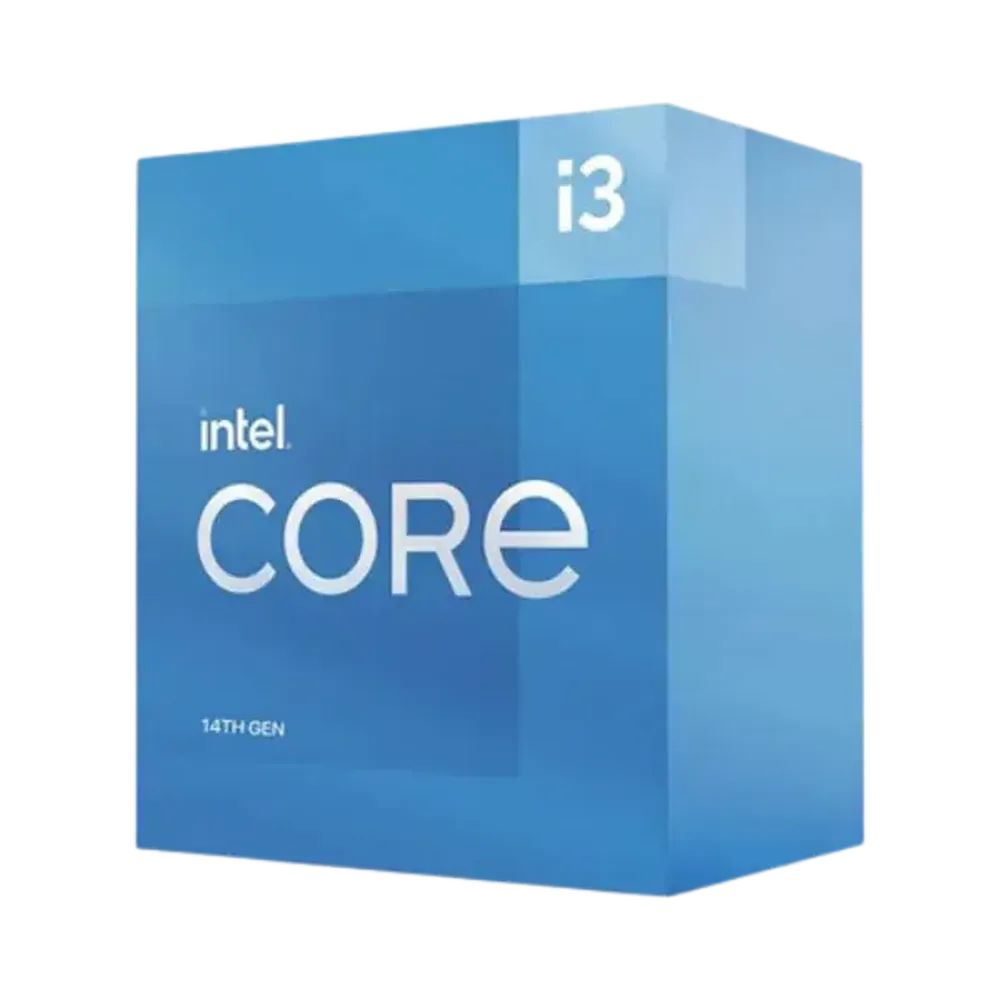

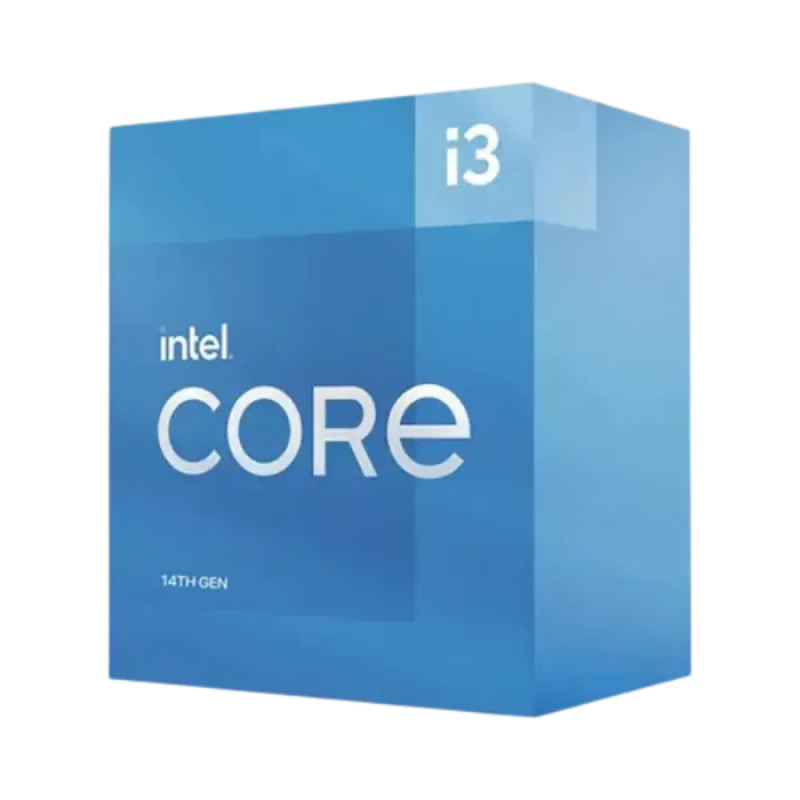

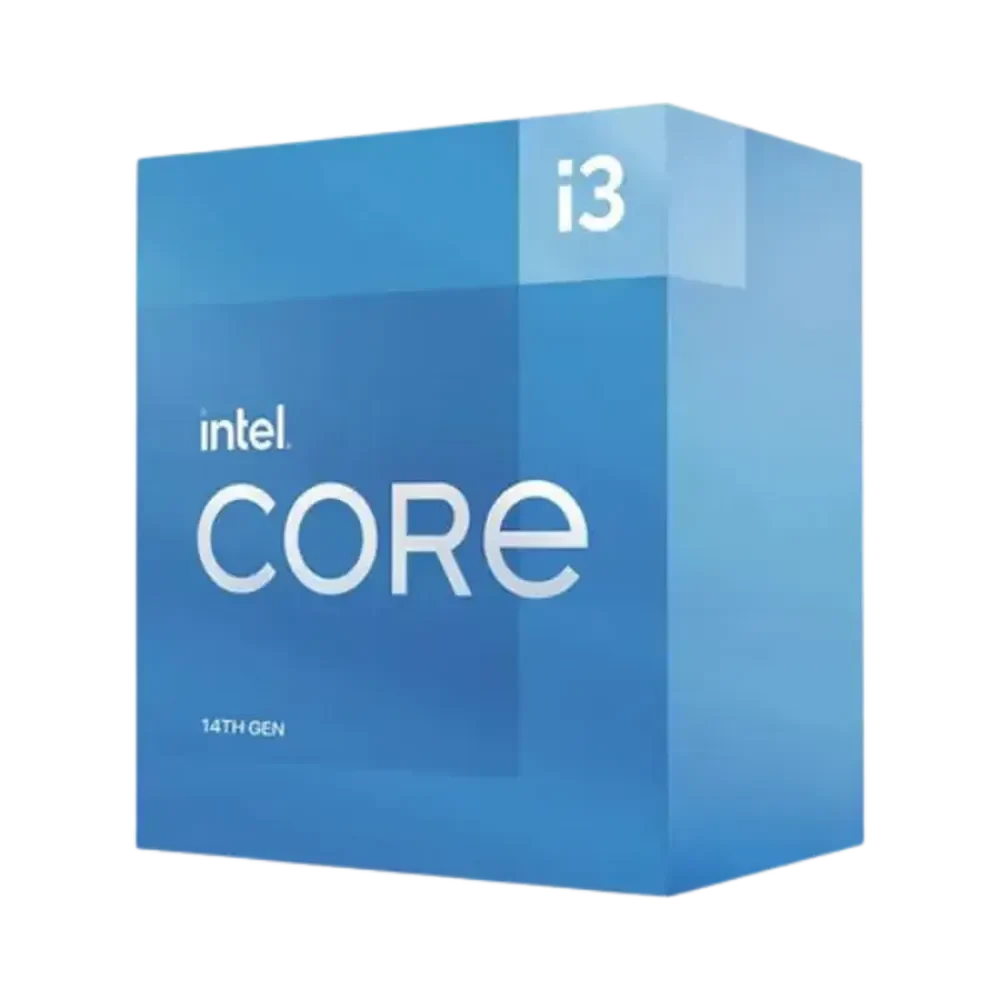

INTEL Core i3 14100 14th Generation Processor ( 4.7 GHz / 4 Cores / 8 Threads )

The Intel Core i3-14100 is a 14th Generation desktop processor built on Intel’s Intel 7 process node (formerly known as 10nm Enhanced SuperFin). It slots into the LGA 1700 (FCLGA1700) socket and is compatible with 600- and 700-series motherboards, offering a straightforward upgrade or build path for productivity-focused desktop systems. At its core, the i3-14100 features 4 Performance-cores (no Efficient-cores) with Hyper-Threading Technology enabled, delivering 8 threads in total. The Performance-core base frequency sits at 3.5 GHz, with Intel Turbo Boost Technology 2.0 pushing the maximum turbo frequency to 4.7 GHz under sustained workloads. A 12 MB Intel Smart Cache and 5 MB total L2 cache ensure that frequently used data is close at hand, reducing latency for office productivity, light content creation, and everyday multitasking. Memory support is flexible: the processor supports dual-channel DDR5 up to 4800 MT/s and DDR4 up to 3200 MT/s, with a maximum addressable memory capacity of 192 GB across two channels and a peak memory bandwidth of 76.8 GB/s. The integrated Intel UHD Graphics 730 includes 24 Execution Units, a maximum dynamic frequency of 1.5 GHz, and supports up to four simultaneous displays — including one 8K (7680×4320 @ 60 Hz) via DisplayPort 1.4a, up to 4K (4096×2160 @ 60 Hz) over HDMI 2.1, and up to 5120×3200 @ 120 Hz on an integrated eDP panel. DirectX 12, OpenGL 4.5, and OpenCL 3.0 are all supported. A Laminar RM1 cooler is included in the box (Thermal Solution Specification: PCG 2020C), and the processor carries a rated junction temperature (Tj) of 100 °C. Connectivity is handled by PCIe 5.0 (up to 16 lanes) and PCIe 4.0 (up to 4 lanes), totalling 20 PCIe lanes, along with a DMI 4 interface (8 lanes) to the chipset. The processor base power (TDP) is 60 W with a maximum turbo power of 110 W. AI and productivity acceleration is provided by Intel Gaussian & Neural Accelerator 3.0 (GNA 3.0) for noise suppression and background blur in video calls, and Intel Deep Learning Boost (DL Boost) for AI inference acceleration. Intel Speed Shift Technology and Enhanced Intel SpeedStep Technology help manage power-to-performance transitions efficiently. Security features include Intel VT-x, VT-d, VT-x with EPT, AES-NI, Secure Key, Intel OS Guard, Boot Guard, Control-Flow Enforcement Technology, Execute Disable Bit, and Mode-based Execute Control (MBEC). Verified Specifications: – Model: Intel Core i3-14100 (BX8071514100) – Cores / Threads: 4P-cores / 8 threads – Base Frequency: 3.5 GHz | Max Turbo: 4.7 GHz – Cache: 12 MB Intel Smart Cache + 5 MB L2 – Socket: FCLGA1700 | Lithography: Intel 7 – Memory: DDR5-4800 or DDR4-3200, dual-channel, up to 192 GB – iGPU: Intel UHD Graphics 730 (24 EU, up to 1.5 GHz) – PCIe: 5.0 x16 + 4.0 x4 (20 lanes total) – TDP: 60 W base / 110 W turbo – Warranty: 3 years (Intel) – Cooler: Laminar RM1 included
