INTEL Core i5 10500 10th Generation Processor ( 4.5 GHz / 6 Cores / 12 Threads )
MPN INTEL-CORE-I5-10500 · Brand Intel
Features of INTEL Core i5 10500 10th Generation Processor GET MORE DONE WITH INTEL HYPER-THREADING TECHNOLOGY Intel® HT Technology uses processor resources more efficiently, enabling multiple threads to run on each core. It increases processor throughput to improve overall performance, meaning it can run demanding applications simultaneously while maintaining system responsiveness. Intel® HT Technology is now available across the entire 10th Gen Intel Processor family, allowing you to multitask
Inclusive of GST · GST invoice available
Overview
Features of INTEL Core i5 10500 10th Generation Processor
GET MORE DONE WITH INTEL HYPER-THREADING TECHNOLOGY
Intel® HT Technology uses processor resources more efficiently, enabling multiple threads to run on each core. It increases processor throughput to improve overall performance, meaning it can run demanding applications simultaneously while maintaining system responsiveness. Intel® HT Technology is now available across the entire 10th Gen Intel Processor family, allowing you to multitask with confidence, and do more simultaneously, no matter which Intel® Core™ processor you choose.
OPTIMISED FOR SEAMLESS GAMING PERFORMANCE
Intel i5 10500 10th Generation Processor Featuring 6 Cores, 12 Threads and a base frequency of 3.1GHz, the Intel® Core™ i5-10500 has the power to drive smooth, immersive gaming experiences. Under load, the Core™ i5-10500 can push up to a 4.5 GHz clock speed with Intel® Turbo Boost Max Technology 2.0, providing power when you need it the most.
LEVEL UP YOUR TECHNOLOGY
Experience amazing gameplay and creativity with Intel's supported platform features. Get more from your PC build by untethering with Intel® Wi-Fi 6 (Gig+), versatile connectivity with Thunderbolt™ 3, and accelerated responsiveness with Intel® Optane™ memory.
REAL WORLD PERFORMANCE TO DRIVE
The 15-10500 features Intel® Hyper-Threading Technology, 6 Cores and 12 Threads making it the perfect platform for multi-tasking. Drive your entertainment experiences in crystal-clear resolution.
- SeriesCore - i5 10th Generation
- CORES - 6 Cores
- THREADS - 12 Threads
- SPEED - 3.1 GHz
- SPEED (TURBO) - 4.5 GHz
- CACHE - 12 MB
- MAX MEMORY SUPPORT - 128 GB
- INTEGRATED GRAPHICS - Intel UHD Graphics 630
- INCLUDED CPU COOLER - Yes
- UNLOCKED - No
- TDP - 65W
- WARRANTY - 3 Years

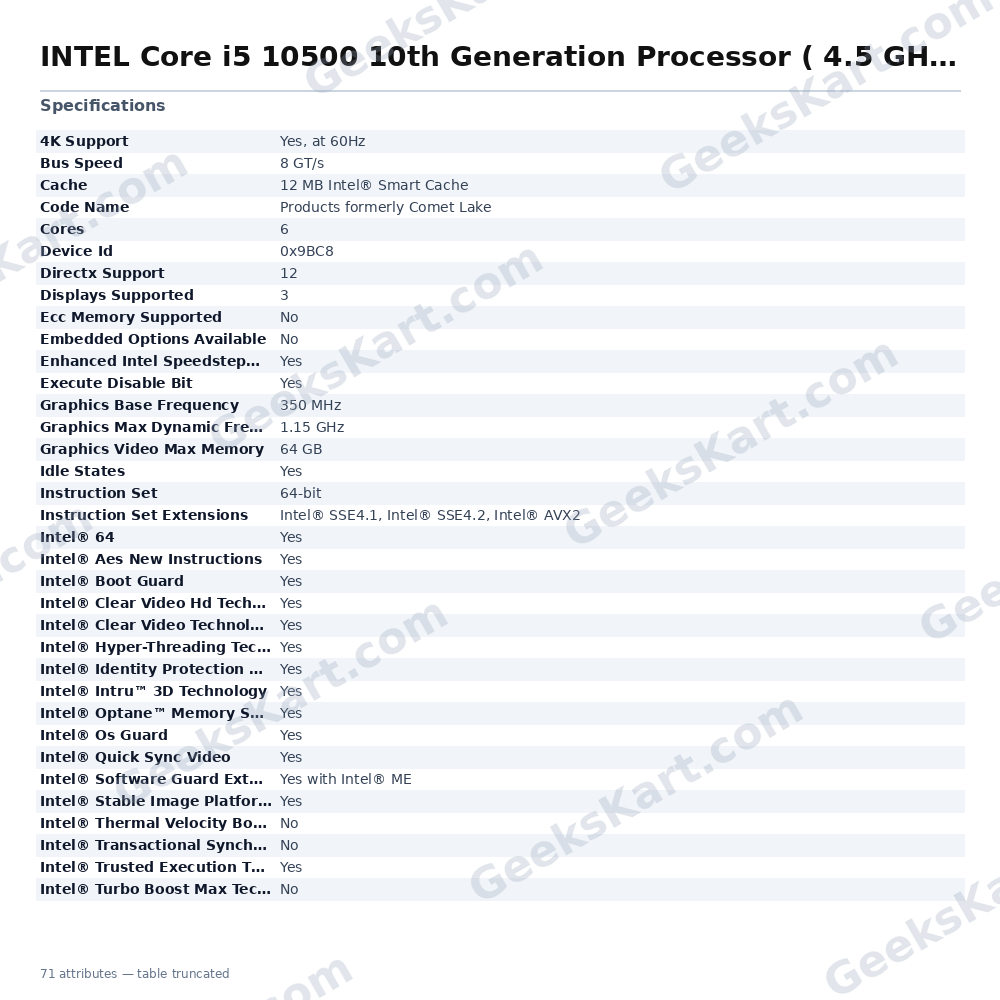

Specifications of INTEL Core i5 10500 10th Generation Processor
| Product Collection | 10th Generation Intel® Core™ i5 Processors |
| Code Name | Products formerly Comet Lake |
| Vertical Segment | Desktop |
| Processor Number | i5-10500 |
| Lithography | 14 nm |
| Use Conditions | PC/Client/Tablet |
| Cores | 6 |
| Threads | 12 |
| Processor Base Frequency | 3.10 GHz |
| Max Turbo Frequency | 4.50 GHz |
| Cache | 12 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s |
| Intel® Turbo Boost Technology 2.0 Frequency | 4.50 GHz |
| TDP | 65 W |
| Embedded Options Available | No |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | DDR4-2666 |
| Max Memory Channels | 2 |
| Max Memory Bandwidth | 41.6 GB/s |
| ECC Memory Supported | No |
| Processor Graphics | Intel® UHD Graphics 630 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.15 GHz |
| Graphics Video Max Memory | 64 GB |
| 4K Support | Yes, at 60Hz |
| Max Resolution (HDMI 1.4) | 4096x2160@30Hz |
| Max Resolution (DP) | 4096x2304@60Hz |
| Max Resolution (eDP - Integrated Flat Panel) | 4096x2304@60Hz |
| DirectX Support | 12 |
| OpenGL Support | 4.5 |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology | Yes |
| Displays Supported | 3 |
| Device ID | 0x9BC8 |
| Scalability | 1S Only |
| PCI Express Revision | 3 |
| PCI Express Configurations | Up to 1x16, 2x8, 1x8 2x4 |
| Max PCI Express Lanes | 16 |
| Intel® Optane™ Memory Supported | Yes |
| Intel® Thermal Velocity Boost | No |
| Intel® Turbo Boost Max Technology 3.0 | No |
| Intel® Turbo Boost Technology | 2 |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Hyper-Threading Technology | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology | Yes |
| Intel® Stable Image Platform Program (SIPP) | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | Yes with Intel® ME |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel® Boot Guard | Yes |
| Sockets Supported | FCLGA1200 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2015C |
| TJUNCTION | 100°C |
| Package Size | 37.5mm x 37.5mm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Datasheet
| Bus Speed | 8 GT/s |
|---|---|
| Code Name | Products formerly Comet Lake |
| Device Id | 0x9BC8 |
| Tjunction | 100°C |
| 4K Support | Yes, at 60Hz |
| Intel® 64 | Yes |
| Secure Key | Yes |
| Idle States | Yes |
| Lithography | 14 nm |
| Scalability | 1S Only |
| Memory Types | DDR4-2666 |
| Package Size | 37.5mm x 37.5mm |
| Opengl Support | 4.5 |
| Use Conditions | PC/Client/Tablet |
| Directx Support | 12 |
| Instruction Set | 64-bit |
| Intel® Os Guard | Yes |
| Processor Number | i5-10500 |
| Vertical Segment | Desktop |
| Sockets Supported | FCLGA1200 |
| Displays Supported | 3 |
| Intel® Boot Guard | Yes |
| Processor Graphics | Intel® UHD Graphics 630 |
| Product Collection | 10th Generation Intel® Core™ i5 Processors |
| Execute Disable Bit | Yes |
| Max Memory Channels | 2 |
| Max Resolution (Dp) | 4096×2304@60Hz |
| Max Turbo Frequency | 4.50 GHz |
| Ecc Memory Supported | No |
| Max Memory Bandwidth | 41.6 GB/s |
| Pci Express Revision | 3 |
| Max Cpu Configuration | 1 |
| Max Pci Express Lanes | 16 |
| Graphics Base Frequency | 350 MHz |
| Intel® Quick Sync Video | Yes |
| Processor Base Frequency | 3.10 GHz |
| Graphics Video Max Memory | 64 GB |
| Max Resolution (Hdmi 1.4) | 4096×2160@30Hz |
| Embedded Options Available | No |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Pci Express Configurations | Up to 1×16, 2×8, 1×8 2×4 |
| Intel® Aes New Instructions | Yes |
| Graphics Max Dynamic Frequency | 1.15 GHz |
| Intel® Clear Video Technology | Yes |
| Intel® Intru™ 3D Technology | Yes |
| Intel® Thermal Velocity Boost | No |
| Intel® Turbo Boost Technology | 2 |
| Thermal Solution Specification | PCG 2015C |
| Thermal Monitoring Technologies | Yes |
| Intel® Clear Video Hd Technology | Yes |
| Intel® Hyper-Threading Technology | Yes |
| Intel® Optane™ Memory Supported | Yes |
| Intel® Trusted Execution Technology | Yes |
| Intel® Vpro™ Platform Eligibility | Yes |
| Enhanced Intel Speedstep® Technology | Yes |
| Intel® Identity Protection Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 | No |
| Intel® Virtualization Technology (Vt-X) | Yes |
| Max Memory Size (Dependent On Memory Type) | 128 GB |
| Intel® Stable Image Platform Program (Sipp) | Yes |
| Intel® Turbo Boost Technology 2.0 Frequency | 4.50 GHz |
| Intel® Vt-X With Extended Page Tables (Ept) | Yes |
| Max Resolution (Edp - Integrated Flat Panel) | 4096×2304@60Hz |
| Intel® Software Guard Extensions (Intel® Sgx) | Yes with Intel® ME |
| Intel® Transactional Synchronization Extensions | No |
| Intel® Virtualization Technology For Directed I/O (Vt-D) | Yes |
| Warranty | 3 Years |
| Cores | 6 |
| Threads | 12 |
| TDP | 65 W |
| Cache | 12 MB Intel® Smart Cache |
