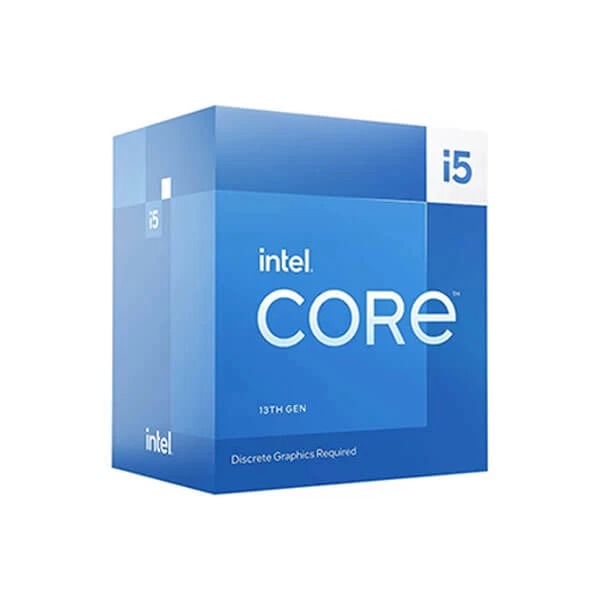

Intel Core i5-13400F Processor

The Intel Core i5-13400F is a 13th Generation Raptor Lake desktop processor built on the Intel 7 process and designed for the LGA1700 (FCLGA1700) socket. It packs 10 physical cores - six Performance-cores plus four Efficient-cores - for a total of 16 threads, with Intel Thread Director scheduling work across the hybrid layout. Clock speeds run from a 2.50 GHz P-core base and 1.80 GHz E-core base up to a 4.60 GHz P-core max turbo and 3.30 GHz E-core max turbo. The chip carries 20 MB of Intel Smart Cache (L3) and 9.5 MB of total L2 cache. Power is rated at 65 W Processor Base Power with a 148 W Maximum Turbo Power, against a 100 C TJUNCTION ceiling, and Intel includes a stock CPU cooler in the box. Memory support is dual-channel, with the controller capable of DDR5-4800 MT/s or DDR4-3200 MT/s and a maximum capacity of 192 GB, delivering up to 76.8 GB/s of memory bandwidth. The platform exposes PCI Express 5.0 and 4.0 with up to 20 PCIe lanes (configurable as 1x16+4 or 2x8+4) and a DMI 4.0 link with 8 lanes back to the chipset. The 'F' suffix means there is no integrated graphics engine, so a discrete GPU is mandatory for display output. Supported instruction sets include Intel SSE4.1, SSE4.2 and AVX2, alongside Hyper-Threading, Speed Shift, Turbo Boost 2.0, Deep Learning Boost and the Gaussian & Neural Accelerator 3.0. Security and platform features cover Intel VT-x, VT-d, EPT, Control-Flow Enforcement Technology, AES-NI, Boot Guard, OS Guard, MBEC and Intel VMD. Key verified specifications: Socket FCLGA1700; 10 cores (6P + 4E) / 16 threads; 4.60 GHz max turbo, 2.50 GHz P-core base; 20 MB Intel Smart Cache; 65 W base / 148 W max turbo power; DDR5-4800 or DDR4-3200, up to 192 GB; PCIe 5.0/4.0, up to 20 lanes; 45.0 x 37.5 mm package; 3-year manufacturer warranty. Best suited to 1080p gaming builds, mainstream productivity and content-creation workstations that already include a discrete GPU. Less appropriate where integrated graphics, an unlocked multiplier for overclocking, or higher thread counts than 16 are required - in those cases consider the i5-13400 (with iGPU) or step up to an i7-13700K
