INTEL Core i7 12700K 12th Generation Processor ( 5 GHz / 12 Cores / 20 Threads )

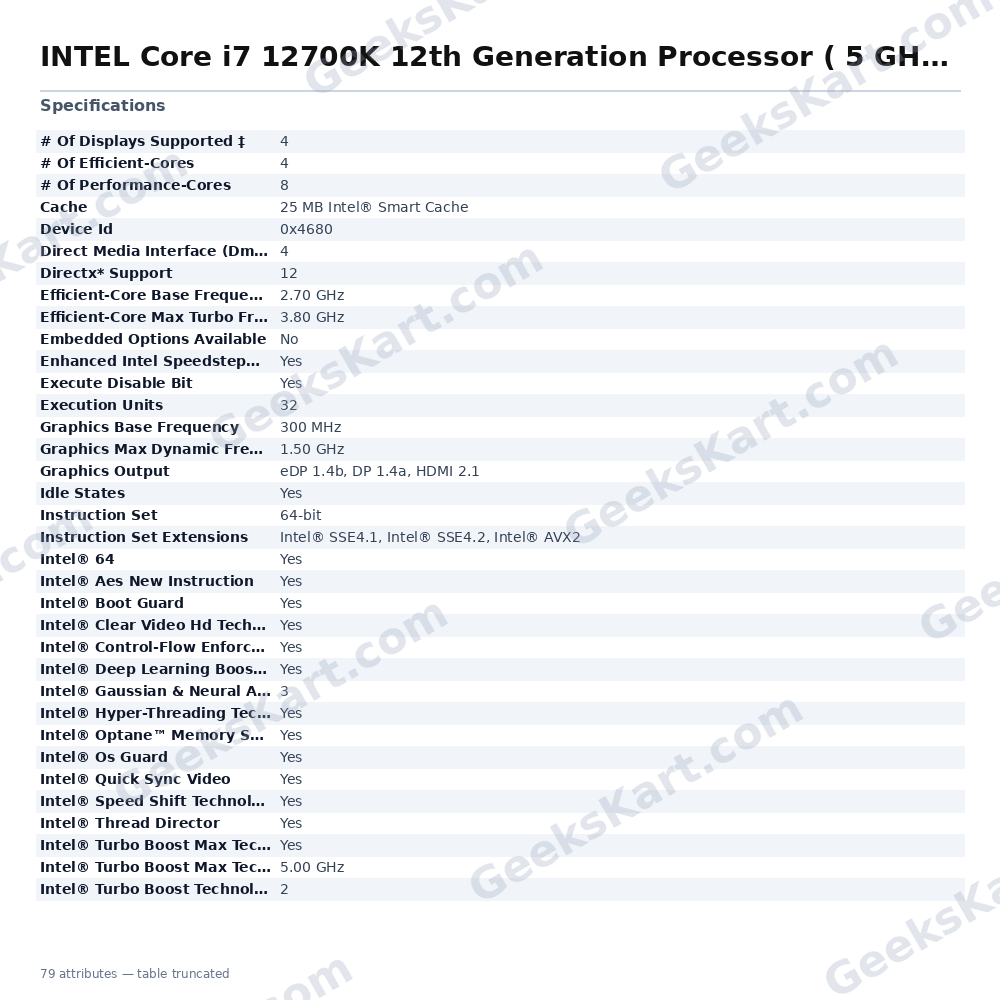

The Intel Core i7-12700K is a 12th Generation Alder Lake desktop processor built on Intel’s Intel 7 manufacturing process and designed for the LGA1700 socket (FCLGA1700). It features a hybrid core architecture combining 8 Performance-cores and 4 Efficient-cores for a total of 12 cores and 20 threads. The Performance-cores operate at a base frequency of 3.60 GHz and can boost up to 4.90 GHz, while the Efficient-cores run at a 2.70 GHz base and boost up to 3.80 GHz. The overall maximum turbo frequency reaches 5.00 GHz via Intel Turbo Boost Max Technology 3.0. Intel Thread Director is built directly into the silicon, working with the operating system to intelligently assign workloads to the right core type at the right time, enabling seamless co-operation between Performance and Efficient cores. This makes the i7-12700K well suited for gaming, content creation, and multithreaded productivity tasks. The processor supports both DDR5 memory up to 4800 MT/s and DDR4 memory up to 3200 MT/s across two memory channels, with a maximum supported memory capacity of 128 GB and a peak memory bandwidth of 76.8 GB/s. It also supports up to 20 PCIe lanes split across PCIe 5.0 and PCIe 4.0 configurations, providing bandwidth headroom for modern discrete graphics cards and high-speed NVMe storage. Integrated Intel UHD Graphics 770, based on the Xe architecture with 32 execution units, is included. It supports up to four simultaneous displays and connects via HDMI 2.1 (up to 4096×2160 at 60 Hz), DisplayPort 1.4a (up to 7680×4320 at 60 Hz), and eDP 1.4b. The iGPU base frequency is 300 MHz with a maximum dynamic frequency of 1.50 GHz. Additional features include Intel Deep Learning Boost for AI inference acceleration, Gaussian and Neural Accelerator 3.0 (GNA 3.0) for noise suppression and background blurring in video conferencing, Intel Quick Sync Video for hardware-accelerated media encode and decode, and AES-NI for hardware-accelerated encryption. The processor has a TDP (Processor Base Power) of 125 W and a Maximum Turbo Power of 190 W. Thermal junction maximum is 100°C. Note: a thermal solution is not included in the box; a separately purchased cooler compatible with LGA1700 is required. The processor is unlocked for overclocking. Verified Specifications: – Processor Number: i7-12700K | Product Code: BX8071512700K – Cores / Threads: 12 (8P + 4E) / 20 – P-core Base / Max Turbo: 3.60 GHz / 4.90 GHz – E-core Base / Max Turbo: 2.70 GHz / 3.80 GHz – Max Turbo Frequency (Turbo Boost Max 3.0): 5.00 GHz – L3 Cache: 25 MB Intel Smart Cache | L2 Cache: 12 MB – TDP / Max Turbo Power: 125 W / 190 W – Socket: FCLGA1700 | Lithography: Intel 7 – Memory: DDR5-4800 or DDR4-3200, dual-channel, max 128 GB – PCIe: 5.0 + 4.0, up to 20 lanes – Integrated Graphics: Intel UHD 770 (32 EU, up to 1.50 GHz) – Warranty: 3 Years
