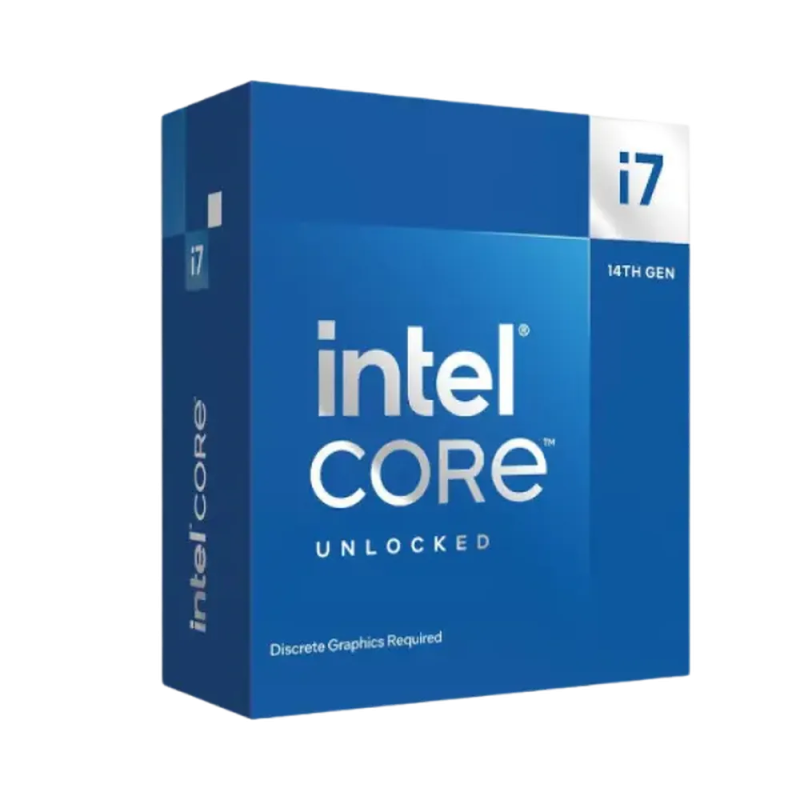

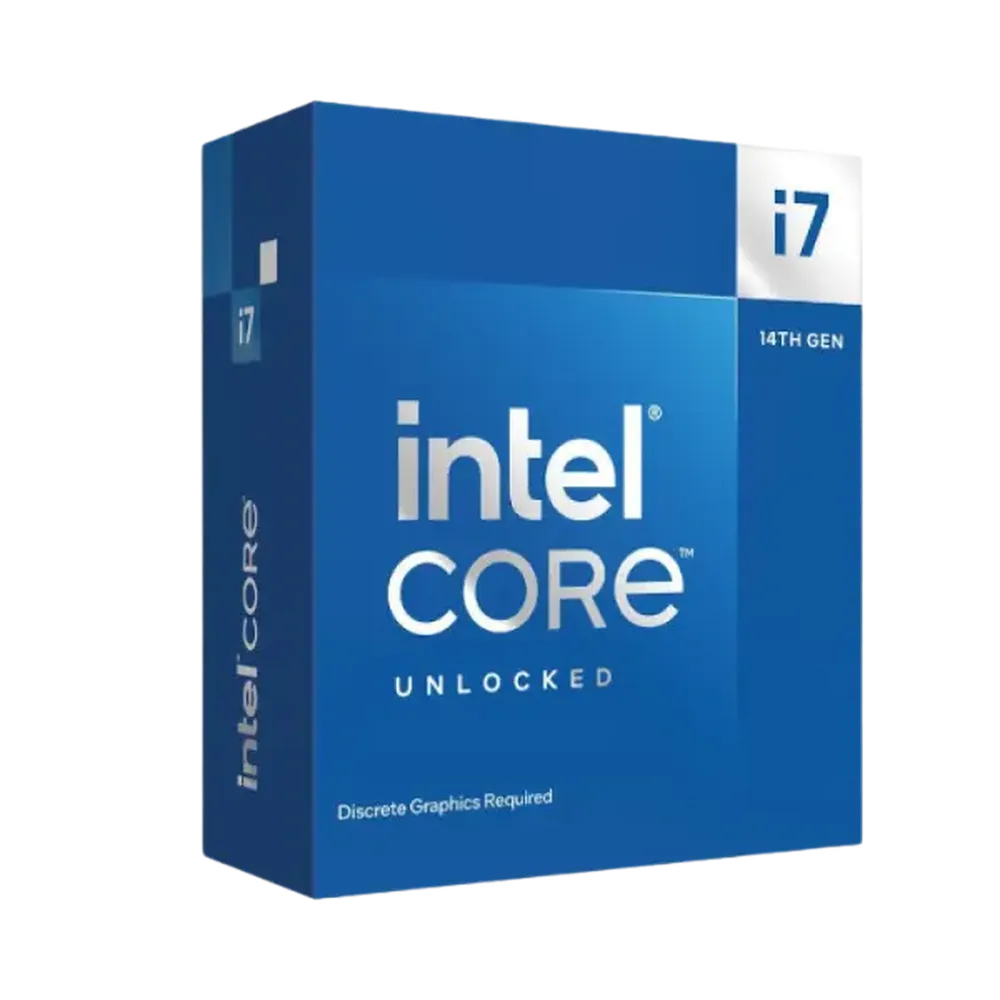

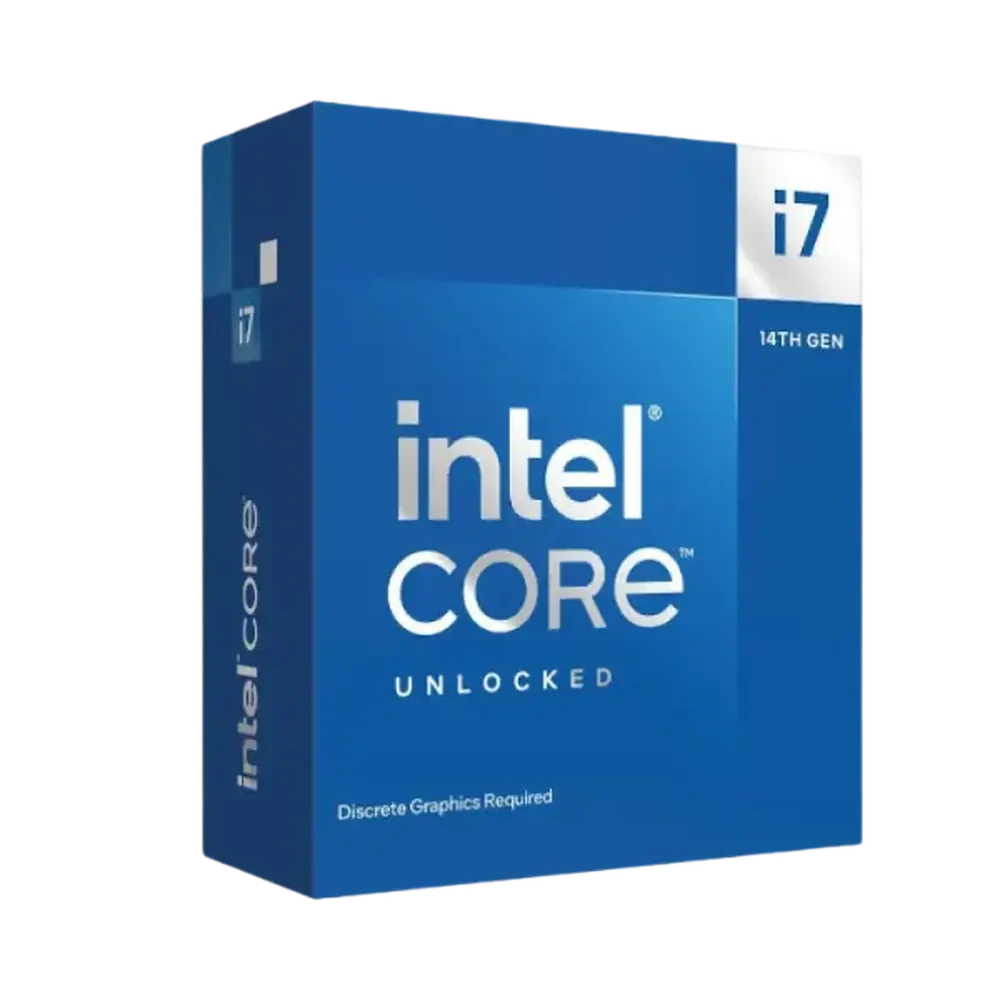

INTEL Core i7 14700 14th Generation Processor ( 5.4 GHz / 20 Cores / 28 Threads )

The Intel Core i7-14700 is a 14th Generation desktop processor built on Intel’s performance hybrid architecture, combining 8 Performance-cores and 12 Efficient-cores for a total of 20 cores and 28 threads. The Performance-cores handle demanding workloads such as gaming and content creation, while the Efficient-cores manage background tasks like media encoding, music playback, and video streaming — keeping the system responsive without compromising throughput on primary tasks. With a base frequency of 2.1 GHz on Efficient-cores and a maximum turbo boost frequency of 5.4 GHz, the i7-14700 scales fluidly across single-threaded and multi-threaded workloads. Intel Thread Director is embedded directly in the CPU silicon and works alongside the operating system to assign each of the 28 threads to the most appropriate core in real time, reducing scheduling latency and improving overall responsiveness. On the connectivity front, this processor supports up to 20 PCIe lanes — sixteen PCIe 5.0 lanes and four PCIe 4.0 lanes — enabling high-bandwidth links to modern GPUs, NVMe SSDs, and other peripherals. Memory support spans DDR5-5600 and DDR4-3200 across two channels, with a maximum addressable memory of 128 GB and a peak bandwidth of 89.6 GB/s. ECC memory is also supported, making the i7-14700 suitable for workstation and prosumer environments requiring data integrity. The integrated Intel UHD 770 Graphics, driven by Intel Xe architecture, supports a single 8K (7680 × 4320) display or up to four 4K (3840 × 2160) displays simultaneously with HDR. AI workloads are accelerated by Intel Deep Learning Boost (VNNI instruction support), and Gaussian and Neural Accelerator 3.0 (GNA 3.0) assists with noise suppression and background blurring in video conferencing applications. The processor fits the LGA1700 socket and is compatible with Intel 700-series and 600-series platform chipsets. Verified Specifications: • Product Code: BX8071514700 • Generation: Intel 14th Gen (Raptor Lake Refresh) • Socket: LGA1700 • Cores / Threads: 20 (8P + 12E) / 28 • Base Frequency: 2.1 GHz (E-core base) • Max Turbo Frequency: 5.4 GHz • L1 Cache: 80 KB per core • L2 Cache: 2 MB per core • L3 Cache: 30 MB (shared) • Memory Support: DDR5-5600, DDR4-3200 (2 channels, max 128 GB) • Max Memory Bandwidth: 89.6 GB/s • ECC Memory: Supported • Integrated Graphics: Intel UHD 770 (Xe architecture) • PCIe Support: 16× PCIe 5.0 + 4× PCIe 4.0 • Warranty: 3 Years
