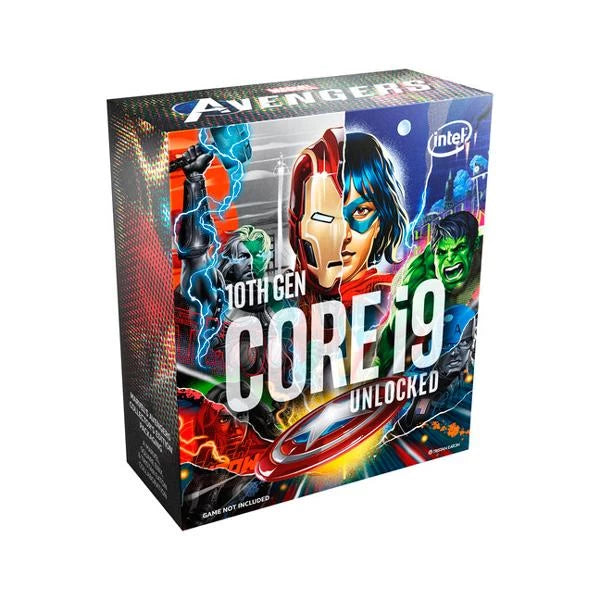

INTEL Core i9 10900K 10th Generation Avengers Edition Processor ( 5.3 GHz / 10 Cores / 20 Threads )
MPN INTEL-CORE-I9-10900KA-AVENGERS-EDITION · Brand Intel
Features of INTEL Core i9 10900K 10th Generation Avengers Edition Processor The Intel Core- series of processors have now received their latest upgrade in the form of the Comet Lake Refresh. This new updated range brings some highly sought after improvements, including the fact that CPUs with unlocked multipliers now offer soldered heatspreaders (IHS). This enables heat to be more effectively dissipated away from the CPU, allowing higher clock frequencies over longer periods of time. The Intel C
Inclusive of GST · GST invoice available
Overview
Features of INTEL Core i9 10900K 10th Generation Avengers Edition Processor
The Intel Core- series of processors have now received their latest upgrade in the form of the Comet Lake Refresh. This new updated range brings some highly sought after improvements, including the fact that CPUs with unlocked multipliers now offer soldered heatspreaders (IHS). This enables heat to be more effectively dissipated away from the CPU, allowing higher clock frequencies over longer periods of time.
The Intel Core i9-10900K is the new flagship model of the Core 10,000- series and offers ten cores with Hyper-Threading (SMT), capable of processing up to 20 threads simultaneously. The enthusiast-class CPU is also capable of offering increased clock frequencies and optimised boost functions when compared to its predecessors. The TDP of this Ten-Core processor is 125 Watts. The processor is compatible with socket 1200 motherboards from the 400-series.
For memory we highly recommend the 8 Pack memory range manufacturered by TeamGroup to OcUK Specifications and recommend the dual channel 3200MHz and 3600MHz 16GB and 32GB Dual Channel kits available from this website for optimal performance and best overclocking ability.
The i9 Processor with 10 cores, launched in April 2020, at an MSRP of $547. It is part of the Core i9 lineup, using the Comet Lake architecture with Socket 1200. Thanks to Intel Hyper-Threading the core-count is effectively doubled, to 20 threads. Core i9-10900K has 20 MB of L3 cache and operates at 3.7 GHz by default, but can boost up to 5.3 GHz, depending on the workload.
Intel is making the Core i9-10900K on a 14 nm production node, the transistor count is unknown. You may freely adjust the unlocked multiplier on Core i9-10900K, which simplifies overclocking greatly, as you can easily dial in any overclocking frequency.
With a TDP of 125 W, the Core i9-10900K consumes a lot of power, so good cooling is definitely needed. Intel's processor supports DDR4 memory with a dual-channel interface. The highest officially supported memory speed is 2933 MT/s, but with overclocking (and the right memory modules) you can go even higher. For communication with other components in the system, Core i9-10900K uses a PCI-Express Gen 3 connection.
This Intel processor features the UHD Graphics 630 integrated graphics solution.
Hardware virtualization is available on the Core i9-10900K, which greatly improves virtual machine performance. Additionally, IOMMU virtualization (PCI passthrough) is supported, so that guest virtual machines may directly use host hardware. Programs using Advanced Vector Extensions (AVX) can run on this processor, boosting performance for calculation-heavy applications. Besides AVX, Intel is including the newer AVX2 standard, too, but not AVX-512.
- Series - Core i9 (10th Gen)
- CORES - 10 Cores
- THREADS - 20 Threads
- SPEED - 3.7 GHz
- SPEED (TURBO) - 5.3 GHz
- CACHE - 20 MB
- MAX MEMORY SUPPORT - 128 GB
- INTEGRATED GRAPHICS - Intel UHD Graphics 630
- INCLUDED CPU COOLER - No
- UNLOCKED - Yes
- TDP - 125W
- WARRANTY - 3 Years
Specifications of INTEL Core i9 10900KA 10th Generation Avengers Edition Processor
| Essentials | Product Collection = 10th Generation Intel® Core™ i9 Processors Code Name = Products formerly Comet Lake Vertical Segment = Desktop Processor Number = i9-10900KA Status = Launched Launch Date = Q2'20 Lithography = 14 nm Included Items = Please note-The boxed product does not include a fan or heat sink Use Conditions = PC/Client/Tablet |
| Performance | No of Cores = 10 No of Threads = 20 Processor Base Frequency = 3.70 GHz Max Turbo Frequency = 5.30 GHz Intel® Thermal Velocity Boost Frequency = 5.30 GHz Cache = 20 MB Intel® Smart Cache Bus Speed = 8 GT/s Intel® Turbo Boost Max Technology 3.0 Frequency = 5.20 GHz TDP = 125 W Configurable TDP-down Frequency = 3.30 GHz Configurable TDP-down = 95 W |
| Memory Specifications | Max Memory Size (dependent on memory type) = 128 GB Memory Types = DDR4-2933 Max no of Memory Channels = 2 Max Memory Bandwidth = 45.8 GB/s ECC Memory Supported = No |
| Supplemental Information | Embedded Options Available = No |
| Processor Graphics | Processor Graphics = Intel® UHD Graphics 630 Graphics Base Frequency = 350 MHz Graphics Max Dynamic Frequency =1.20 GHz Graphics Video Max Memory = 64 GB 4K Support = Yes, at 60Hz Max Resolution (HDMI 1.4) = 4096x2160@30Hz Max Resolution (DP) =4096x2304@60Hz Max Resolution (eDP - Integrated Flat Panel) = 4096x2304@60Hz DirectX* Support= 12 OpenGL* Support = 4.5 Intel® Quick Sync Video= Yes Intel® InTru™ 3D Technology = Yes Intel® Clear Video HD Technology = Yes Intel® Clear Video Technology = Yes No of Displays Supported = 3 Device ID = 0x9BC5 |
| Expansion Options | Scalability = 1S Only PCI Express Revision = 3.0 PCI Express Configurations = Up to 1x16, 2x8, 1x8+2x4 Max No of PCI Express Lanes = 16 |
| Package Specifications | Sockets Supported = FCLGA1200 Max CPU Configuration = 1 Thermal Solution Specification = PCG 2015D T JUNCTION = 100°C Package Size = 37.5mm x 37.5mm |
| Advanced Technologies | Intel® Optane™ Memory Supported = Yes Intel® Thermal Velocity Boost = Yes Intel® Turbo Boost Max Technology 3.0 = Yes Intel® Turbo Boost Technology = 2.0 Intel® Hyper-Threading Technology =Yes Intel® Virtualization Technology (VT-x) = Yes Intel® Virtualization Technology for Directed I/O (VT-d) = Yes Intel® VT-x with Extended Page Tables (EPT) = Yes Intel® Transactional Synchronization Extensions = No Intel® 64 = Yes Instruction Set = 64-bit Instruction Set Extensions = Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 Idle States = Yes Enhanced Intel SpeedStep® Technology = Yes Thermal Monitoring Technologies =Yes Intel® Identity Protection Technology = Yes |
| Security & Reliability | Intel® AES New Instructions = Yes Secure Key = Yes Intel® Software Guard Extensions (Intel® SGX) = Yes with Intel® ME Intel® OS Guard = Yes Execute Disable Bit = Yes Intel® Boot Guard = Yes |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
Datasheet
| Note* | Price, feature and specifications are subject to change without notice |
|---|---|
| Essentials | Product Collection = 10th Generation Intel® Core™ i9 ProcessorsCode Name = Products formerly Comet LakeVertical Segment = DesktopProcessor Number = i9-10900KAStatus = LaunchedLaunch Date = Q2'20Lithography = 14 nmIncluded Items = Please note-The boxed product does not include a fan or heat sinkUse Conditions = PC/Client/Tablet |
| Performance | No of Cores = 10No of Threads = 20Processor Base Frequency = 3.70 GHzMax Turbo Frequency = 5.30 GHzIntel® Thermal Velocity Boost Frequency = 5.30 GHzCache = 20 MB Intel® Smart CacheBus Speed = 8 GT/sIntel® Turbo Boost Max Technology 3.0 Frequency = 5.20 GHzTDP = 125 WConfigurable TDP-down Frequency = 3.30 GHzConfigurable TDP-down = 95 W |
| Expansion Options | Scalability = 1S OnlyPCI Express Revision = 3.0PCI Express Configurations = Up to 1×16, 2×8, 1×8+2x4Max No of PCI Express Lanes = 16 |
| Processor Graphics | Processor Graphics = Intel® UHD Graphics 630Graphics Base Frequency = 350 MHzGraphics Max Dynamic Frequency =1.20 GHzGraphics Video Max Memory = 64 GB4K Support = Yes, at 60HzMax Resolution (HDMI 1.4) = 4096×2160@30HzMax Resolution (DP) =4096×2304@60HzMax Resolution (eDP – Integrated Flat Panel) = 4096×2304@60HzDirectX* Support= 12OpenGL* Support = 4.5Intel® Quick Sync Video= YesIntel® InTru™ 3D Technology = YesIntel® Clear Video HD Technology = YesIntel® Clear Video Technology = YesNo of Displays Supported = 3Device ID = 0x9BC5 |
| Advanced Technologies | Intel® Optane™ Memory Supported = YesIntel® Thermal Velocity Boost = YesIntel® Turbo Boost Max Technology 3.0 = YesIntel® Turbo Boost Technology = 2.0Intel® Hyper-Threading Technology =YesIntel® Virtualization Technology (VT-x) = YesIntel® Virtualization Technology for Directed I/O (VT-d) = YesIntel® VT-x with Extended Page Tables (EPT) = YesIntel® Transactional Synchronization Extensions = NoIntel® 64 = YesInstruction Set = 64-bitInstruction Set Extensions = Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2Idle States = YesEnhanced Intel SpeedStep® Technology = YesThermal Monitoring Technologies =YesIntel® Identity Protection Technology = Yes |
| Memory Specifications | Max Memory Size (dependent on memory type) = 128 GBMemory Types = DDR4-2933Max no of Memory Channels = 2Max Memory Bandwidth = 45.8 GB/sECC Memory Supported = No |
| Package Specifications | Sockets Supported = FCLGA1200Max CPU Configuration = 1Thermal Solution Specification = PCG 2015DT JUNCTION = 100°CPackage Size = 37.5mm x 37.5mm |
| Security & Reliability | Intel® AES New Instructions = YesSecure Key = YesIntel® Software Guard Extensions (Intel® SGX) = Yes with Intel® MEIntel® OS Guard = YesExecute Disable Bit = YesIntel® Boot Guard = Yes |
| Supplemental Information | Embedded Options Available = No |
| Warranty | 3 Years |
