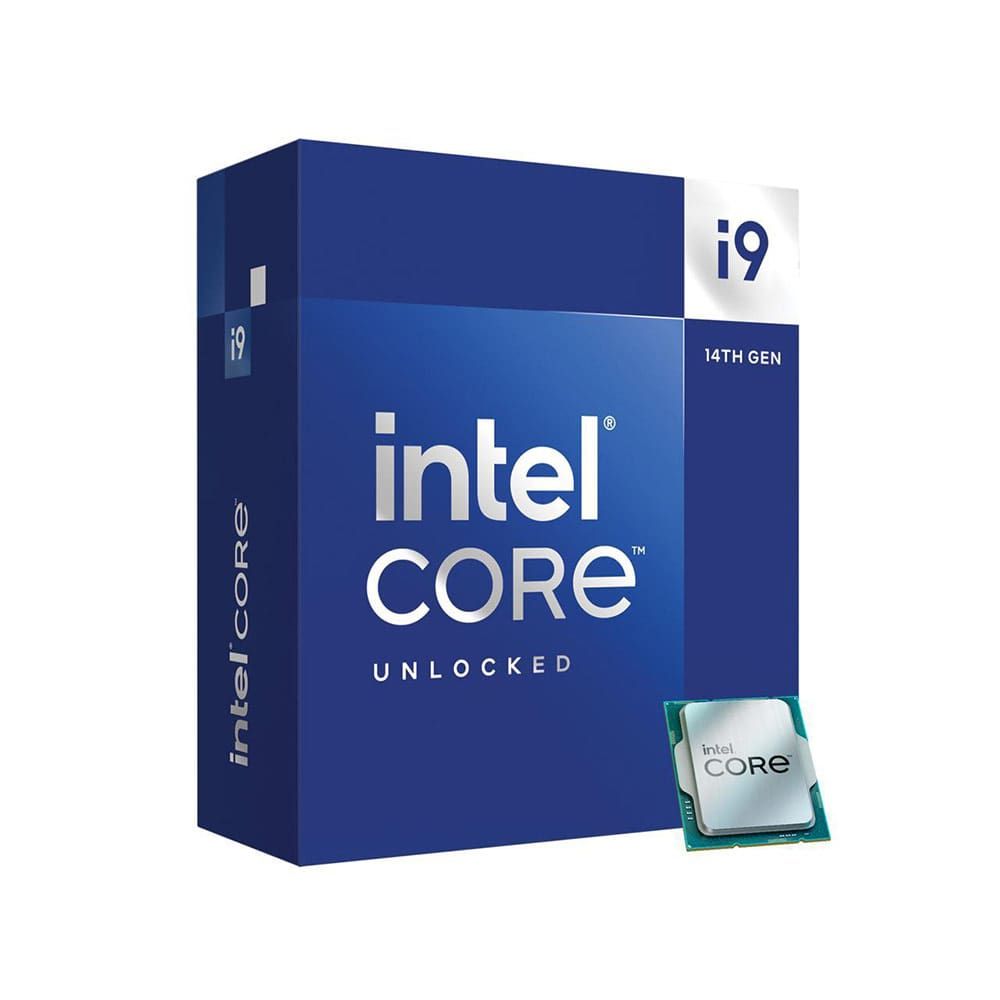

INTEL Core i9 14900KF 14th Generation Processor ( 6 GHz / 24 Cores / 32 Threads )

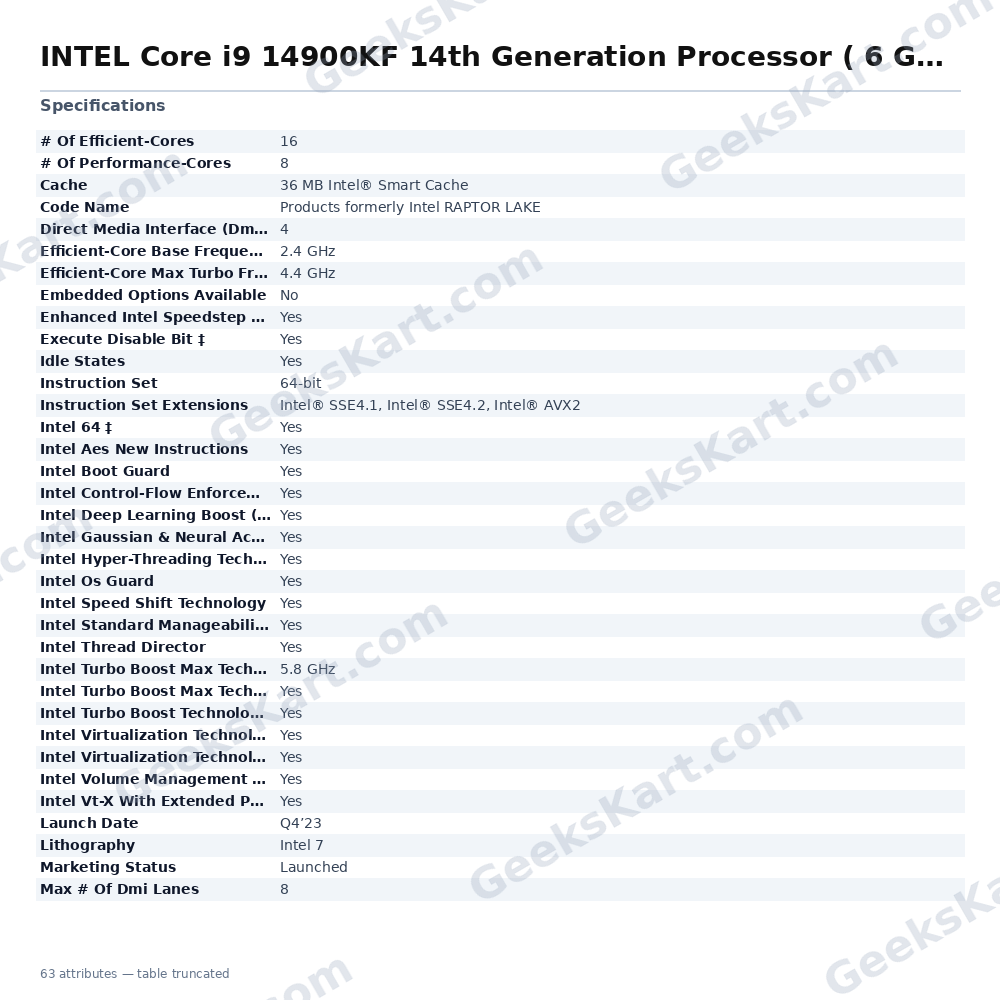

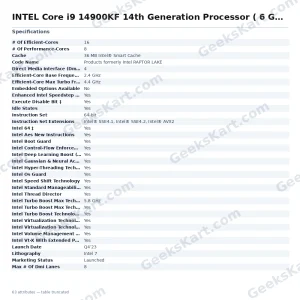

The Intel Core i9-14900KF is a 14th Generation desktop processor built on Intel’s Raptor Lake architecture and manufactured on the Intel 7 process node. It uses the FCLGA1700 socket, making it compatible with both 600-series and 700-series motherboards, giving builders flexibility when planning or upgrading a system. At the heart of this processor is a hybrid core design comprising 8 Performance-cores and 16 Efficient-cores for a total of 24 cores and 32 threads. The Performance-cores operate at a base frequency of 3.2 GHz and can boost up to 5.6 GHz, while the Efficient-cores run at a 2.4 GHz base and reach up to 4.4 GHz under turbo. The overall max turbo frequency reaches 6 GHz via Intel Turbo Boost Max Technology 3.0. Intel Thread Director intelligently assigns workloads across core types so demanding applications and background tasks run concurrently without contention. For cache, the i9-14900KF includes 36 MB of Intel Smart Cache (L3) alongside 32 MB of total L2 cache, providing ample high-speed storage for frequently accessed data. Memory support extends to DDR5 at up to 5600 MT/s or DDR4 at up to 3200 MT/s across two channels, with a maximum supported capacity of 192 GB and peak memory bandwidth of 89.6 GB/s. Expansion connectivity is handled through PCIe 5.0 and PCIe 4.0 lanes, with up to 20 PCIe lanes available in configurations such as 1×16+4 or 2×8+4. The DMI 4 interface provides eight lanes to the platform chipset. The processor base power (TDP) is 125 W, with a maximum turbo power of 253 W — a robust cooling solution is strongly recommended. The KF designation means this processor is unlocked for overclocking but does not include an integrated graphics unit. Overclocking can be managed using the Intel Extreme Tuning Utility. Advanced technologies on board include Intel Deep Learning Boost, Intel Gaussian and Neural Accelerator 3.0, Intel Speed Shift Technology, Enhanced Intel SpeedStep Technology, and a full suite of hardware security features including Intel AES New Instructions, Control-Flow Enforcement Technology, Boot Guard, Virtualization Technology (VT-x and VT-d), and Execute Disable Bit. Verified Specifications: – Processor Number: i9-14900KF – Cores / Threads: 24 / 32 (8P + 16E) – Max Turbo Frequency: 6 GHz – P-core Base / Max Turbo: 3.2 GHz / 5.6 GHz – E-core Base / Max Turbo: 2.4 GHz / 4.4 GHz – Intel Turbo Boost Max 3.0 Frequency: 5.8 GHz – L3 Cache: 36 MB Intel Smart Cache – L2 Cache: 32 MB – Socket: FCLGA1700 – Memory: DDR5-5600 / DDR4-3200, 2-channel, max 192 GB – PCIe: 5.0 and 4.0, up to 20 lanes – Base Power: 125 W | Max Turbo Power: 253 W – Lithography: Intel 7 – TJ Max: 100°C – Launch: Q4 2023
