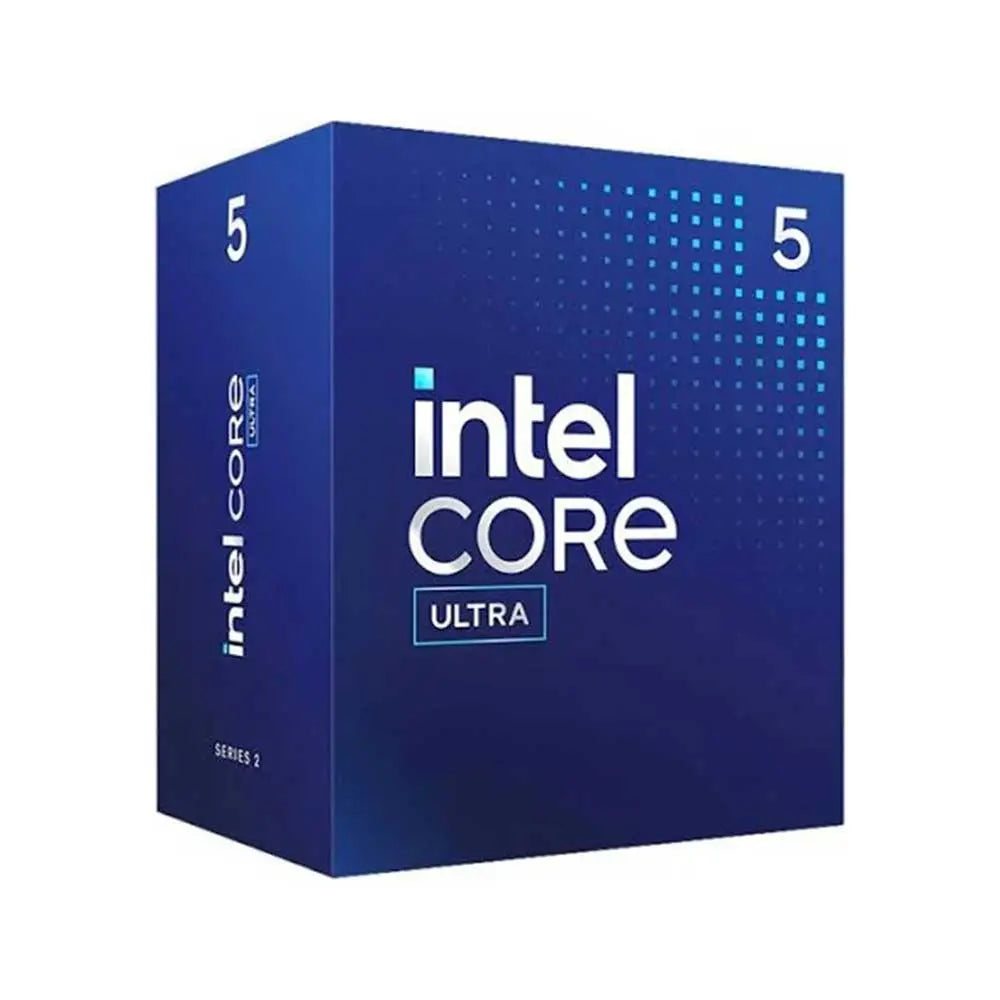

Features of INTEL Core Ultra 5 225 Processor ( 4.9 GHz / 10 Core / 10 Threads )
Architecture & Performance
Built on the Arrow Lake architecture using TSMC’s N3B (3 nm) process
Hybrid core design with:
6 Performance‑cores (P‑cores) clocked up to 4.9 GHz (base 3.3 GHz)
4 Efficient‑cores (E‑cores) clocked up to 4.4 GHz (base 2.7 GHz)
Thermal & Power Specs
-
Base power (PL1): 65 W
-
Turbo (PL2): Up to 121 W
- Max operating temperature: Around 105 °C
Integrated GPU
-
Intel Arc Graphics (Xe-based) with:
-
2 Xe cores, base GPU clock ~300 MHz, boost up to ~1.8 GHz
-
Capable of driving up to 4 displays, supports up to 8K @ 60 Hz resolutions, DirectX 12, OpenGL 4.5, OpenCL 3.0, and Quick Sync Video
AI Acceleration & Software Support
-
Features Intel AI Boost NPU delivering 13 TOPS (Int8) for AI tasks
-
Supports AI frameworks such as OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
-
Includes Intel Deep Learning Boost (DL Boost) on CPU
Platform & Connectivity
-
Supports PCIe 5.0 and 4.0, with up to 24 PCIe lanes
-
Compatible with high-speed memory—dual-channel DDR5‑6400, supporting up to 256 GB
-
Equipped with Thunderbolt 4, Intel Thread Director, and multiple modern instruction-set and security technologies (AES‑NI, AVX2, SSE4.1/4.2, VT‑x, VT‑d, OS Guard, Boot Guard, etc.)
Use Cases
This chip offers a balanced mix of strong multicore performance, efficient power usage, integrated AI acceleration, and capable iGPU. It’s well-suited for:
-
Everyday computing
-
Content creation and productivity
-
Light to moderate gaming (or paired with discrete GPU)
-
Entry-level AI workloads and media processing
Specifications of INTEL Core Ultra 5 225 Processor ( 4.9 GHz / 10 Core / 10 Threads )
| Total Cores | 10 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 4 |
| Total Threads | 10 |
| Max Turbo Frequency | 4.9Ghz |
| Performance-core Max Turbo Frequency | 4.9Ghz |
| Efficient-core Max Turbo Frequency | 4.4Ghz |
| Performance-core Base Frequency | 3.3Ghz |
| Efficient-core Base Frequency | 2.7Ghz |
| Cache | 20 MB Intel® Smart Cache |
| Total L2 Cache | 22 MB |
| Processor Base Power | 65W |
| Maximum Turbo Power | 121W |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| AI Software Frameworks Supported by CPU | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| CPU Lithography | TSMC N3B |
| Supplemental Information | |
| Marketing Status | Launched |
| Launch Date | Q1’25 |
| Embedded Options Available | No |
| Use Conditions | PC/Client/Tablet |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 256GB |
| Memory Types | Up to DDR5 6400 MT/s |
| Max # of Memory Channels | 2 |
| CC Memory Supported | No |
| GPU Specifications | |
| GPU Name | Intel® Graphics |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.8 Ghz |
| GPU Peak TOPS (Int8) | 4 |
| Graphics Output | DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b |
| X-Cores | 2 |
| Max Resolution (HDMI) | 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL) |
| Max Resolution (DP) | 8K @ 60Hz |
| Max Resolution (eDP – Integrated Flat Panel) | 4K @ 60Hz |
| DirectX* Support | 12 |
| Open GL Support | 4.5 |
| OpenCL* Support | 3 |
| Intel® Quick Sync Video | Yes |
| # of Displays Supported | 4 |
| Intel® Deep Learning Boost (Intel® DL Boost) on GPU | Yes |
| NPU Specifications | |
| NPU Name | Intel® AI Boost |
| NPU Peak TOPS (Int8) | 13 |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
| AI Software Frameworks Supported by NPU | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Intel® Thunderbolt™ 4 | Yes |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations | Up to 1×16+2×4, 2×8+2×4, 1×8+4×4 |
| Max # of PCI Express Lanes | 24 |
| Package Specifications | |
| Sockets Supported | FCLGA1851 |
| Thermal Solution Specification | PCG 2022C |
| Max Operating Temperature | 105 °C |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3.5 |
| Intel® Thread Director | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2 |
| Intel® 64 | Yes |
| Instruction Set | 64 Bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device | Yes |
| Security & Reliability | |
| Intel® Standard Manageability (ISM) | Yes |
| Intel® Secure Key | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® AES New Instructions | Yes |
| Intel® Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel® OS Guard | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
