Features of INTEL Pentium 6th Generation G440 Processor
The Pentium G440 3.5 GHz Dual-Core LGA 1151 Processor from Intel has a base clock speed of 3.5 GHz and comes with features such as Intel Hyper-Threading technology. This processor features 2 cores with 4 threads in an LGA 1151 socket and has 3MB of cache memory. Having 2 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 4 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core. This processor also supports up to 64GB of DDR4-2400/2133 and DDR3L 1600/1333 RAM at 1.35V, has AES New Instructions, 14nm lithography, and utilizes 7th Generation (Kaby Lake) technology.
Graphically, the Pentium G4560 3.5 GHz Dual-Core LGA 1151 Processor uses integrated Intel HD Graphics 610. Included is a CPU cooler and protection is provided by a limited 3-year warranty.
The 4th generation processor features a clock-frequency of 3.30 GHz with 2 cores and 2 threads.The maximum memory size supported is 64 GB and the memory type is DDR4/DDR3Land memory speed is 2133/1600mhz that gives a boost to your productive performance. Max Resolution 4096×2304@60Hz that will help to your multimedia and gaming experience. The G4400 has a TDP of 54W.
The 4th generation processor features a clock-frequency of 3.30 GHz with 2 cores and 2 threads.
The maximum memory size supported is 64 GB and the memory type is DDR4/DDR3Land memory speed is 2133/1600mhz that gives a boost to your productive performance.
Max Resolution 4096×2304@60Hz that will help to your multimedia and gaming experience. The G4400 has a TDP of 54W.
- 14nm Skylake 65W
- 3MB L3 Cache
- 2 x 256KB L2 Cache
- Intel HD Graphics 510

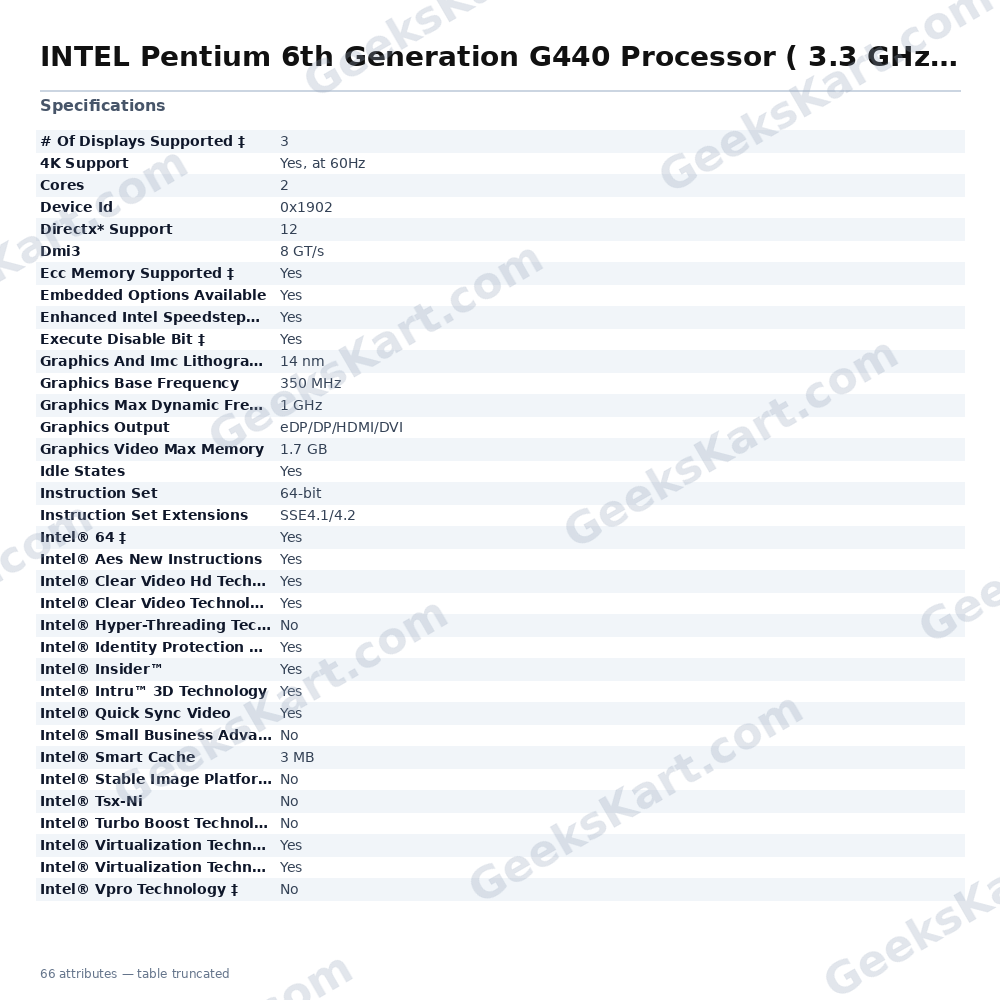

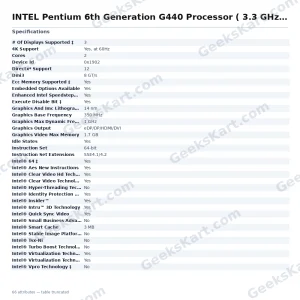

Specifications of INTEL Pentium 6th Generation G440 Processor
| Essentials | |
| Processor Number | G4400 |
| Intel® Smart Cache | 3 MB |
| DMI3 | 8 GT/s |
| Instruction Set | 64-bit |
| Instruction Set Extensions | SSE4.1/4.2 |
| Embedded Options Available | Yes |
| Lithography | 14 nm |
| Scalability | 1S Only |
| Thermal Solution Specification | PCG 2015C (65W) |
| Performance | |
| # of Cores | 2 |
| # of Threads | 2 |
| Processor Base Frequency | 3.3 GHz |
| TDP | 54 W |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 64 GB |
| Memory Types | DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 34.1 GB/s |
| ECC Memory Supported ‡ | Yes |
| Graphics Specifications | |
| Processor Graphics ‡ | Intel® HD Graphics 510 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1 GHz |
| Graphics Video Max Memory | 1.7 GB |
| Graphics Output | eDP/DP/HDMI/DVI |
| 4K Support | Yes, at 60Hz |
| Max Resolution (Intel® WiDi)‡ | 1080p |
| Max Resolution (HDMI 1.4)‡ | 4096×2304@24Hz |
| Max Resolution (DP)‡ | 4096×2304@60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ | 4096×2304@60Hz |
| Max Resolution (VGA)‡ | N/A |
| DirectX* Support | 12 |
| OpenGL* Support | 4.4 |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Wireless Display | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology | Yes |
| # of Displays Supported ‡ | 3 |
| Device ID | 0x1902 |
| Expansion Options | |
| PCI Express Revision | 3 |
| PCI Express Configurations ‡ | Up to 1×16, 2×8, 1×8 2×4 |
| Max # of PCI Express Lanes | 16 |
| Package Specifications | |
| Max CPU Configuration | 1 |
| Package Size | 37.5mm x 37.5mm |
| Graphics and IMC Lithography | 14 nm |
| Sockets Supported | FCLGA1151 |
| Low Halogen Options Available | See MDDS |
| Advanced Technologies | |
| Intel® Turbo Boost Technology ‡ | No |
| Intel® vPro Technology ‡ | No |
| Intel® Hyper-Threading Technology ‡ | No |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® TSX-NI | No |
| Intel® 64 ‡ | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology ‡ | Yes |
| Intel® Stable Image Platform Program (SIPP) | No |
| Intel® Small Business Advantage | No |
| Intel® Data Protection Technology | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Platform Protection Technology | |
| OS Guard | No |
| Trusted Execution Technology ‡ | No |
| Execute Disable Bit ‡ | Yes |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
