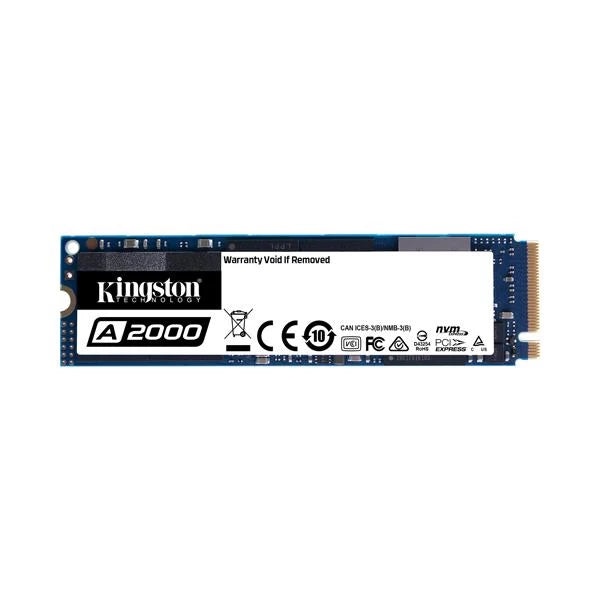

KINGSTON A2000 500GB M.2 NVME Gen3 Internal Solid State Drive ( SSD )
MPN KINGSTON-A2000-500GB-M-2-NVME · Brand kingst · M.2 2280
Feature of KINGSTON A2000 500GB M.2 NVME Gen3 Internal Solid State Drive ( SSD ) This kingston ssd delivers 3x the performance over a SATA SSD with quicker loading times, lower power and lower heat. A2000 SSD is designed for the entry-level user, purpose-built system manufacturer, DIY system builder, and those A2000 NVMe PCIe SSD for Purpose-Built System Manufacturers, DIY System Builders and PC Upgrades Kingston’s A2000 500gb ssd is an affordable storage solution with impressive performance. Bo
Inclusive of GST · GST invoice available
Overview
Feature of KINGSTON A2000 500GB M.2 NVME Gen3 Internal Solid State Drive ( SSD )
This kingston ssd delivers 3x the performance over a SATA SSD with quicker loading times, lower power and lower heat. A2000 SSD is designed for the entry-level user, purpose-built system manufacturer, DIY system builder, and those
A2000 NVMe PCIe SSD for Purpose-Built System Manufacturers, DIY System Builders and PC Upgrades
Kingston’s A2000 500gb ssd is an affordable storage solution with impressive performance. Boasting read/write speeds of up to 2,200/2,000MB/s1, A2000 delivers 3x the performance of a SATA SSD with quicker loading times, less power consumption and lower heat. A2000 SSD is designed for the entry-level user, purpose-built system manufacturer, DIY system builder and those seeking to upgrade their PC. With a single-sided slim M.2 design, A2000 works to its full potential when installed in an Ultrabook or a small-form-factor PC (SFF PC) system.
Available capacity 500GB to meet your system’s needs. A2000 is a self-encrypting drive that supports end-to-end data protection using 256-bit XTS-AES hardware-based encryption, and allows the use of independent software vendors with TCG Opal 2.0 security management solutions such as Symantec™, McAfee™, WinMagic® and others. A2000 also has built-in eDrive support, a security storage specification for use with BitLocker.
NVMe PCIe performance at a fraction of the cost
A2000 is an affordable solution with impressive read/write speeds up to 2,200/2,000MB/s1
Full-security suite support
Protect and secure your data with Kingston’s self-encrypting drive
- NVMe™ PCIe Gen 3.0 x 4 Lanes
- XTS-AES 256-bit Encryption, TCG Opal, eDrive
- 2200MB/s Read, 2000MB/s Write
- Includes cloning software

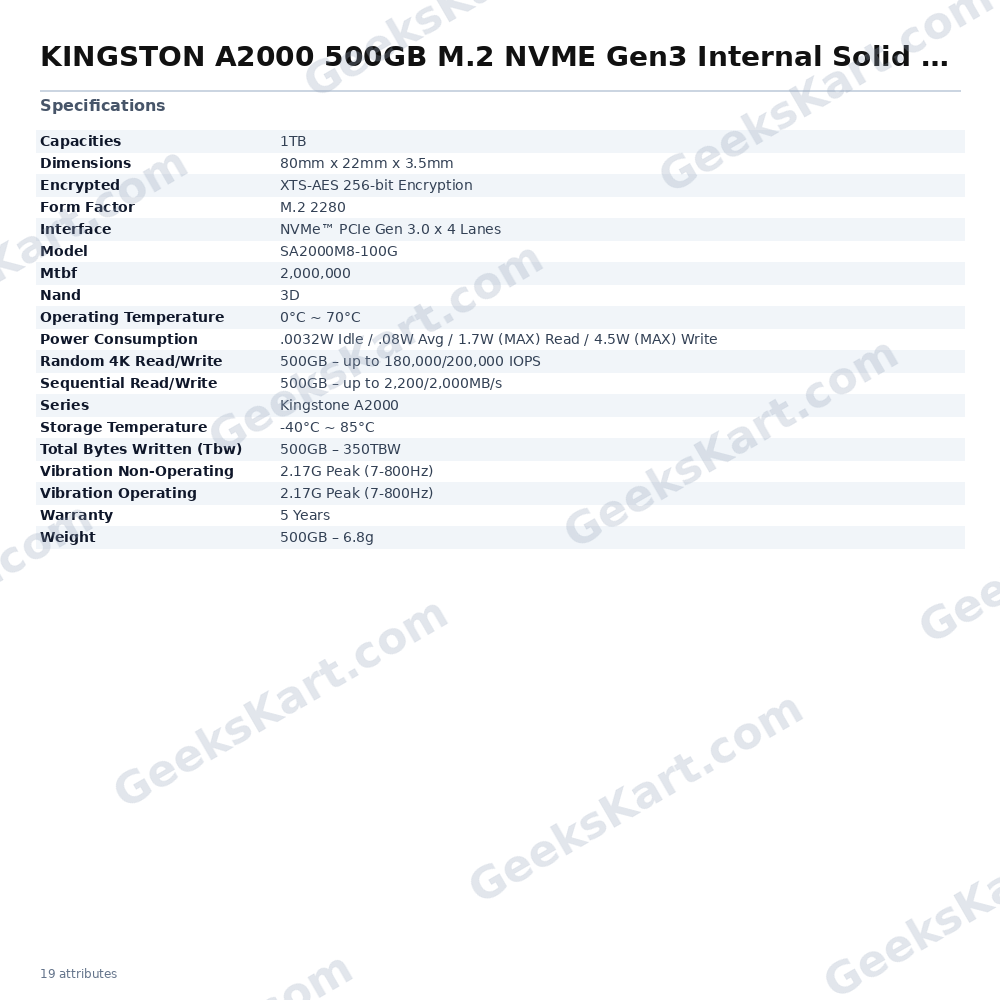

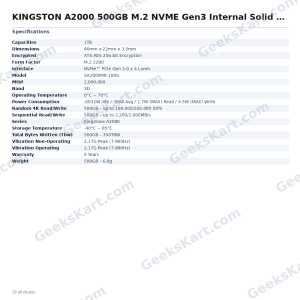

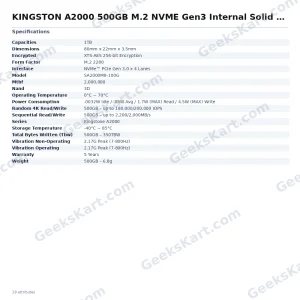

Specifications of KINGSTON A2000 500GB M.2 NVME Gen3 Internal Solid State Drive ( SSD )
| Model | SA2000M8-100G |
| Series | Kingstone A2000 |
| Form factor | M.2 2280 |
| Interface | NVMe™ PCIe Gen 3.0 x 4 Lanes |
| Capacities | 1TB |
| NAND | 3D |
| Encrypted | XTS-AES 256-bit Encryption |
| Sequential Read/Write | 500GB – up to 2,200/2,000MB/s |
| Random 4K Read/Write | 500GB – up to 180,000/200,000 IOPS |
| Total Bytes Written (TBW) | 500GB – 350TBW |
| Power Consumption | .0032W Idle /.08W Avg / 1.7W (MAX) Read / 4.5W (MAX) Write |
| Storage temperature | -40°C ~ 85°C |
| Operating temperature | 0°C ~ 70°C |
| Dimensions | 80mm x 22mm x 3.5mm |
| Weight | 500GB – 6.8g |
| Vibration operating | 2.17G Peak (7-800Hz) |
| Vibration non-operating | 2.17G Peak (7-800Hz) |
| MTBF | 2,000,000 |
| Warranty | 5 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Datasheet
| Warranty | 5 Years |
|---|---|
| Form Factor | M.2 2280 |
| Interface | NVMeTM PCIe Gen 3.0 x 4 Lanes |
| Power Consumption | .0032W Idle / .08W Avg / 1.7W (MAX) Read / 4.5W (MAX) Write |
| Mtbf | 2,000,000 |
| Nand | 3D |
| Model | SA2000M8-100G |
| Series | Kingstone A2000 |
| Weight | 500GB – 6.8g |
| Encrypted | XTS-AES 256-bit Encryption |
| Capacities | 1TB |
| Dimensions | 80mm x 22mm x 3.5mm |
| Storage Temperature | -40°C ~ 85°C |
| Vibration Operating | 2.17G Peak (7-800Hz) |
| Random 4K Read/Write | 500GB – up to 180,000/200,000 IOPS |
| Operating Temperature | 0°C ~ 70°C |
| Sequential Read/Write | 500GB – up to 2,200/2,000MB/s |
| Vibration Non-Operating | 2.17G Peak (7-800Hz) |
| Total Bytes Written (Tbw) | 500GB – 350TBW |
