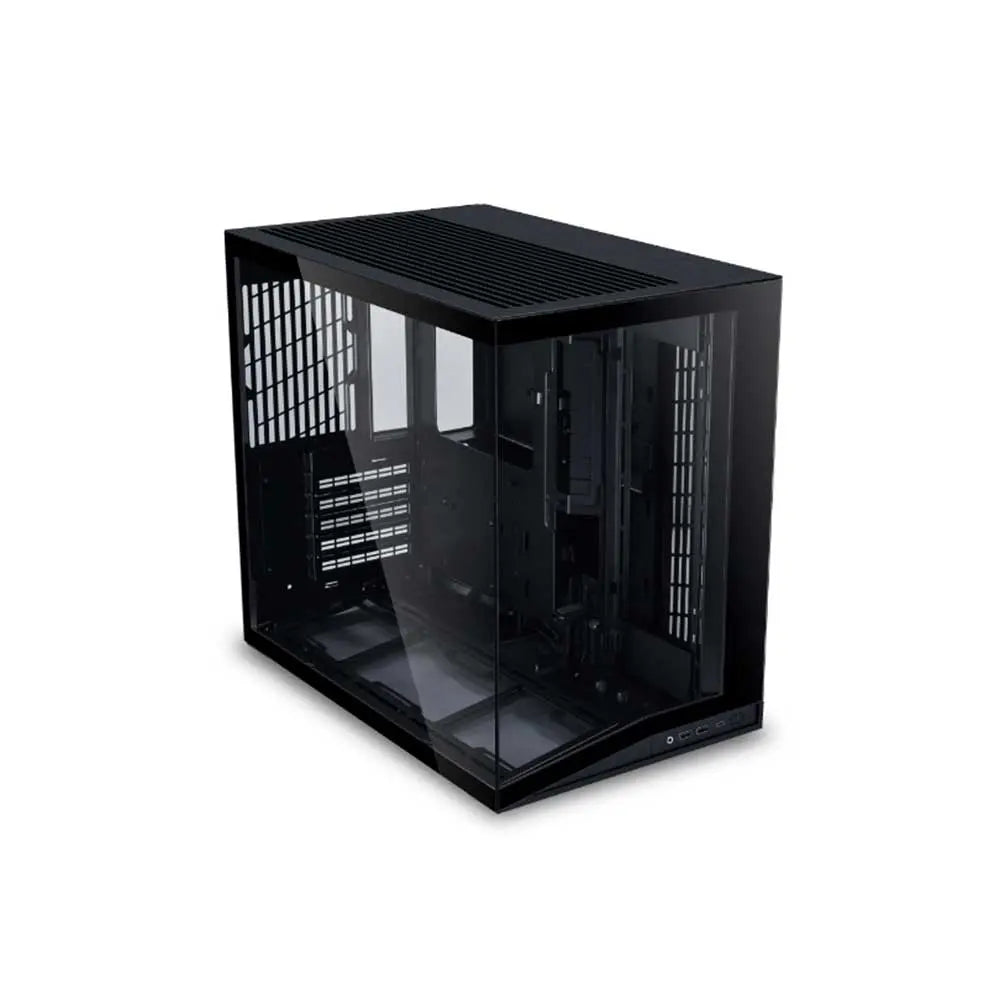

LIAN Li O11 Dynamic Mini V2 ATX Mid Tower Cabinet ( Black )
MPN LIAN-LI-O11-DYNAMIC-MINI-V2-BLACK · Brand Lian Li
Features of LIAN Li O11 Dynamic Mini V2 ATX Mid Tower Cabinet ( Black ) Precision resized 45.38L chassis offers expanded hardware support with a compact footprint Pillar-less tempered glass front and side panels for an unobstructed internal view 10° slanted bottom improves GPU airflow and aesthetic presentation Supports ATX, M-ATX, Mini-ITX, and ATX Back-Connect motherboards Accommodates 400mm long GPUs, 160mm tall CPU coolers, and ATX PSU (Under 200mm) Supports up to 360mm top radiator, 240mm s
Inclusive of GST · GST invoice available
Overview
Features of LIAN Li O11 Dynamic Mini V2 ATX Mid Tower Cabinet ( Black )
- Precision resized 45.38L chassis offers expanded hardware support with a compact footprint
- Pillar-less tempered glass front and side panels for an unobstructed internal view
- 10° slanted bottom improves GPU airflow and aesthetic presentation
- Supports ATX, M-ATX, Mini-ITX, and ATX Back-Connect motherboards
- Accommodates 400mm long GPUs, 160mm tall CPU coolers, and ATX PSU (Under 200mm)
- Supports up to 360mm top radiator, 240mm side radiator, and 9 x 120mm fans
- Includes horizontal and vertical GPU anti-sag brackets for heavy GPU support
Specifications of LIAN Li O11 Dynamic Mini V2 ATX Mid Tower Cabinet ( Black )
| Product Name | G99-O11DMIV2X-IN |
| Color | Black |
| Dimensions | 423.6mm x 273.3mm x 391.95mm (DxWxH) |
| Materials | 2mm Aluminum Panel / 1mm Mesh Panel / 4.0mm Tempered Glass |
| Motherboard Support | Back-Connect ATX ATX / Micro-ATX / Mini-ITX |
| Expansion Slot | 5 |
| Storage | Drive Cage: 2.5” SSD x 2 or 3.5” HDD x 2 Behind MB Tray: 2.5″ SSD x 2 |
| GPU Length Clearance | 400 mm |
| CPU Cooler Height Clearance | 160 mm |
| PSU Support | ATX (Under 200mm) |
| Radiator Support | Top: 240mm / 280mm / 360mm (Note: 280mm radiator requires mounting motherboard one slot lower) Side: 240mm |
| Fan Support | Top: 120mm x 3 or 140mm x 2 Side: 120mm x 2 Bottom: 120mm x 3 Rear: 120mm x 1 |
| Included Fans | N/A |
| Dust Filters | Bottom x 1 |
| I/O Ports | USB 3.0 x 2 USB 3.2 Type C x 1 Audio x 1 Power Button x 1 |
| Warranty | 1 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |

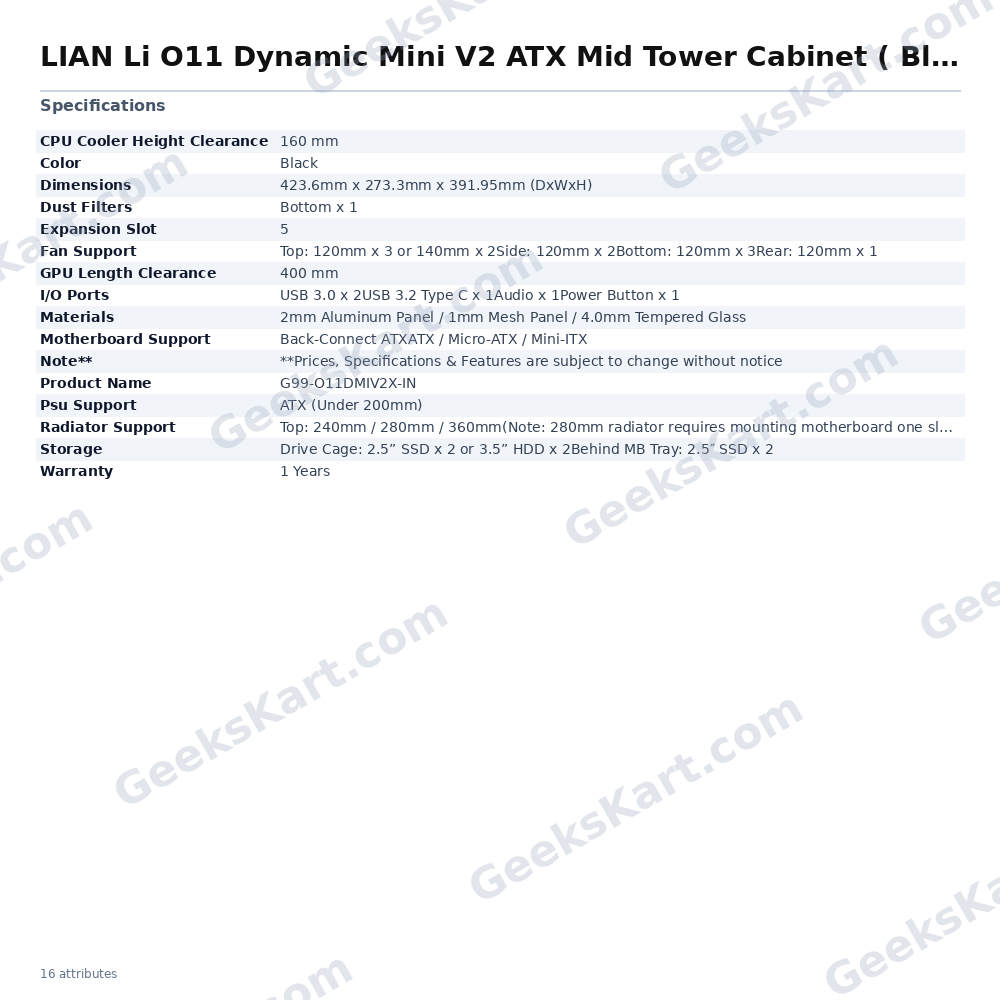

Datasheet
| Warranty | 1 Year |
|---|---|
| color | Black |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Storage | Drive Cage: 2.5” SSD x 2 or 3.5” HDD x 2Behind MB Tray: 2.5″ SSD x 2 |
| I/O Ports | USB 3.0 x 2USB 3.2 Type C x 1Audio x 1Power Button x 1 |
| Materials | 2mm Aluminum Panel / 1mm Mesh Panel / 4.0mm Tempered Glass |
| Dimensions | 423.6mm x 273.3mm x 391.95mm (DxWxH) |
| Fan Support | Top: 120mm x 3 or 140mm x 2Side: 120mm x 2Bottom: 120mm x 3Rear: 120mm x 1 |
| Psu Support | ATX (Under 200mm) |
| Dust Filters | Bottom x 1 |
| Product Name | G99-O11DMIV2X-IN |
| Expansion Slot | 5 |
| Radiator Support | Top: 240mm / 280mm / 360mm(Note: 280mm radiator requires mounting motherboard one slot lower)Side: 240mm |
| Motherboard Support | Back-Connect ATXATX / Micro-ATX / Mini-ITX |
| GPU Length Clearance | 400 mm |
| CPU Cooler Height Clearance | 160 mm |
