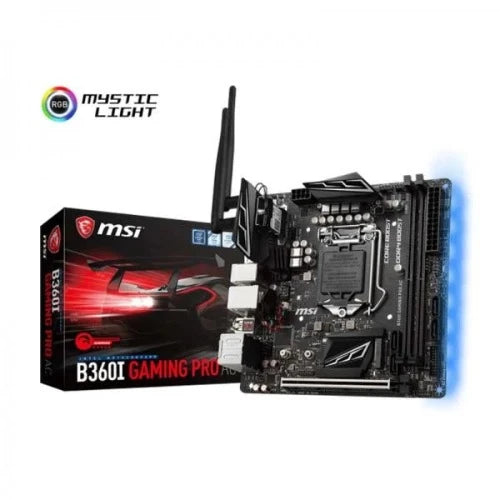

MSI B360I Gaming Pro AC DDR4 Intel Motherboard
MPN MSI-B360I-GAMINGPROAC · Brand MSI · Mini-ITX
The MSI B360I Gaming Pro AC is a Mini-ITX motherboard for Intel LGA 1151 (8th/9th Gen) CPUs, featuring DDR4-2666 support, dual M.2 slots, Wi-Fi AC, and MSI Mystic Light RGB
Inclusive of GST · GST invoice available
Overview
The MSI B360I Gaming Pro AC is a Mini-ITX form-factor motherboard built on the Intel B360 chipset and designed for Intel LGA 1151 socket processors. It supports 8th and 9th Generation Intel Core, Pentium Gold, and Celeron processors, making it a capable foundation for a compact gaming or home-office system. Memory support covers DDR4 at 2666, 2400, and 2133 MHz across two DIMM slots in a dual-channel configuration, with a maximum capacity of 32 GB. Storage options are generous for its size: four SATA III ports and two M.2 slots provide ample room for NVMe or SATA SSDs alongside traditional drives. The board also includes Intel Optane Memory readiness. Connectivity is a highlight. Onboard Intel wireless delivers MU-MIMO Wi-Fi AC speeds up to 433 Mbps. Wired networking is handled by a Gigabit Ethernet port (10/100/1000). The rear I/O includes two USB 3.1 Gen 2 Type-A ports, two USB 3.1 Gen 1 Type-A ports, and two USB 2.0 ports; the front-panel headers add two USB 3.1 Gen 1 and two USB 2.0 connections. Display outputs consist of one DisplayPort and one DVI-D, supporting integrated graphics on compatible processors. Audio is powered by a Realtek ALC892 codec. RGB enthusiasts will appreciate MSI Mystic Light Sync, which offers 16.8 million colours and 10 lighting effects controllable via the Mystic Light app. A TPM header, EZ Debug LED, and Click BIOS 5 round out the feature set for builders who value ease of setup and system security. DirectX 12 is supported, and the board carries a 3-year warranty. Verified Specifications: - Form Factor: Mini-ITX - Socket: LGA 1151 - Chipset: Intel B360 - CPU Support: 8th / 9th Gen Intel Core / Pentium Gold / Celeron - Memory: 2x DDR4 DIMM, dual-channel, up to 32 GB, speeds 2133/2400/2666 MHz - Storage: 4x SATA III, 2x M.2 - PCIe: 1x PCIe 3.0 x16 - USB Rear: 2x USB 3.1 Gen 2 (Type-A), 2x USB 3.1 Gen 1 (Type-A), 2x USB 2.0 - USB Front Headers: 2x USB 3.1 Gen 1 (Type-A), 2x USB 2.0 - LAN: Gigabit Ethernet (10/100/1000) - Wireless: Intel Wi-Fi AC (MU-MIMO, up to 433 Mbps) - Audio: Realtek ALC892 codec - Display: 1x DisplayPort, 1x DVI-D - DirectX: 12 - TPM Header: 1 - OS: Windows 10 64-bit - Warranty: 3 Years

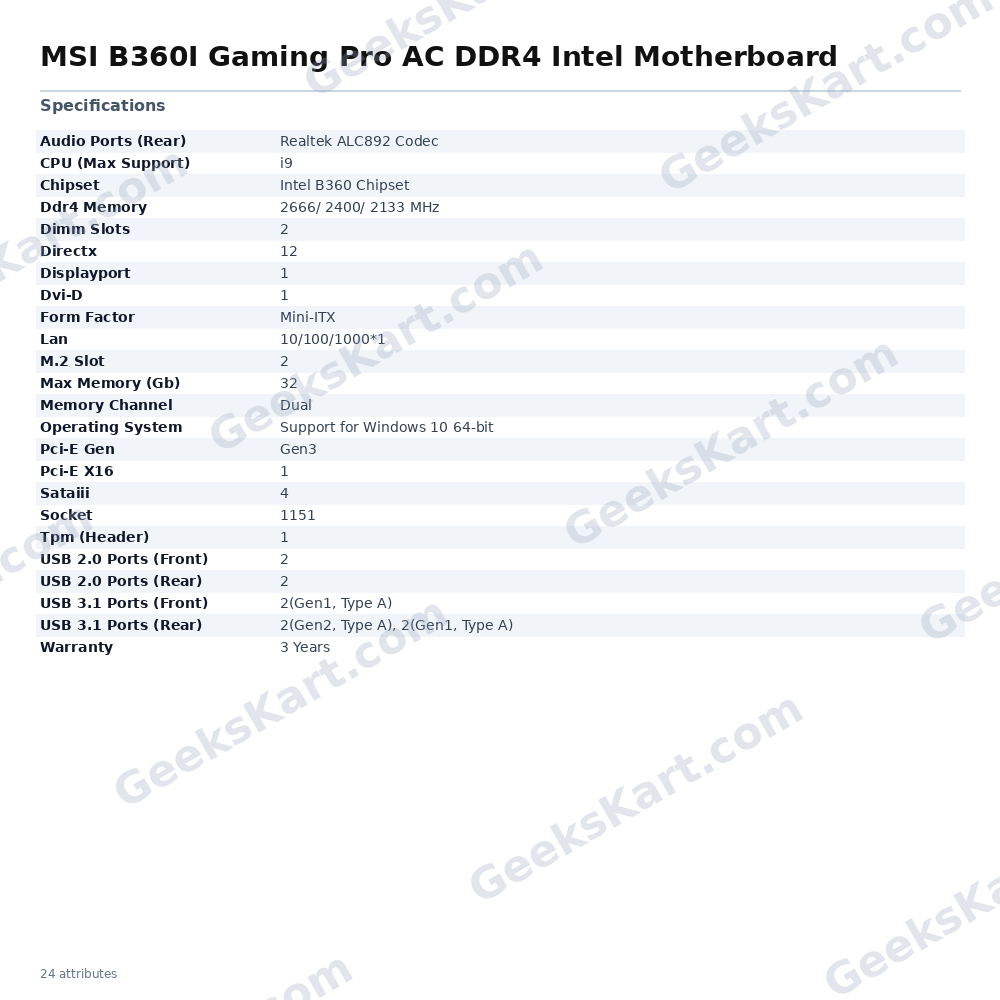

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | Mini-ITX |
| Chipset | Intel B360 Chipset |
| Socket | LGA1151 |
| Lan | 10/100/1000*1 |
| Dvi-D | 1 |
| Directx | 12 |
| Sataiii | 4 |
| M.2 Slot | 2 |
| Pci-E Gen | Gen3 |
| Pci-E X16 | 1 |
| Dimm Slots | 2 |
| Ddr4 Memory | 2666/ 2400/ 2133 MHz |
| Displayport | 1 |
| Tpm (Header) | 1 |
| Memory Channel | Dual |
| Max Memory (Gb) | 32 |
| Operating System | Support for Windows 10 64-bit |
| CPU (Max Support) | i9 |
| Audio Ports (Rear) | Realtek ALC892 Codec |
| USB 2.0 Ports (Rear) | 2 |
| USB 3.1 Ports (Rear) | 2(Gen2, Type A), 2(Gen1, Type A) |
| USB 2.0 Ports (Front) | 2 |
| USB 3.1 Ports (Front) | 2(Gen1, Type A) |
