MSI B360I Gaming Pro AC DDR4 Intel Motherboard
MPN MSI-B360I-GAMING-PRO-AC · Brand MSI
The MSI B360I Gaming Pro AC is a Mini-ITX motherboard (17 cm × 17 cm) with Intel B360 chipset, LGA 1151 socket for 8th/9th Gen Intel CPUs, dual DDR4 slots up to 32 GB, dual M.2 storage, built-in Wi-Fi AC and Bluetooth 5, plus MSI Mystic Light RGB. Compact, connected, and gaming-ready
Inclusive of GST · GST invoice available
Overview
The MSI B360I Gaming Pro AC is a Mini-ITX motherboard built on the Intel B360 chipset, designed to fit 8th and 9th Generation Intel Core, Pentium Gold, and Celeron processors into an LGA 1151 socket. At just 17.0 cm × 17.0 cm (6.7 in × 6.7 in), it delivers a full-featured gaming platform in one of the smallest standard form factors available, making it an ideal foundation for space-constrained SFF builds and compact gaming rigs. The board supports two DDR4 DIMM slots in dual-channel configuration, accommodating up to 32 GB of non-ECC, unbuffered memory at speeds of 2133, 2400, or 2666 MHz, with Intel XMP profile support for straightforward memory tuning. Storage flexibility is addressed through four SATA 6 Gb/s ports and two M.2 Key-M slots supporting PCIe 3.0 x4 and SATA-based drives in 2260 and 2280 form factors. The M2_2 slot is Intel Optane Memory Ready, enabling Optane acceleration configurations when paired with a compatible module. Connectivity is a genuine highlight. The integrated Intel Wireless-AC 9462 card delivers 802.11 a/b/g/n/ac dual-band Wi-Fi with MU-MIMO technology at speeds up to 433 Mbps alongside Bluetooth 5 support — all without occupying an expansion slot. Wired networking is handled by a Realtek RTL8111H-C Gigabit LAN controller. The single PCIe 3.0 x16 slot accommodates a dedicated graphics card, while the rear panel also provides a DVI-D output (up to 1920×1200 @ 60 Hz) and a DisplayPort output (up to 4096×2304 @ 60 Hz) for integrated graphics use. USB provisioning spans USB 3.1 Gen 2 (10 Gbps), Gen 1 (5 Gbps), and USB 2.0 ports across both the rear I/O panel and internal headers. Audio is managed by a dual Realtek ALC892 codec delivering 7.1-channel HD audio. MSI's Mystic Light RGB system supports 16.8 million colours across 10 effects, controllable via software or mobile app, with a 5050 RGB LED strip header onboard for further customisation. Troubleshooting is simplified through the EZ Debug LED system, while the Click BIOS 5 interface provides an intuitive UEFI experience with search, favourites, and scalable fonts. Verified Specifications: - Form Factor: Mini-ITX, 170 mm × 170 mm - Chipset: Intel B360 - Socket: LGA 1151 (8th / 9th Gen Intel Core, Pentium Gold, Celeron) - Memory: 2 × DDR4 DIMM, up to 32 GB, DDR4 2666/2400/2133 MHz, dual-channel, XMP support - Storage: 4 × SATA 6 Gb/s; 2 × M.2 (Key M, PCIe 3.0 x4 / SATA, 2260/2280) - Expansion Slot: 1 × PCIe 3.0 x16 - Wireless: Intel Wireless-AC 9462 (802.11 a/b/g/n/ac, dual-band, MU-MIMO, up to 433 Mbps) - Bluetooth: Bluetooth 5 - LAN: Realtek RTL8111H-C Gigabit - Audio: Dual Realtek ALC892, 7.1-channel HD Audio - Rear USB: 2 × USB 3.1 Gen 2 (10 Gbps), 2 × USB 3.1 Gen 1, 2 × USB 2.0 - Display Output: 1 × DVI-D (max 1920×1200@60 Hz), 1 × DisplayPort (max 4096×2304@60 Hz) - OS Support: Windows 10 64-bit - Warranty: 3 Years

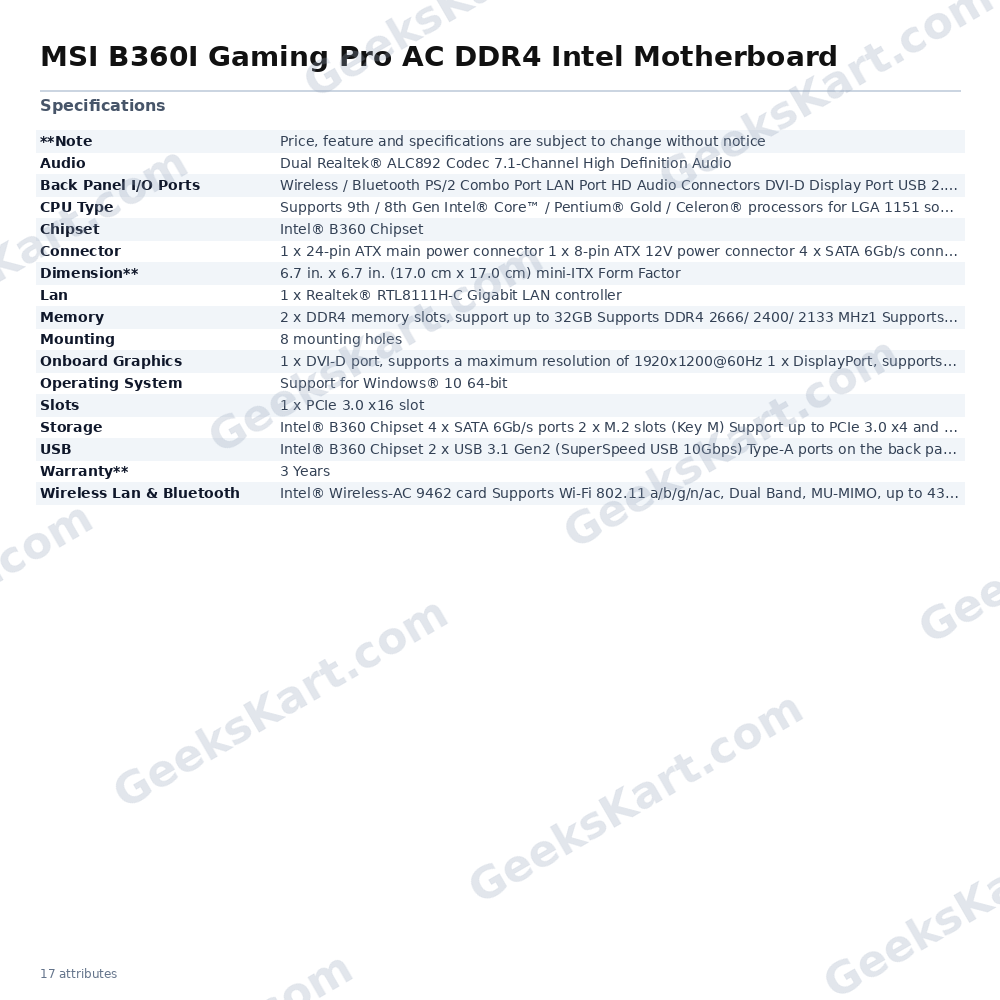

Datasheet
| Chipset | Intel® B360 Chipset |
|---|---|
| CPU Type | Supports 9th / 8th Gen Intel® CoreTM / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| Lan | 1 x Realtek® RTL8111H-C Gigabit LAN controller |
| USB | Intel® B360 Chipset 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 4 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) |
| Audio | Dual Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
| Slots | 1 x PCIe 3.0 x16 slot |
| **Note | Price, feature and specifications are subject to change without notice |
| Memory | 2 x DDR4 memory slots, support up to 32GB Supports DDR4 2666/ 2400/ 2133 MHz1 Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer to http://www.msi.com for more information on compatible memory |
| Storage | Intel® B360 Chipset 4 x SATA 6Gb/s ports 2 x M.2 slots (Key M) Support up to PCIe 3.0 x4 and SATA 6Gb/s1 Supports 2260 /2280 storage devices Intel® Optane™ Memory Ready for M2_2 slot only2 M2_2 slot supports PCIe M.2 SSD only.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website |
| Mounting | 8 mounting holes |
| Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x 5050 RGB LED strip 12V connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
| Warranty** | 3 Years |
| Dimension** | 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm) mini-ITX Form Factor |
| Onboard Graphics | 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz 1 x DisplayPort, supports a maximum resolution of 4096×2304@60Hz |
| Operating System | Support for Windows® 10 64-bit |
| Back Panel I/O Ports | Wireless / Bluetooth PS/2 Combo Port LAN Port HD Audio Connectors DVI-D Display Port USB 2.0 Ports USB 3.1 Gen1 Ports USB 3.1 Gen2 Ports |
| Wireless Lan & Bluetooth | Intel® Wireless-AC 9462 card Supports Wi-Fi 802.11 a/b/g/n/ac, Dual Band, MU-MIMO, up to 433 Mbps speed. Supports Bluetooth® 5 |
