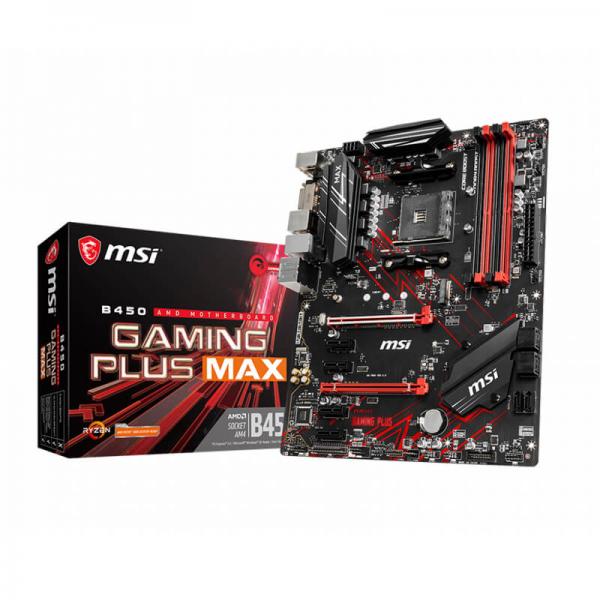

MSI B450 Gaming Plus Max DDR4 AMD Motherboard

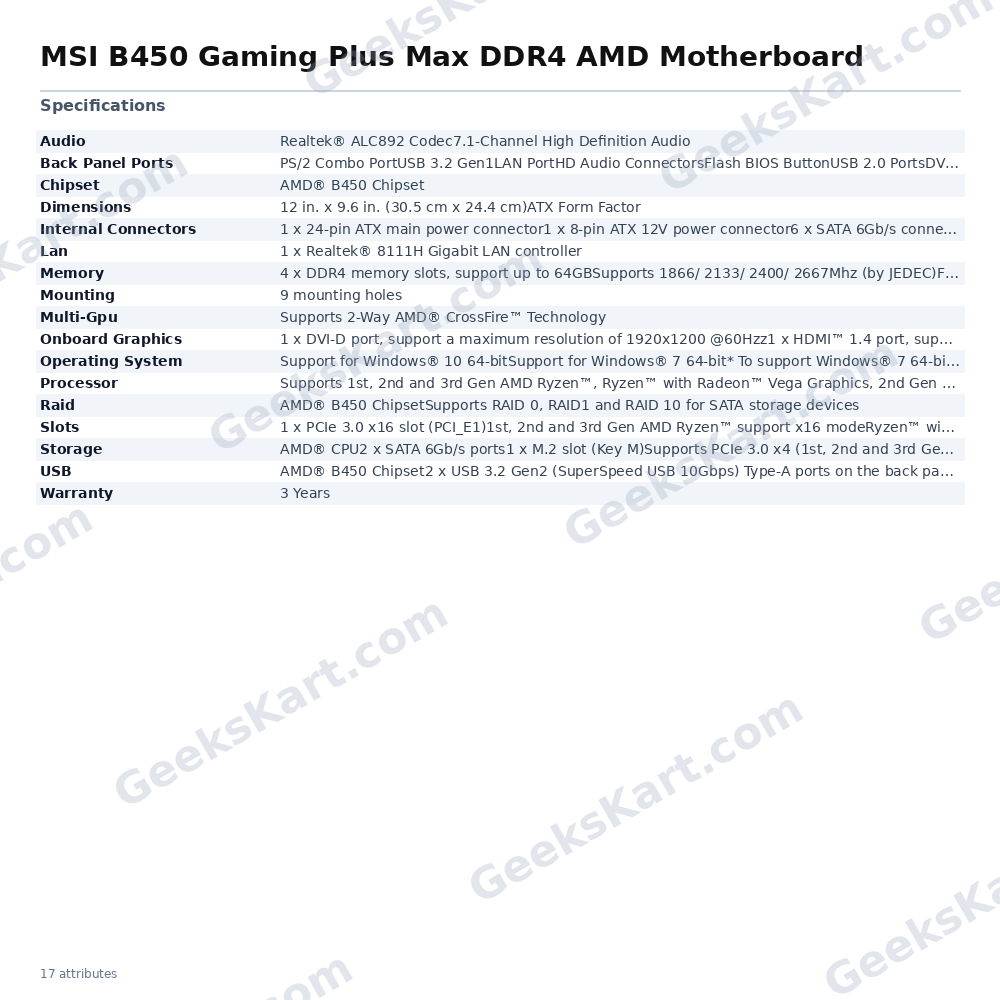

The MSI B450 Gaming Plus Max is an ATX form-factor motherboard built on the AMD B450 chipset and designed for AMD Socket AM4. It is compatible with 1st, 2nd, and 3rd Generation AMD Ryzen desktop processors, as well as Ryzen with Radeon Vega Graphics, 2nd Gen Ryzen with Radeon Graphics, and Athlon with Radeon Vega Graphics processors. Memory support is extensive: four DDR4 DIMM slots accommodate up to 64 GB in dual-channel configuration. JEDEC speeds of 1866, 2133, 2400, and 2667 MHz are natively supported, while A-XMP overclocking profiles push Ryzen Gen 3 (R5/R7/R9) systems up to 4133 MHz. Non-ECC and ECC UDIMM (operating in non-ECC mode) are both accepted. Storage options include one M.2 Key-M slot — capable of PCIe 3.0 x4 or SATA 6 Gb/s on supported Ryzen CPUs — and six SATA 6 Gb/s ports delivered across CPU and chipset lanes. Note that SATA5 and SATA6 become unavailable when an M.2 device is installed. AMD StoreMI technology is supported, and the chipset enables RAID 0, 1, and 10 configurations for SATA drives. Connectivity is a highlight. The back panel provides 2 × USB 3.2 Gen2 (10 Gbps) Type-A ports, 2 × USB 3.2 Gen1 Type-A ports, and 2 × USB 2.0 Type-A ports, alongside a PS/2 combo port, Gigabit Ethernet (Realtek RTL8111H), DVI-D output (up to 1920×1200 @ 60 Hz), and HDMI 1.4 (up to 4096×2160 @ 30 Hz). Onboard display outputs function only with APU-class processors that include integrated Radeon graphics. Audio is handled by a Realtek ALC892 codec delivering 7.1-channel HD audio. Expansion slots include one PCIe 3.0 x16 (full bandwidth with Ryzen 1st–3rd Gen), one PCIe 2.0 x16 (electrically x4), and four PCIe 2.0 x1 slots, with 2-Way AMD CrossFire support. Other notable features include MSI’s Flash BIOS Button — allowing firmware updates from a USB drive without a CPU, memory, or GPU installed — two 5050 12 V RGB LED headers, one water-pump fan header, four system fan headers, and a TPM connector. The board measures 12 × 9.6 in (30.5 × 24.4 cm) in standard ATX format with nine mounting holes. Verifiable Specifications: – Chipset: AMD B450 – Socket: AM4 – Form Factor: ATX (30.5 cm × 24.4 cm) – Memory: 4 × DDR4, max 64 GB, up to 4133 MHz (A-XMP OC) – Storage: 1 × M.2 (PCIe 3.0 x4 / SATA), 6 × SATA 6 Gb/s – USB (back panel): 2 × USB 3.2 Gen2, 2 × USB 3.2 Gen1, 2 × USB 2.0 – Audio: Realtek ALC892, 7.1-channel HD – LAN: Realtek RTL8111H Gigabit – Display: DVI-D + HDMI 1.4 (APU only) – Multi-GPU: 2-Way AMD CrossFire – RGB: 2 × 12 V 5050 headers – Warranty: 3 Years
