MSI B450M-A Pro Max DDR4 AMD Motherboard
MPN MSI-B450MA-PRO-MAX · Brand MSI

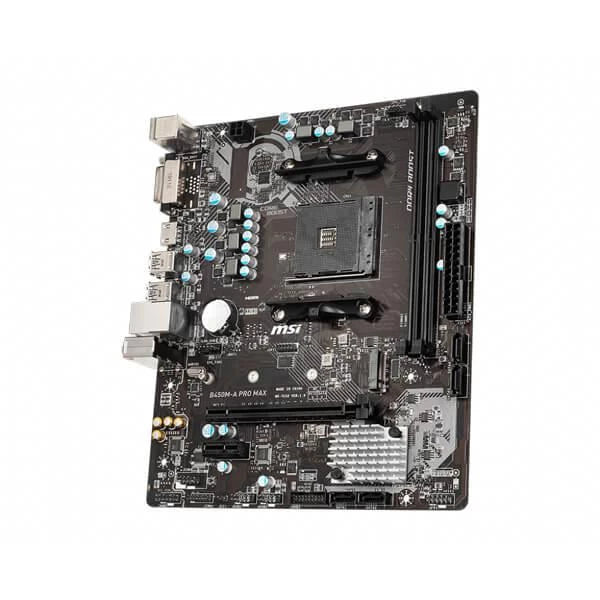

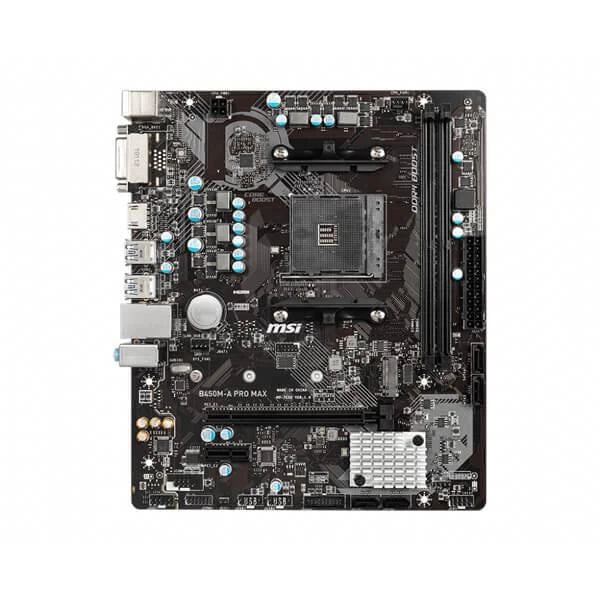

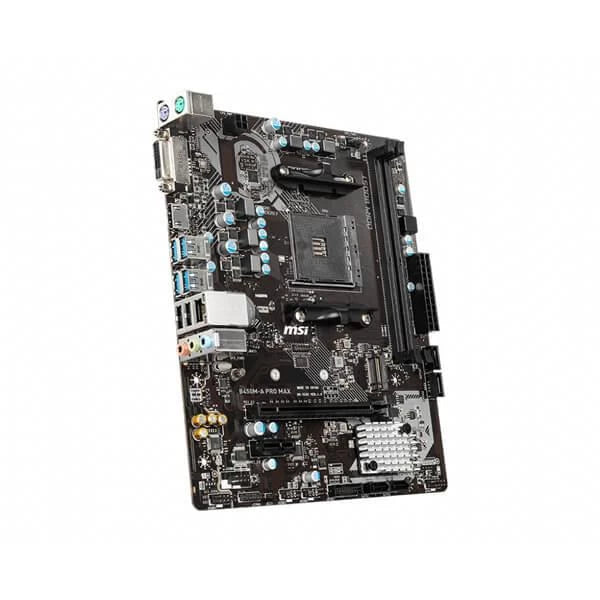

The MSI B450M-A Pro Max is a Micro-ATX AMD AM4 motherboard featuring the B450 chipset, support for up to 64 GB DDR4 RAM, Turbo M.2 (PCIe 3.0 x4), USB 3.2 Gen 1, and 7.1-channel HD Audio — ideal for Ryzen-based desktop builds
Inclusive of GST · GST invoice available
Overview
The MSI B450M-A Pro Max is a Micro-ATX motherboard built on the AMD B450 chipset, designed for the AM4 socket. It is compatible with 1st, 2nd, and 3rd Generation AMD Ryzen processors, Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics, as well as Athlon with Radeon Vega Graphics, A-series, and Athlon X4 desktop processors. Memory support is provided through two DDR4 DIMM slots accommodating up to 64 GB of RAM in a dual-channel configuration. JEDEC-rated speeds include 1866, 2133, 2400, and 2667 MHz, while A-XMP overclocking profiles allow Ryzen Gen 3 (R5/R7/R9) systems to reach up to 4133 MHz. Both ECC UDIMM (operating in non-ECC mode) and non-ECC UDIMM modules are supported. For storage, the board offers four SATA 6 Gb/s ports with support for RAID 0, RAID 1, and RAID 10 configurations, plus a single M.2 Key-M slot that runs at PCIe 3.0 x4 or SATA 6 Gb/s speeds with Ryzen-based processors and supports 2242, 2280, and 22110 form-factor drives. Expansion is handled by one PCIe 3.0 x16 slot and one PCIe 2.0 x1 slot. Onboard display outputs include one DVI-D port (up to 1920×1200 @ 60 Hz) and one HDMI 1.4 port (up to 4096×2160 @ 24 Hz), both active only when using a processor with integrated graphics. Audio is managed by a Realtek ALC892 codec delivering 7.1-channel High Definition Audio, while networking is handled by a Realtek 8111H Gigabit LAN controller. USB connectivity consists of six USB 3.2 Gen 1 ports (four on the rear panel, two via internal header) and six USB 2.0 ports (two on the rear panel, four via internal headers). The rear I/O panel also includes PS/2 keyboard and mouse ports alongside the video, LAN, and audio outputs. Verified Specifications: - Form Factor: Micro-ATX, 23.6 cm × 20.0 cm (9.3 in × 7.9 in), 6 mounting holes - Socket / Chipset: AM4 / AMD B450 - Memory: 2 × DDR4, max 64 GB, up to 4133 MHz (A-XMP OC), dual-channel - Storage: 4 × SATA 6 Gb/s (RAID 0/1/10) + 1 × M.2 (PCIe 3.0 x4 / SATA) - PCIe Slots: 1 × PCIe 3.0 x16, 1 × PCIe 2.0 x1 - Display Output: 1 × DVI-D, 1 × HDMI 1.4 - USB: 6 × USB 3.2 Gen 1, 6 × USB 2.0 - Audio: Realtek ALC892, 7.1-channel HD Audio - LAN: Realtek 8111H, 1 Gbps - OS Support: Windows 10 64-bit; Windows 7 64-bit (requires Pinnacle Ridge or Summit Ridge CPU) - Warranty: 3 Years

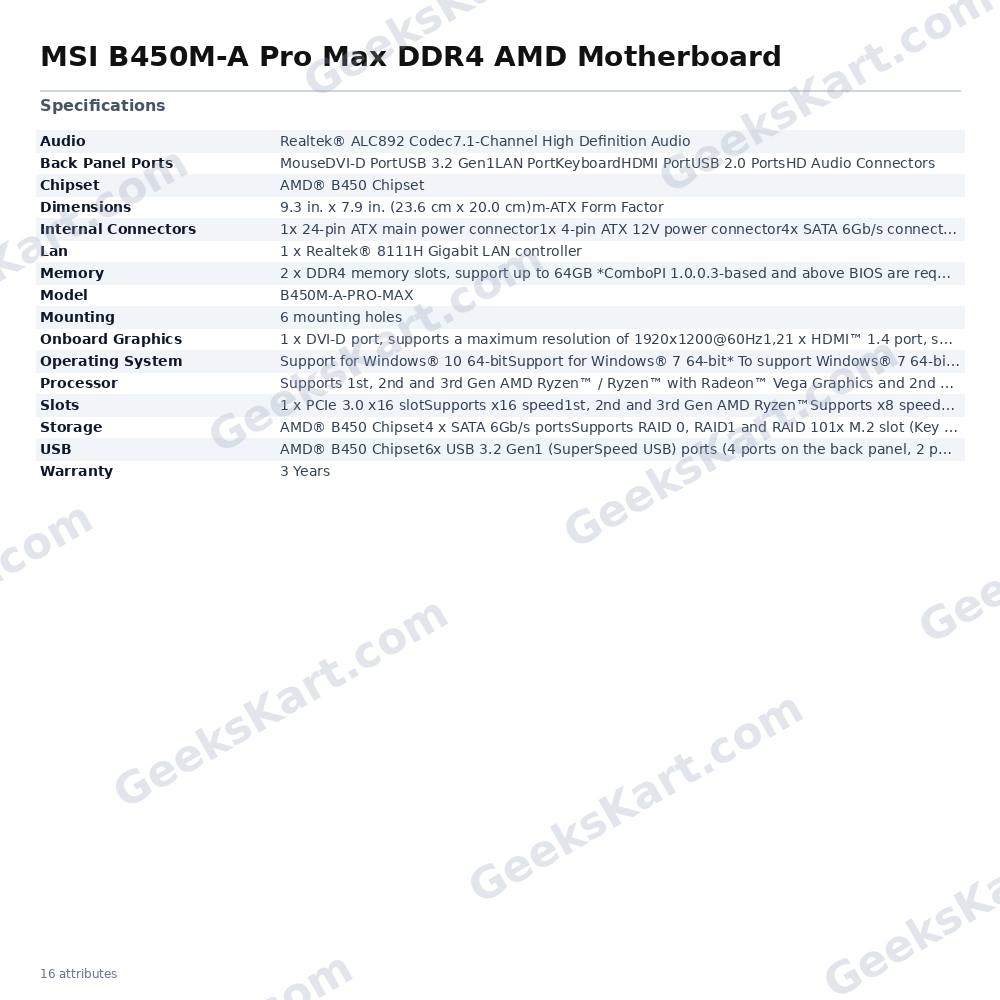

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | AMD® B450 Chipset |
| Lan | 1 x Realtek® 8111H Gigabit LAN controller |
| USB | AMD® B450 Chipset6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) |
| Audio | Realtek® ALC892 Codec7.1-Channel High Definition Audio |
| Model | B450M-A-PRO-MAX |
| Slots | 1 x PCIe 3.0 x16 slotSupports x16 speed1st, 2nd and 3rd Gen AMD Ryzen™Supports x8 speedRyzen™ with Radeon™ Vega Graphics2nd Gen AMD Ryzen™ with Radeon™ GraphicsA-seriesAthlon™ X4Supports x4 speedAMD® Athlon™ with Radeon™ Vega GraphicsPCIe 2.0 x1 slot |
| Memory | 2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC)For AMD Ryzen Gen3 (R5/R7/R9)2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)For AMD Other CPU2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)Dual channel memory architectureSupports ECC UDIMM memory (non-ECC mode)Support non-ECC UDIMM memory |
| Storage | AMD® B450 Chipset4 x SATA 6Gb/s portsSupports RAID 0, RAID1 and RAID 101x M.2 slot (Key M)Supports PCIe 3.0 x4 and SATA 6Gb/s1st, 2nd and 3rd Gen AMD Ryzen™Ryzen™ with Radeon™ Vega Graphics2nd Gen AMD Ryzen™ with Radeon™ GraphicsSupports PCIe 3.0 x2 and SATA 6Gb/sAMD® Athlon™ with Radeon™ Vega GraphicsA-seriesAthlon™ X4Supports 2242/2280/22110 storage devices |
| Mounting | 6 mounting holes |
| Processor | Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4 |
| Dimensions | 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)m-ATX Form Factor |

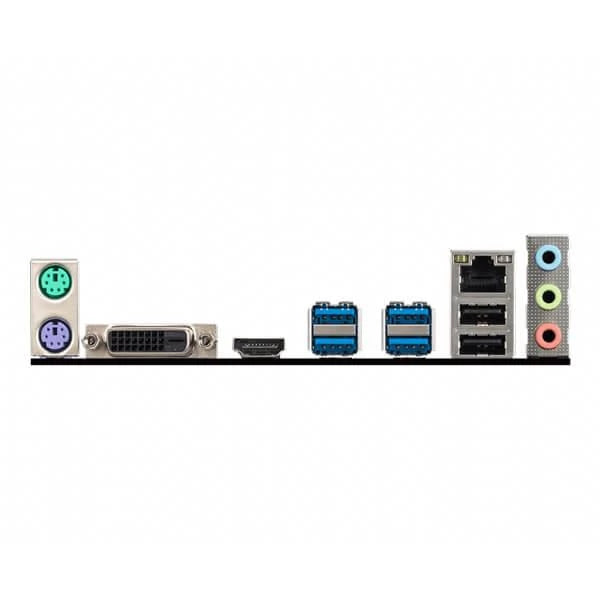

| Back Panel Ports | MouseDVI-D PortUSB 3.2 Gen1LAN PortKeyboardHDMI PortUSB 2.0 PortsHD Audio Connectors |
| Onboard Graphics | 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1,21 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @24Hz1,2Only support when using the processor with GraphicssMaximum shared memory of 2048 MB |
| Operating System | Support for Windows® 10 64-bitSupport for Windows® 7 64-bit* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU |
| Internal Connectors | 1x 24-pin ATX main power connector1x 4-pin ATX 12V power connector4x SATA 6Gb/s connectors2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)1x 4-pin CPU fan connector1x 4-pin system fan connector1x Front panel audio connector2x Front panel connectors1x TPM module connector1x Chassis Intrusion connector1x Serial port connector1x Clear CMOS jumper |
