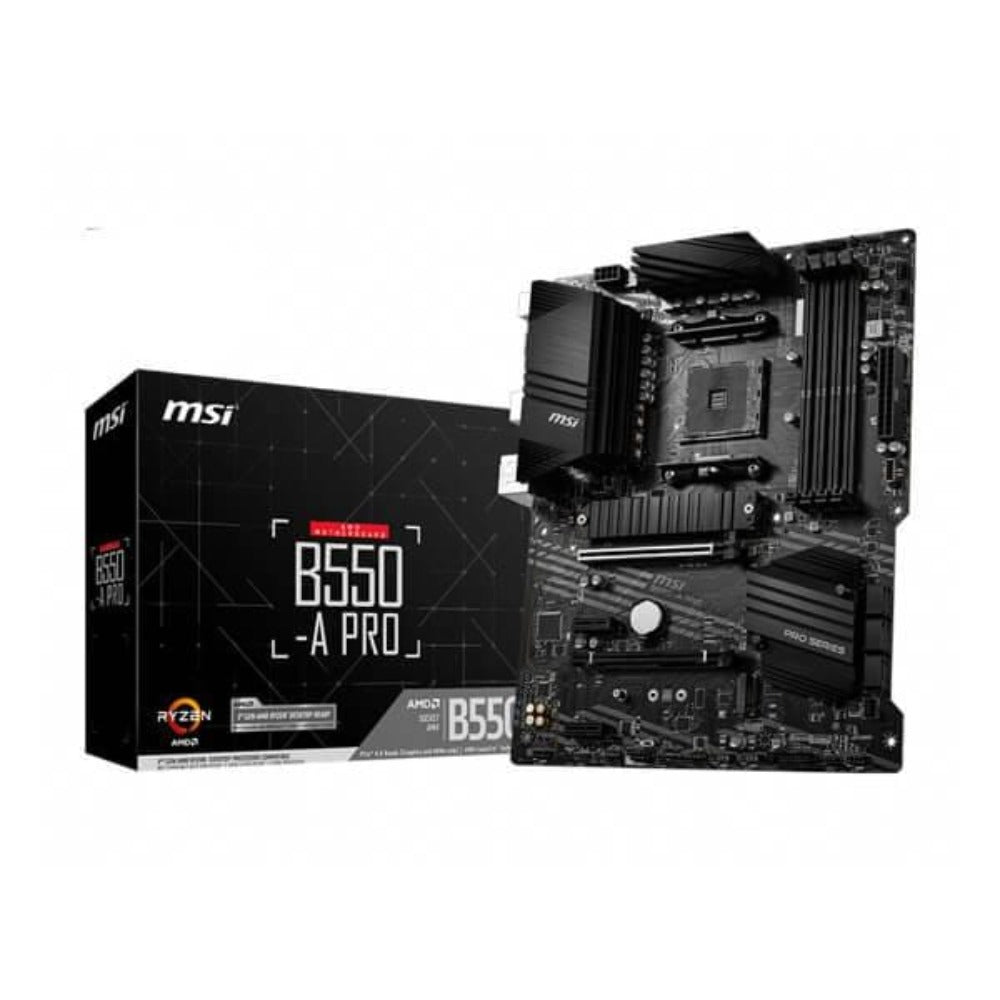

MSI B550-A Pro DDR4 AMD Motherboard

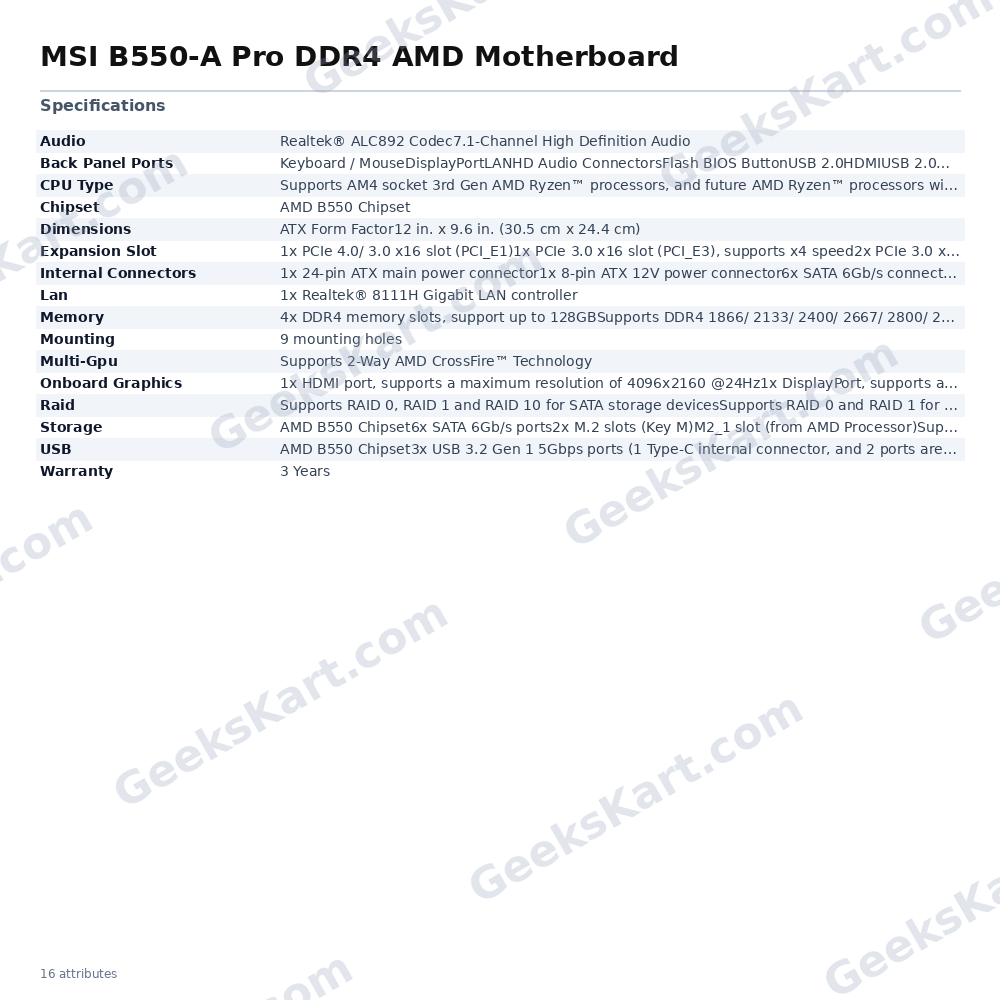

The MSI B550-A Pro is an ATX-form-factor motherboard built on the AMD B550 chipset, designed for the AM4 socket. It supports AMD Ryzen 5000 and 3000 Series desktop processors, as well as AMD Ryzen 4000 G-Series desktop processors. Note that a BIOS update may be required to enable support for Ryzen 5000 Series CPUs, and the board is not compatible with the Ryzen 5 3400G or Ryzen 3 3200G. For memory, the B550-A Pro accommodates four DDR4 DIMM slots with a maximum capacity of 128 GB. Native JEDEC speeds range from 1866 MHz up to 3200 MHz, while overclocked A-XMP profiles extend support up to 4400 MHz. Dual-channel operation is supported, and the board accepts non-ECC and ECC UDIMM (running in non-ECC mode) unbuffered modules. Storage connectivity is comprehensive: two M.2 Key-M slots are onboard, with the primary slot (M2_1, sourced from the CPU) supporting PCIe 4.0/3.0 x4 and SATA, accommodating 2242 through 22110 form factors. The secondary slot (M2_2, from the B550 chipset) supports PCIe 3.0 x4 for 2242 to 2280 drives. An M.2 Shield Frozr thermal solution is included. Six SATA 6 Gb/s ports round out storage options, with RAID 0, 1, and 10 supported across SATA devices, and RAID 0/1 for M.2 NVMe. Expansion slots include one PCIe 4.0/3.0 x16 slot (Steel Armor reinforced), one PCIe 3.0 x16 slot operating at x4 electrical speed, and two PCIe 3.0 x1 slots. Two-way AMD CrossFire multi-GPU configurations are supported. Connectivity on the rear I/O panel includes two USB 3.2 Gen 2 10 Gbps ports (one Type-A and one Type-C), two USB 3.2 Gen 1 5 Gbps Type-A ports, and four USB 2.0 Type-A ports, alongside a PS/2 keyboard/mouse combo port, DisplayPort, HDMI, Gigabit LAN, and HD audio jacks. A Flash BIOS Button is present for firmware recovery without a CPU installed. Onboard graphics output via integrated CPU graphics reaches up to 4096×2160 at 60 Hz over DisplayPort. Audio is handled by a Realtek ALC892 codec delivering 7.1-channel HD audio. Networking is provided by a Realtek 8111H Gigabit LAN controller. Internal headers include one 4-pin RGB LED connector, two 3-pin Addressable RGB headers, a front-panel USB 3.2 Gen 1 Type-C connector, one 4-pin CPU fan, one 4-pin water-pump fan, and six 4-pin system fan connectors. Verified Specifications: – Socket: AM4 | Chipset: AMD B550 – Form Factor: ATX, 305 mm × 244 mm (12 in × 9.6 in) – Memory: 4× DDR4, up to 128 GB; JEDEC up to 3200 MHz; OC up to 4400 MHz (A-XMP) – Storage: 2× M.2 (PCIe 4.0/3.0 x4 + PCIe 3.0 x4), 6× SATA 6 Gb/s – Expansion: 1× PCIe 4.0/3.0 x16, 1× PCIe 3.0 x4 (x16 slot), 2× PCIe 3.0 x1 – USB (rear): 2× USB 3.2 Gen 2 (Type-A + Type-C), 2× USB 3.2 Gen 1, 4× USB 2.0 – Audio: Realtek ALC892, 7.1-channel HD – LAN: Realtek 8111H Gigabit – Display Output: HDMI (4K@24Hz), DisplayPort (4K@60Hz) – RGB: 1× 4-pin RGB, 2× 3-pin ARGB headers – Warranty: 3 Years
