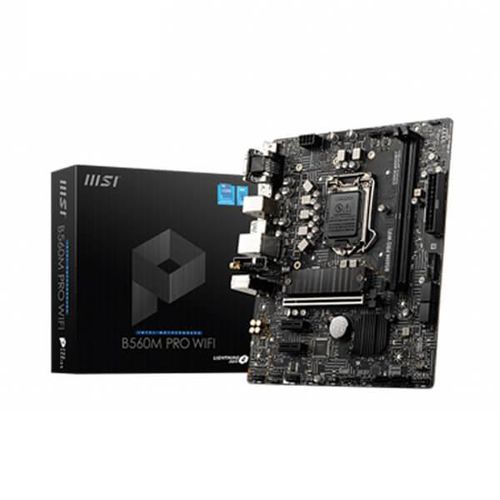

MSI B560M Pro Wifi DDR4 Intel Motherboard
MPN MSI-B560M-PRO-WIFI · Brand MSI · mATX
MSI B560M Pro WiFi is an mATX LGA1200 motherboard supporting Intel 10th/11th Gen CPUs, Wi-Fi 6, 2.5Gbps LAN, PCIe 4.0 M.2, and dual-channel DDR4 up to 64 GB
Inclusive of GST · GST invoice available
Overview
The MSI B560M Pro WiFi is a Micro-ATX (mATX) motherboard built on the Intel B560 chipset for LGA1200 processors. It is designed to support Intel 10th Generation Core, Pentium Gold, and Celeron processors, as well as Intel 11th Generation Core processors, making it a versatile platform for productivity and entry-level workstation builds. Memory support is handled through two DDR4 slots accommodating up to 64 GB of non-ECC, unbuffered RAM in dual-channel configuration. With an 11th Gen processor installed, JEDEC speeds reach 3200 MHz, while XMP profiles can push 1DPC 1R configurations up to 5200 MHz. Intel 10th Gen CPUs support JEDEC speeds up to 2933 MHz. For storage, the board features six SATA 6 Gb/s ports and one M.2 Key-M slot. When paired with an 11th Gen CPU, the M.2 slot operates at PCIe 4.0 x4 speeds directly from the CPU; with a 10th Gen CPU it runs at PCIe 3.0 x4 or SATA 6 Gb/s via the B560 chipset. Supported M.2 form factors include 2242, 2260, and 2280. The primary PCIe x16 slot supports PCIe 4.0 with an 11th Gen CPU and PCIe 3.0 with a 10th Gen CPU, complemented by two PCIe 3.0 x1 slots from the chipset. Connectivity is a notable strength. Wireless networking is provided by an Intel Wi-Fi 6 AX201 module (802.11ax, 2.4 GHz / 5 GHz with 160 MHz channel support, MU-MIMO TX/RX, up to 2.4 Gbps theoretical), pre-installed in the Key-E M.2 slot. Bluetooth 5.1 is also included. Wired networking is delivered by a Realtek 8125B controller at 2.5 Gbps. USB connectivity spans 6x USB 2.0 ports (2 rear, 4 internal) and 6x USB 3.2 Gen 1 5 Gbps ports (4 rear Type-A, 2 via internal header). Onboard video outputs include one VGA port (up to 2048×1280 @ 60 Hz), one DisplayPort 1.4 (up to 4K @ 60 Hz), and one HDMI 2.0b with HDR (up to 4K @ 60 Hz). Audio is handled by a Realtek ALC897 codec supporting 7.1-channel High Definition Audio. RGB lighting headers include one 4-pin RGB and one 3-pin RAINBOW connector, along with 4x EZ Debug LEDs for straightforward troubleshooting. The UEFI AMI BIOS supports ACPI 6.2 and SMBIOS 3.0 in a multi-language interface. The board dimensions are 9.3 in. × 8 in. (23.6 cm × 20.3 cm), conforming to the mATX standard. Verified Specifications: - Socket: LGA1200 - Chipset: Intel B560 - Form Factor: mATX (23.6 cm × 20.3 cm) - Memory: 2× DDR4, max 64 GB, dual-channel, XMP support - Storage: 6× SATA 6 Gb/s; 1× M.2 (Key-M, PCIe 4.0 x4 / SATA) - PCIe: 1× x16 (PCIe 4.0/3.0), 2× x1 (PCIe 3.0) - Wireless: Intel Wi-Fi 6 AX201, Bluetooth 5.1 - LAN: Realtek 8125B, 2.5 Gbps - USB: 6× USB 2.0, 6× USB 3.2 Gen 1 - Display: VGA, DisplayPort 1.4, HDMI 2.0b - Audio: Realtek ALC897, 7.1-ch HD Audio - Warranty: 3 Years

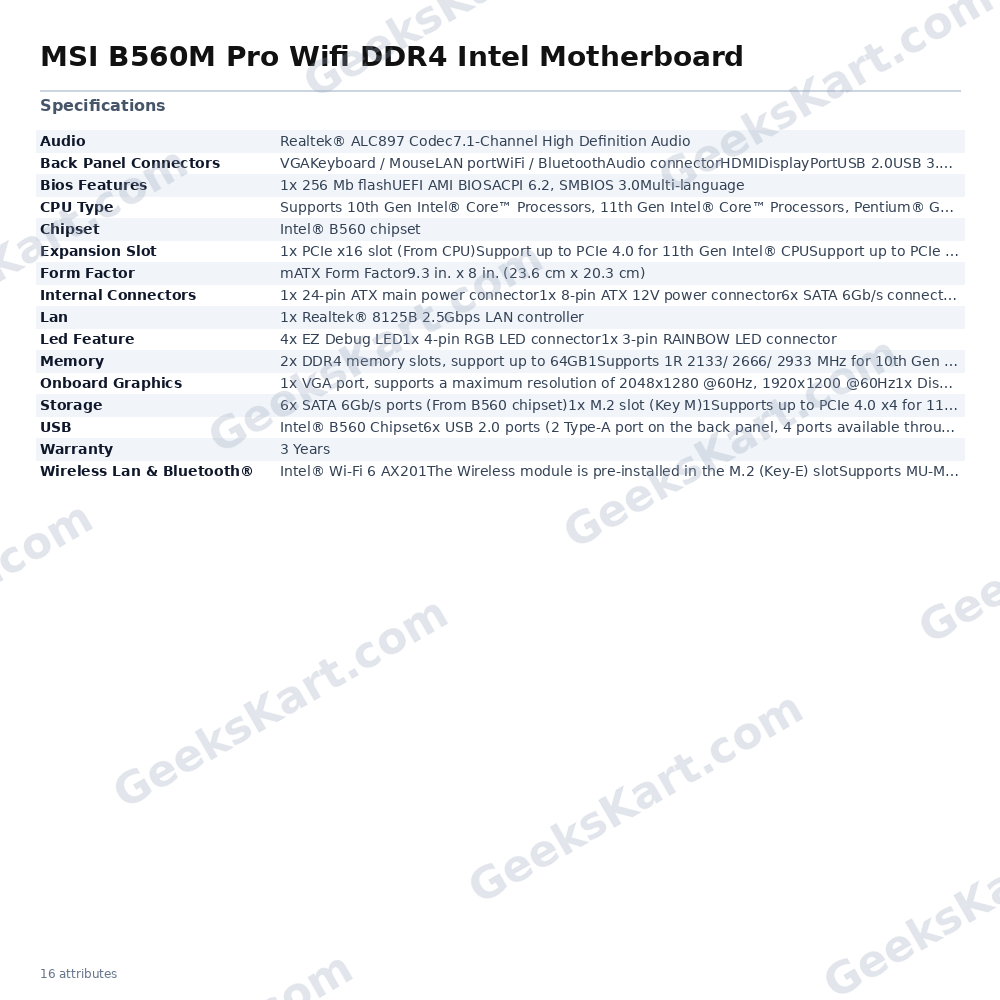

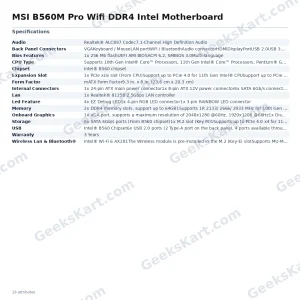

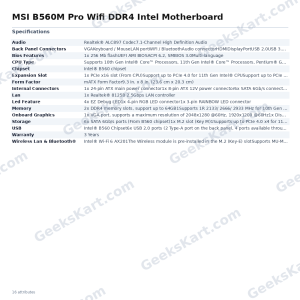

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B560 chipset |
| CPU Type | Supports 10th Gen Intel® CoreTM Processors, 11th Gen Intel® CoreTM Processors, Pentium® Gold and Celeron® Processors1Processor socket LGA1200 |
| Lan | 1x Realtek® 8125B 2.5Gbps LAN controller |
| USB | Intel® B560 Chipset6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors)6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) |
| Audio | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| Memory | 2x DDR4 memory slots, support up to 64GB1Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)Max overclocking frequency:1DPC 1R Max speed up to 5200 MHz1DPC 2R Max speed up to 4700+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP) |
| Storage | 6x SATA 6Gb/s ports (From B560 chipset)1x M.2 slot (Key M)1Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1Supports 2242/ 2260/ 2280 storage devicesSupports Intel® Smart Response Technology for Intel Core™ processors |
| Led Feature | 4x EZ Debug LED1x 4-pin RGB LED connector1x 3-pin RAINBOW LED connector |
| Bios Features | 1x 256 Mb flashUEFI AMI BIOSACPI 6.2, SMBIOS 3.0Multi-language |
| Expansion Slot | 1x PCIe x16 slot (From CPU)Support up to PCIe 4.0 for 11th Gen Intel® CPUSupport up to PCIe 3.0 for 10th Gen Intel® CPU2x PCIe 3.0 x1 slots (From B560 chpiset) |
| Onboard Graphics | 1x VGA port, supports a maximum resolution of 2048×1280 @60Hz, 1920×1200 @60Hz1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| Internal Connectors | 1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector6x SATA 6Gb/s connectors1x M.2 slot (M-Key)1x USB 3.2 Gen 1 5Gbps connector (supports additional2 USB 3.2 Gen 1 5Gbps ports)2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin system fan connector1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x Clear CMOS jumper1x TPM module connector1x Serial port connector1x Tuning Controller Connector |
| Back Panel Connectors | VGAKeyboard / MouseLAN portWiFi / BluetoothAudio connectorHDMIDisplayPortUSB 2.0USB 3.2 Gen 1 5Gbps Type-A |
| Wireless Lan & Bluetooth® | Intel® Wi-Fi 6 AX201The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axWiFi 6 pre certifiedSupports Bluetooth® 5.1, FIPS, FISMA |
