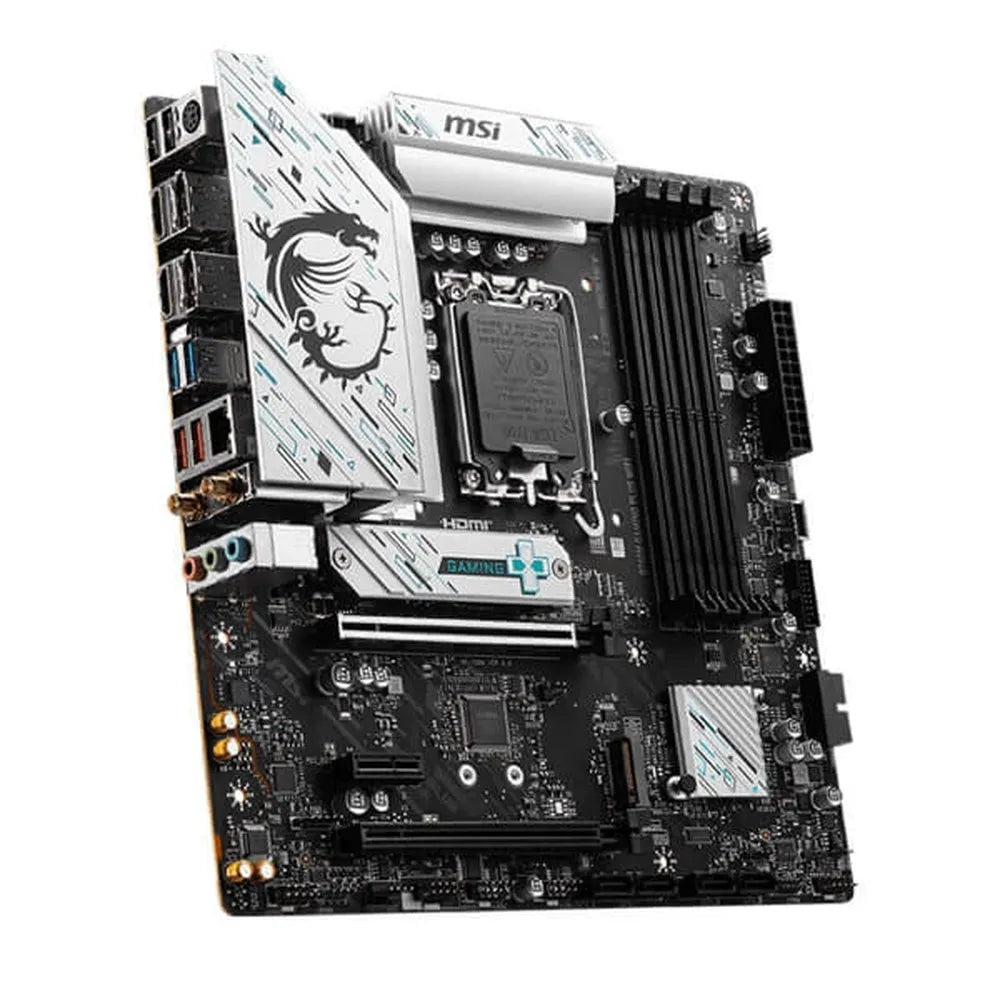

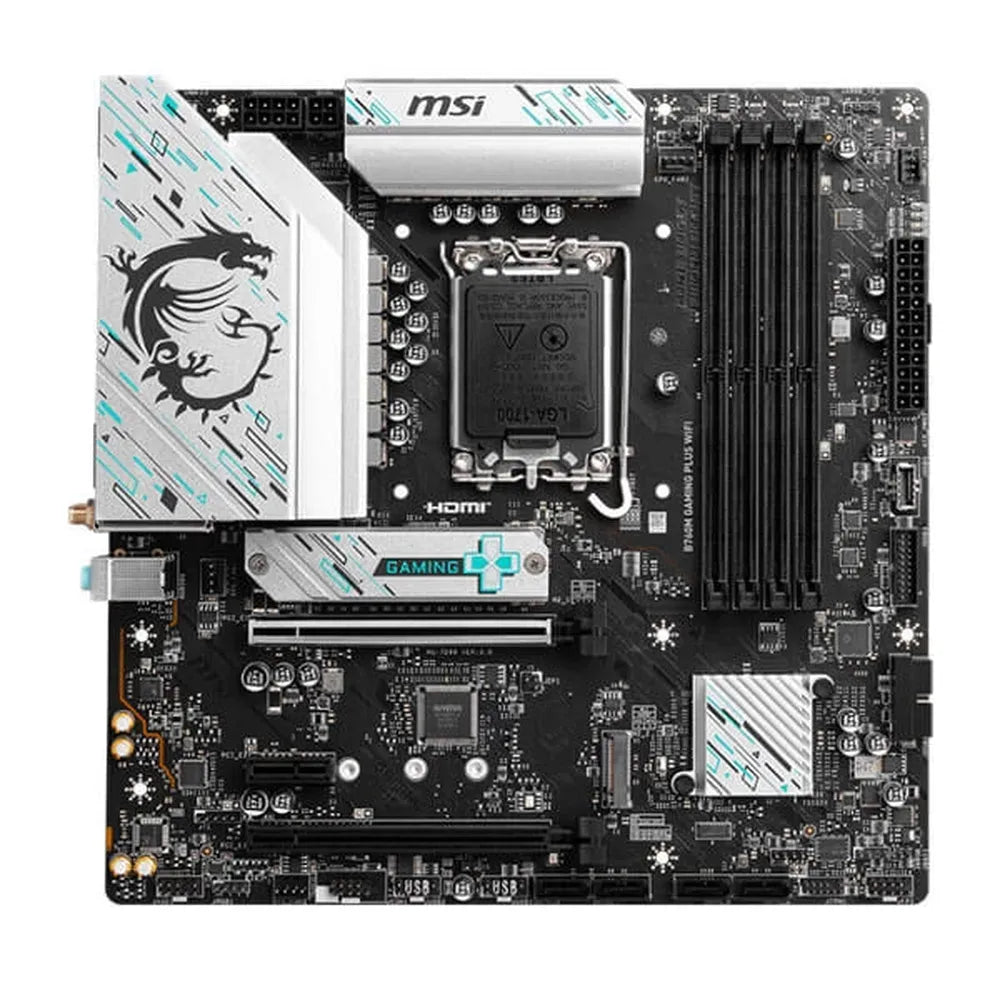

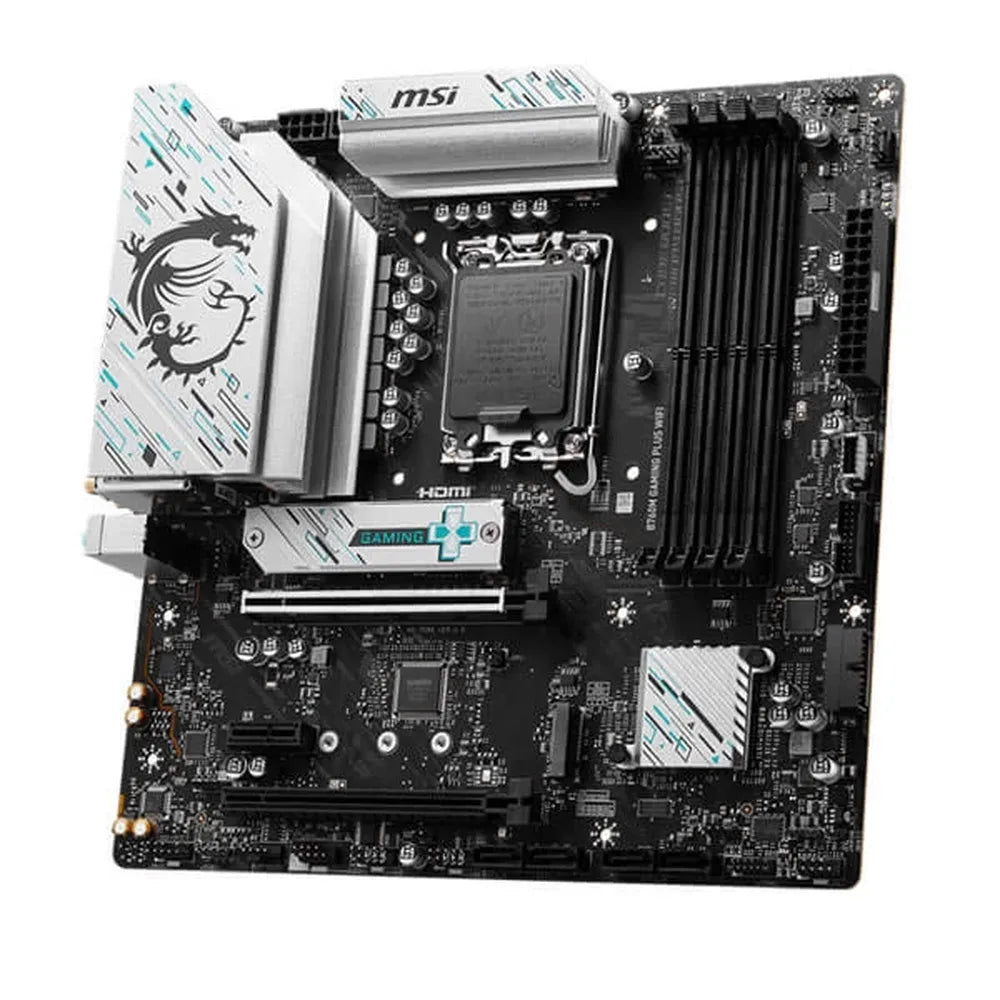

MSI B760M Gaming Plus Wifi DDR5 Intel Motherboard
MPN MSI-B760M-GAMING-PLUS-WIFI-DDR5 · Brand MSI
The MSI B760M Gaming Plus WiFi DDR5 is an Intel B760 mATX motherboard for LGA 1700 processors (12th–14th Gen), featuring DDR5 up to 6800+ MHz OC, PCIe 4.0, Wi-Fi 6E, and 2.5G LAN in a compact 243.84 mm form factor
Inclusive of GST · GST invoice available
Overview
The MSI B760M Gaming Plus WiFi DDR5 is a Micro-ATX motherboard built on Intel's B760 chipset, designed to pair with Intel Core 12th, 13th, and 14th generation processors — as well as Pentium Gold and Celeron processors — in the LGA 1700 socket. Its compact 243.84 mm × 243.84 mm footprint makes it well suited to space-conscious gaming and productivity builds without compromising on connectivity or expansion. Power delivery is handled by a 12+1 Duet Rail Power System featuring MOSFET thermal pads rated at 7 W/mK, an extended heatsink, and dual CPU power connectors (8-pin + 4-pin), providing a stable foundation for sustained workloads. MSI's Core Boost technology works alongside Memory Boost to help maintain consistent performance under load. Memory support spans four DDR5 DIMM slots with a maximum capacity of 192 GB. The board supports JEDEC speeds from 4800 MHz up to 6800+ MHz under overclocking, with compatibility for Intel XMP 3.0 profiles and MSI's Memory Extension Mode for refined latency tuning. Storage options include two M.2 slots — the first (from CPU) running PCIe 4.0 x4, the second (from chipset) supporting PCIe 4.0 x4 or SATA — protected by an M.2 Shield Frozr heatsink, plus four SATA 6 Gbps ports and RAID 0/1/5/10 support for SATA arrays. Wireless connectivity is provided by an Intel Wi-Fi 6E module (802.11a/b/g/n/ac/ax) supporting 2.4 GHz, 5 GHz, and 6 GHz bands at up to 2.4 Gbps with MU-MIMO, alongside Bluetooth 5.3. Wired networking uses a Realtek RTL8125BG 2.5G LAN controller. Display output for integrated graphics covers two HDMI 2.1 ports (4K 60 Hz) and two DisplayPort 1.4 outputs (4K 60 Hz). Audio is delivered via a Realtek ALC897 codec supporting 7.1-channel HD audio. RGB personalisation is available through two JARGB_V2 addressable headers and one JRGB header. Four EZ Debug LEDs assist with quick fault diagnosis during POST. The board carries a 3-year manufacturer warranty and supports Windows 10 and Windows 11 (64-bit). Verified Specifications: • Chipset: Intel B760 • Socket: LGA 1700 • Form Factor: mATX (243.84 mm × 243.84 mm) • CPU Support: Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron • Memory: 4× DDR5, up to 192 GB, up to 6800+ MHz (OC), XMP 3.0 • PCIe: 1× PCIe 4.0 x16 (CPU), 1× PCIe 4.0 x4 (chipset), 1× PCIe 3.0 x1 (chipset) • Storage: 2× M.2 PCIe 4.0 x4, 4× SATA 6 Gbps, RAID 0/1/5/10 • Rear USB: 2× USB 2.0, 2× USB 3.2 Gen1 Type-A, 2× USB 3.2 Gen2 Type-A • Wireless: Intel Wi-Fi 6E (up to 2.4 Gbps), Bluetooth 5.3 • LAN: Realtek 2.5G • Audio: Realtek ALC897, 7.1-channel HD • Display Out: 2× HDMI 2.1, 2× DisplayPort 1.4 (4K 60 Hz) • Warranty: 3 Years

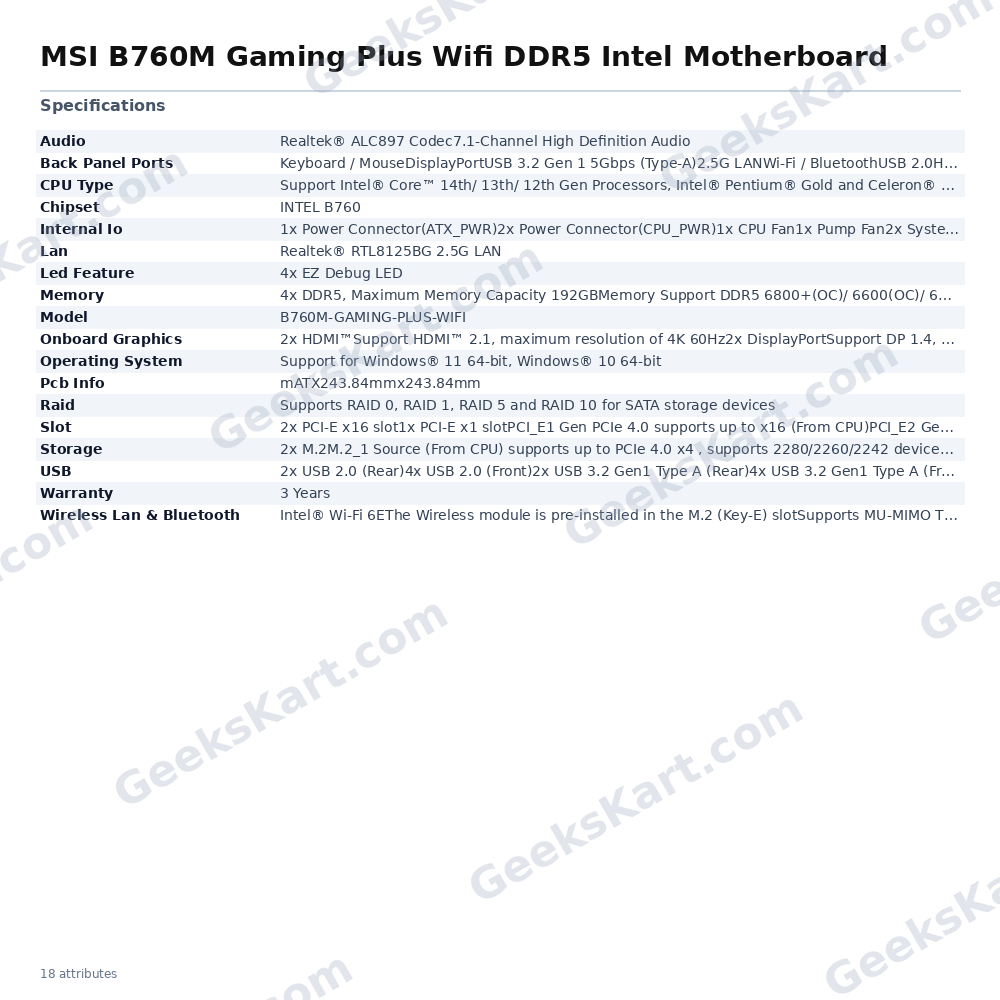

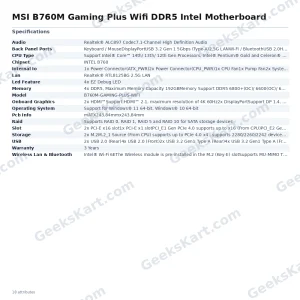

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | INTEL B760 |
| CPU Type | Support Intel® CoreTM 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700 |
| Lan | Realtek® RTL8125BG 2.5G LAN |
| USB | 2x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)4x USB 3.2 Gen1 Type A (Front)1x USB 3.2 Gen1 Type C (Front)2x USB 3.2 Gen2 Type A (Rear) |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Slot | 2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Audio | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| Memory | 4x DDR5, Maximum Memory Capacity 192GBMemory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6800+ MHz• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory |
| Storage | 2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G |
| Pcb Info | mATX243.84mmx243.84mm |
| Internal Io | 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen1 Type C ports |
| Led Feature | 4x EZ Debug LED |
| Model | B760M-GAMING-PLUS-WIFI |

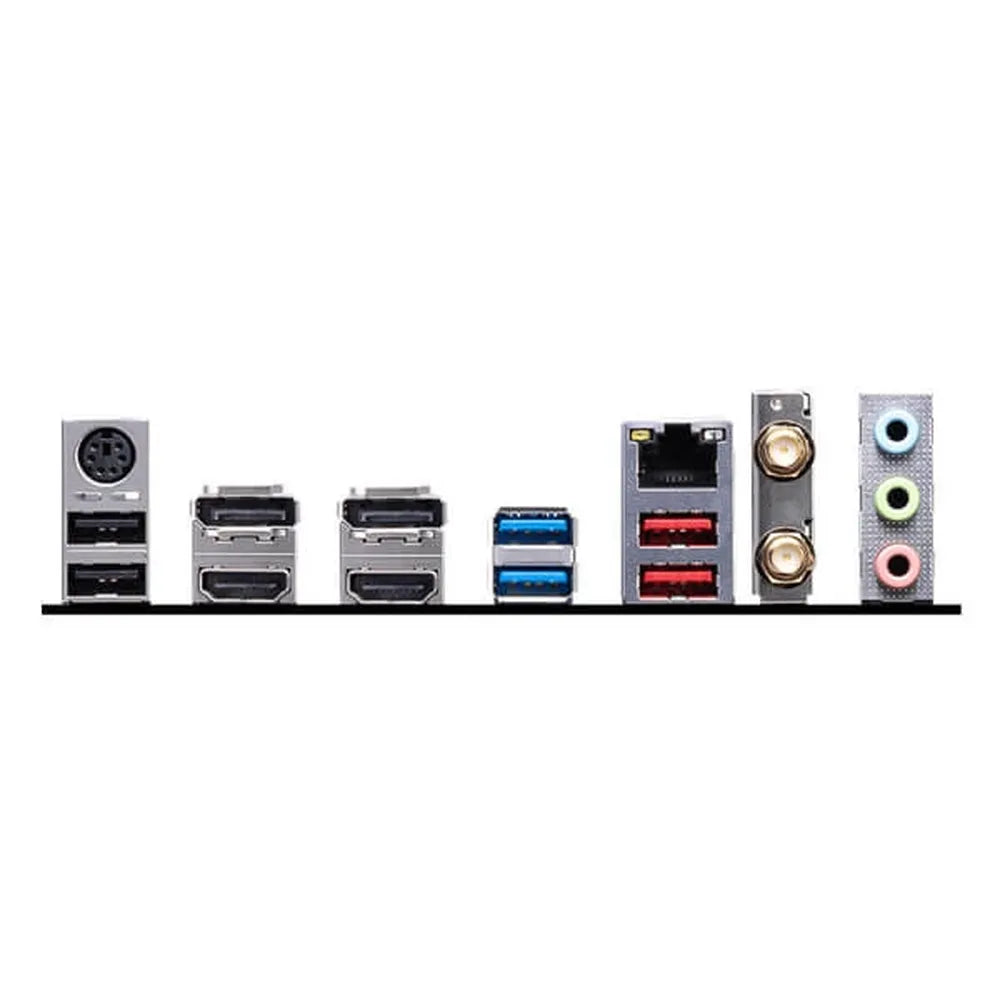

| Back Panel Ports | Keyboard / MouseDisplayPortUSB 3.2 Gen 1 5Gbps (Type-A)2.5G LANWi-Fi / BluetoothUSB 2.0HDMI™USB 3.2 Gen 2 10Gbps (Type-A)Audio Connectors |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Onboard Graphics | 2x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz2x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz |
| Wireless Lan & Bluetooth | Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA |
