MSI B760M Gaming Plus WIFI DDR5 Motherboard
MPN B760M-GAMING-PLUS-WIFI · Brand MSI · mATX
The MSI B760M Gaming Plus WIFI is a Micro-ATX Intel B760 motherboard for LGA1700 processors (12th–14th Gen) featuring DDR5 up to 6800+ MHz OC, PCIe 4.0 M.2, Intel Wi-Fi 6E, and 2.5G LAN
Inclusive of GST · GST invoice available
Overview
The MSI B760M Gaming Plus WIFI is a Micro-ATX motherboard built on Intel's B760 chipset, designed to support Intel Core 12th, 13th, and 14th Generation processors as well as Intel Pentium Gold and Celeron processors in the LGA1700 socket. Its compact 243.84 mm × 243.84 mm footprint makes it an efficient choice for space-conscious gaming and productivity builds that still demand strong connectivity and upgrade headroom. Power delivery is handled by a 12+1 Duet Rail Power System with ProPower (P-PAK) components, fed through an 8-pin plus 4-pin CPU power configuration. MSI's Core Boost and Memory Boost technologies work alongside this robust VRM arrangement to help stabilise performance under sustained loads. For memory, the board provides four DDR5 slots with a maximum validated capacity of 192 GB (as specified in the chipset section), supporting JEDEC speeds from 4800 MHz up to 6800+ MHz via XMP 3.0 overclocking profiles in dual-channel configuration. Non-ECC, unbuffered modules are required. Storage connectivity includes two M.2 slots—both supporting PCIe 4.0 ×4 and 2280/2260/2242 form factors, with the second slot additionally supporting SATA mode—and four SATA 6 Gb/s ports with RAID 0, 1, 5, and 10 support. Networking is a genuine strength: onboard Intel Wi-Fi 6E delivers tri-band 2.4 GHz/5 GHz/6 GHz coverage with MU-MIMO TX/RX and speeds up to 2.4 Gbps over a 160 MHz channel, paired with Bluetooth 5.3. Wired connectivity is provided by a Realtek RTL8125BG 2.5G LAN port. Display output covers two HDMI 2.1 ports (4K @ 60 Hz) and two DisplayPort 1.4 outputs (4K @ 60 Hz) for integrated-graphics users. Audio is managed by a Realtek ALC897 codec with 7.1-channel HD audio support. Rear USB includes two USB 3.2 Gen 2 Type-A (10 Gbps), two USB 3.2 Gen 1 Type-A (5 Gbps), and two USB 2.0 ports, with additional front-panel headers. Thermal management features an extended heatsink, MOSFET thermal pads rated at 7 W/mK, and additional choke thermal pads. Four EZ Debug LEDs assist with rapid troubleshooting, and the board includes two ARGB V2 headers and one RGB header for lighting control. Verified Specifications: • Chipset: Intel B760 • Socket: LGA1700 • Form Factor: Micro-ATX (243.84 mm × 243.84 mm) • Memory: 4× DDR5 slots, up to 192 GB, 4800–6800+ MHz (XMP 3.0) • Storage: 2× M.2 PCIe 4.0 ×4, 4× SATA 6 Gb/s (RAID 0/1/5/10) • Expansion: 1× PCIe 4.0 ×16 (CPU), 1× PCIe 4.0 ×4 (chipset), 1× PCIe 3.0 ×1 (chipset) • Display: 2× HDMI 2.1 (4K@60Hz), 2× DisplayPort 1.4 (4K@60Hz) • LAN: Realtek RTL8125BG 2.5G • Wireless: Intel Wi-Fi 6E (802.11ax, 2.4/5/6 GHz, up to 2.4 Gbps), Bluetooth 5.3 • Audio: Realtek ALC897, 7.1-channel HD • Power: 12+1 Duet Rail VRM, 8-pin + 4-pin CPU connectors • OS Support: Windows 11 / Windows 10 (64-bit) • Warranty: 3 years

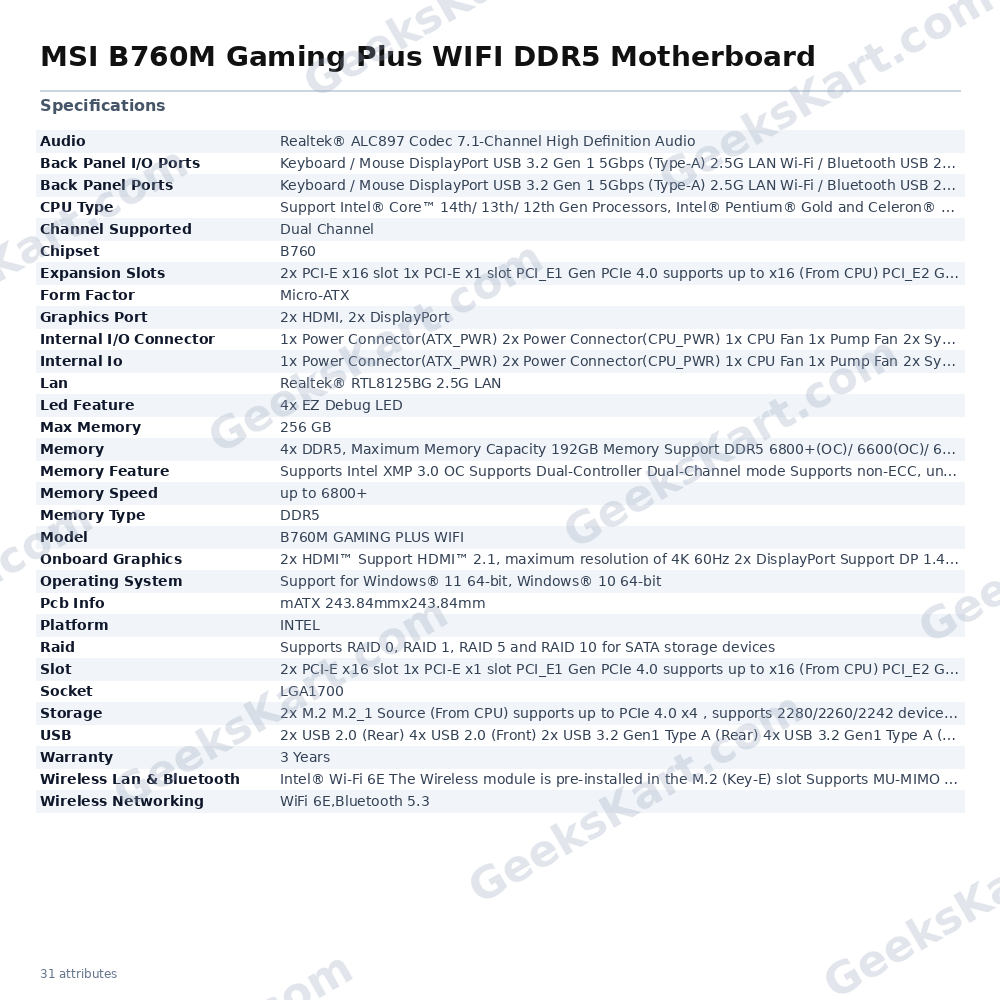

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | B760 |
| Socket | LGA1700 |
| CPU Type | Support Intel® CoreTM 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Max Memory | 256 GB |
| Memory Speed | up to 6800+ |
| Lan | Realtek® RTL8125BG 2.5G LAN |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Slot | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| Pcb Info | mATX 243.84mmx243.84mm |
| Platform | INTEL |
| Internal Io | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
| Led Feature | 4x EZ Debug LED |
| Model | B760M GAMING PLUS WIFI |
| Graphics Port | 2x HDMI, 2x DisplayPort |
| Memory Feature | Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Expansion Slots | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Back Panel Ports | Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth USB 2.0 HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) Audio Connectors |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Onboard Graphics | 2x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth USB 2.0 HDMI USB 3.2 Gen 2 10Gbps (Type-A) Audio Connectors |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| Wireless Lan & Bluetooth | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
