MSI B850 Gaming Plus WIFI ATX Motherboard
MPN B850-GAMING-PLUS-WIFI · Brand MSI · ATX
The MSI B850 Gaming Plus WIFI is an ATX motherboard for AMD AM5 processors (Ryzen 9000/8000/7000) featuring DDR5 up to 8200+ MT/s, PCIe 5.0, Wi-Fi 7, 5G LAN, and a robust 12+2+1 VRM with dual 8-pin power connectors
Inclusive of GST · GST invoice available
Overview
The MSI B850 Gaming Plus WIFI is a full-size ATX motherboard built on the AMD B850 chipset and designed around the AM5 socket. It is compatible with AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 series desktop processors, making it a versatile foundation for a wide range of modern AMD builds. Power delivery is handled by a 12+2+1 Duet Rail Power System paired with dual 8-pin CPU power connectors. The board ships with MSI Core Boost and Memory Boost technologies, and its 6-layer PCB is constructed from 2 oz thickened copper with server-grade materials for reliable current handling under sustained loads. Thermal management on the VRM and M.2 areas is addressed through the Frozr Guard system. This includes an extended heatsink, MOSFET thermal pads rated at 7W/mK, additional choke thermal pads, and EZ M.2 Shield Frozr II covers over the M.2 slots to help keep SSDs within operating temperatures during extended use. The primary PCIe slot (PCI_E1) runs at PCIe 5.0 x16 for Ryzen 9000 and 7000 series CPUs, dropping to PCIe 4.0 x8 for Ryzen 8700/8600/8400 and PCIe 4.0 x4 for Ryzen 8500/8300 processors. A Lightning Gen 5 x4 M.2 slot is also included for next-generation NVMe storage. Three additional PCIe slots are present: one PCIe 3.0 x1 and one PCIe 4.0 x4 from the chipset, plus one further PCIe 3.0 x1 slot. Connectivity is a highlight of this board. The wireless solution features full-speed Wi-Fi 7 with Bluetooth 5.4, while wired networking is served by a 5G LAN port. The rear I/O panel includes USB 10 Gbps Type-A and two USB 10 Gbps Type-C ports, USB 5 Gbps Type-A, USB 2.0, a DisplayPort output, S/PDIF out, and audio jacks. A Flash BIOS Button and Clear CMOS button are also present for convenient maintenance. Internal headers provide 4x USB 2.0 ports, 4x USB 5 Gbps Type-A ports, 1x USB 5 Gbps Type-C, three ARGB V2 headers, one standard RGB header, a TPM 2.0 pin header, fan headers for CPU, pump, and four system fans, and a front USB Type-C header. Audio Boost delivers dedicated audio circuitry for improved signal clarity. Verified Specifications: - Socket: AM5 - Chipset: AMD B850 - Form Factor: ATX - Supported CPUs: AMD Ryzen 9000 / 8000 / 7000 series - Memory Type: DDR5 (Dual Channel, Non-ECC Unbuffered) - Max Memory: 256 GB - Memory Speed: Up to 8200+ MT/s (OC); supports AMD EXPO and JEDEC - Primary PCIe Slot: PCIe 5.0 x16 (CPU-direct, Ryzen 9000/7000) - M.2: Lightning Gen 5 x4 (plus additional M.2 slots with EZ M.2 Shield Frozr II) - LAN: 5G - Wireless: Wi-Fi 7, Bluetooth 5.4 - USB (rear): USB 10 Gbps Type-A, 2x USB 10 Gbps Type-C, USB 5 Gbps Type-A, USB 2.0 - Display Output: 1x DisplayPort - VRM: 12+2+1 phases, dual 8-pin CPU power - Warranty: 3 Years

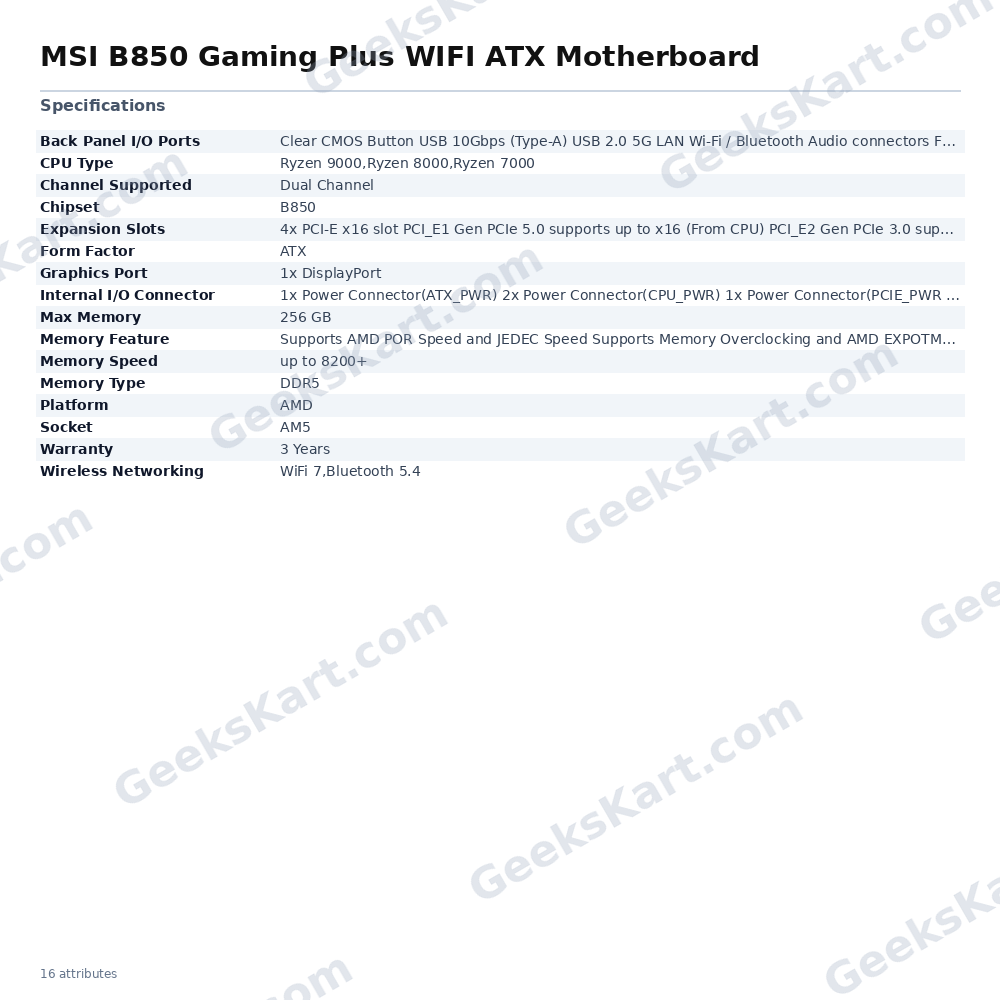

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | B850 |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Max Memory | 256 GB |
| Memory Speed | up to 8200+ |
| Platform | AMD |
| Graphics Port | 1x DisplayPort |
| Memory Feature | Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support Brand website |
| Expansion Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | Clear CMOS Button USB 10Gbps (Type-A) USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button DisplayPort USB 10Gbps (Type-C) USB 10Gbps (Type-C) USB 5Gbps (Type-A) S/PDIF-OUT |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
