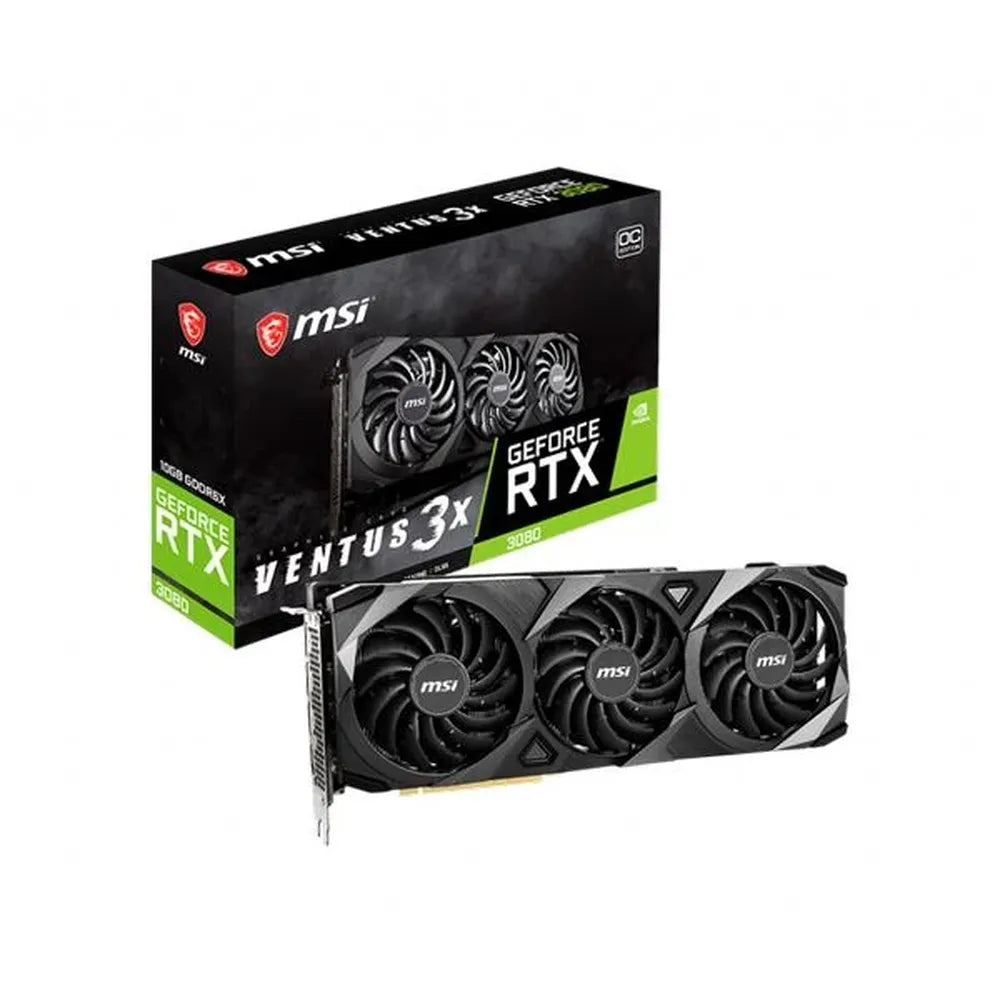

MSI GeForce RTX 3080 Ventus 3X 10GB Nvidia Graphic Card
MPN MSI-3080-VENTUS-3X-10G · Brand MSI
Features of MSI GeForce RTX 3080 Ventus 3X 10GB Graphics Card MSI GeForce RTX 3080 Ventus 3X 10GB Nvidia Graphic Card brings a performance-focused design that maintains the essentials to accomplish any task at hand. A capable triple fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build. GRAPHENE BACKPLATE A lightweight composite Graphene backplate reinforces the length of the graphics card while providing passive thermal conduction propertie
Inclusive of GST · GST invoice available
Overview
Features of MSI GeForce RTX 3080 Ventus 3X 10GB Graphics Card
MSI GeForce RTX 3080 Ventus 3X 10GB Nvidia Graphic Card brings a performance-focused design that maintains the essentials to accomplish any task at hand. A capable triple fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
GRAPHENE BACKPLATE
A lightweight composite Graphene backplate reinforces the length of the graphics card while providing passive thermal conduction properties.
The GeForce RTX™ 3080 delivers the ultra performance that gamers crave, powered by Ampere—NVIDIA's 2nd gen RTX architecture. It's built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory for an amazing gaming experience.
Core / Memory
- Boost Clock / Memory Speed
1710 MHz / 19 Gbps - 10GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
Graphene Backplate
A composite Graphene backplate reinforces the graphics card while providing passive thermal conduction properties.
Core Pipe
Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Triple Fan Thermal Design
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
- Zero Frozr: Calm before the storm, keeping fans still and maintaining silence until cooling is needed.
- Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.
MSI Center
The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Graphene Backplate
- A composite Graphene backplate reinforces the graphics card while providing passive thermal conduction properties.
Core Pipe
- Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Triple Fan Thermal Design
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
- Zero Frozr: Calm before the storm, keeping fans still and maintaining silence until cooling is needed.
- Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.
Specifications of MSI GeForce RTX 3080 Ventus 3X 10GB Nvidia Graphic Card
| MODEL NAME | GeForce RTX™ 3080 VENTUS 3X 10G |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 3080 |
| INTERFACE | PCI Express® Gen 4 |
| CORES | 8704 Units |
| CORE CLOCKS | Boost: 1710 MHz |
| MEMORY SPEED | 19 Gbps |
| MEMORY | 10GB GDDR6X |
| MEMORY BUS | 320-bIt |
| OUTPUT | DisplayPort x 3 (v1.4a) |
| HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1) | |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 320W |
| POWER CONNECTORS | 8-pin x 2 |
| RECOMMENDED PSU | 750W |
| CARD DIMENSION (MM) | 305 x 120 x 57 mm |
| WEIGHT (CARD / PACKAGE) | 1370g / 1986g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| G-SYNC® TECHNOLOGY | Y |
| ADAPTIVE VERTICAL SYNC | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680x4320 |
Datasheet
| Output | DisplayPort x 3 (v1.4a) |
|---|---|
| Vr Ready | Y |
| Power Consumption | 320W |
| Model | GeForce RTX™ 3080 VENTUS 3X 10G |
| Core Clocks | Boost: 1710 MHz |
| Hdcp Support | Y |
| G-Sync® Technology | Y |
| Memory | 10GB GDDR6X |
| Memory Bus | 320-bIt |
| Maximum Displays | 4 |
| Power Connectors | 8-pin x 2 |
| Card Dimension (Mm) | 305 x 120 x 57 mm |
| Adaptive Vertical Sync | Y |
| Opengl Version Support | 4.6 |
| Directx Version Support | 12 API |
| Weight (Card / Package) | 1370g / 1986g |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 3080 |
| Digital Maximum Resolution | 7680×4320 |
| Cores | 8704 Units |
| Memory Speed | 19 Gbps |
| Interface | PCI Express® Gen 4 |
| Recommended PSU | 750W |
