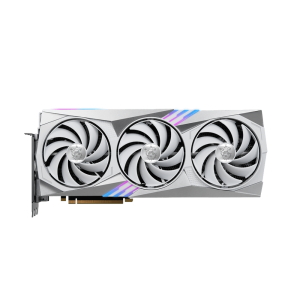

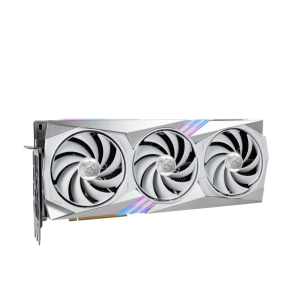

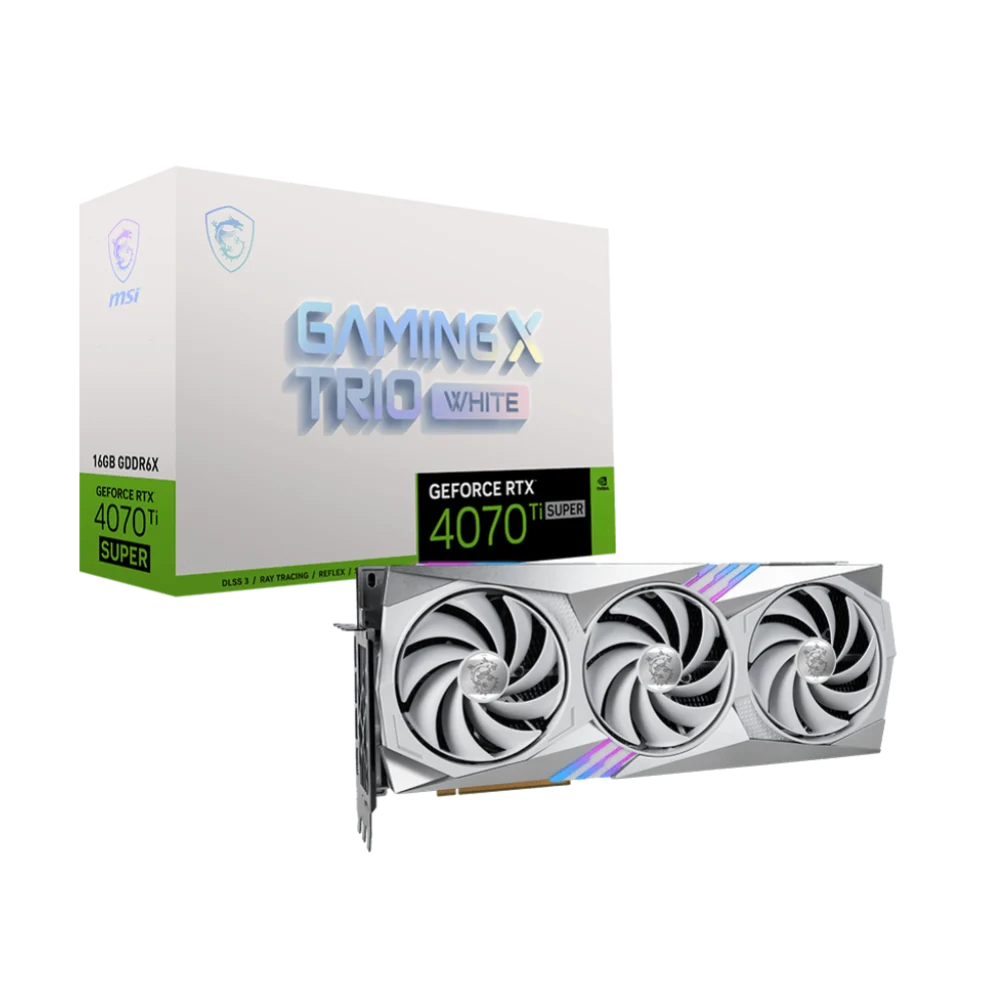

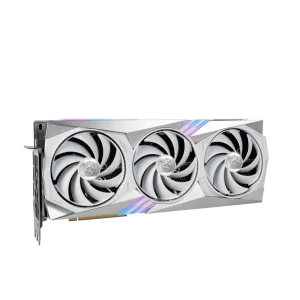

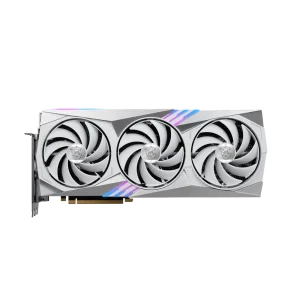

Features Of MSI GeForce RTX 4070 Ti Super Gaming X Trio White 16GB
- 2670 MHz (GAMING & SILENT Mode) / 21 Gbps
- 16GB GDDR6X

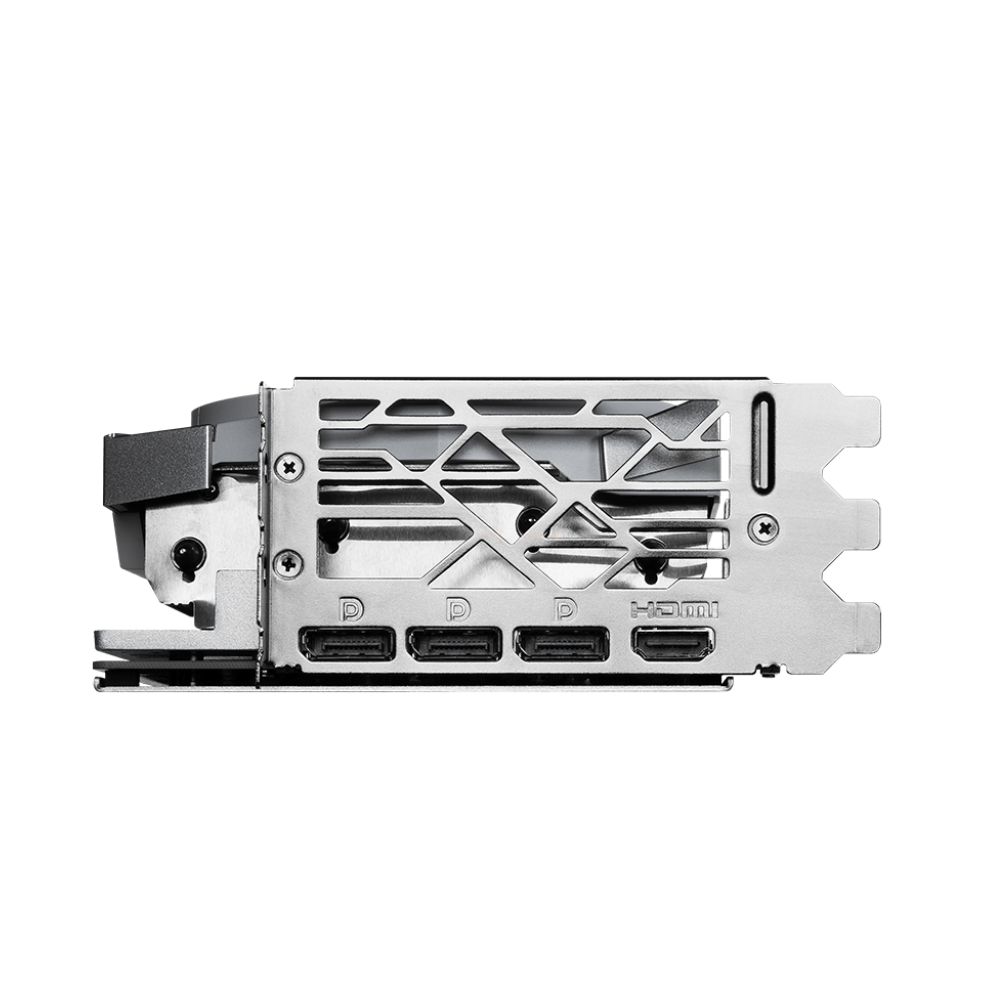

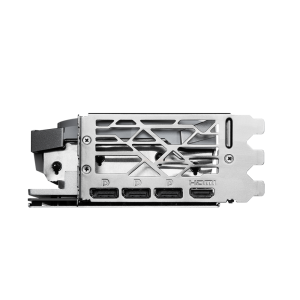

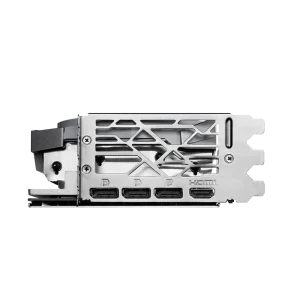

- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

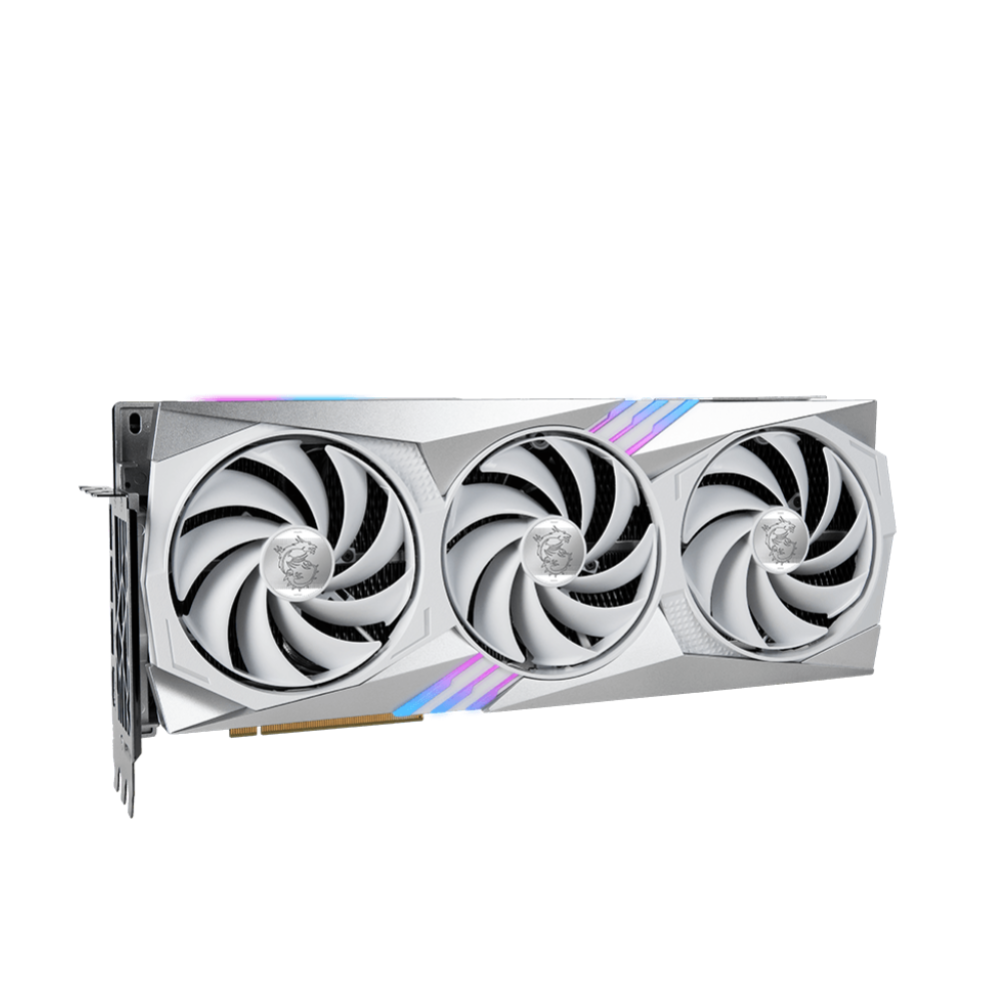

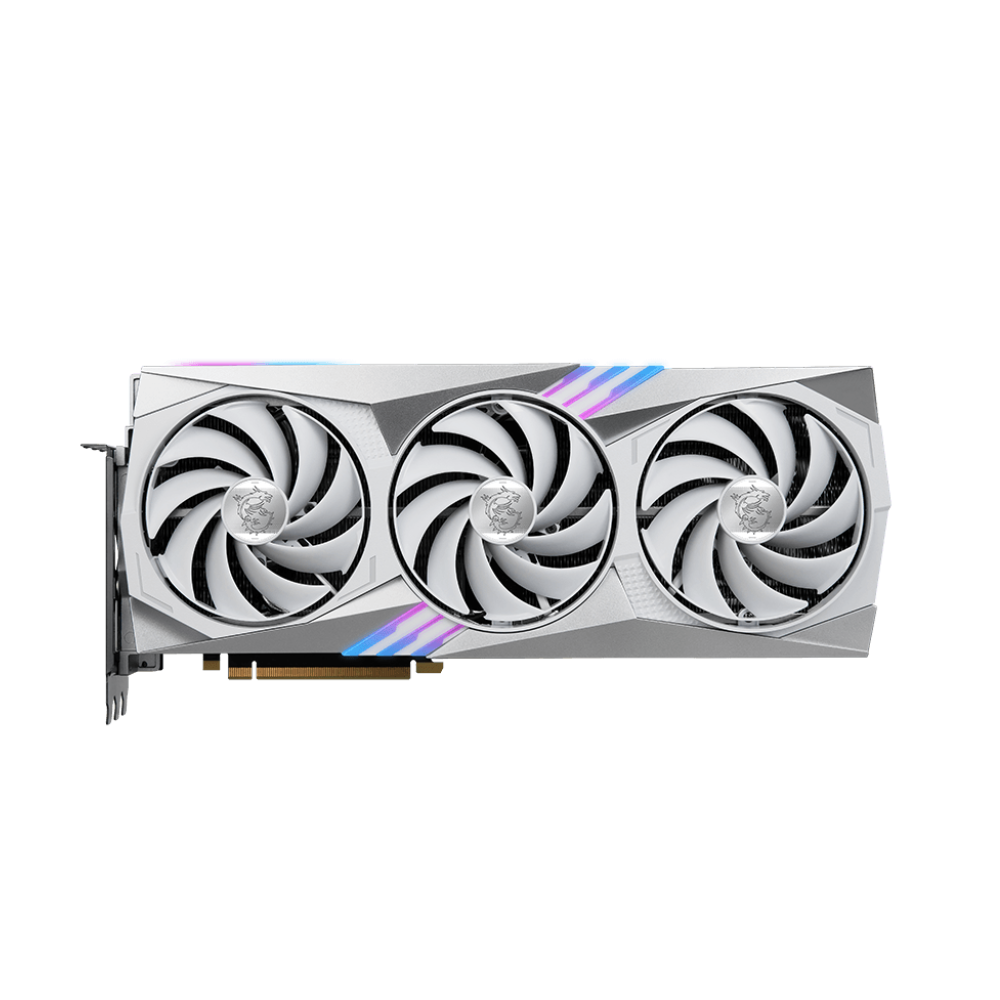

TRI FROZR 3 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: The CNC machined nickel-plated copper base captures heat from the GPU and the memory then rapidly transfers it to Core Pipes.
- Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
- Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.

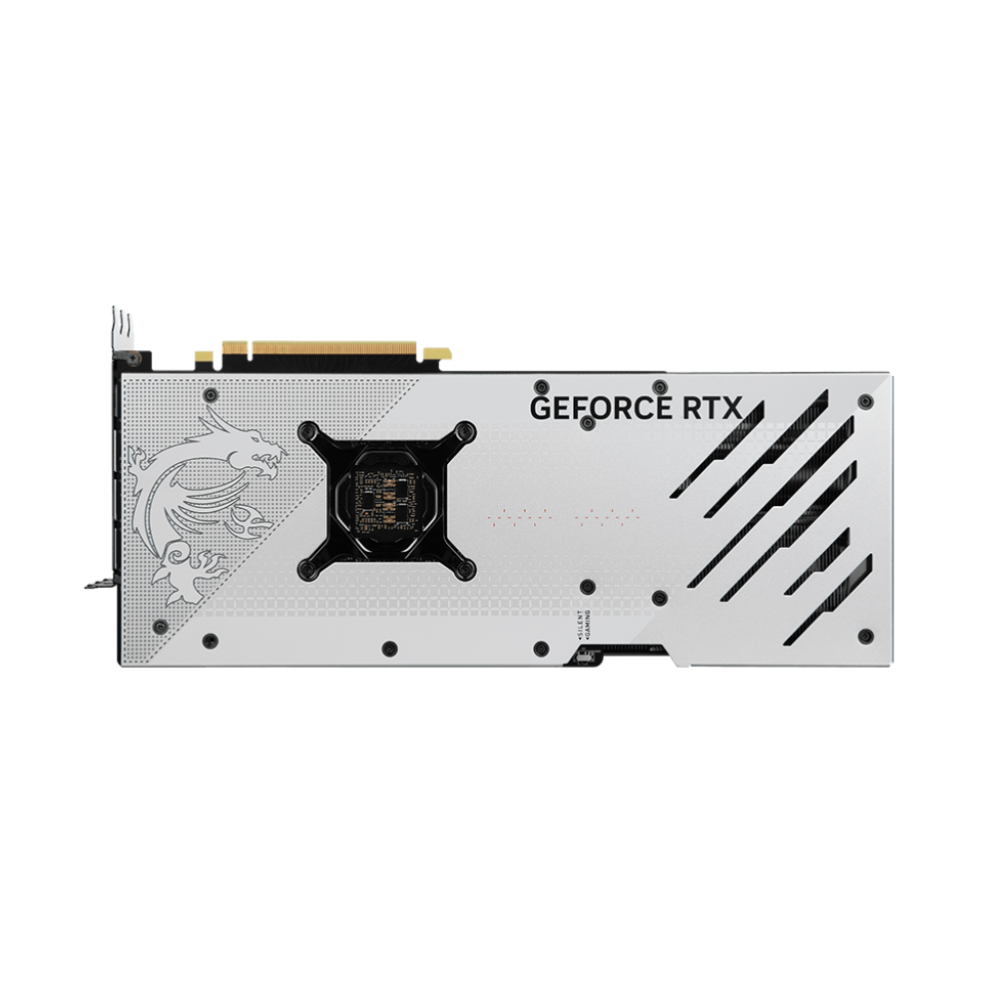

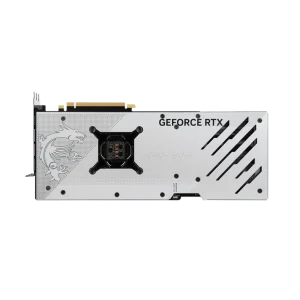

METAL BACKPLATE
Thermal pads under the sturdy metal backplate provide additional cooling while the flow-through ventilation reduces trapped heat.
DOUBLE BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
RELENTLESS DEFENSE
A die-cast anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.

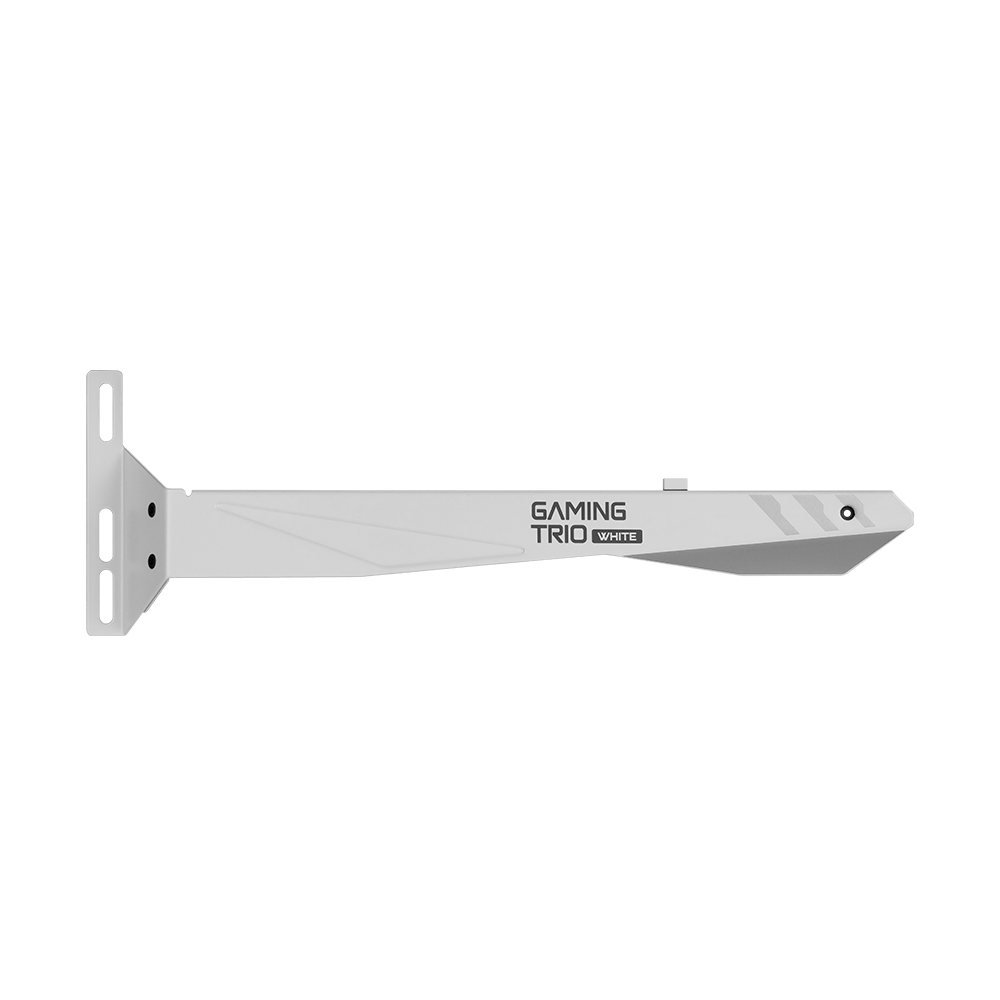

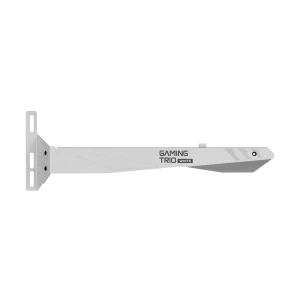

YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
BRINGING IT ALL TOGETHER
MSI’s exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.

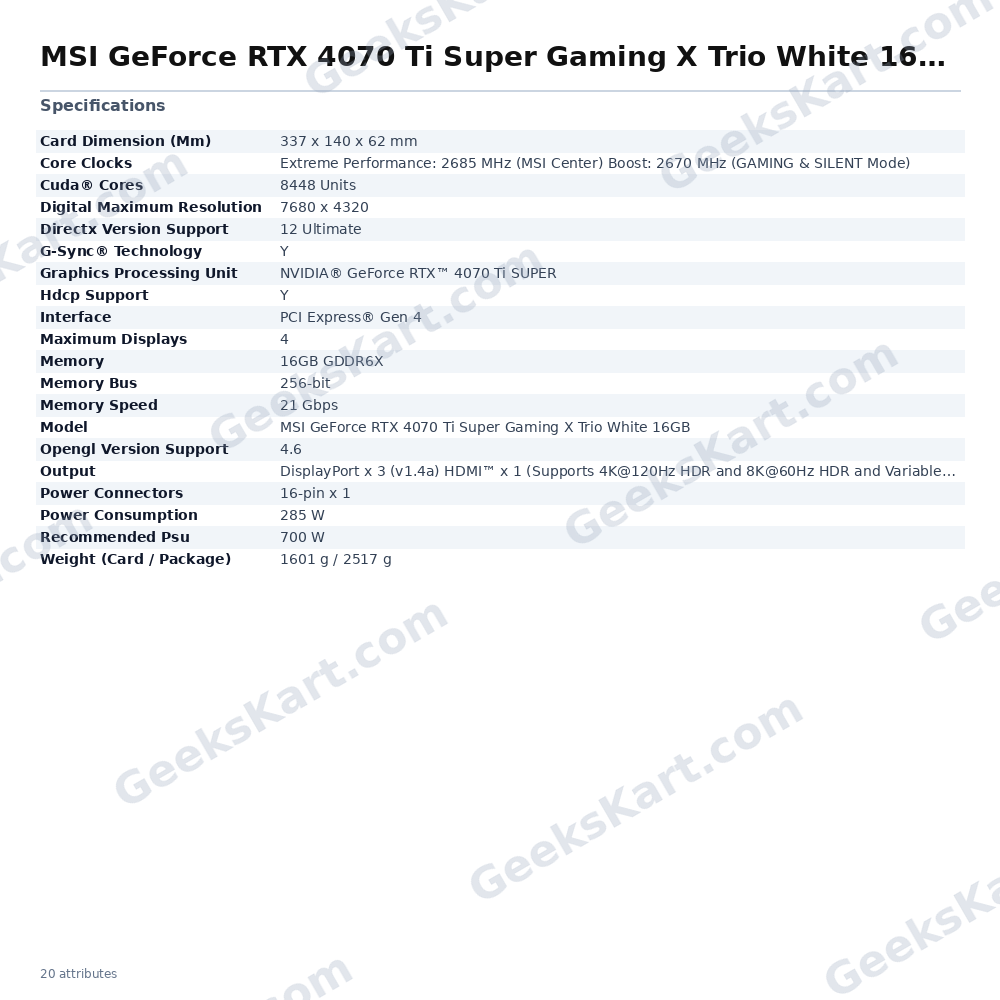

Specifications Of MSI GeForce RTX 4070 Ti Super Gaming X Trio White 16GB
| MODEL NAME | MSI GeForce RTX 4070 Ti Super Gaming X Trio White 16GB |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4070 Ti SUPER |
| INTERFACE | PCI Express® Gen 4 |
| CORE CLOCKS | Extreme Performance: 2685 MHz (MSI Center) Boost: 2670 MHz (GAMING & SILENT Mode) |
| CUDA® CORES | 8448 Units |
| MEMORY SPEED | 21 Gbps |
| MEMORY | 16GB GDDR6X |
| MEMORY BUS | 256-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 285 W |

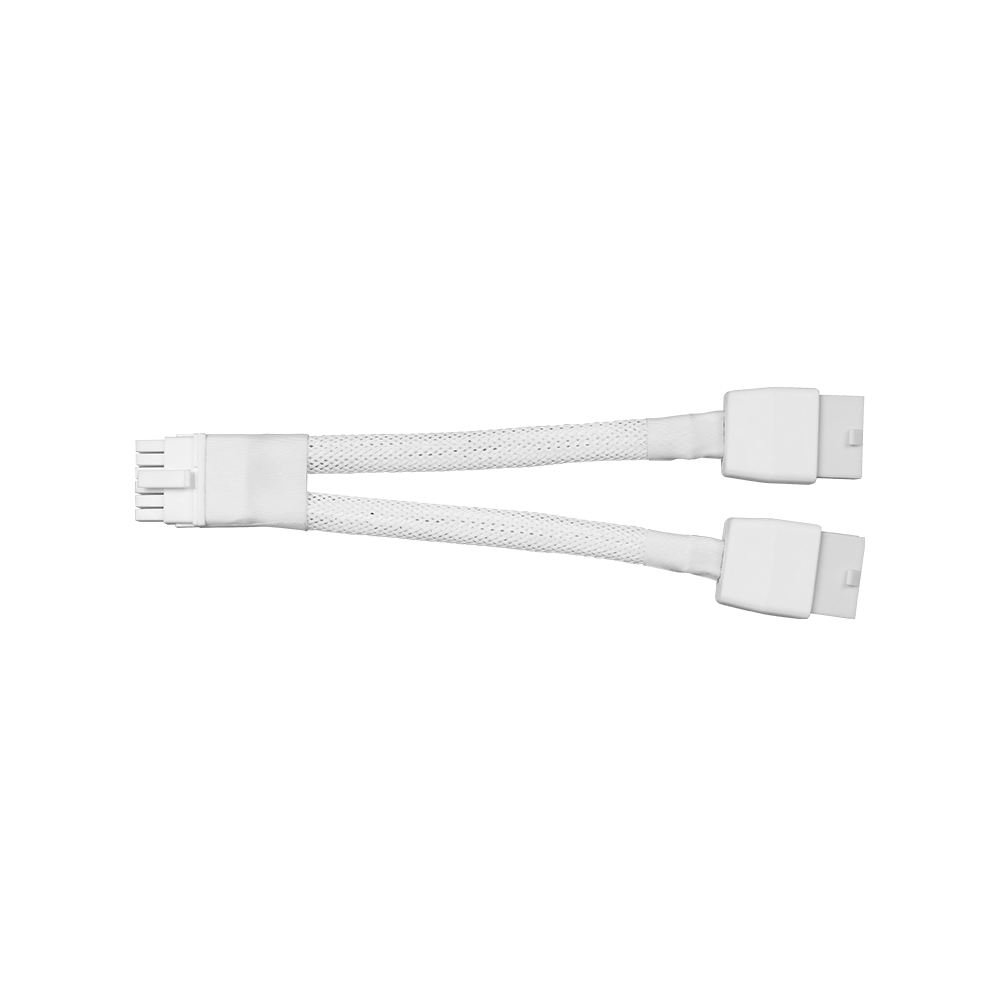

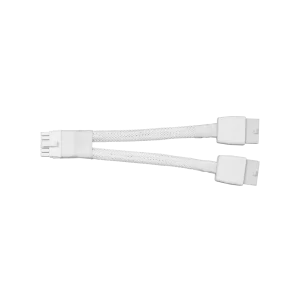

| POWER CONNECTORS | 16-pin x 1 |
| RECOMMENDED PSU | 700 W |
| CARD DIMENSION (MM) | 337 x 140 x 62 mm |
| WEIGHT (CARD / PACKAGE) | 1601 g / 2517 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
