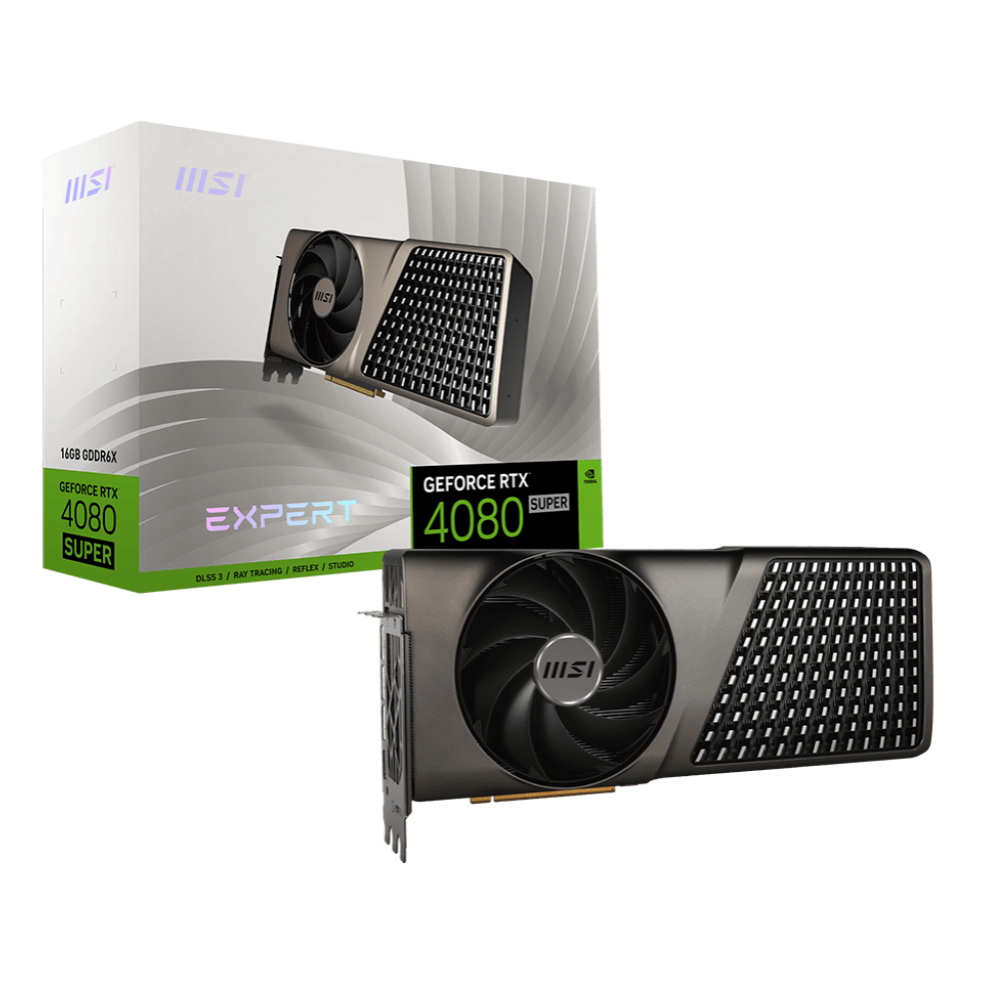

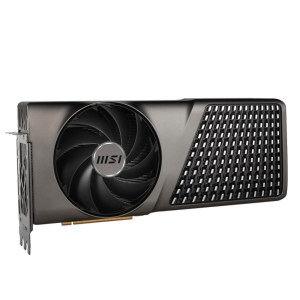

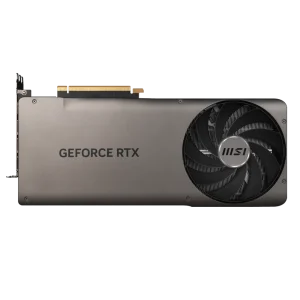

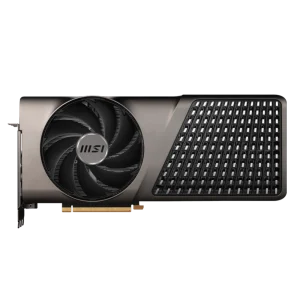

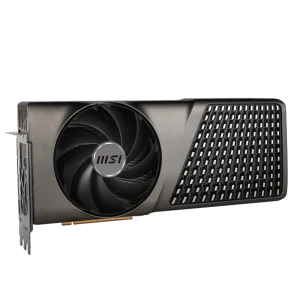

MSI GeForce RTX 4080 Super 16GB Expert GDDR6X Nvidia Graphic Card
MPN MSI-GEFORCE-RTX-4080-SUPER · Brand MSI
Features of MSI GeForce RTX 4080 Super 16GB Expert Supercharge your PC with the NVIDIA ® Msi Rtx 4080 Super 16Gb Expert. Bring your games and creative projects to life with accelerated ray tracing and AI-powered graphics card. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and 16GB of super-fast G6X memory. Boost Clock / Memory Speed Extreme Performance: 2625 MHz (MSI Center) Boost: 2610 MHz 23 Gbps 16GB GDDR6X DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60
Inclusive of GST · GST invoice available
Overview
Features of MSI GeForce RTX 4080 Super 16GB Expert
Supercharge your PC with the NVIDIA® Msi Rtx 4080 Super 16Gb Expert. Bring your games and creative projects to life with accelerated ray tracing and AI-powered graphics card. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and 16GB of super-fast G6X memory.
Boost Clock / Memory Speed
- Extreme Performance: 2625 MHz (MSI Center)
Boost: 2610 MHz
23 Gbps - 16GB GDDR6X

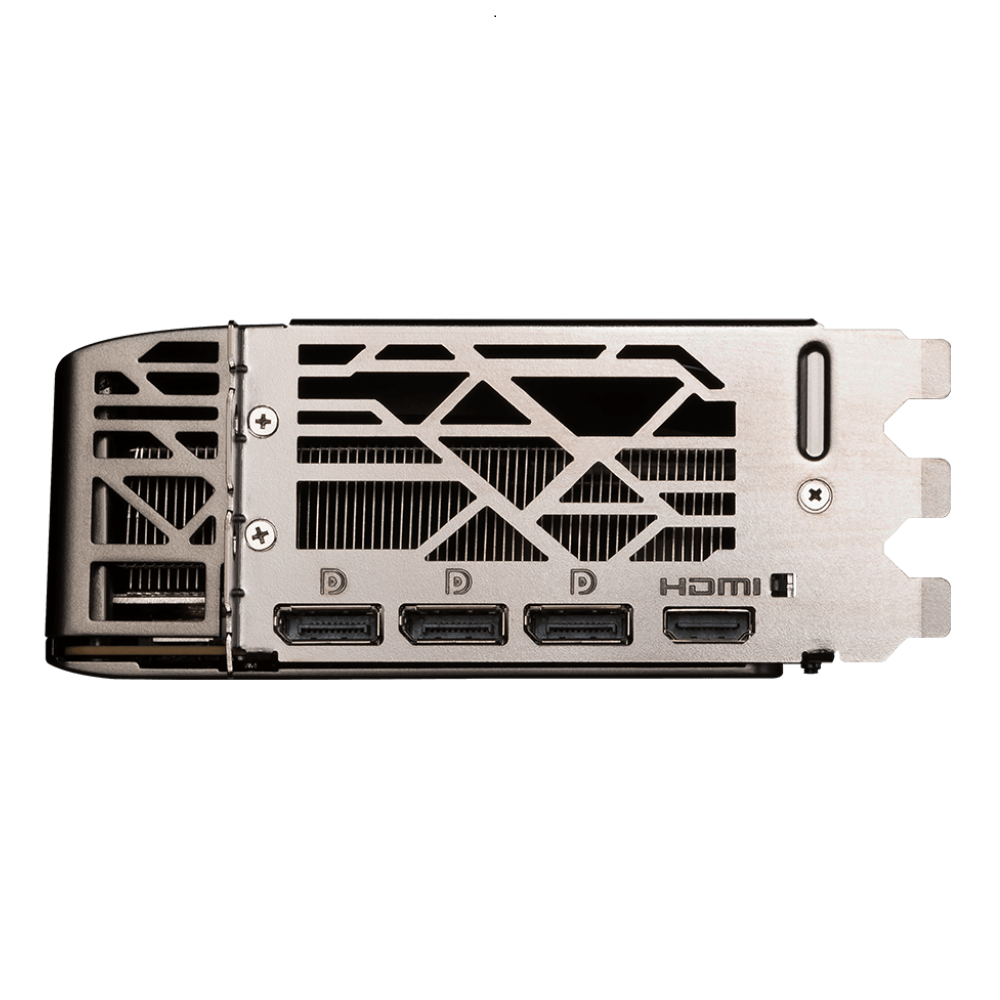

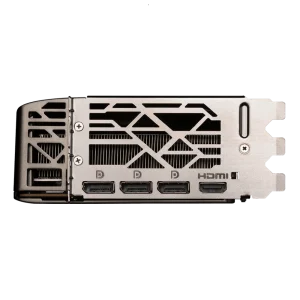

- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

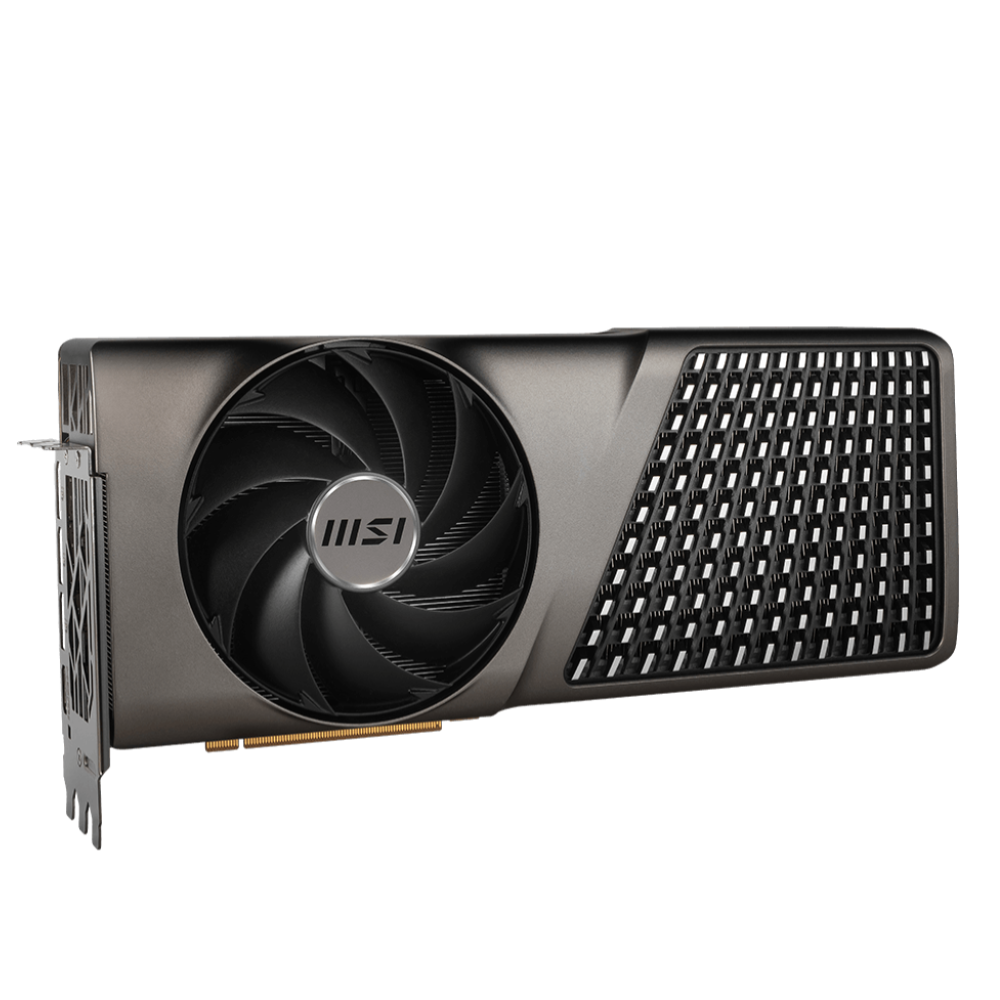

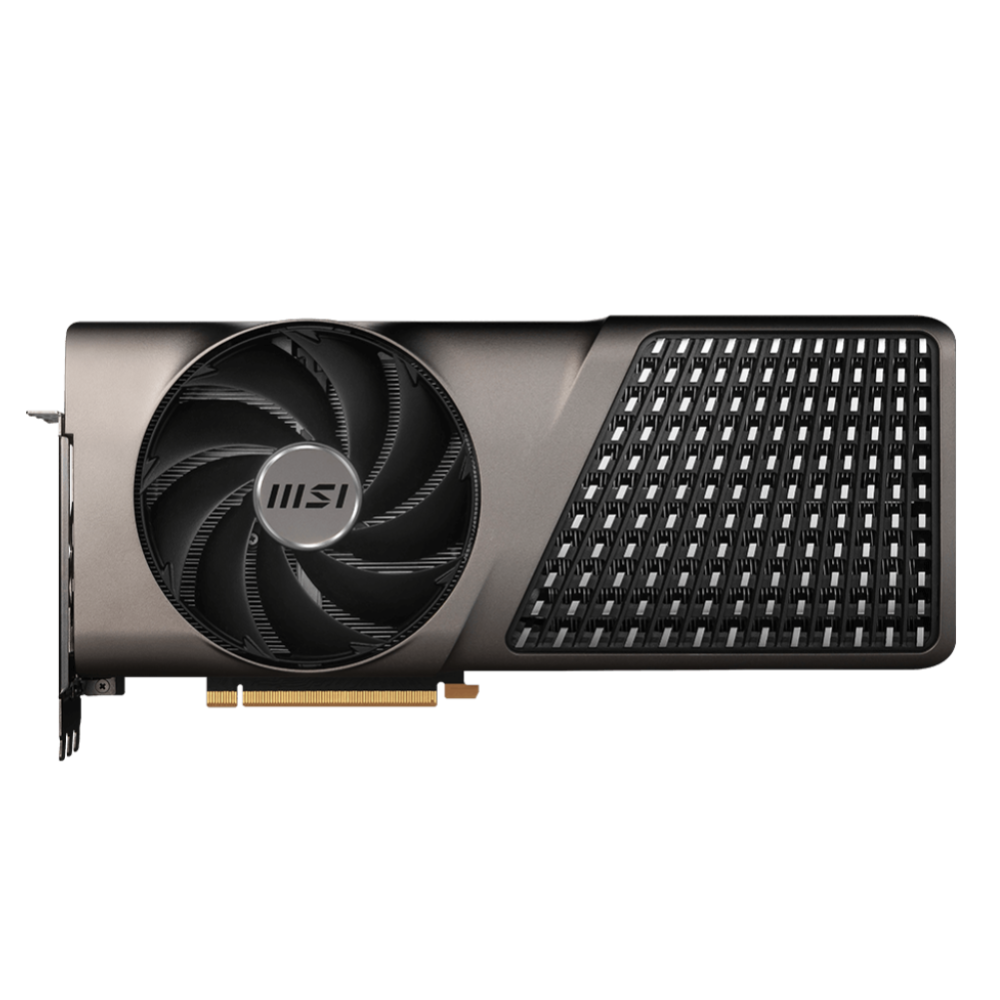

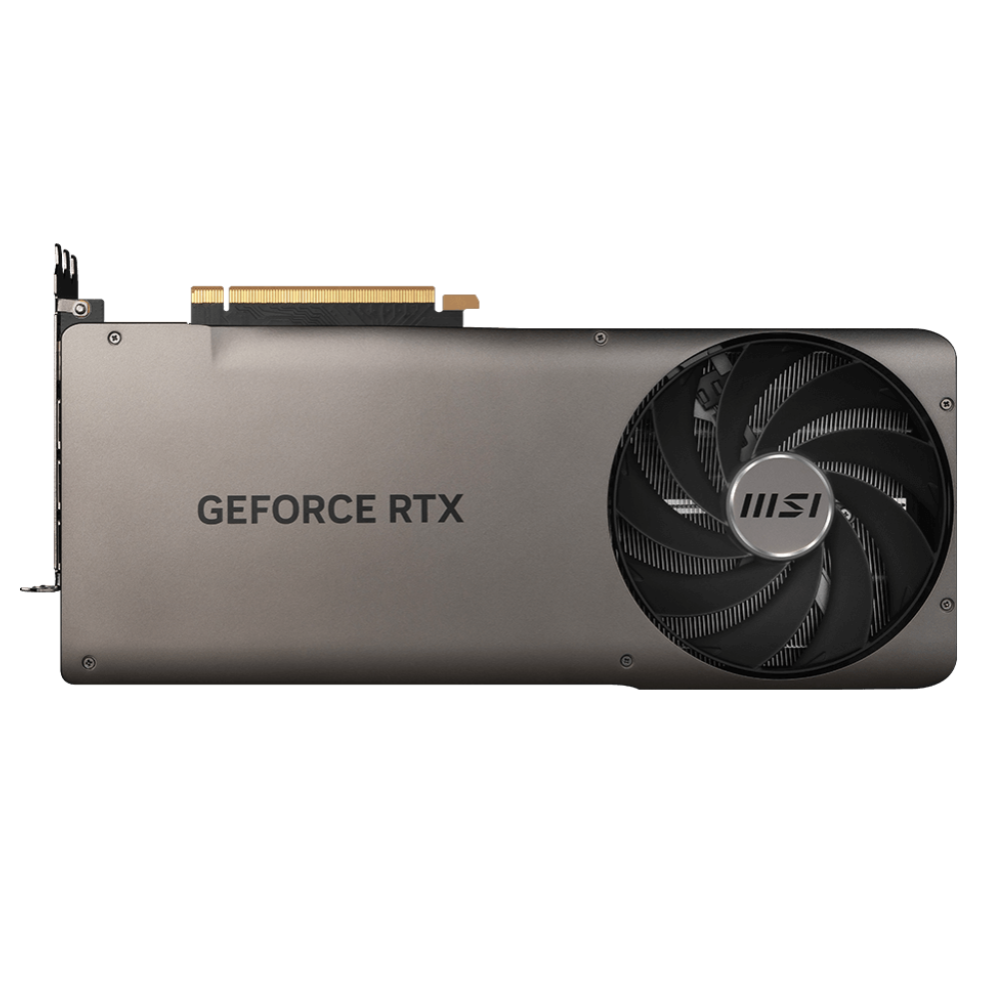

FLOW FROZR Thermal Design
- Push Pull Airflow: Improved cooling efficiency and reduced heat buildup, as two sets of fans work collaboratively—one set pushes cool air into the heatsink, while the other pulls hot air away.
- Patented Fan Design: The unique design features a distinctive appearance and enhances airflow to improve heat dissipation capability.
- Vapor Chamber: The GPU and memory modules are covered with a Vapor Chamber which rapidly transfers heat to core pipes.
- Core Pipe: Precision-machined heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Specifications of MSI GeForce RTX 4080 Super 16GB Expert
| Model Name | MSI GeForce RTX 4080 Super 16GB Expert GDDR6X |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 4080 SUPER |
| Interface | PCI Express® Gen 4 |
| Core Clocks | Extreme Performance: 2625 MHz (MSI Center) Boost: 2610 MHz |
| Cuda Cores | 10240 Units |
| Memory Speed | 23 Gbps |
| Memory | 16GB GDDR6X |
| Memory Bus | 256 Bit |
| Output | DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) |
| HDCP Support | Y |
| Power Consumption | 320W |
| Power Connectors | 16-pin x 1 |
| Recommended PSU | 850 W (Min.750 W) |
| Card Dimension (mm) | 312 x 141 x 61 mm |
| Weight (Card / Package) | 1909g / 2906g |
| Direct X Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-Sync Technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
| Warranty | 3 Years |
| Note** | ***Features, Price and Specifications are subject to change without notice. |
Datasheet
| Output | DisplayPort x 3 (v1.4a)HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) |
|---|---|
| Memory | 16GB GDDR6X |
| Cuda Cores | 10240 Units |
| Memory Bus | 256 Bit |
| Model | MSI GeForce RTX 4080 Super 16GB Expert GDDR6X |
| Core Clocks | Extreme Performance: 2625 MHz (MSI Center)Boost: 2610 MHz |
| Hdcp Support | Y |
| Maximum Displays | 4 |
| Power Connectors | 16-pin x 1 |
| G-Sync Technology | Y |
| Card Dimension (Mm) | 312 x 141 x 61 mm |
| Opengl Version Support | 4.6 |
| Weight (Card / Package) | 1909g / 2906g |
| Direct X Version Support | 12 Ultimate |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 4080 SUPER |
| Digital Maximum Resolution | 7680 x 4320 |
| Warranty | 3 Years |
| Memory Speed | 23 Gbps |
| Interface | PCI Express® Gen 4 |
| Recommended PSU | 850 W (Min.750 W) |
| Power Consumption | 320W |
